- SPU: AL-N8M0-8dyzk6ox[8]
- 規格型號:1m*常規
- 規格型號:2m*常規
- 規格型號:3m*常規
- 規格型號:5m*常規
- 規格型號:1m*XH2.54-3P加端子
- 規格型號:2m*XH2.54-3P加端子
- 規格型號:3m*XH2.54-3P加端子
- 規格型號:5m*XH2.54-3P加端子
產品介紹：
採用數字溫度傳感器DS18B20，盆土採用高導熱密封膠，保證了溫度傳感器的高靈敏度和最小的溫度延遲。溫度傳感器支持「1-Wire」接口（1-Wire），測量溫度範圍為-55°C~+125°C，在-10~+85°C範圍內，精度為±0.5 ℃。現場溫度採用「單線總線」數字方式直接傳輸，大大提高了系統的抗干擾性，適用於惡劣環境下的現場測溫。DS18B20數字溫度傳感器都有唯一的編號，溫度採集裝置通過編號識別對應的溫度傳感器。
DS18B20溫度傳感器不鏽鋼6*50；採用常規18B20芯片與環氧樹脂封裝，高溫低衝擊下產品不漂移、不脫殼、不溶解。具有壽命長、溫度採集優良、防水性、非常好的穩定性。
特點參數：
一、特點說明
1. 使用溫度範圍：-55~+125℃ 能長時間工作、阻值穩定
2. 熱時間常數：約10S
3. 水中耐壓：AC=1800V*1mA*60S無擊穿或閃爍現象（空氣中耐壓*2）
4. 防水等級：IP66級
5. 濕敏等級：1A級
6. 滿足RoHS環保要求
7. 便於快速安裝、外形美觀
8. 不鏽鋼304、傳熱感溫快、防真空工藝
9. 廣泛使用：冷凍庫，糧倉，儲罐，電訊機房，電力機房，電纜線槽等等
二、參數介紹
|
工作電源電壓（V） |
DC 3～5V |
|
測溫分辨率（%） |
+0.06% |
|
工作溫度範圍（℃） |
-55℃~ +125℃ |
|
測量數據傳送方式 |
9～12位數字量串行傳送 |
|
輸出線連接方式 |

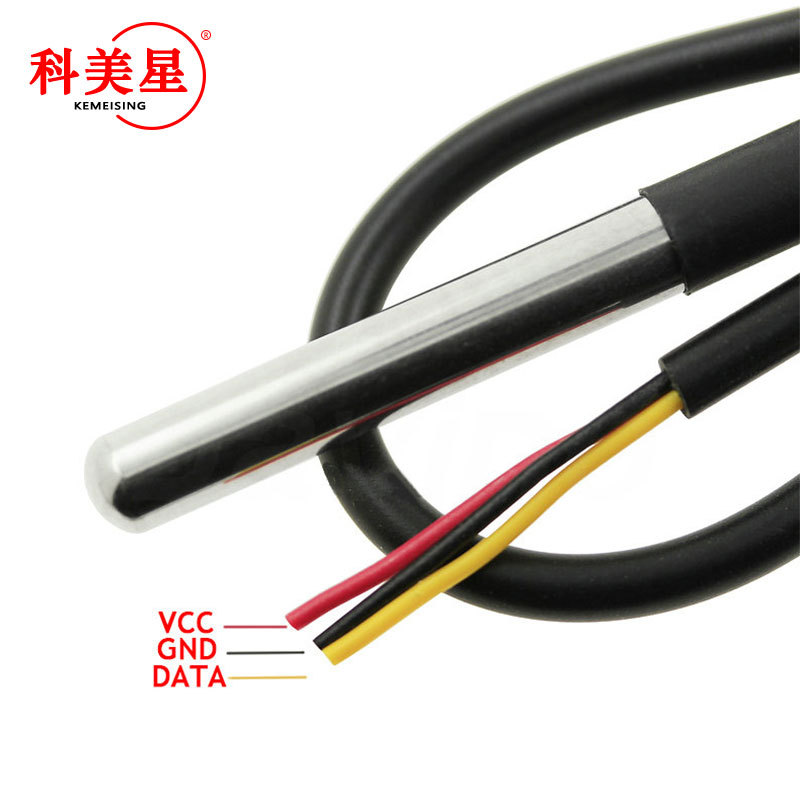

黑色：GND 黃色：DATA 紅色：VDD+ |
