- SPU: AL-VJKV-73e00syc[3]
- Specification Model: 17+
產品資料下載：http://pan.baidu.com/share/link?shareid=47615182&uk=2164862926
產品用途：
機器人套件，雨滴，下雨傳感器，可用於各種天氣狀況的監測，並轉成數定信號和AO輸出。
產品介紹:
1、傳感器採用高品質FR-04雙面材料，超大面積5.0*4.0CM,並用鍍鎳處理表面，具有對抗氧化，導電性，及壽命方面更優越的性能；
2、比較器輸出，信號乾淨，波形好，驅動能力強，超過15mA；
3、配電位器調節靈敏度；
4、工作電壓3.3V-5V
5、輸出形式 ：數字開關量輸出（0和1）和模擬量AO電壓輸出；
6、設有固定螺栓孔，方便安裝
7、小板PCB尺寸：3.2cm x 1.4cm
8、使用寬電壓LM393比較器
功能介紹：
接上5V電源，電源指示燈亮，感應板上沒有水滴時，DO輸出為高電平，開關指示燈滅 ，滴上一滴水，DO輸出為低電平，開關指示燈亮，
刷掉上面的水滴，又恢復到，輸出高電平狀態。。。。
AO模擬輸出，可以連接單片機的AD口檢測滴在上面的雨量大小。
DO TTL數字輸出也可以連接單片機檢測是否有雨。
接線方式：
1、VCC:接電源正極（3-5V）
2、GND:接電源負極
3、DO:TTL開關信號輸出
4、AO:模擬信號輸出發貨清單

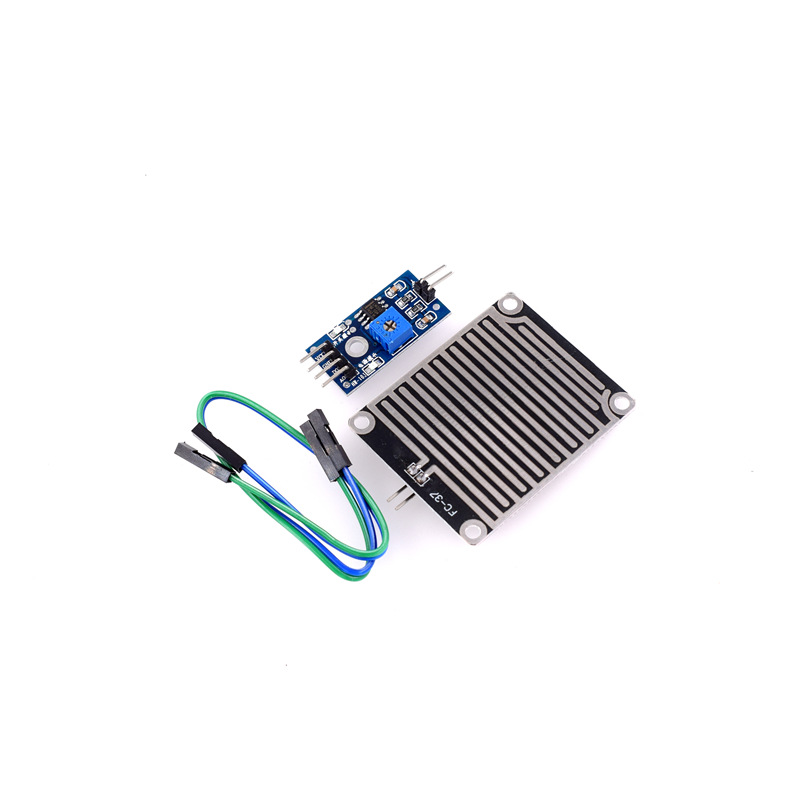

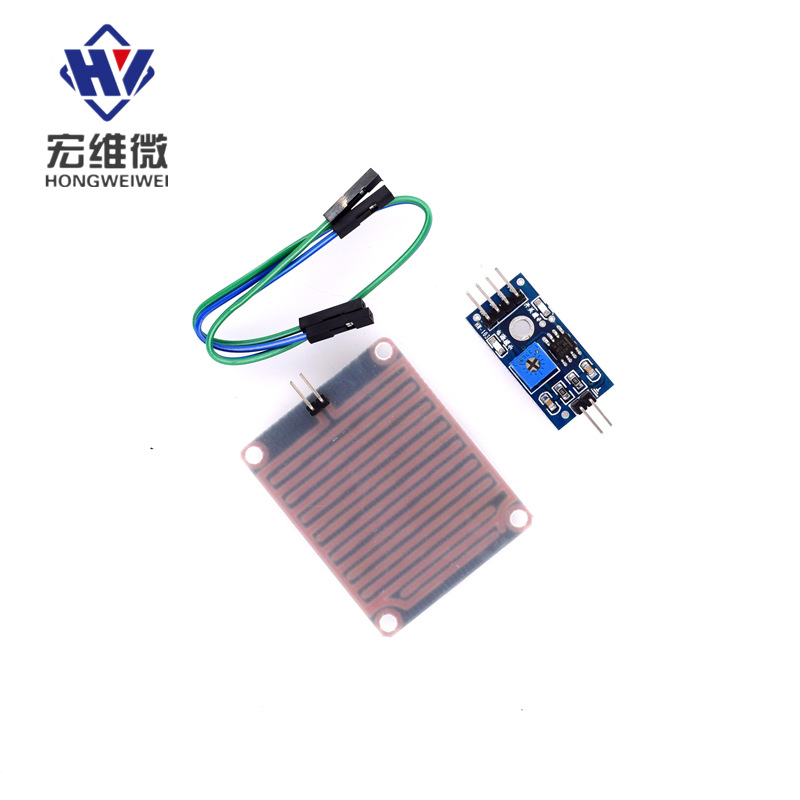

1、如圖所示雨滴感應板和控制板各一塊
2、20cm杜邦線2根，方便接線
