- SPU: AL-VJKV-7byqvi3m[B4]
- 规格型号:HW-525B
- 包装:防静电袋单独包装

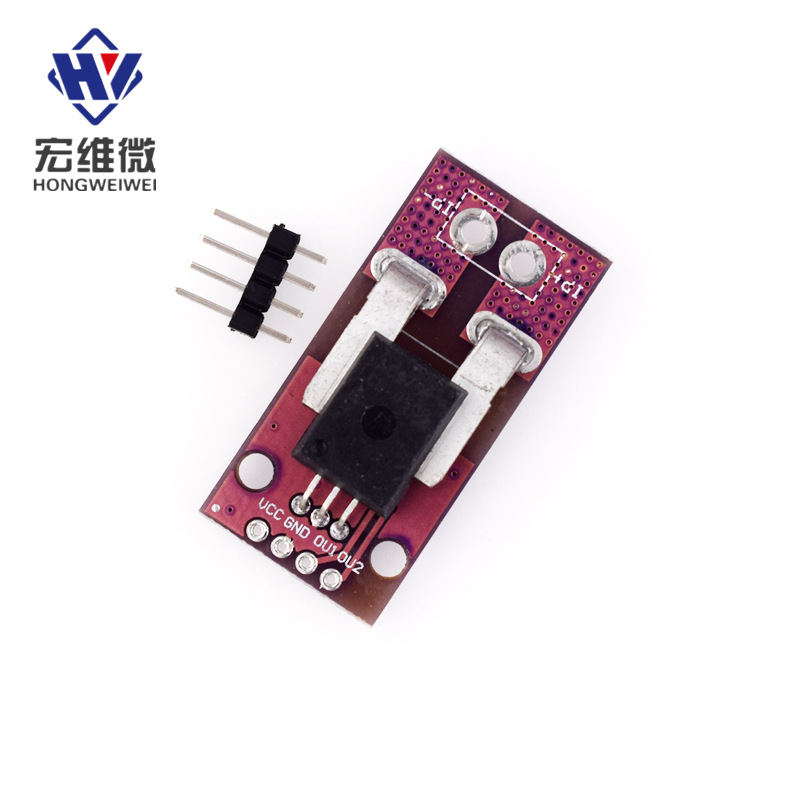

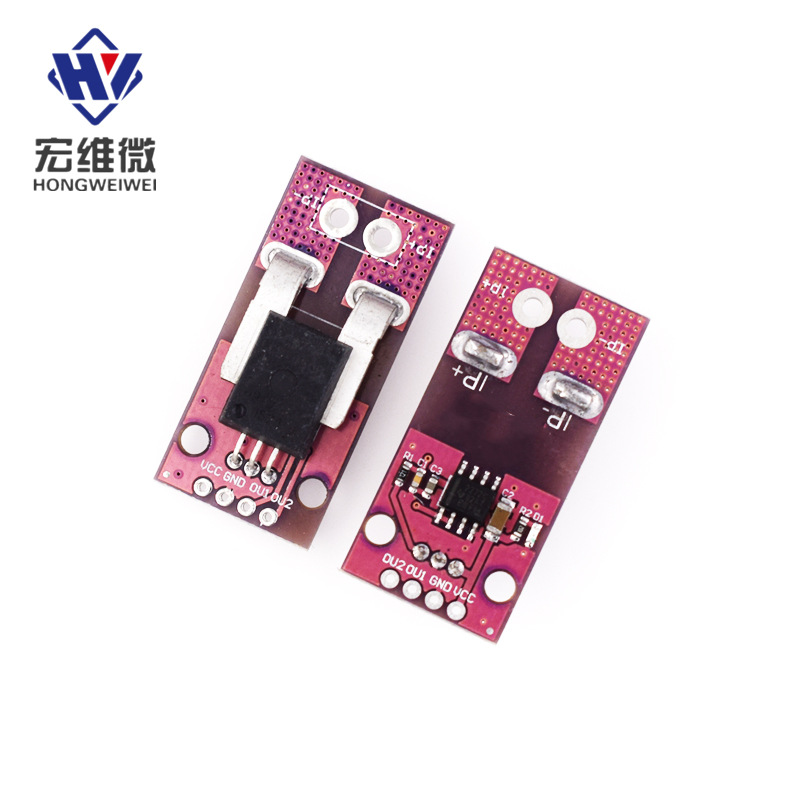

CJMCU-758 ACS758LCB-050B-PFF-T 线性 电流传感器 霍尔电流模块
电流:50A
电压:3.3-5V
工作温度:-40°C~150°C
Features and Benefits
?Industry-leading noise performance through proprietary
amplifier and filter design techniques
?Integrated shield greatly reduces capacitive coupling from
current conductor to die due to high dV/dt signals, and
prevents offset drift in high-side, high voltage applications
?Total output error improvement through gain and offset
trim over temperature
?Small package size, with easy mounting capability
?Monolithic Hall IC for high reliability
?Ultra-low power loss:100 μΩ internal conductor resistance
?Galvanic isolation allows use in economical, high-side
current sensing in high voltage systems
?3.0 to 5.5 V, single supply operation
?120 kHz typical bandwidth
?3 μs output rise time in response to step input current
?Output voltage proportional to AC or DC currents
?Factory-trimmed for accuracy
?Extremely stable output offset voltage
?Nearly zero magnetic hysteresis
