- 規格型號:HW-691
模塊型號：HW-691
使用芯片：MLX90614
供電電源：3-5v（內部低壓差穩壓）
通信方式：標準IIC通信協議
尺寸：11.5*16.5mm
重量：2g每個

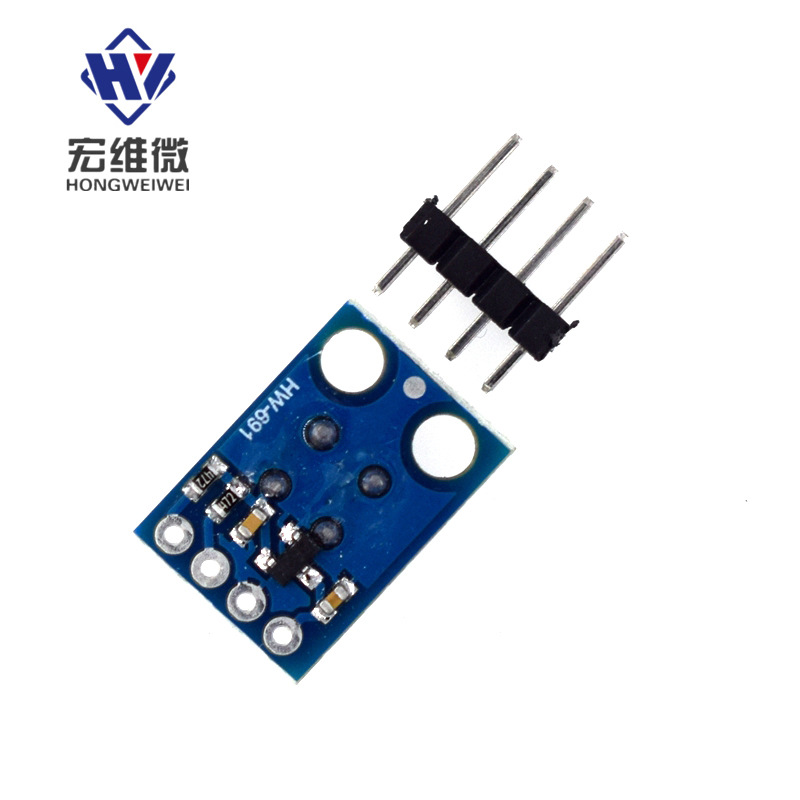

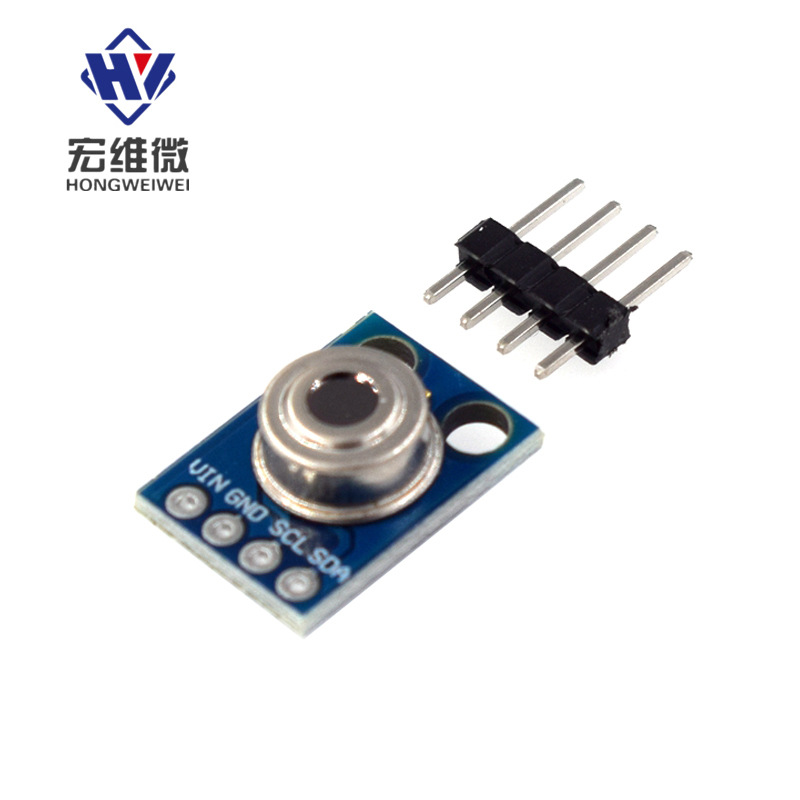

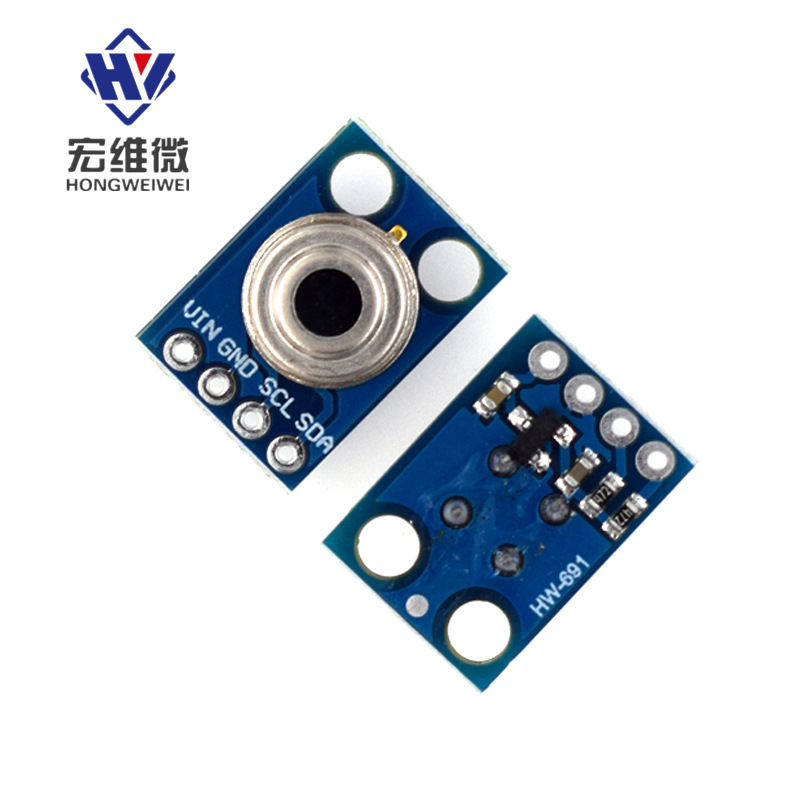

Up for sale is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it's I2C interface. This sensor comes with a breakout board with all of the components needed for operation and two types of pins. They are unsoldered. Please indicate if you would like one or the other soldered. There are two solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but will not for most uses.
From the manufacturer:
Features and Benefits:
- Small size, low cost
- Mounted on a breakout board with two types of pins
- 10k Pull up resistors for the I2C interface with optional solder jumpers
- Easy to integrate
- Factory calibrated in wide temperature range:
- -40…+125°C for sensor temperature and
- -70…+380°C for object temperature.
- High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration
- Measurement resolution of 0.02°C
- Single and dual zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuousreading
- Simple adaptation for 8…16V applications
- Sleep mode for reduced power consumption
- Different package options for applications andmeasurements versatility
- Automotive grade
Applications Examples:
- High precision non-contact temperaturemeasurements
- Thermal Comfort sensor for Mobile AirConditioning control system
- Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging
- Automotive blind angle detection
- Industrial temperature control of moving parts
- Temperature control in printers and copiers
- Home appliances with temperature control
- Healthcare
- Livestock monitoring
- Movement detection
- Multiple zone temperature control – up to 127sensors can be read via common 2 wires
- Thermal relay / alert
- Body temperature measurement
Data Sheet:
