- SPU: AL-VJKV-7bz6nd3h[4]

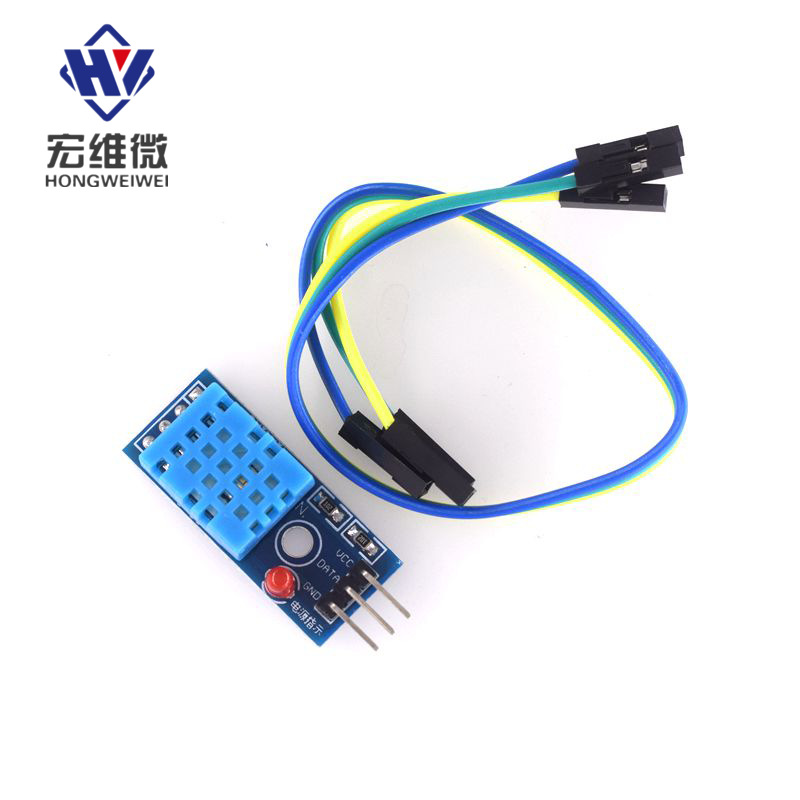

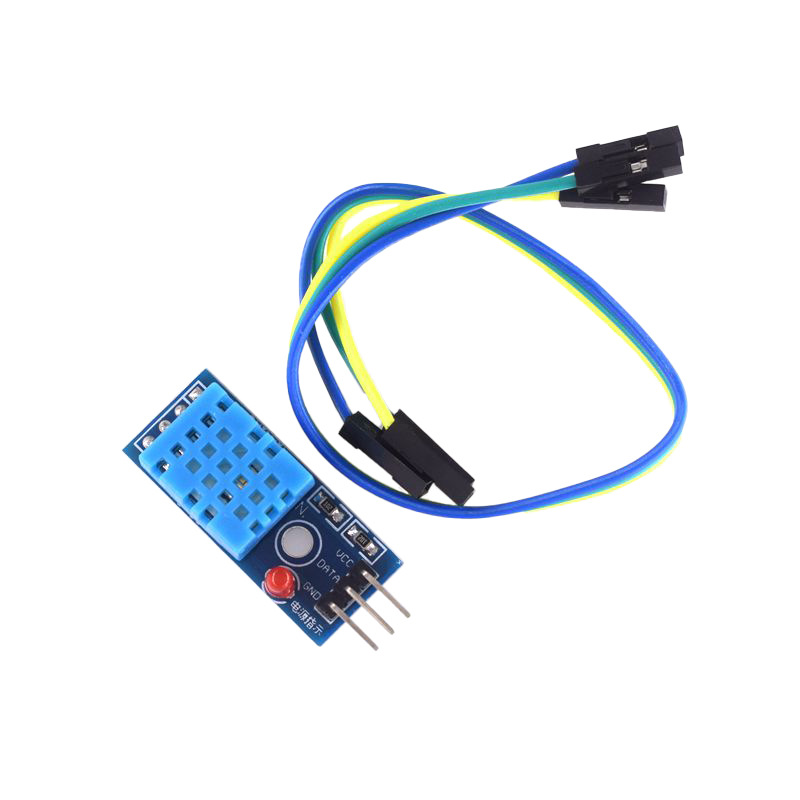

- Specification model: HW-036-2DHT11 module with wire
- Packaging: Anti-static bag individually packed
換成貼片指示燈
資料下載
器DHT11模塊Arduino電子積木
廠家直銷，貨源穩定，歡迎批發！

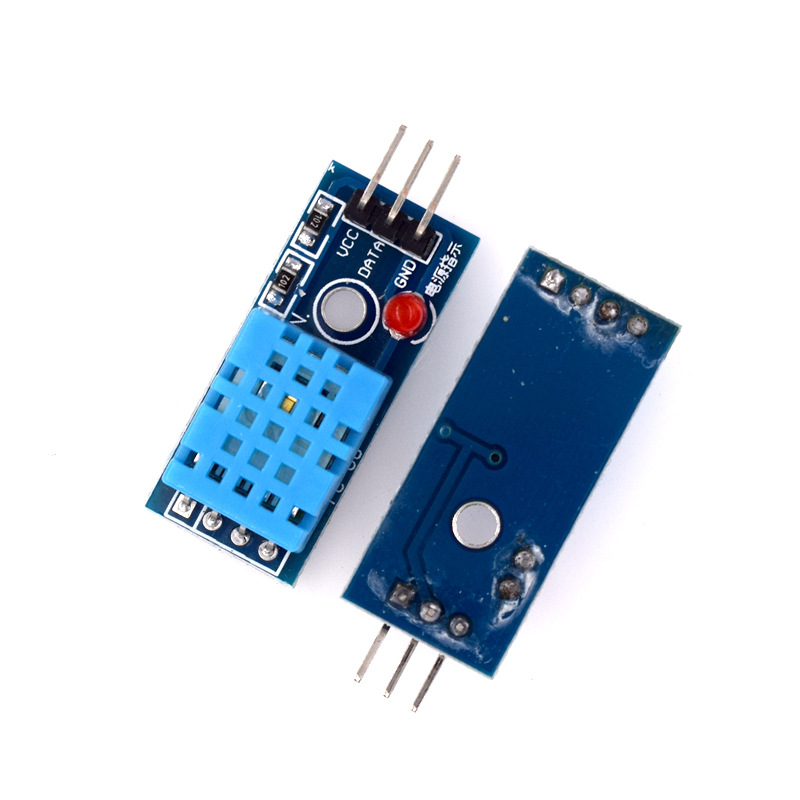

一、尺寸：長30.5mmX寬12mmX高7.2mm
二、傳感器型號： DHT11溫濕度傳感器
三、工作電壓：直流5V
四、特點：
1、濕度測量範圍：20---90%RH
2、濕度測量精度：±5%RH
3、溫度測量範圍：0---50℃
4、溫度測量精度：±2℃
5、工作電壓：DC5V/3.3V
6、數字信號輸出
7、數據端口帶上拉電阻
8、帶3mm固定螺絲孔，方便安裝
五、接線方法：
VCC → 3.3V/5V電源正極
GND →電源負極
DATA →單片機IO口
溫馨提示：切勿將VCC與GND接反，接反必燒！
六、發貨清單：
1.如圖所示DHT11溫濕度傳感器模塊1個(已測試好)
2.原理圖、說明書、測試程序(購買後通過郵箱發送或者提供下載地址自行下載)
