$5.30 | MAX6675 K-type thermocouple module temperature sensor, high temperature can measure 1024 degrees

MAX6675 K-type thermocouple module temperature sensor, high temperature can measure 1024 degrees

$5.30

sales volume: 6

classification: Hardware tools , Hand tools , IC puller

colour

HW-550A

size

One size fits all

number

Buy now

SPU: AL-VJKV-7c4skumh[9]
Specification model:HW-550A

Data download: http:// pan.baidu.com/ s/ 1gdnR2i3

parameter:

MAX6675 is a 12-bit resolution serial thermocouple analog-to-digital converter with cold junction compensation, linear correction, and thermocouple wire break detection produced by MAXIM Company of the United States.

The main features of MAX6675 are as follows

1. Simple SPI serial port temperature value output.

2. Temperature measurement range of 0℃～1024℃, converter temperature resolution is 0.25°C.

3. On-chip cold end compensation.

4. High impedance differential input.

5. Thermocouple disconnection detection.

6. Wide working voltage range 3. 0 ~ 5. 5V, working current 50mA.

8. Working temperature range- 20℃～85℃.

9.2000V ESD signal.

module interface: GND VCC SCK CS SO

Supply voltage:3~ 5V DC

Module size: 15mm* 25mm

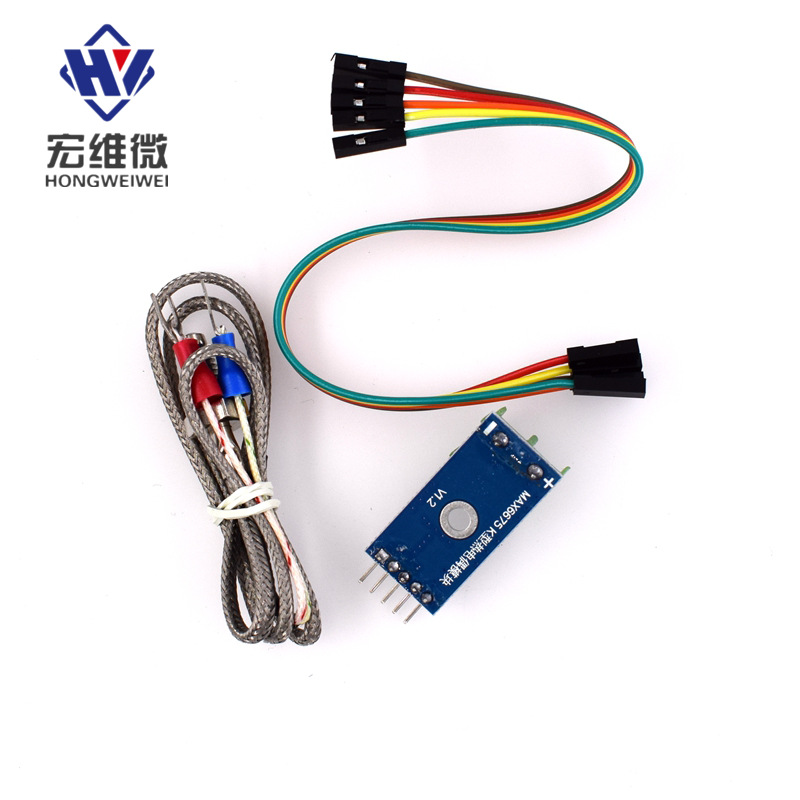

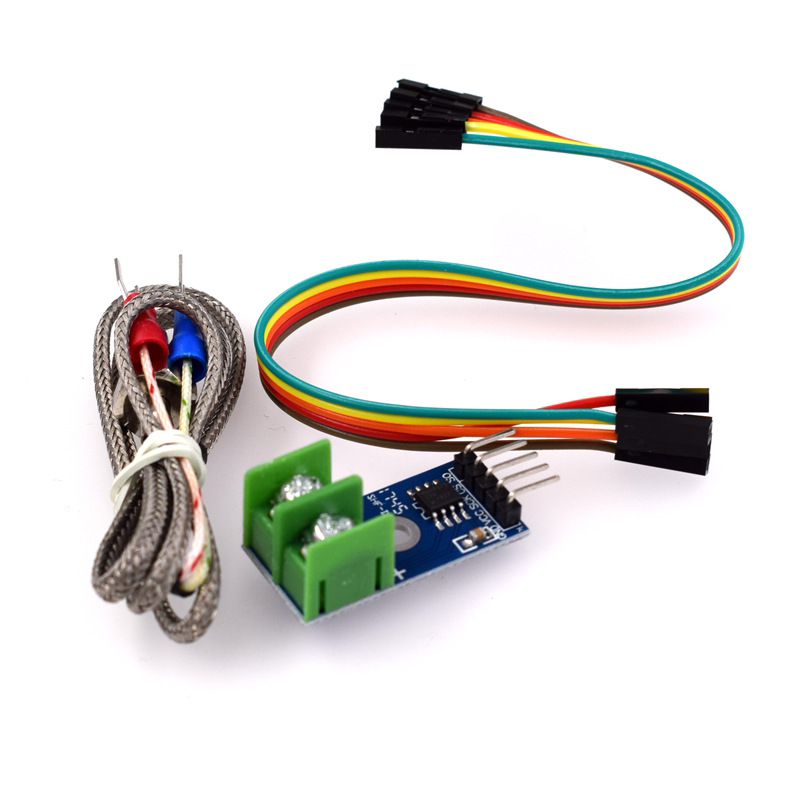

Shipping list:

MAX6675 module x 1

Thermocouple x 1
