FOR Open-port 2.0+ECUFLASH
The 2.0 combined with our EcuFlash software, the 2.0 is capable of reflashing a large number of newer Subaru and Mitsubishi vehicles, and support for other cars is in progress.
2.0 can works for diagnose. The OEM software we have test in ,
Specifications:
1. 72Mhz 32-bit processor
2. USB 2.0 full speed device (USB-A/Mini cable included)
3. Field upgradeable software
4. Supports these major OBD protocols:CAN 2.0 (CAN/ISO15765) and K-line (ISO9141/ISO14230(KWP2000)/dual K line)
5. PassThru support with Windows DLL
6. Standalone datalogs to microSD / microSDHC card without a laptop
7. Able to apply GND or 5V-25V to OBD pins 1,3,9,11,12,13 or AUX 2.5mm stereo connector
8. Able to log from Innovate Motorsports 2.5mm stereo MTS data bus
9. RGB status LEDs
For ecu flash you can get info from this list:
| US Domestic Market Vehicles currently supported by EcuFlash |
| Make |
Model |
Year(s) |
Compatible OpenPort Interfaces |
Init Connector Needed? |
| Subaru |
Impreza WRX |
2001-2002 |
1.2 1.3S 1.3U 2.0 |
2001-2002 |
| |
|
2003-2005 |
1.2 1.3S 1.3U 2.0 |
2003-2005 |
| |
|
2006-2007 |
1.2 1.3S 1.3M 2.0 |
|
| |
|
2008-2009 |
2.0 |
|
| |
Impreza STi |
2004-2007 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| |
|
2008-2009 |
2.0 |
|
| |
Impreza 2.5RS |
2005 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| |
Impreza 2.5i |
2005-2006 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| |
|
2007-2009 |
2.0 |
|
| |
Forester 2.5 |
2005-2006 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| |
|
2007-2009 |
2.0 |
|
| |
Forester XT |
2004-2006 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| |
|
2007-2009 |
2.0 |
|
| |
Tribeca |
2006 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| |
|
2007-2009 |
2.0 |
|
| |
Legacy / Outback 2.5i / 3.0r |
2005-2006 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| |
|
2007-2009 |
2.0 |
|
| |
Legacy GT / Outback XT |
2004-2006 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| |
|
2007-2009 |
2.0 |
|
| |
Baja |
2004-2006 |
1.2 1.3S 1.3M 1.3U 2.0 |
|
| Mitsubishi |
Evo 5 |
|
1.3M 1.3U 2.0 |
Mitsu (for 2.0 only) |
| |
Evo 6 |
|
1.3M 1.3U 2.0 |
Mitsu (for 2.0 only) |
| |
Evo 7 |
|
1.3M 1.3U 2.0 |
Mitsu (for 2.0 only) |
| |
Evo 8 |
|
1.3M 1.3U 2.0 |
Mitsu (for 2.0 only) |
| |
Evo 9 |
|
1.3M 1.3U 2.0 |
Mitsu (for 2.0 only) |
| |
Evo 10 |
|
2.0 |
|
| |
(all 2nd Gen) |
1996-???? |
1.3M 1.3U 2.0 |
Mitsu (for 2.0 only) |
| |
Eclipse GS/GT |
2001-2003 |
1.3M 1.3U 2.0 |
Mitsu (for 2.0 only) |
| |
Lancer OZ |
2002-2004 |
1.3M 1.3U 2.0 |
Mitsu (for 2.0 only)
|

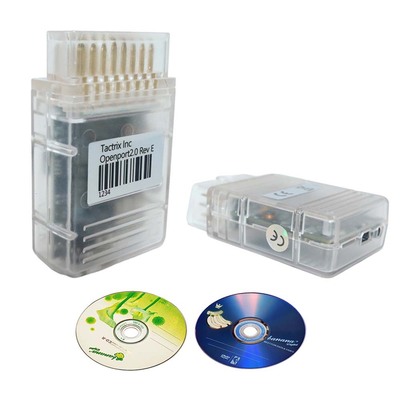

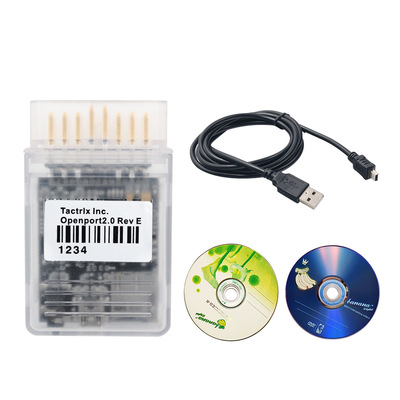

Package list:
1 pc x 2.0+ECUFLASH Cable
1 pc x USB Cable
1 pc x CD
