Traditional HID light source electrical appliance matching table
|
|
Light source type
|
Light source name
|
ballast
|
trigger
|
capacitance
|
timing controller
|
|
mercury lamp
|
HPL- N 50W E27
|
BHL 50L
|
N/ A
|
7uf
|
-
|
|
HPL- N 80W E27
|
BHL 80L
|
N/ A
|
8uf
|
-
|
|
HPL- N 125W E27
|
BHL 125L
|
N/ A
|
10uf
|
-
|
|
HPL- N 250W E40 HG
|
BHLA 250L
|
N/ A
|
18uf
|
-
|
|
HPL- N 400W E40 HG
|
BHLA 400L
|
N/ A
|
25uf
|
-
|
|
HPL- N 1000W E40 HG
|
BHL 1000L
|
N/ A
|
60uf
|
-
|
|

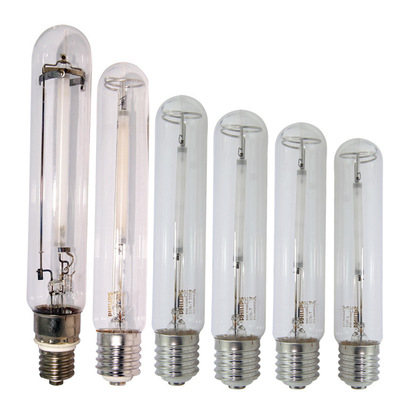

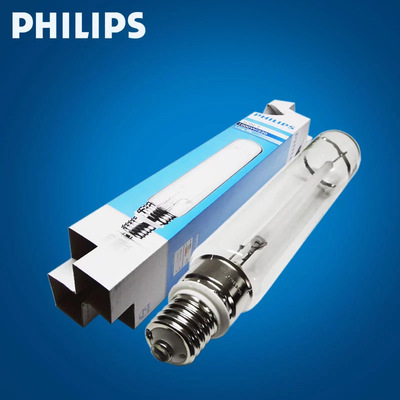

sodium lamp
|
SON 70W( internal trigger type)
|
BSN 70L
|
N/ A
|
12uf
|
-
|
|
SON 70W( Normal or high light efficiency)
|
BSN 70L
|
SN57
|
12uf
|
-
|
|
SON 100W( Normal or high light efficiency)
|
BSN 100L
BSD 100L
|
SN58( T5)
SU42- S
|
12uf
12uf
|
-
ESC02/ ESC03
|
|
SON 150W( Normal or high light efficiency)
SON ECO 130W( Energy saving)
|
BSN 150L
BSD 150L
|
SN58( T5)
SU42- S
|
18uf
18uf
|
-
ESC02/ ESC03
|
|
SON 250W( Normal or high light efficiency)
SON ECO 220W( Energy saving)
|
BSN 250L
BSD 250L
|
SN58( T5)
SU42- S
|
32uf
32uf
|
-
ESC02/ ESC03
|
|

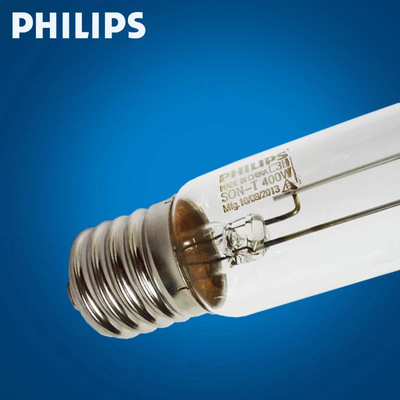

SON 400W( Normal or high light efficiency)
SON ECO 400W( Energy saving)
|
BSN 400L
BSD 400L
|
SN58( T5)
SU42- S
|
50uf
50uf
|
-
ESC02/ ESC03
|
|
SON 1000W E40
|
BSN 1000L
|
SN56
|
100uf
|
-
|
|
European standard metal halide lamp
|
HPI- T/ BU PLUS 250W
|
BHLA/ BPI/ BSN 250L
|
SI51( BHL/ BPI)
SN58( T5)( BSN)
|
18uf
|
-
|
|
HPI- T/ BU PLUS 400W
|
BHLA/ BPI/ BSN 400L
|
SI51( Mercury lamp circuit)
SN58( T5)( BSN)
|
25uf
|
-
|
|
HPI 400W BUS( P)
|
BHLA/ BPI/ BSN 400L
|
-
|
30uf
|
-
|
|
HPI- T1000W E40
|
BHL 1000L
|
SI51
|
60uf
|
-
|
|
HPI- T 2000W 220V E40
|
BHL 1000L*2
|
SI51/ SU50
|
125uf
|
-
|
|
HPI- T 2000W 380V HO E40
|
N/ A
|
-
|
N/ A
|
-
|
|
Double ended metal halide lamp
|
MHN- TD( ES) 70W
|
BMH70L
|
SN58( T15)
|
12uf
|
-
|
|
MHN- TD( ES) 150W
|
BSN 150L
|
SN58( T15)
|
18uf
|
-
|
|
MHN- TD 250W
|
BSN 250L
|
SN58( T15)
|
32uf
|
-
|
|
American standard metal halide lamp
|
MH70W
|
BMH70L
|
SN58( T15)
|
12uf
|
-
|
|
MH100W
|
BSN 100L
|
SN58( T15)
|
12uf
|
-
|
|
MH150W
|
BSN 150L
|
SN58( T15)
|
18uf
|
-
|
|
MH175W
|
N/ A
|
-
|
N/ A
|
-
|
|
MH250W
|
N/ A
|
-
|
N/ A
|
-
|
|
MH400W
|
N/ A
|
-
|
N/ A
|
-
|
|
MH UPS 175W
|
BPI/ BPS 175W
|
SI53
|
-
|
-
|
|
MH UPS 250W
|
BPI/ BPS 250W
|
SI53
|
-
|
-
|
|
MH UPS 400W
|
BPI/ BPS 400W
|
SI53
|
-
|
-
|
|
MH PS- T175W
|
BPI/ BPS 175W
|
SI53
|
-
|
-
|
|
MH PS- T 250W
|
BPI/ BPS 250W
|
SI53
|
-
|
-
|
|
MH PS- T 400W
|
BPI/ BPS 400W
|
SI53
|
-
|
-
|
|
High power metal halide lamp
|
MHN- FC 1000W/ 740 230V UNP
|
BSN 1000
|
SN56
|
100uf/ 250V
|
-
|
|
MHN- FC 1000W/ 750 230V UNP
|
BSN 1000
|
SN56
|
100uf/ 250V
|
-
|
|
MHN- SA 1800W 230V/ 956( P) SFC
|
BMH 1800L
|
SU50
|
200uf
|
-
|
|
MHN- SA 1800W 400V/ 956( P) SFC
|
BMH 1800L
|
SU52
|
200uf
|
-
|
|
MHN- SA 2000W 400V/ 956X830ROD
|
BHD 2000L( N/ A)
|
SU52
|
70uf/ 450V
|
-
|
|
MHN- SB 2000W 400V/ 956 CABLE
|
BHD 2000L( N/ A)
|
SU52
|
70uf/ 450V
|
-
|
|
MHN- LA 1000W 230V/ 956X528/ CABLE
|
BSN 1000L
|
SN56
|
100uf
|
-
|
|
MHN- LA 1000W 230V/ 842x528/ CABLE
|
BSN 1000L
|
SN56
|
100uf
|
-
|
|
MHN- LA 2000W 400V/ 956X528/ CABLE
|
BMH 2000L 2050
|
SU52
|
60uf/ 400V
|
-
|
|
MHN- LA 2000W 400V/ 956X528/ CABLE
|
BMH 2000L 2050
|
SU52
|
60uf/ 400V
|
-
|
|
MHN- SA 2000W/ 956 X830R 400V UNP
|
BMH 2000L 2114
|
SU52
|
75uf/ 500V
|
-
|
