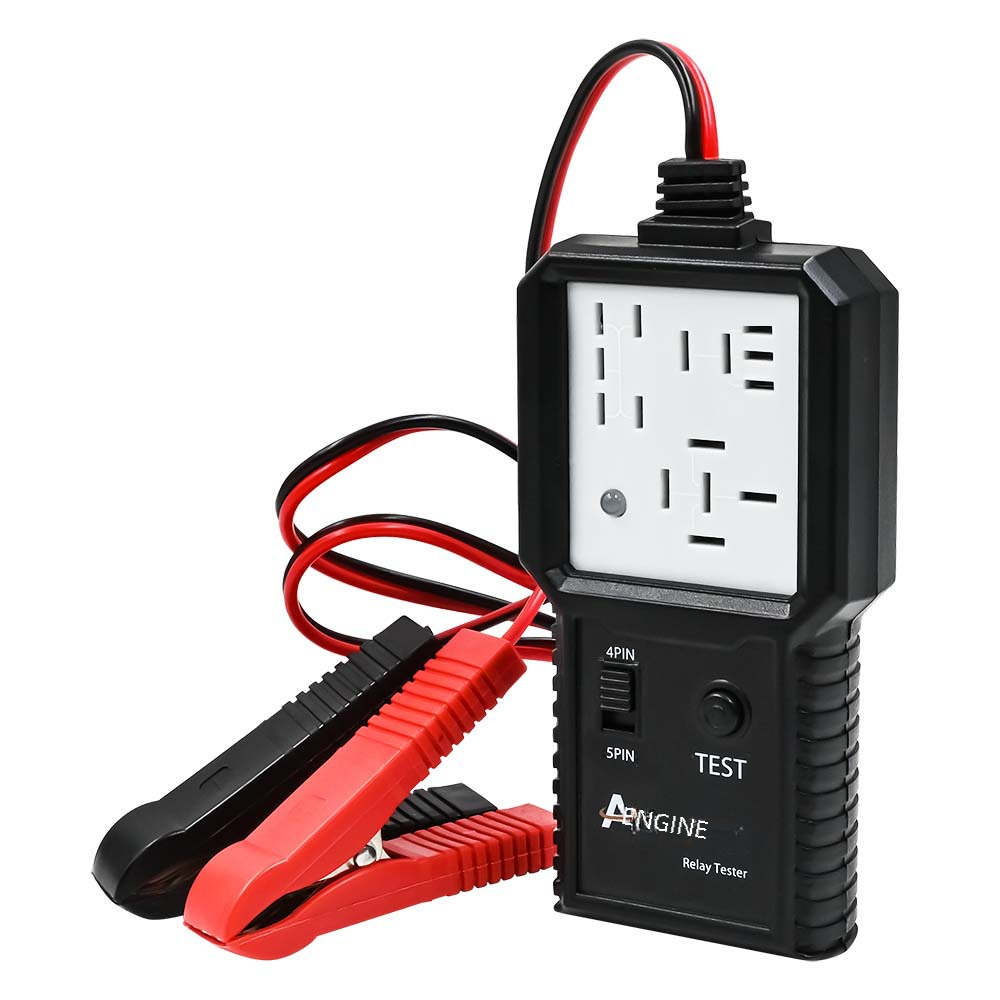

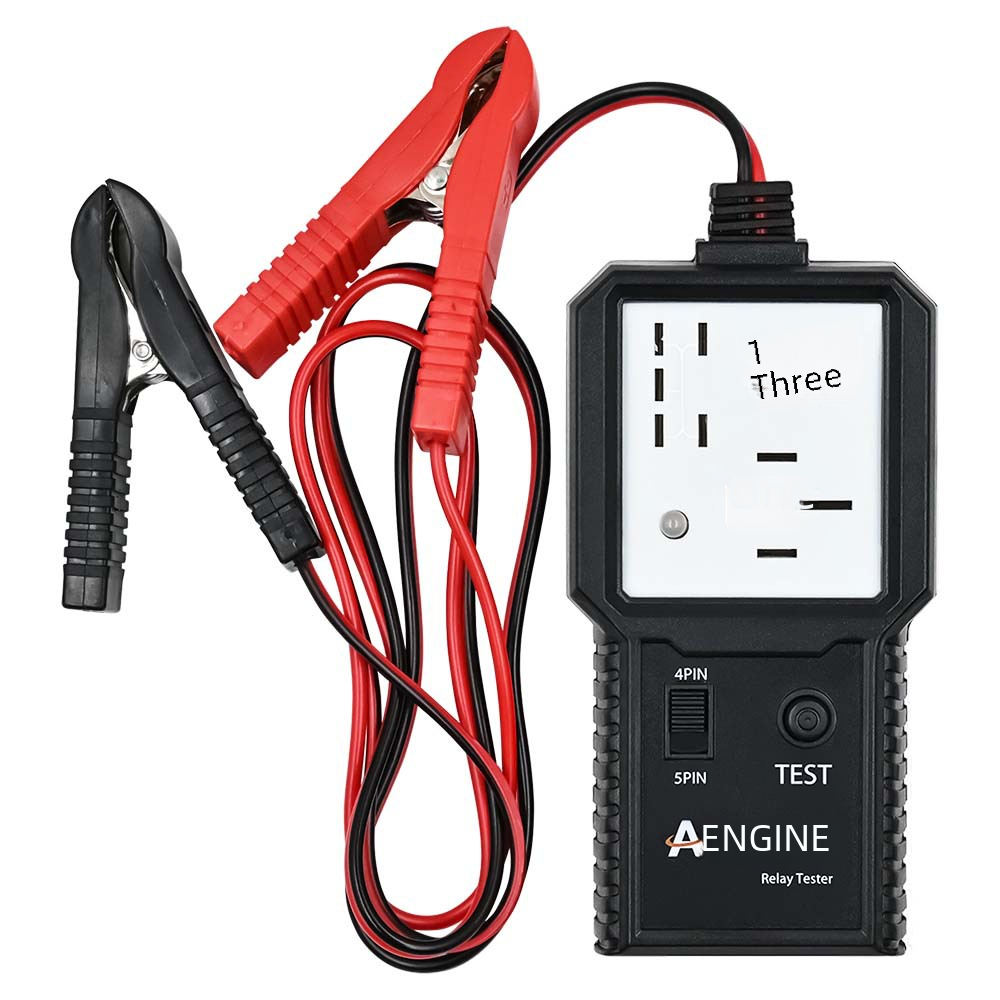

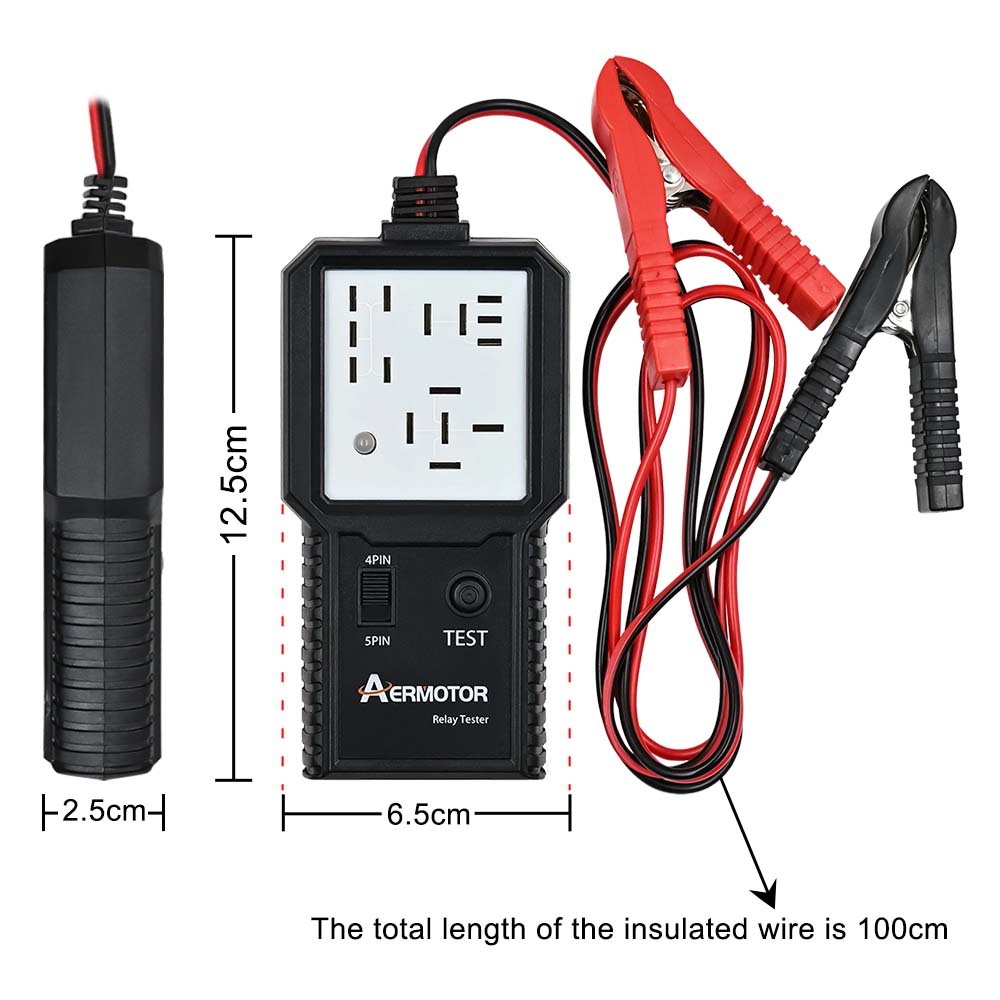

AERMOTOR Relay Tester 能夠快速的檢測出你的繼電器是否正常，使用簡單，適用於市面的汽車繼電器，支持12V和24V繼電器測試.
測試時，設備需要連接到12V-24V的汽車電瓶上。測試時根據繼電器的腳位把開關撥到4PIN或者5PIN.按下測試按鈕後測試儀亮綠色LED燈並且閃爍說明繼電器正常，如果按下測試按鈕亮紅色LED燈說明繼電器不正常。
操作說明：
1 測試時把紅色夾子夾到電瓶正極，黑色夾子則夾到電瓶負極
2 測試12V繼電器時需要連接到12V電瓶上，測試24V繼電器時需要連接到24V的電瓶上。
3接入電源後設備亮紅燈既可以插入繼電器
4測試4腳繼電器把開關撥到4PIN,測試5腳繼電器把開關撥到5PIN
5接入繼電器調好腳位開關後就可以按下按鈕
6測試時腳位不對或者繼電器損壞了，測試就會亮紅色LED燈。
7當腳位設置正確時，測試儀會亮綠色LED燈並且閃爍10次綠燈則表示繼電器正常。
Product Introduction:

AERMOTOR Relay Tester can quickly detect whether your relay is working properly. It is easy to use and suitable for automotive relays on the market. It supports 12V and 24V relay testing

During testing, the equipment needs to be connected to a 12V-24V car battery. When testing, turn the switch to 4PIN or 5PIN according to the relay's pin position. Press the test button and the tester will light up the green LED and flash, indicating that the relay is working. If the test button is pressed and the red LED is on, it indicates that the relay is not w orking.

Operating instructions:

During the test, clamp the red clip onto the positive pole of the battery, while the black clip onto the negative pole of the battery

When testing a 12V relay, it needs to be connected to a 12V battery, and when testing a 24V relay, it needs to be connected to a 24V battery.

After connecting to the power supply, the device turns on a red light, which allows for the insertion of a relay

Test the 4-pin relay to set the switch to 4PIN, and test the 5-pin relay to set the switch to 5PIN

After connecting the relay and adjusting the foot switch, you can press the button

During the 6 test, if the foot position is incorrect or the relay is damaged, the red LED will light up during the test.

When the foot position is set correctly, the tester will light up the green LED and flas

產品列表
1：主機
2：說明書
3；泡沫袋
4：彩盒包裝
