TPA3116 2.1 50W+50W+100W Amplifier Board Digital HIFI 12-24V Super BASS Speaker
DC12V-24V 2x50W+100W Digital Audio Amplifier Board TPA3116D2 Subwoofer Speaker Amplifiers
Features:
1. This is with the pre-amplification, bass divider processing.

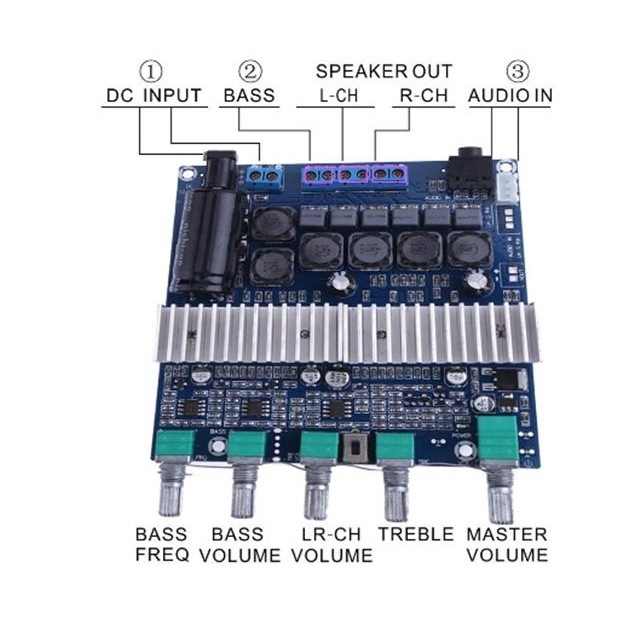

2. With bass, left and right channel volume adjustment, treble adjustment, total volume potentiometer control 2.1 power amplifier board.
3. Using DC 12-24V power supply, Maximum support 50W(Left CH)+50W(Right CH)+100W(BASS CH) three channel output.
4. Wide operating voltage, power-saving design, the efficiency of up to 90% or more.
5. Boot anti-shock protection design, boot no burst sound.
Specifications:
Core Chip: TPA3116D2
Operating voltage range: DC 9-25V (Current 3-4A or more, such as the need for more power recommended 19-24V / 4-5A above)
Audio input sensitivity: 500-800mV
Frequency response range: 20Hz-20KHz
Speaker impedance: L/R CH speaker 3.5-8Ω
BASS speaker: 2-8Ω
Maximum output power: 50W(Left CH)+50W(Right CH)+100W(BASS CH)

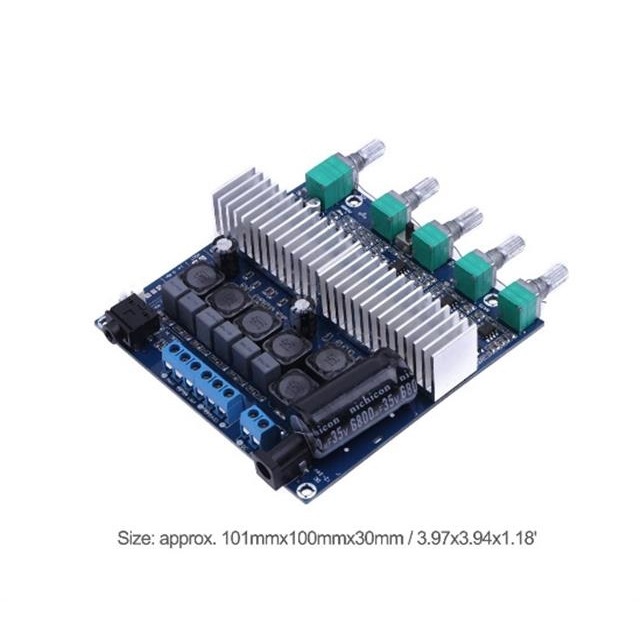

Size: approx. 101mmx100mmx30mm / 3.97x3.94x1.18''
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
Packages:

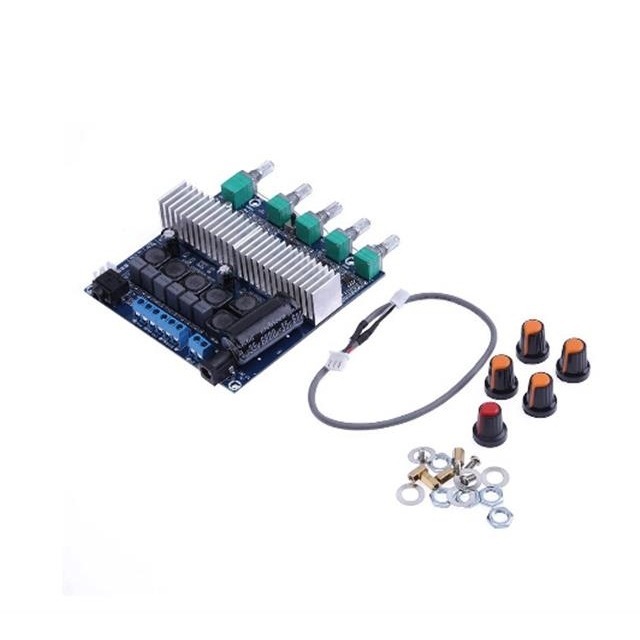

1 x TPA3116 2.1 50W+50W+100W Amplifier Board
