- SPU: AL-NKXW-8c7dhfo2[8]
- 型號:22MM插腳-平頭自復
- 型號:22MM插腳-平頭自鎖
- 型號:22MM螺絲腳-平頭自復
- 型號:22MM螺絲腳-高頭自復
- 型號:22MM螺絲腳-球頭自復
- 產品類型:金屬按鈕開關
- 按鈕頭直徑:22mm
- 觸點類型:銀觸點
- 操作位置:頭部
- 燈電壓:3v-220v
- 前圈材質:金屬
- 額定絕緣電壓:50

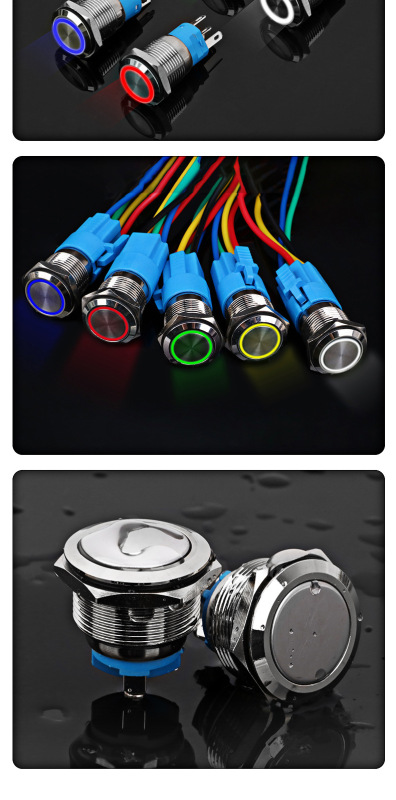

- 燈源類型:LED
- 觸點額定工作電流:3A
- 工作環境溫度:-20-55（℃）
- 工作電壓:220

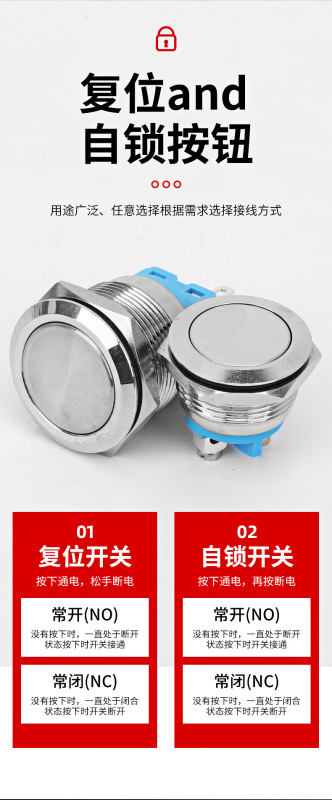

- 操作方式:自持按鈕
- 觸頭結構:常開按鈕

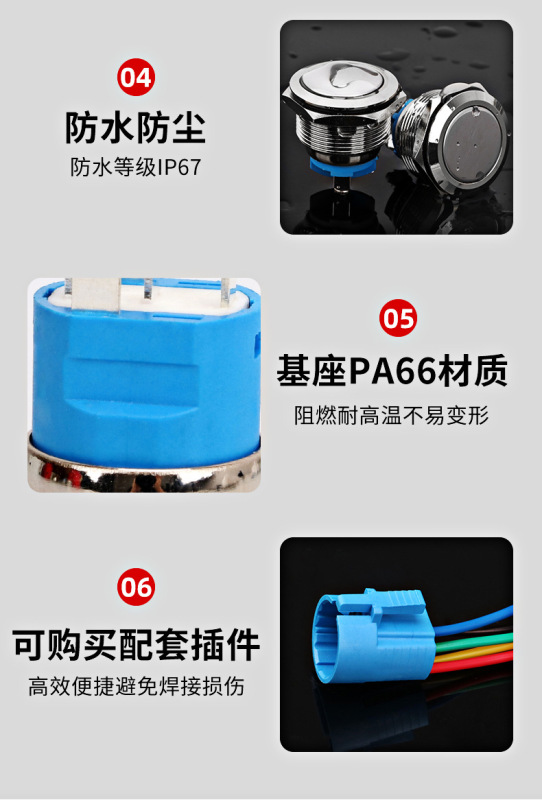

- 防護方式:防水式
- 工作電流:3
- 額定發熱電流:5
- 接觸電阻:≤30mΩ（Ω）
- 絕緣電阻:≥1000MΩ（MΩ）
- 頭部保護等級:1
- 使用溫度:-20-55
- 電氣壽命:20萬次以上
- 機械壽命:100萬次以上
- 系列:XY-22F-11
- 面板厚度:10
- 操作行程:2.5
- 螺母扭矩:5-14Nm
- 加工定製:否
- 最小包裝數:1
- 物料編號:XY-22F-11
- 3C額定電壓範圍:36V及以下

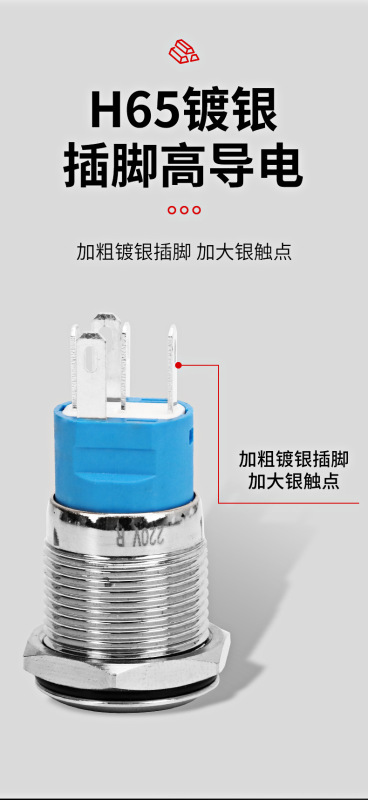

- 接線方式:焊接
- 擴展功能:控制
- 接線能力:強
- 工作海拔高度:5000米
- 按鈕頭款式:高頭平頭球頭
- 復位方式:自復位
- 端子防護等級:IK10
- 頭部防護等級:IK10
- 重量:0.05
- 規格/型號:XY-22F-11
