- SPU: AL-E9PH-8otdhwom[L9]
- Interface Type: USB Interface
- Resolution: 300,000 pixels
- Type: Handheld Scanner
- Scanning Speed: 300 times per second
- Warranty: One Year
- Weight: 150 grams
- After-Sales Service: One-year warranty / Online technical support
- 3C Certificate Number: 2022010907447750

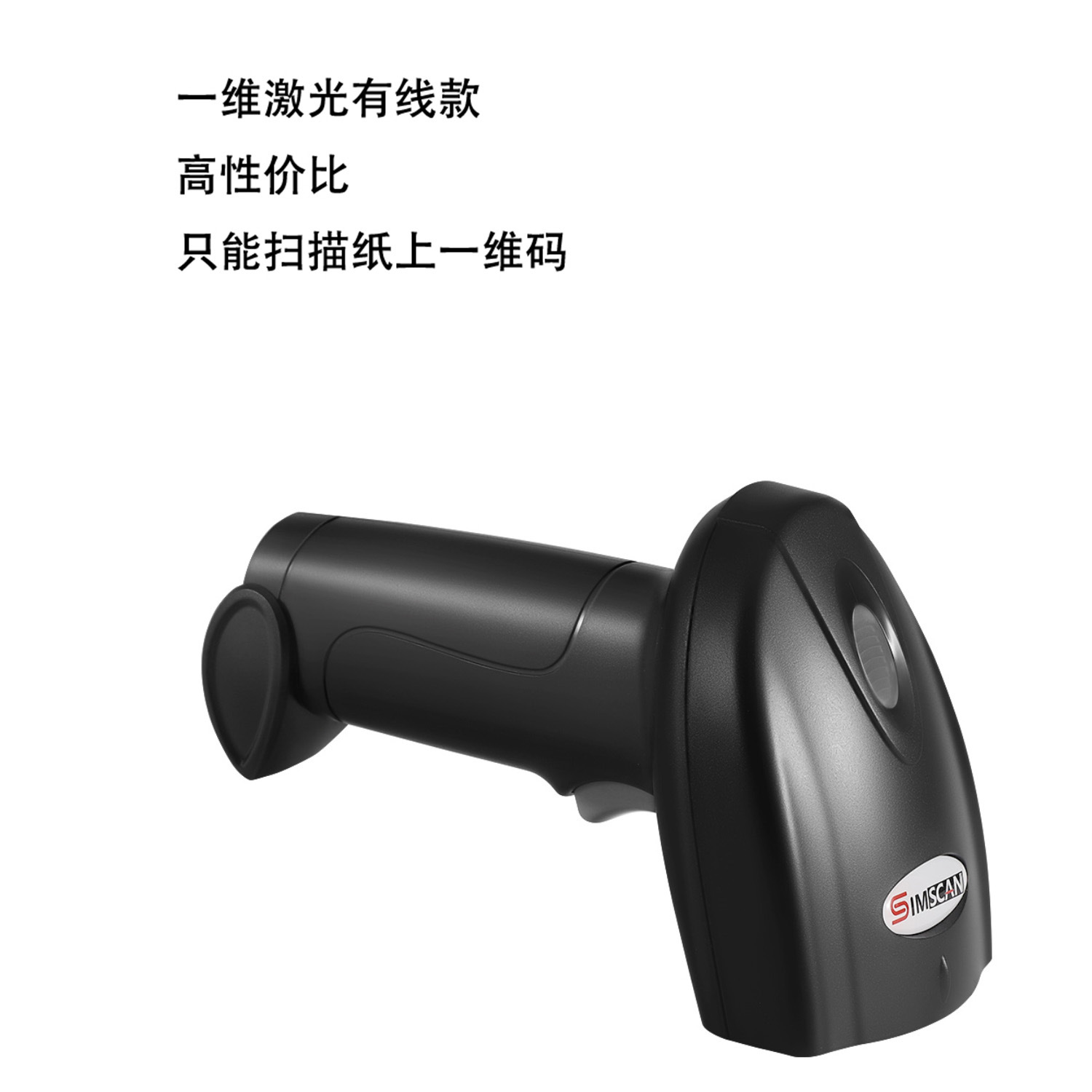

- Model: 1D Laser Wired

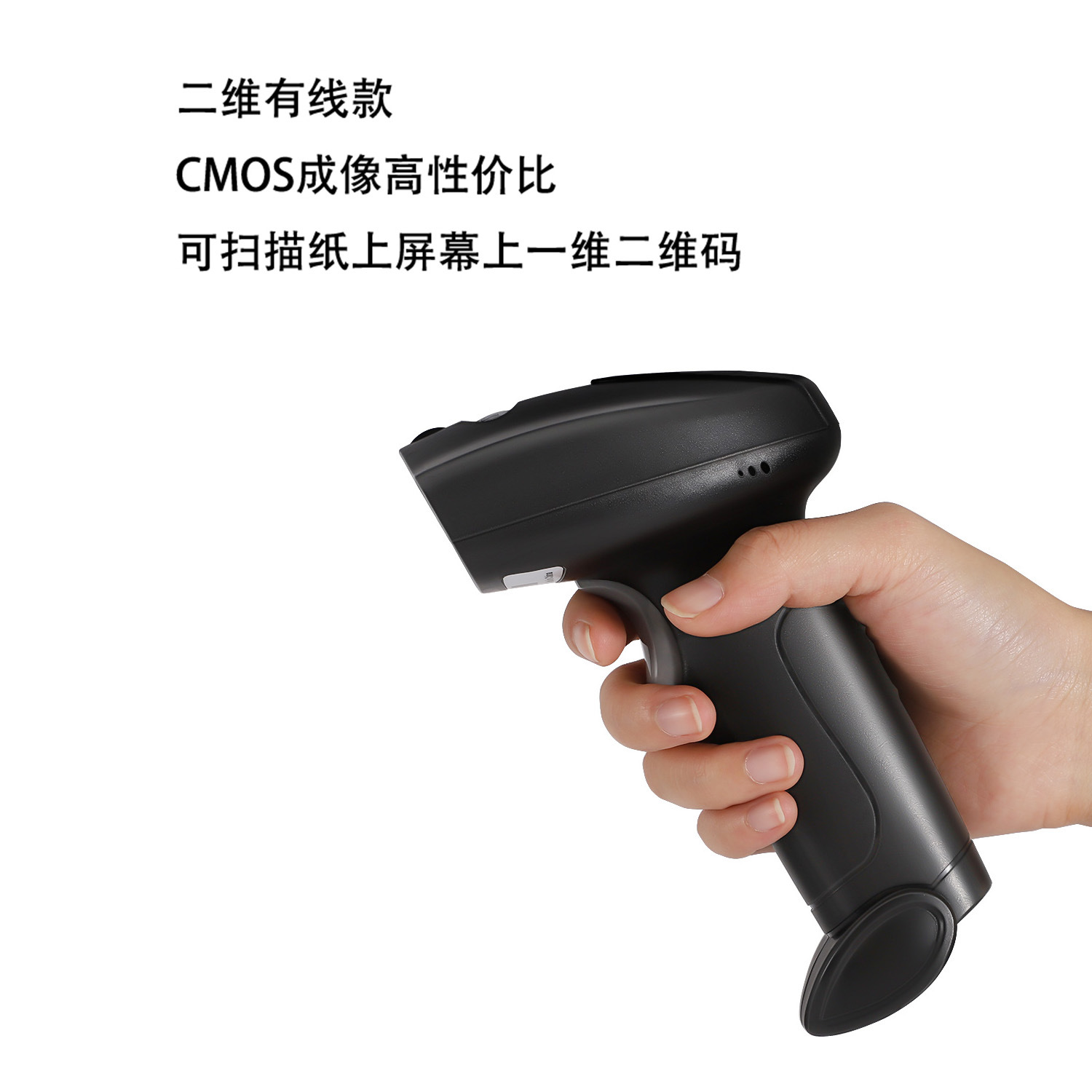

- Model: 2D Wired

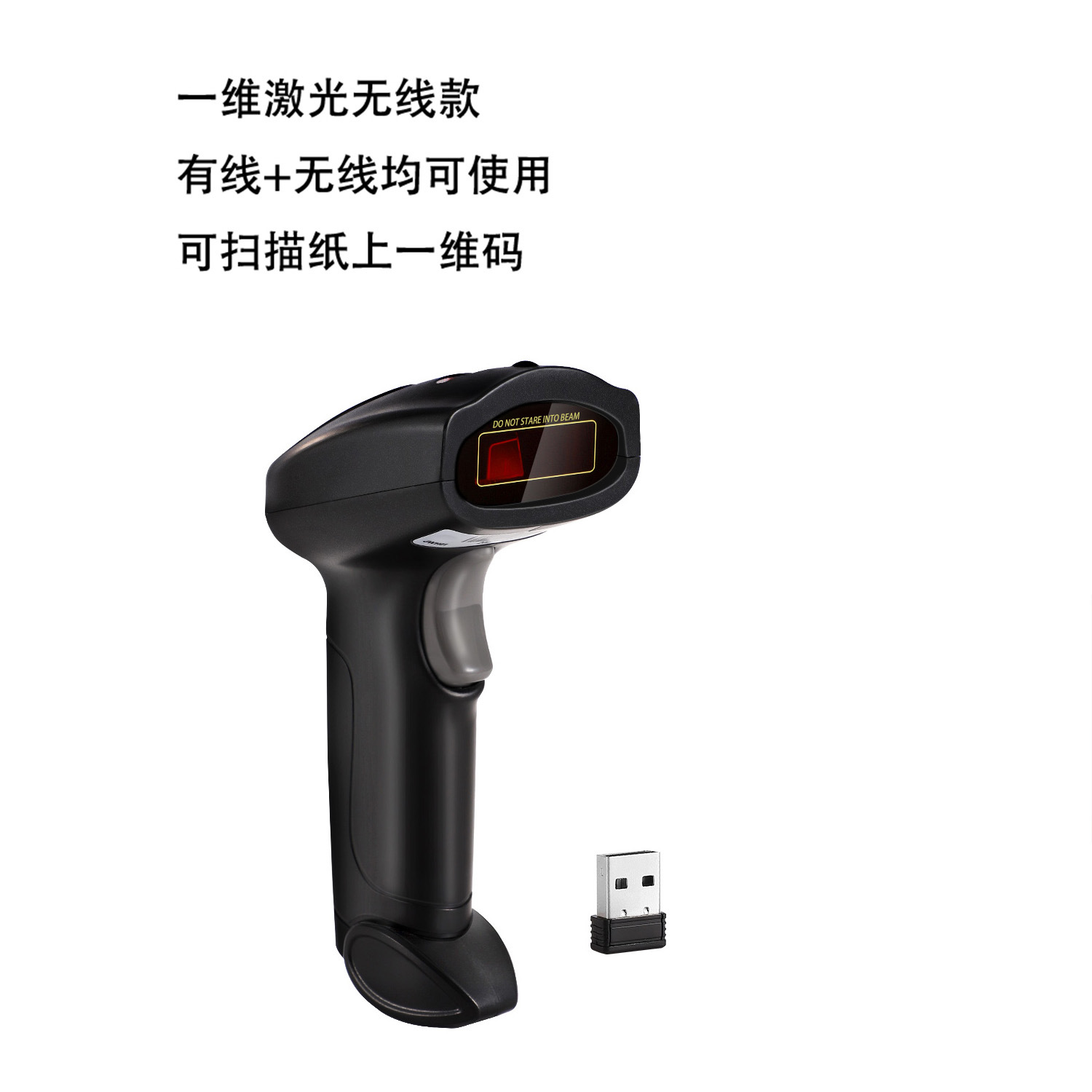

- Model: 1D Laser Wireless

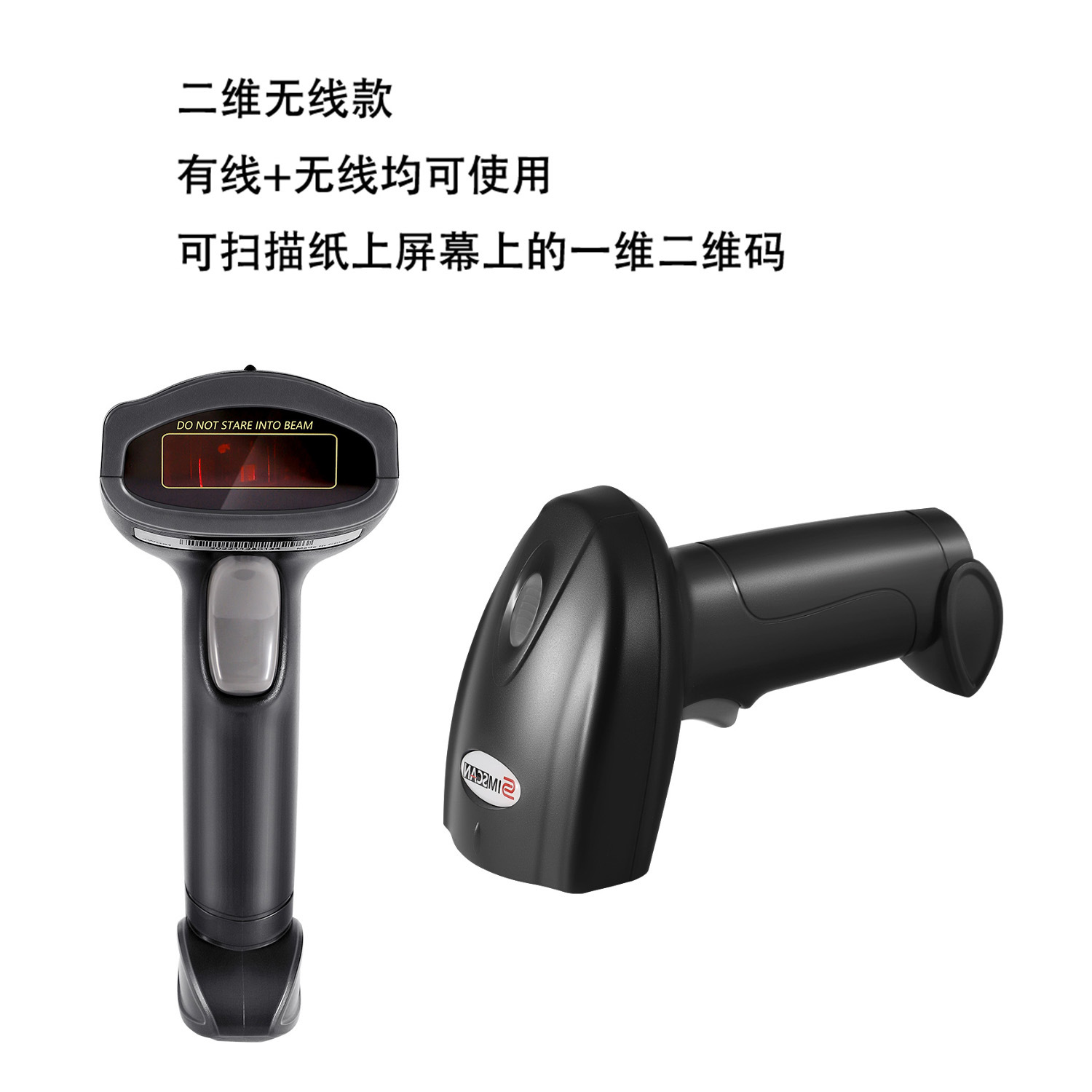

- Model: 2D Wireless

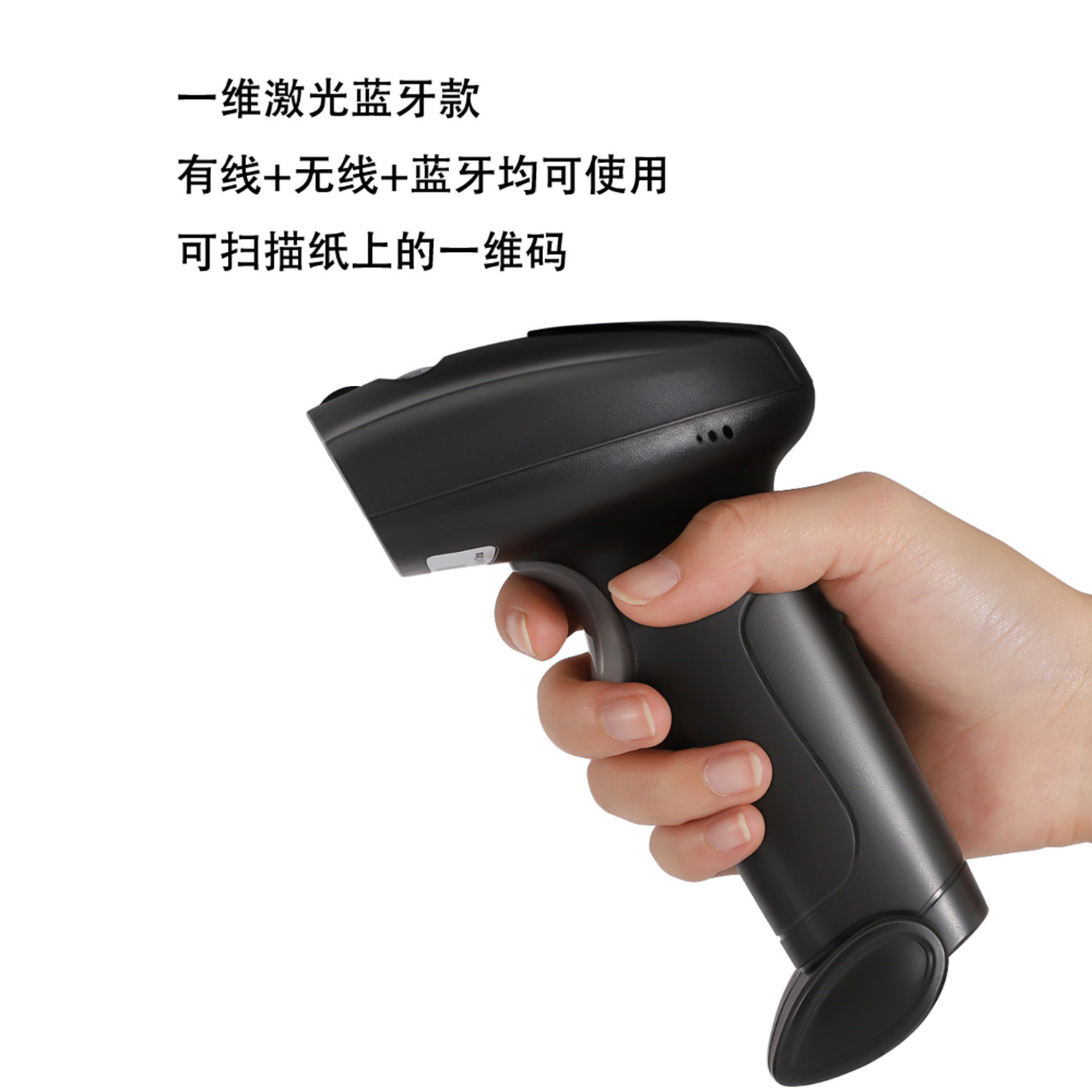

- Model: 1D Laser Bluetooth

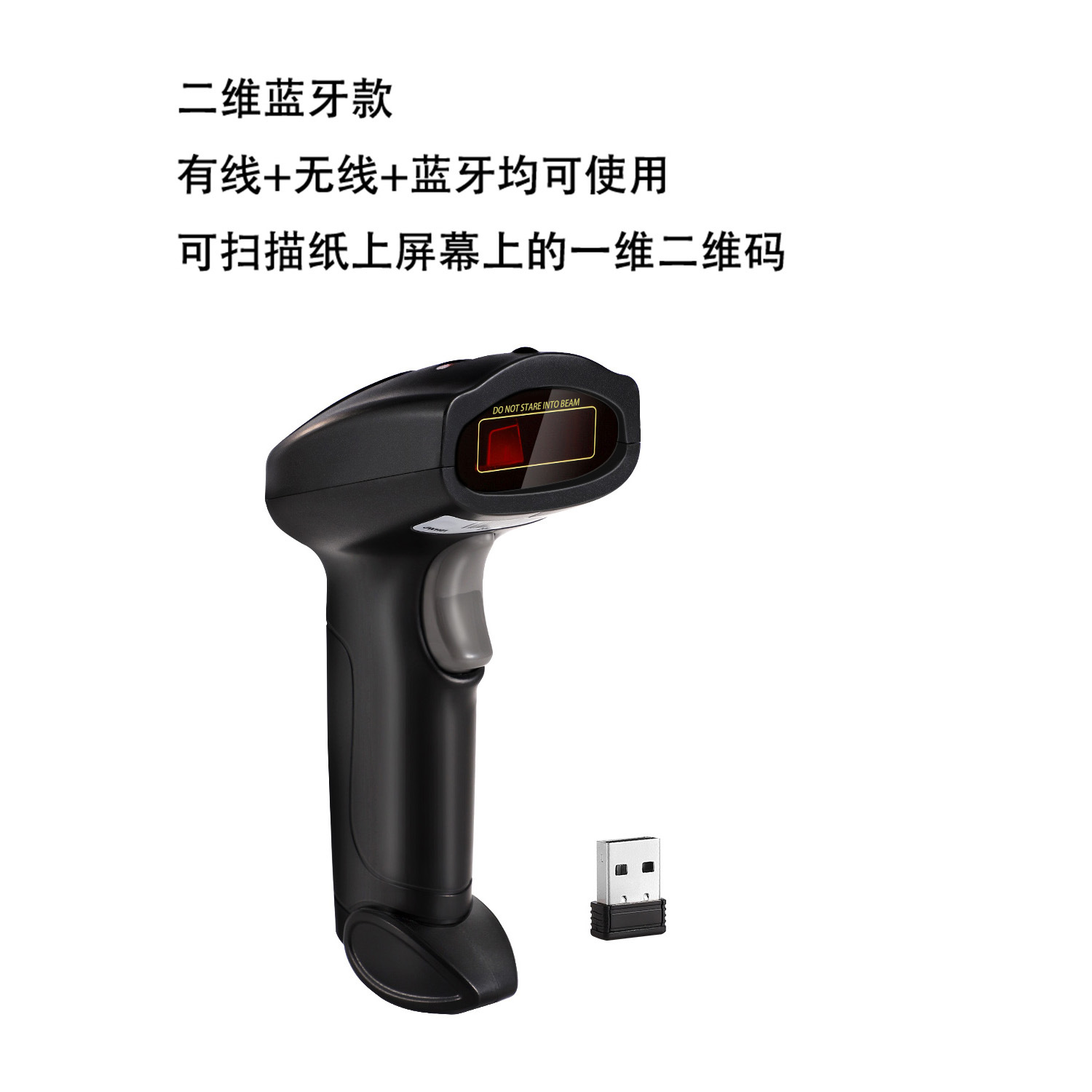

- Model: 2D Bluetooth

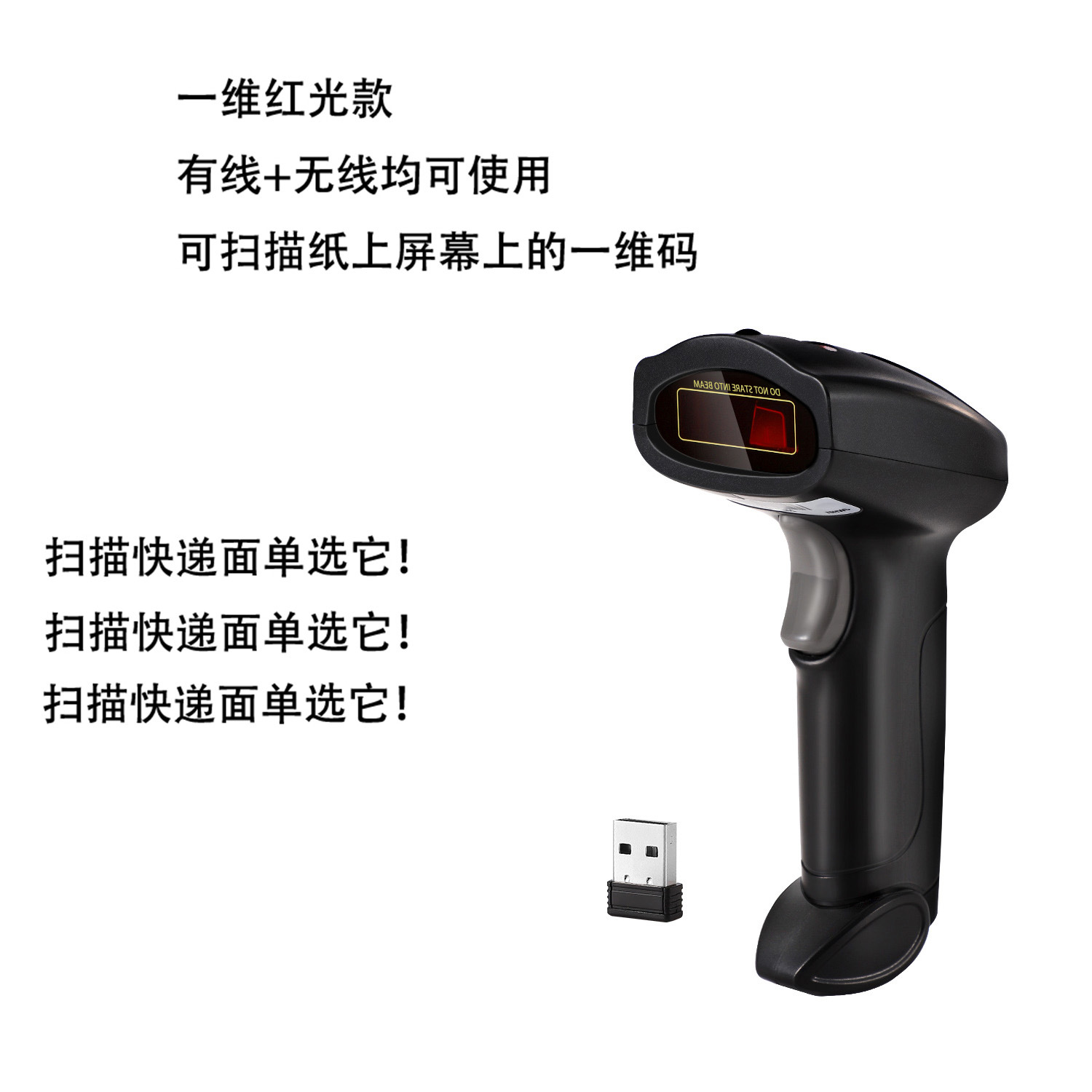

- Model: 1D Red Light Wireless (Ideal for scanning express delivery labels!!!)

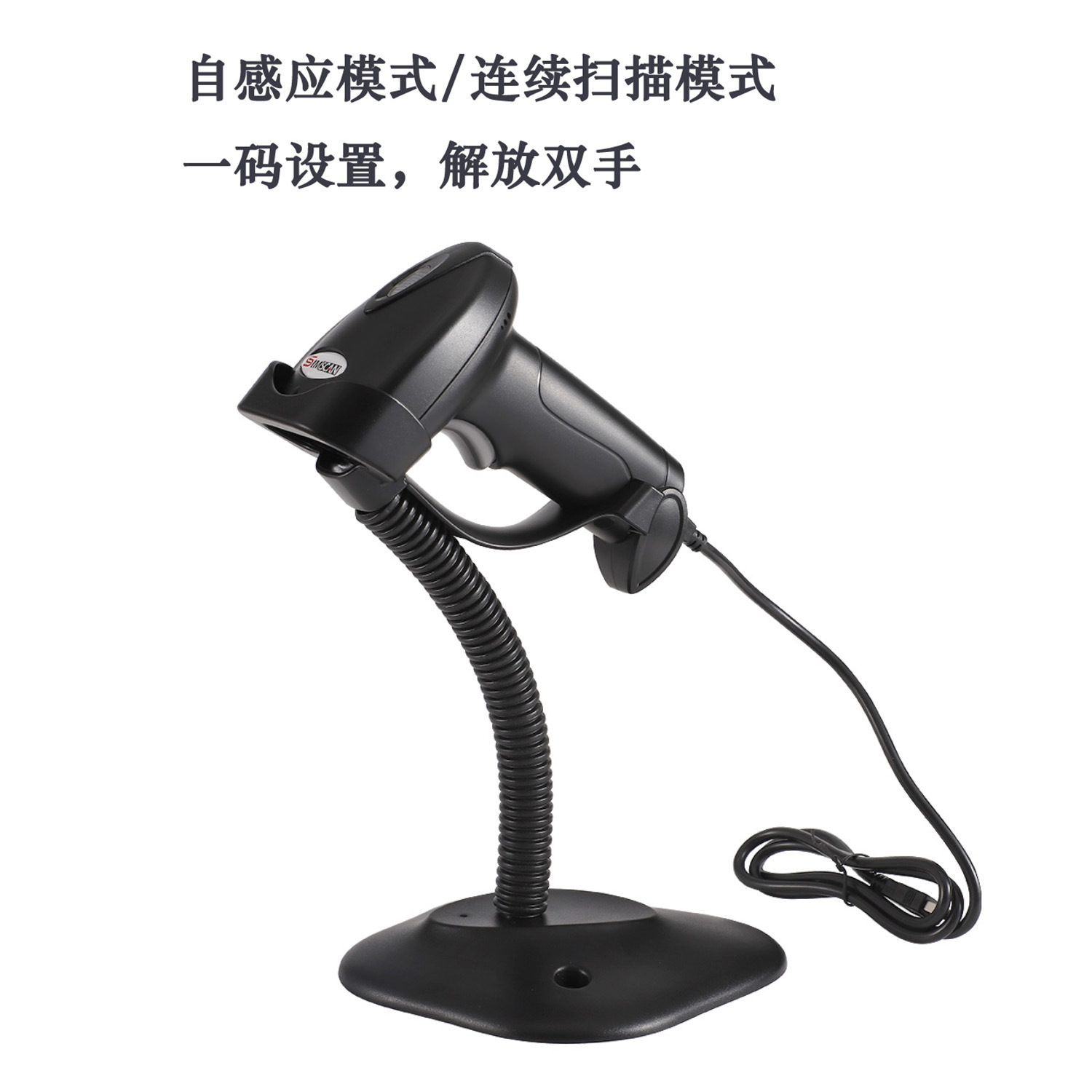

- Model: Universal Bracket (15 sets, not sold separately, please contact customer service)
- Is it a gift: No
可選配中/英文說明書
【裝箱資料】
1PCS, 重量:0.3KG, 包裝尺寸:18*12*8 CM
1箱，數量:50PCS, 重量:16KG ,包裝尺寸:58*37*42.5 CM
【產品特點】

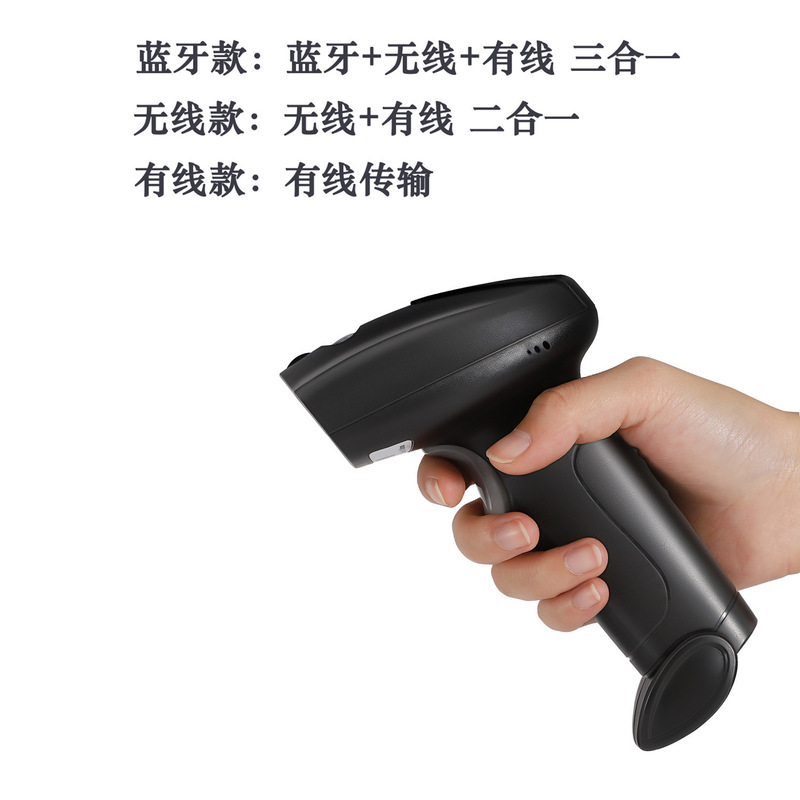

1.有線/2.4G無線/藍牙/一維/二維 可選配
2.48位CPU，超強解碼能力。
3.使用迷你USB接收器，即插即用。
4.人體工程學設計，握持舒適。
5.讀取小至3mil的條形碼。
6.支持二十多個國家的鍵盤布局。
7.支持自動睡眠，只需單擊一個按鈕即可輕鬆喚醒。
8.應用領域：超市，零售，倉庫，物流，圖書館，醫療等
|
無線傳輸距離 |
100米 | |
| 光源 | 620nm可見紅光二極管 | |
| 圖像傳感器 | 線性圖像傳感器(CCD) | |
| 分辨率 | 1500像素 | |
| 識讀精度 | ≥ 3.5mil | |
| 最低對比度 | ≥ 30% | |
| 識讀碼制 | Code128, EAN-13, EAN-8, Code39,UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ISBN, Code 93, UCC/EAN-128, GS1 Databar等 |
|
| 掃描速度 | 280次/秒 | |
| 條碼靈敏度** | 傾斜 | ±55° |
| 旋轉 | ±25° | |
| 偏轉 | ±75° | |
| 充電接口 | USB | |
| 機械和電氣性能 | ||
| 外觀尺寸(長 x 寬 x 高) | 165mm*60mm*85mm | |
| 重量（不含配線） | 136g | |
| 提示方式 | 蜂鳴器和LED指示 | |
| 電池容量 | 1000mah | |
| 最大功耗 | 562mw | |
| 工作電壓 | 4.2V | |
| 電流** | 最大電流 | 134mA |
| 工作電流 | 33mA～134mA | |
| 待機電流 | 33mA | |
| 休眠電流(無線產品) | 10uA | |
| 充電電流 | 450ma | |
| 電池充電時間 | 充滿電最長需要3.5小時 | |
| 一次充滿電可讀條碼 | 大於10萬次 | |
| 環境參數 | ||
| 儲存溫度 | -40°C ~ 60°C | |
| 工作溫度 | 0°C ~ 50°C | |
| 相對濕度 | 0 ~ 95% (無凝結) | |
| 跌落高度（自由落下） | 1.5米 | |
| IP防護等級 | IP52 | |
| **測試條件如下：Code 39, 3 Bytes ; 最小條空寬度 = 10mil; 寬窄比 = 2.5:1 ; 條碼高度 = 40mm；測試距離 = 180mm;環境溫度=25℃ ; 環境照度= 200 LUX | ||
