- SPU: AL-KG7A-7vztwal0[370]

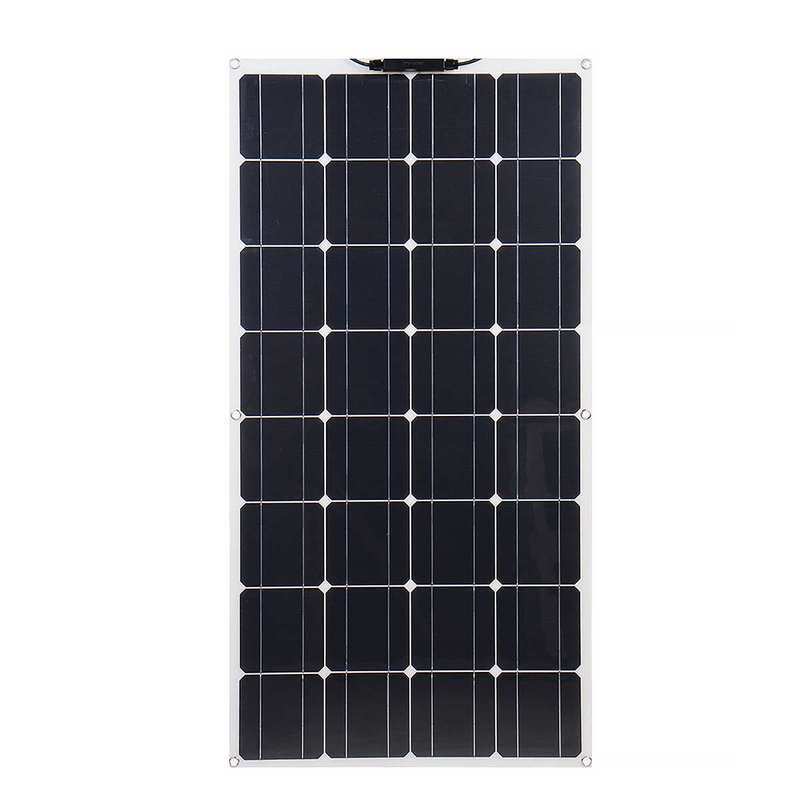

- Model: BSY-911-D100 Solar Panel
- Model: BSY-911-D100 Solar Panel + 10A Blue Controller
- Model: BSY-911-D100 Solar Panel + 20A Blue Controller
- Model: BSY-911-D100 Solar Panel + 30A Blue Controller
- Model: BSY-911-D100 Solar Panel + 40A Blue Controller
- Model: BSY-911-D100 Solar Panel + 50A Blue Controller
- Model: BSY-911-D100 Solar Panel + 60A Blue Controller
- Model: BSY-911-D100 Solar Panel + 100A Blue Controller
- Model: BSY-911-D100 Solar Panel + 10A Green Controller
- Model: BSY-911-D100 Solar Panel + 20A Green Controller
- Model: BSY-911-D100 Solar Panel + 30A Green Controller
- Model: BSY-911-D100 Solar Panel + 40A Green Controller
- Model: BSY-911-D100 Solar Panel + 50A Green Controller
- Model: BSY-911-D100 Solar Panel + 60A Green Controller
- Model: BSY-911-D100 Solar Panel + 100A Green Controller
- Operating Voltage: 16V
- Conversion Efficiency: 20.1%
- Operating Current: 5.55A
- Open-Circuit Voltage: 20V ± 0.8V
- Short-Circuit Current: 5.8A ± 0.15A
- Reference Weight: -
- Product Certification: ROHS
- Product Certification: ROHS, CE
- Product Certification: ROHS, CE
- Product Certification: ROHS, CEFCC
- Product Certification: ROS, CE
- Product Certification: ROHS, E
- Battery Type: Solar Battery
產品信息
重量： 1.7kg

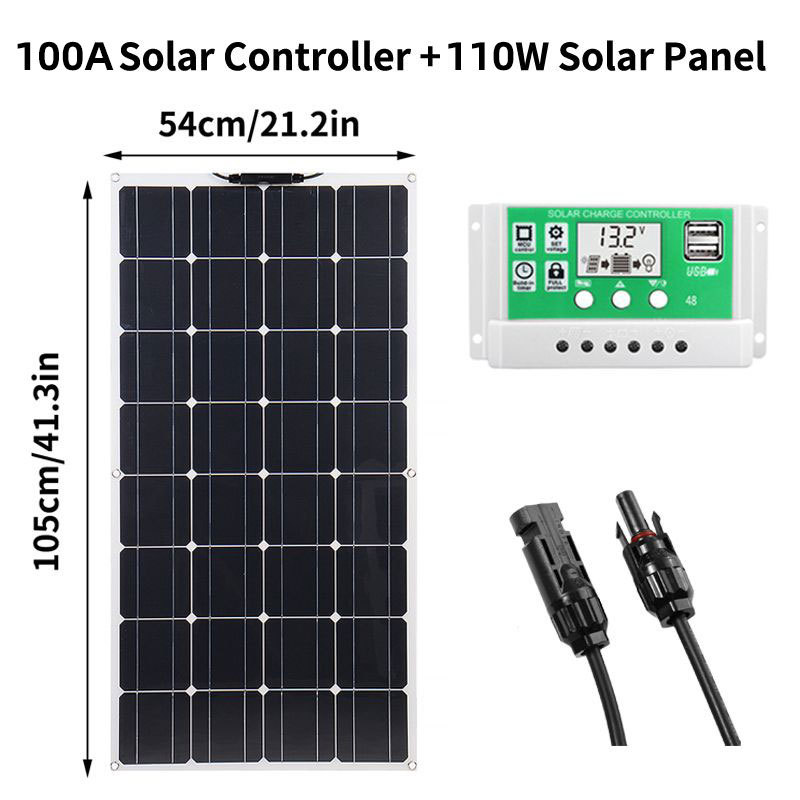

尺寸：1050*540*2.5mm（太陽能板）
包裝尺寸：1070*580*40mm
產地： 深圳松崗
包裝重量：2kg
（尺寸是手動測量，存在一定誤差。）
質保時間：一年

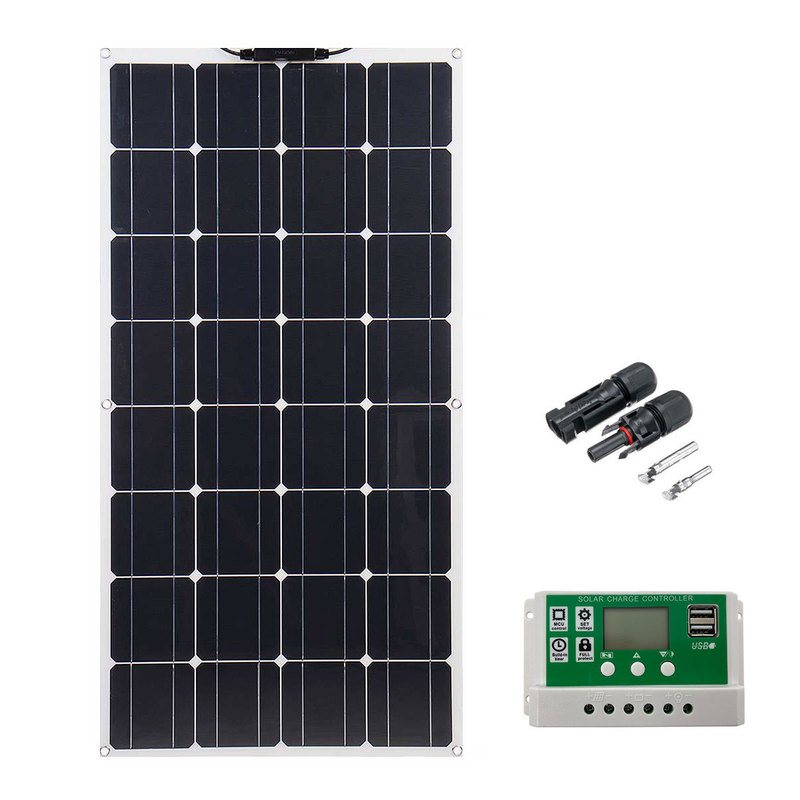

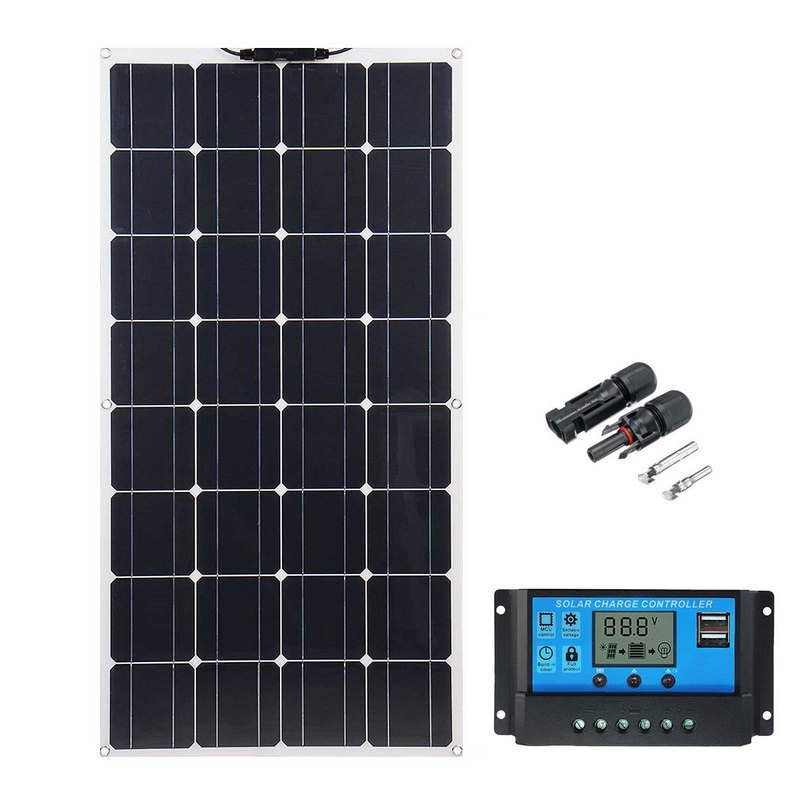

包裝清單：1*太陽能板 1*控制器（選配）1*mc接口
產品不蓄電，可作為普貨。
參數
最大功率（pmax）： 100W
開路電壓（voc）： 20V
最高功率電壓（vmpp）： 16v
短路電流（isc）： 5.7A
最大功率電流（impp）： 5.5A

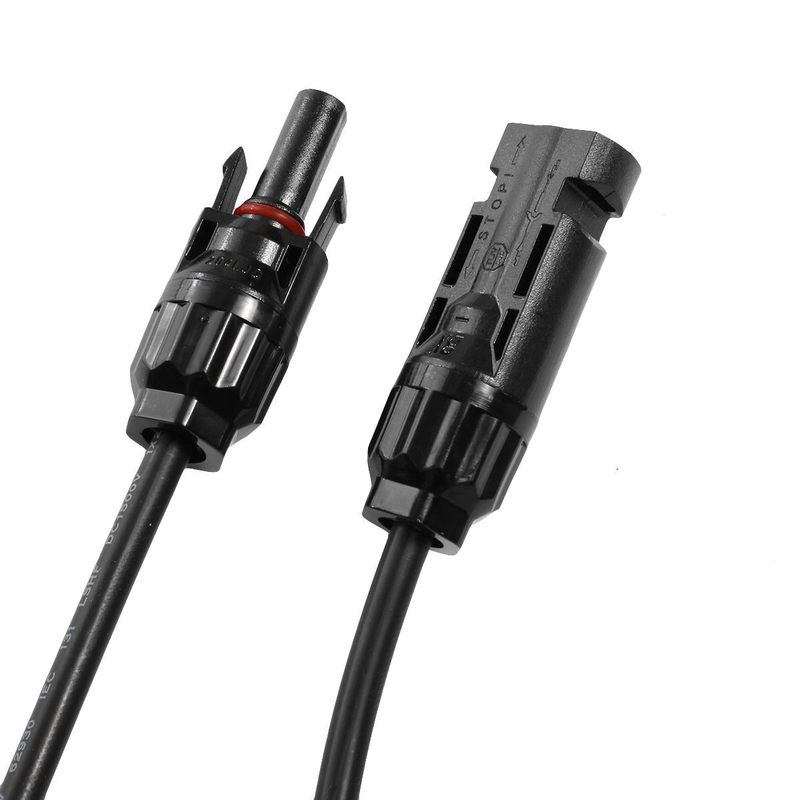

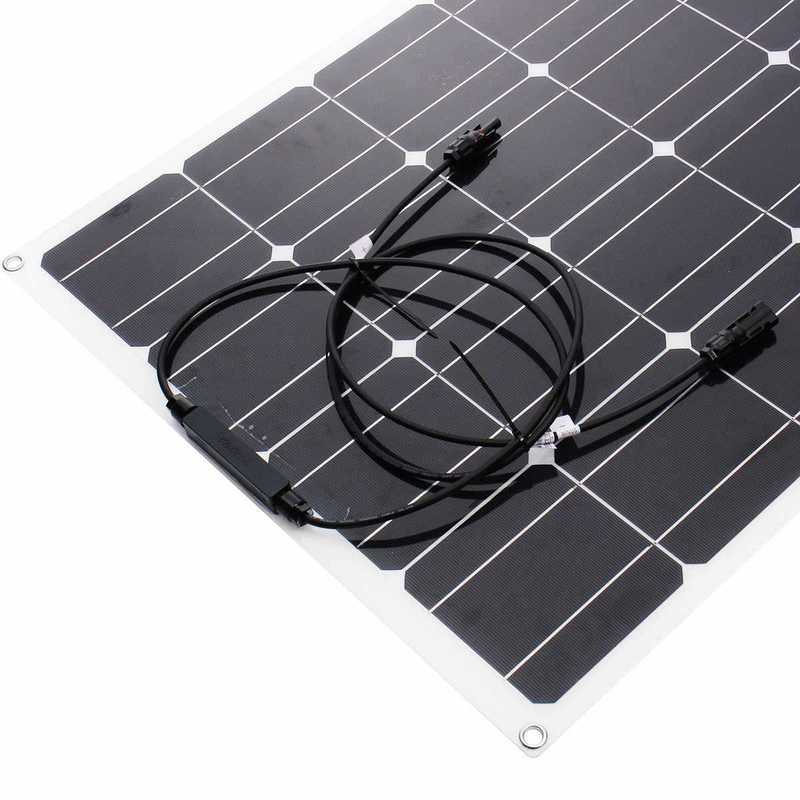

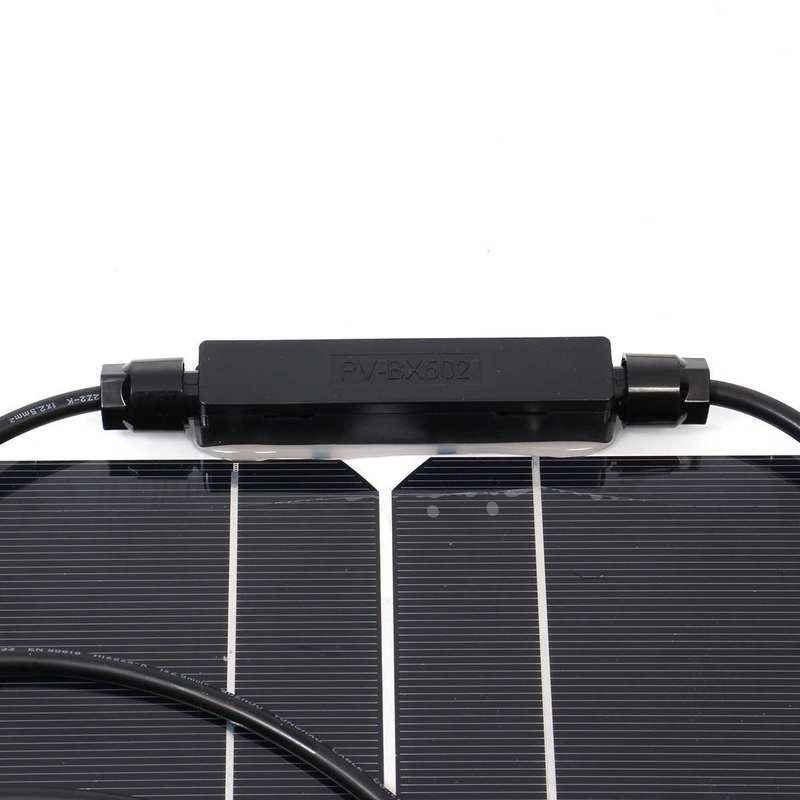

輸出： MC4
標準測試條件
AM=1.5
輻照度=1000W/㎡
溫度= 25℃
溫度係數 電壓: (0.065±0.015)%/℃
溫度係數電流: -(160±10)mA/℃
溫度係數功率: -(0.5±0.05)%/℃
系統電壓: 1000V
使用環境溫度: -40°C － +85°C (-40°F to 185°F)
抗風量: 50psf (2400 pascals)
抗雪量: 113psf (5400 pascals)
冰雹衝擊: 25mm (1 英寸) 在23 m/s (52mph)
產品描述

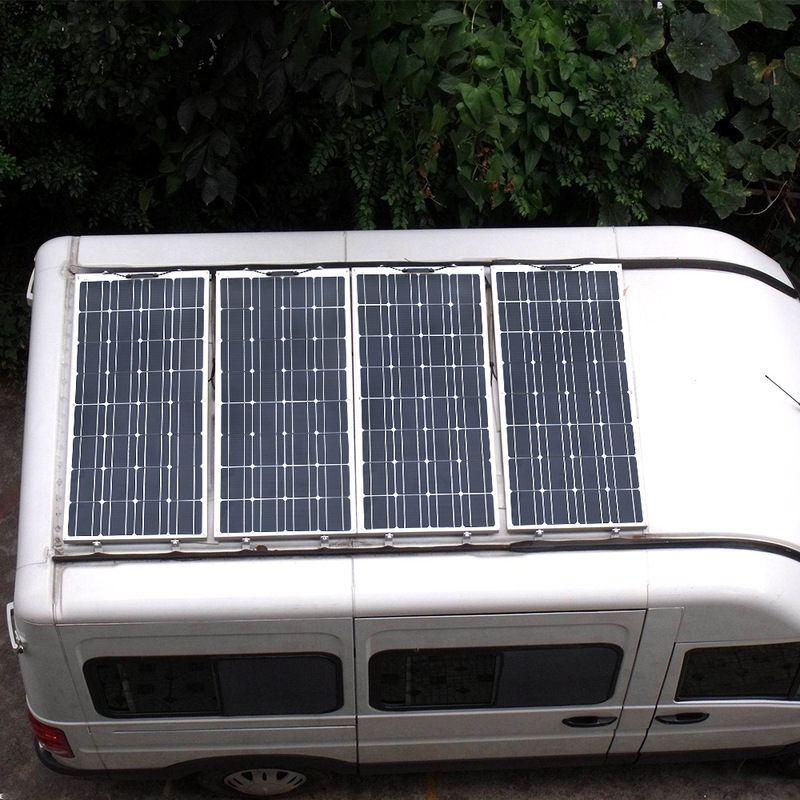

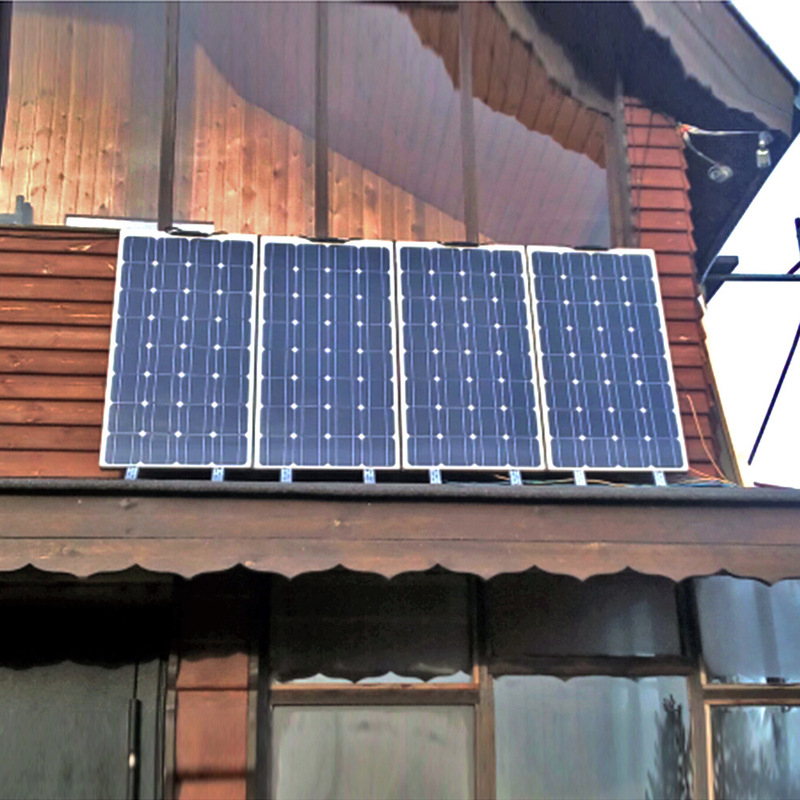

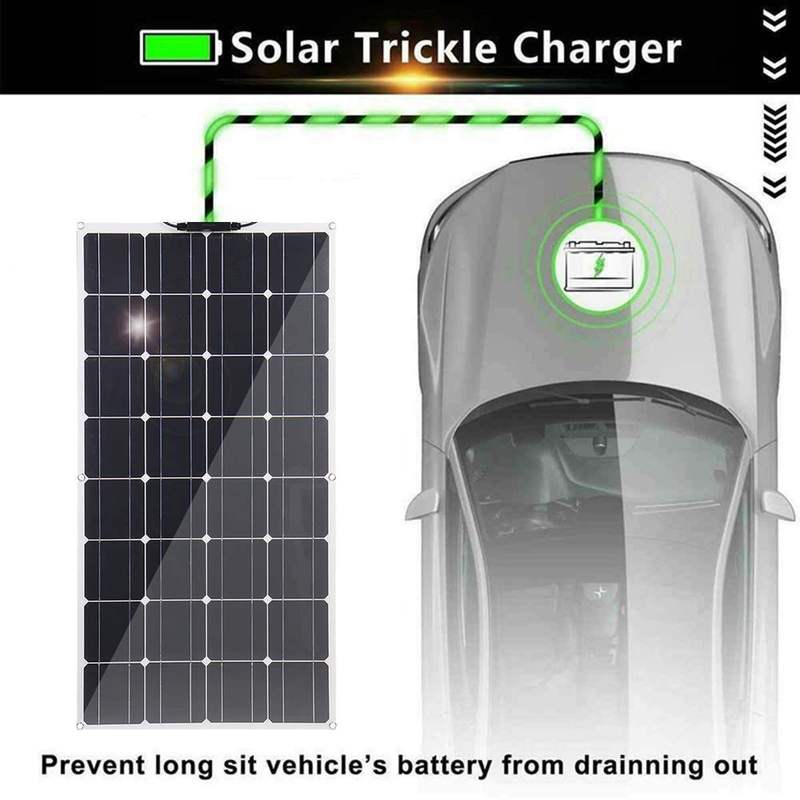

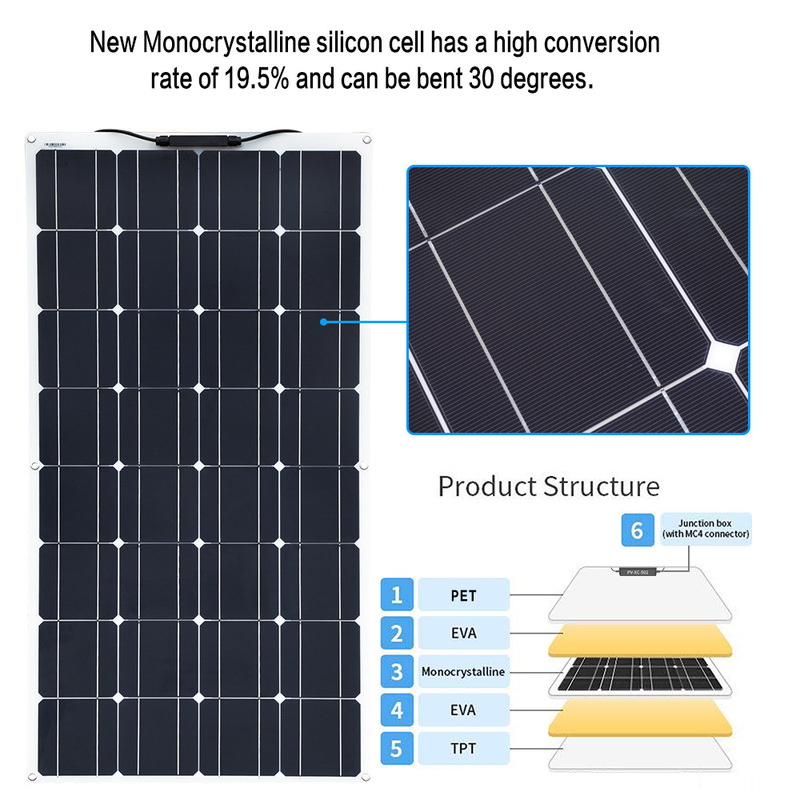

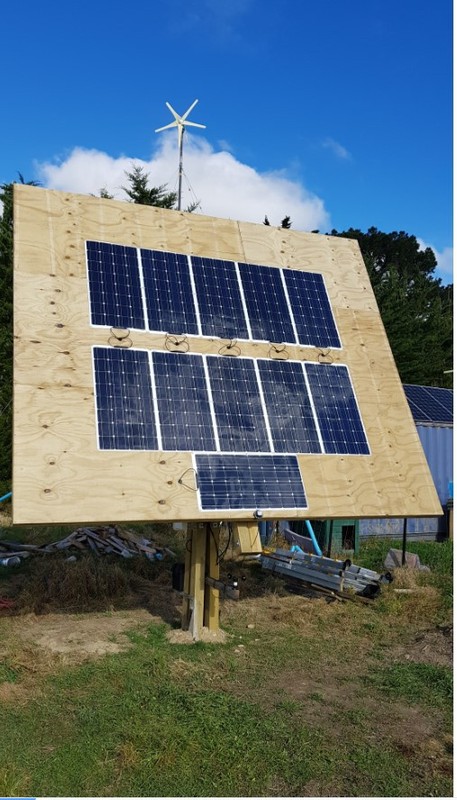

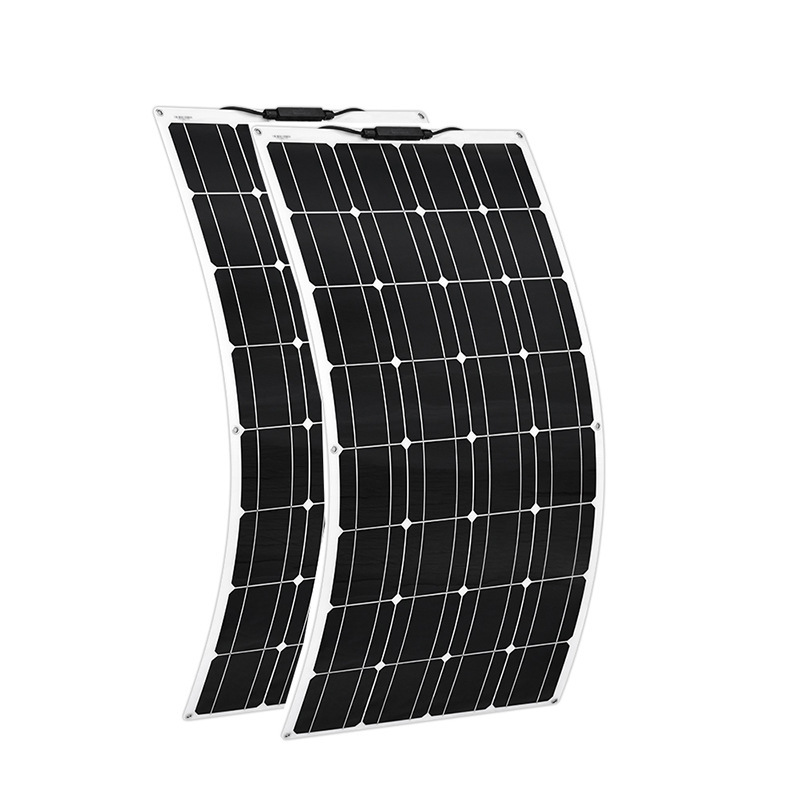

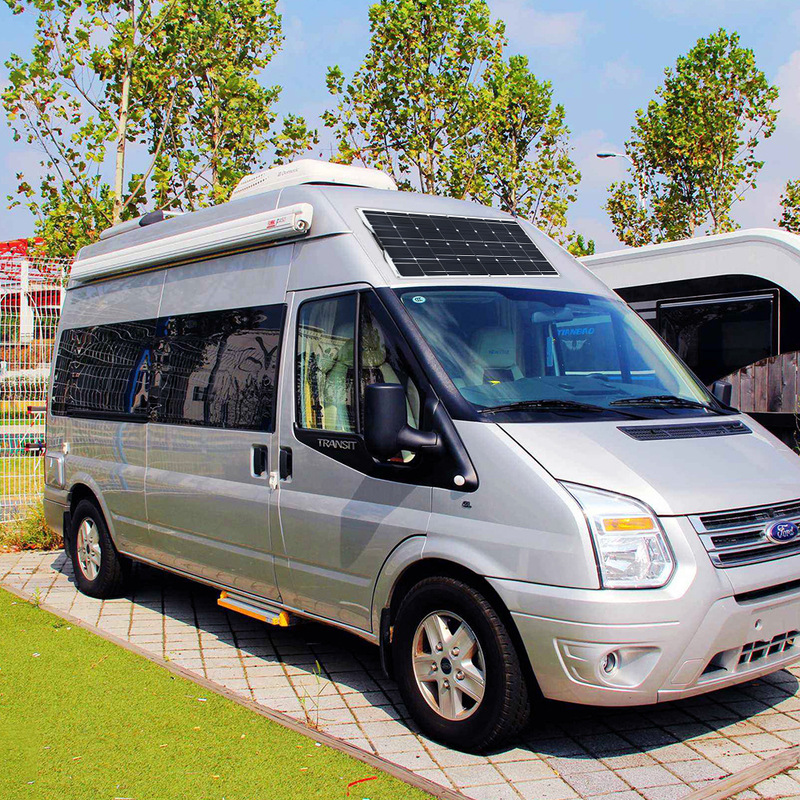

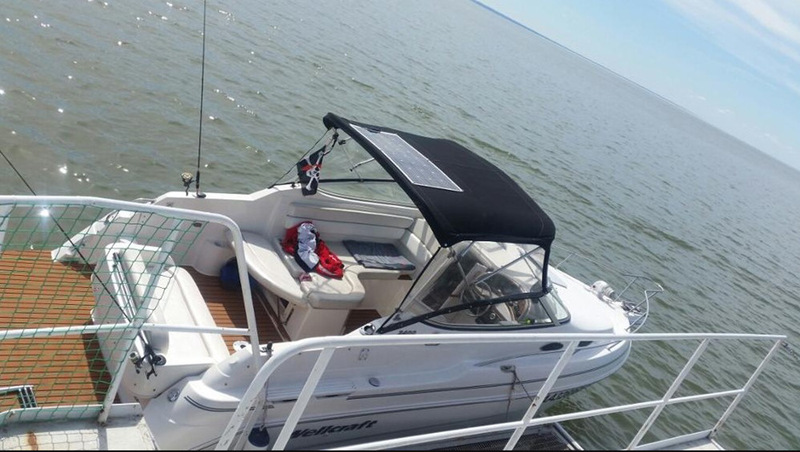

本產品的主要功能是給大部分的12V鉛酸電池供電，包括12V的鋰電等設備充電，還可彎曲30度並安裝在房車、漁艇、木屋、帳篷或任何其他戶外場景供電。該供電方式節能環保，非常適用於戶外工作，旅行或野營訓練。
