- SPU: AL-KG7A-91evr09n[H5]
- Model: BSY-23318- Polycrystalline 10W Solar Panel
- Model: BSY-23318- Polycrystalline 10W Solar Panel with 10A Controller
- Model: BSY-23318- Polycrystalline 10W Solar Panel with 20A Controller
- Model: BSY-23318- Polycrystalline 10W Solar Panel with 30A Controller
- Model: BSY-23318- Polycrystalline 10W Solar Panel with 40A Controller
- Model: BSY-23318- Polycrystalline 10W Solar Panel with 50A Controller
- Model: BSY-23318- Polycrystalline 10W Solar Panel with 60A Controller
- Model: BSY-23318- Polycrystalline 10W Solar Panel with 100A Controller
- Model: BSY-23318- Polycrystalline 10W Solar Panel with 200A Controller
- Battery Type: Solar Battery
產品介紹
-
- 產品信息
-
（尺寸是手動測量，存在一定誤差。）
- 硅片類型：多晶硅
- 重量： 200g

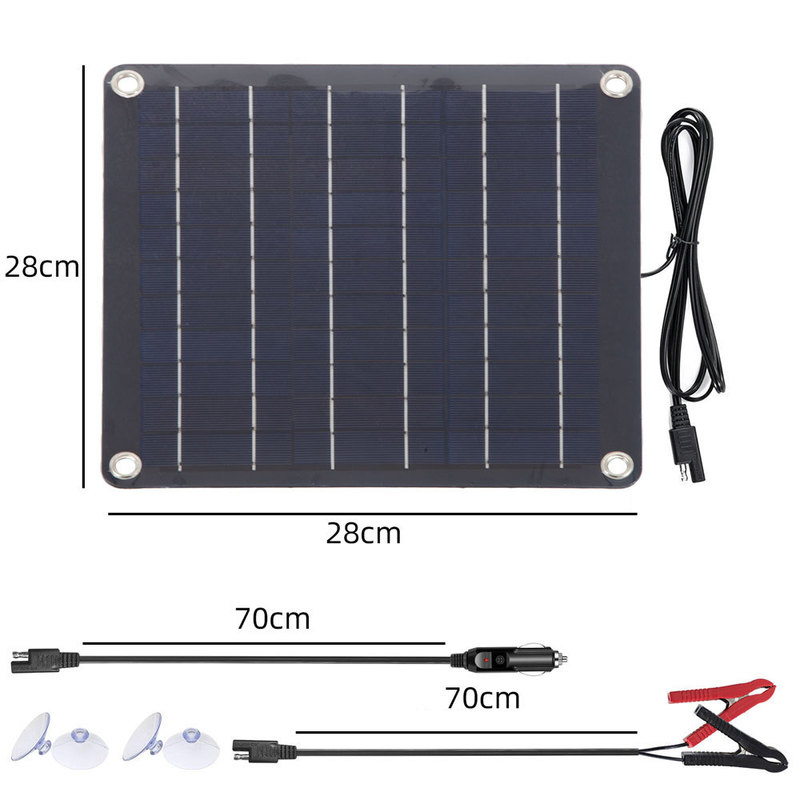

- 產品尺寸：280*280*2.5mm
- 包裝尺寸：290*290*40mm
- 產地：深圳松崗
- 包裝重量： 590g
- 質保時間：一年

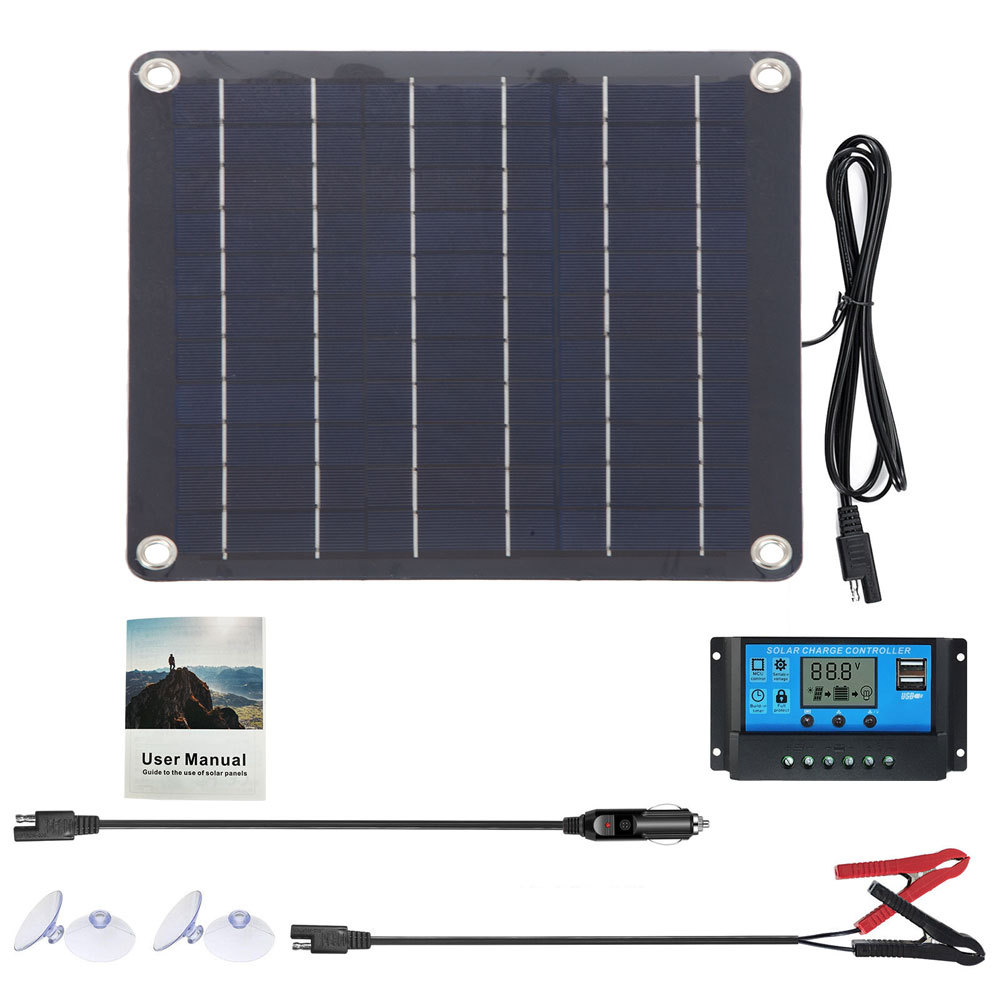

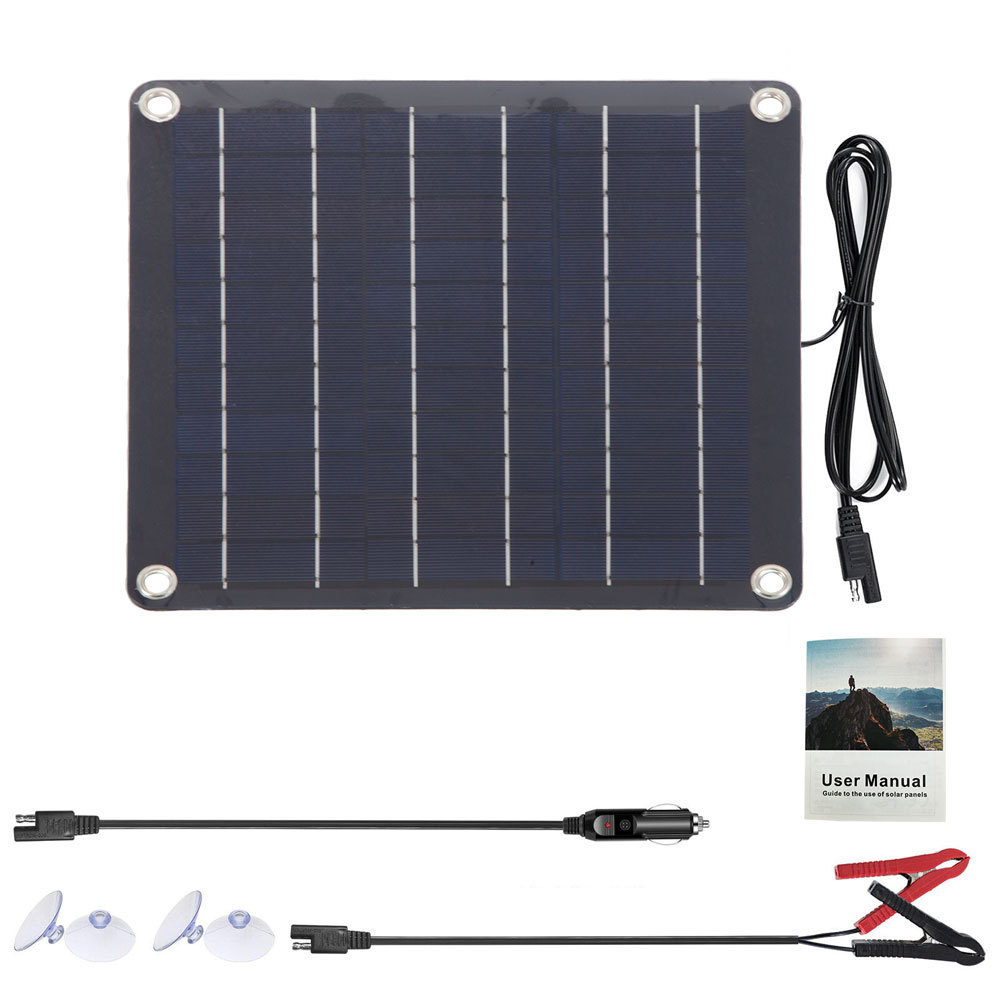

- 包裝清單：1*太陽能板 1*電瓶夾 1*車載充電器 1*通用說明書 4*吸盤 選配：1*控制器
- 產品不蓄電，可作為普貨。
- 參數
-
- 最大功率（pmax）： 10W
- 開路電壓（voc）： 20V
- 最高功率電壓（vmpp）： 18v
- 短路電流（isc）： 0.7A
- 最大功率電流（impp）： 0.5A
- 輸出： SAE
- 標準測試條件
- AM=1.5
- 輻照度=1000W/㎡
- 溫度= 25℃
-
特點：
1.單晶太陽能電池的效率高達18%。
2.戶外太陽能電池板可以有效地將陽光轉化為電能。
3.環氧樹脂表面層壓，IP65防水，提高耐久性。
4.鉛酸電池通用型控制器，更實用。

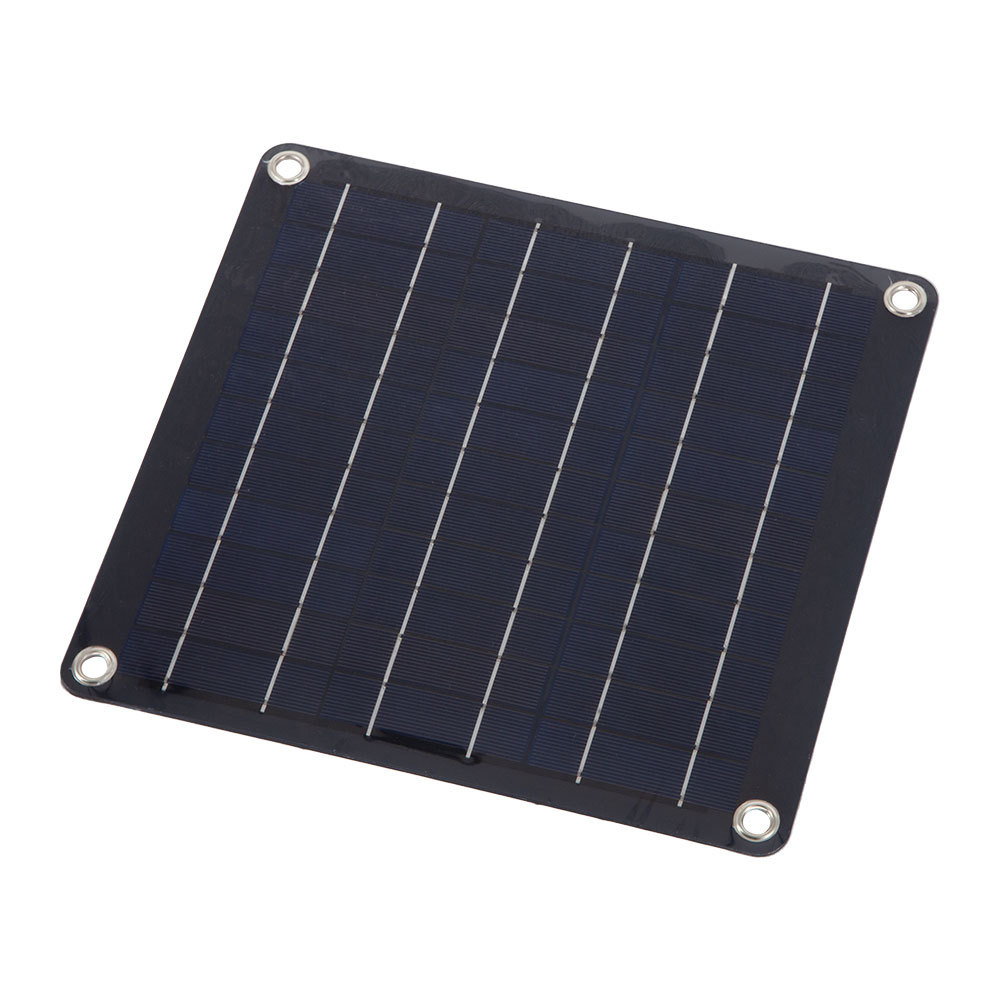

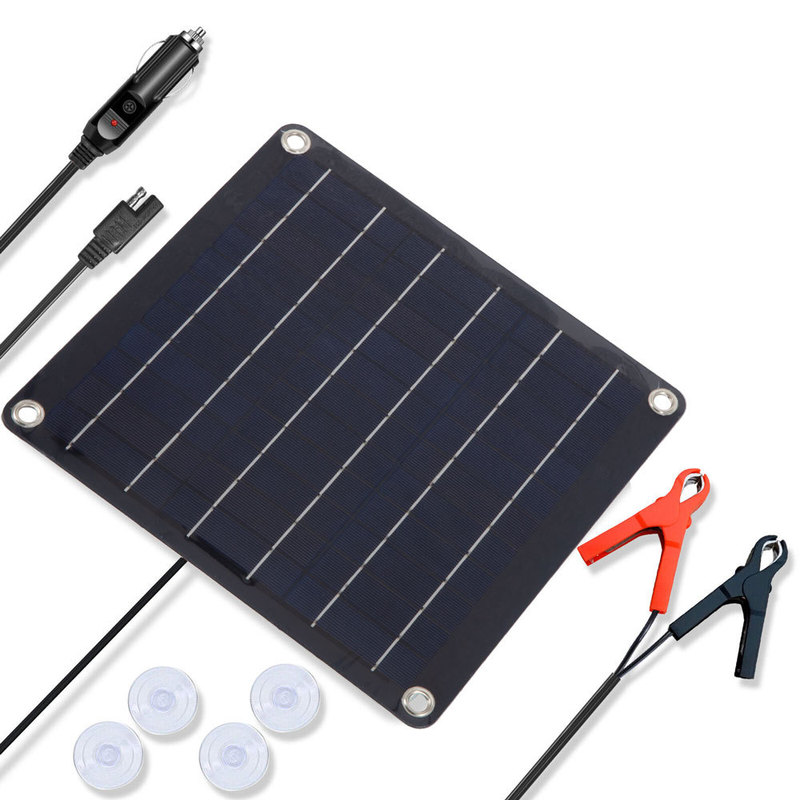

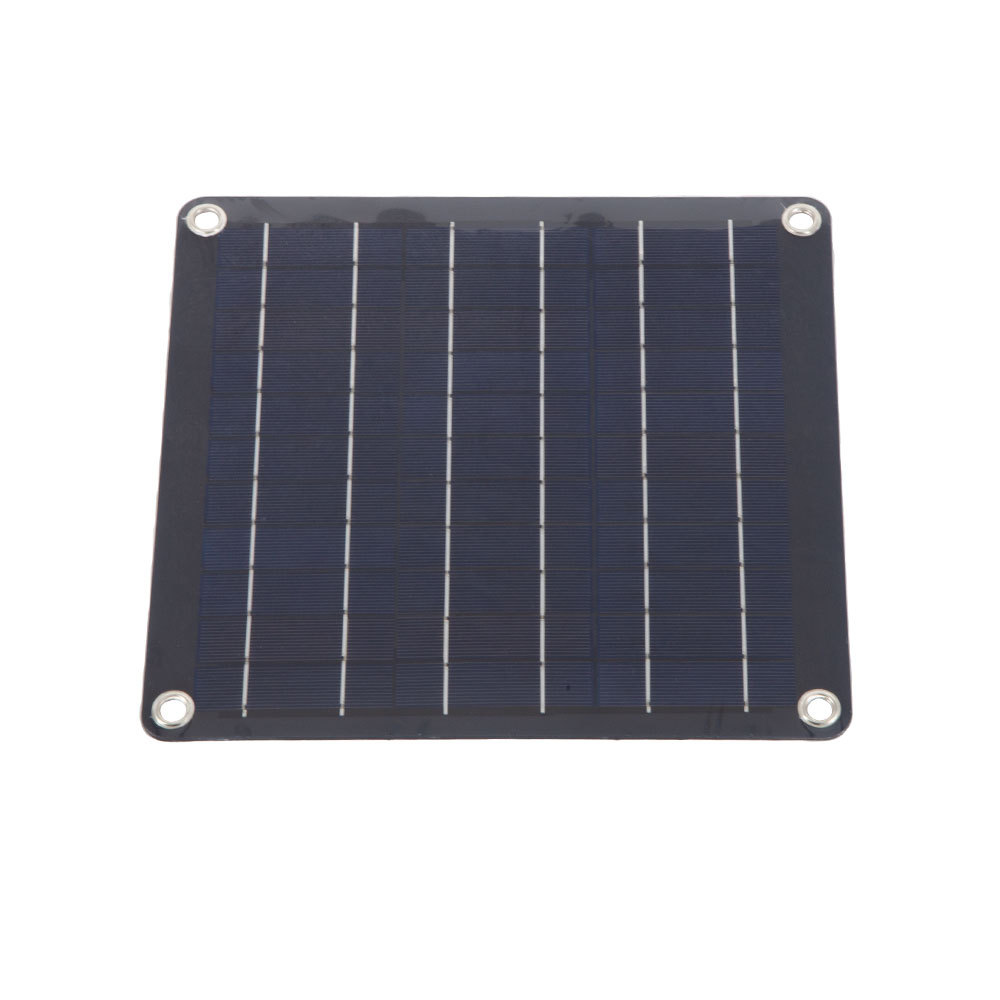

產品實拍圖
