- SPU: AL-KG7A-8n30t3tk[600]
- Model: BSY-618-80 Single Board
- Model: BSY-618-80 Single Board with 40A Controller
- Model: BSY-618-80 Dual Board
- Model: BSY-618-80 Dual Board with 40A Controller Set
- Model: BSY-618-80 Dual Board with 100A Controller Set
- Operating Voltage: 18V
- Conversion Efficiency: 20.1%
- Operating Current: 4A
- Operating Current: 8A
- Operating Current: 8.2A
- Operating Current: 4.4A
- Operating Current: 8.123A
- Product Certification: ROHS, CE
- Battery Type: Solar Battery
產品信息
重量： 1.5kg(單片)

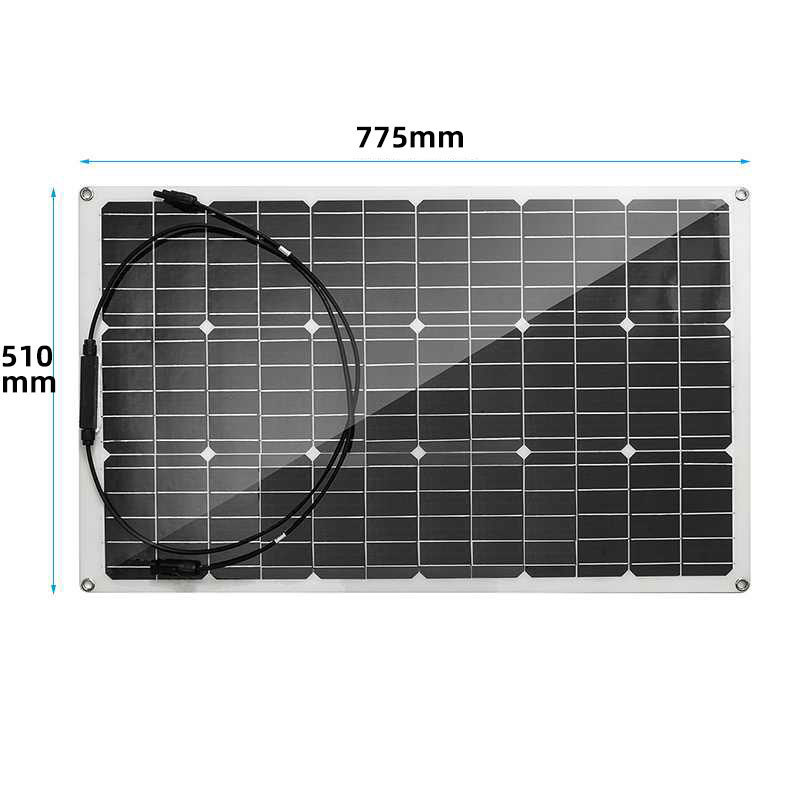

尺寸：775*510*2.5mm（太陽能板）
包裝尺寸：790*530*40mm
產地： 深圳松崗
包裝重量：1.6kg單片 3.8kg（套裝）
（尺寸是手動測量，存在一定誤差。）
質保時間：一年

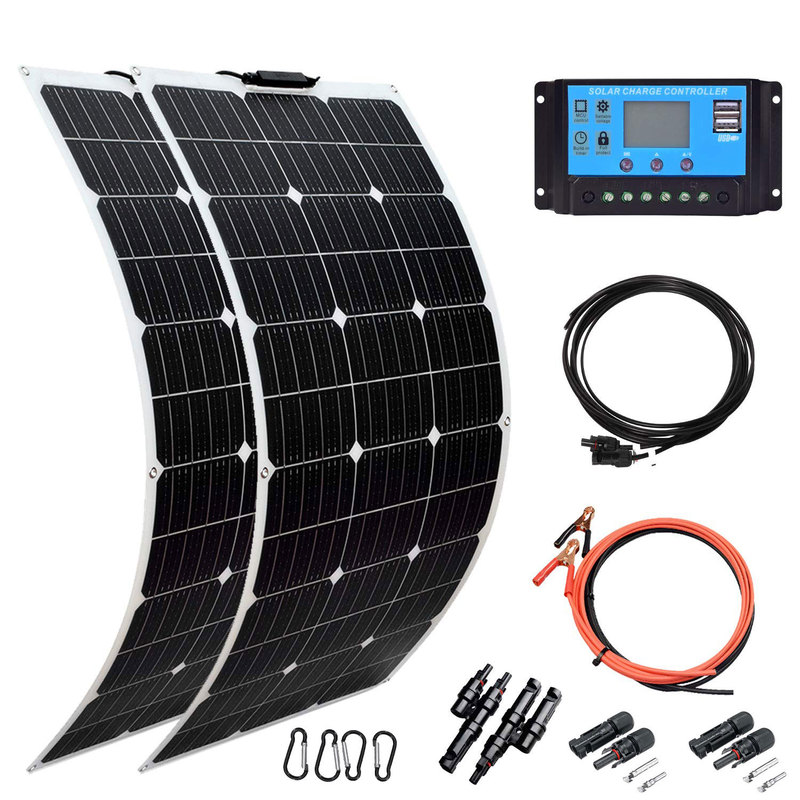

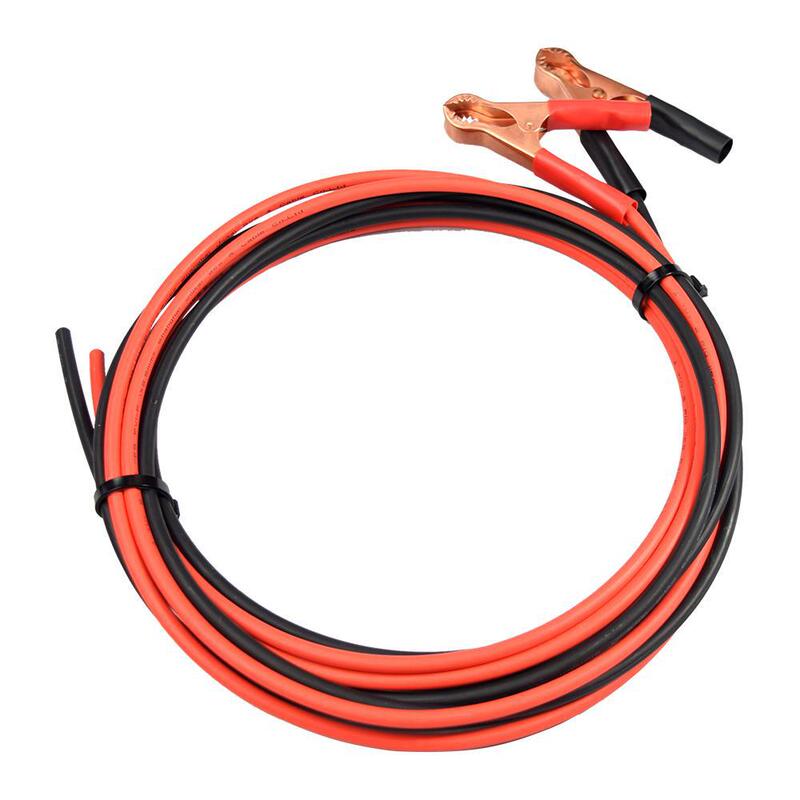

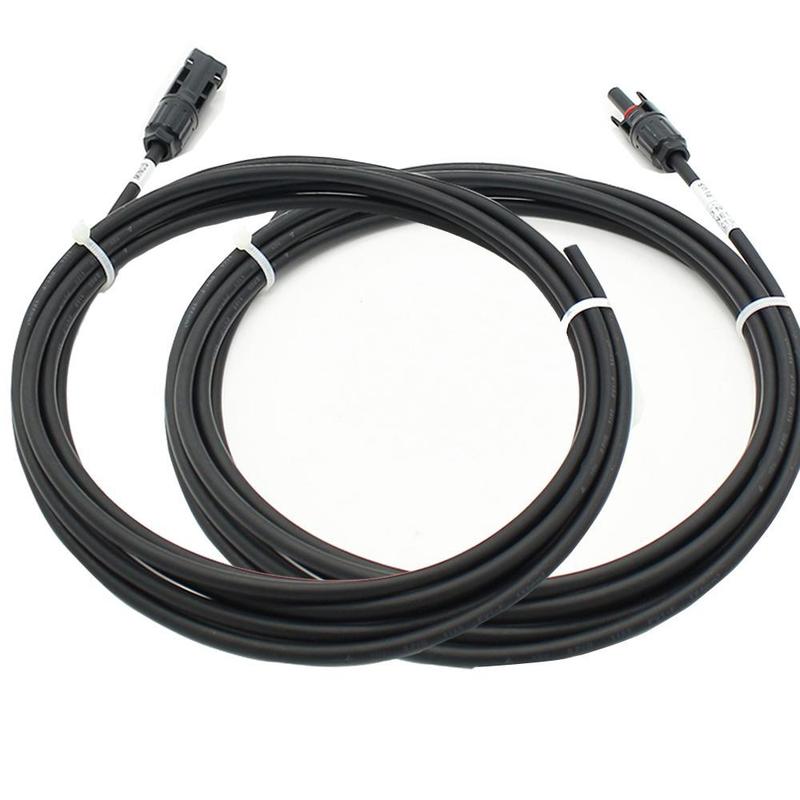

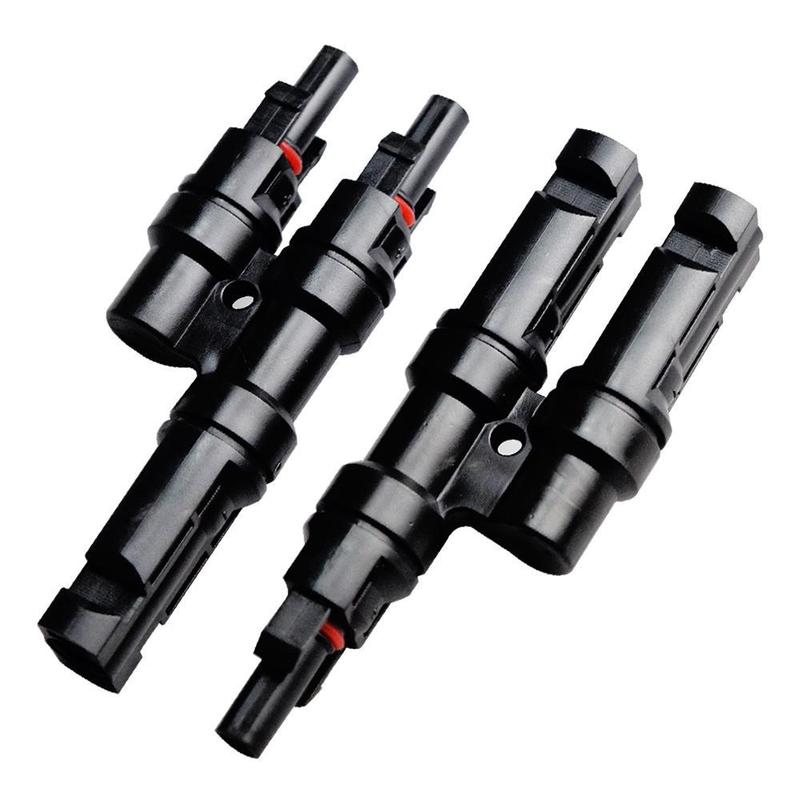

包裝清單：詳情如圖 太陽能板*1/2 MC4接口*1/2 （控制器*1 電瓶夾2米延長線*1 MC4接口延長線*1 MC4三通接口*1 登山扣*4 ）選配
產品不蓄電，可作為普貨。
參數
最大功率（pmax）： 80W*2
開路電壓（voc）： 20V
最高功率電壓（vmpp）： 16v
短路電流（isc）： 4.5A*2
最大功率電流（impp）：4A*2

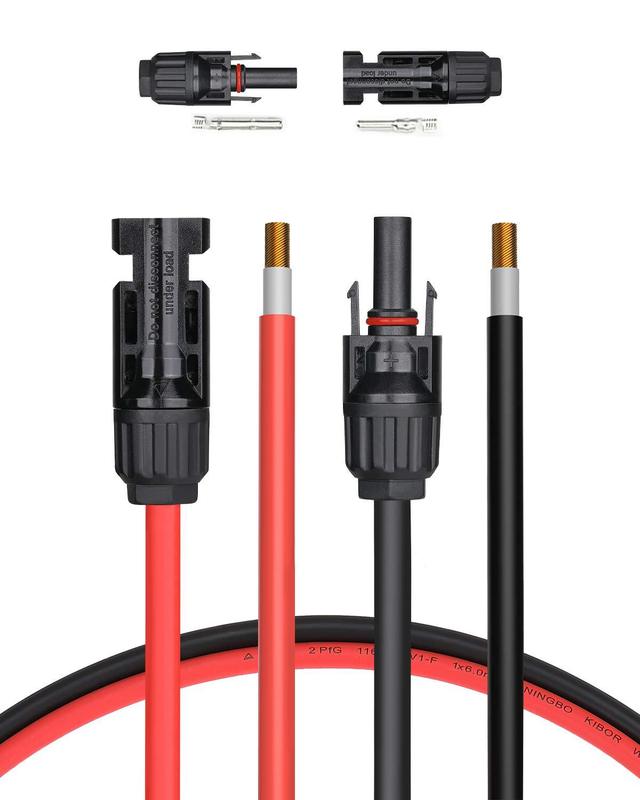

輸出： MC4
標準測試條件
AM=1.5
輻照度=1000W/㎡
溫度= 25℃
溫度係數 電壓: (0.065±0.015)%/℃
溫度係數電流: -(160±10)mA/℃
溫度係數功率: -(0.5±0.05)%/℃
系統電壓: 1000V
使用環境溫度: -40°C － +85°C (-40°F to 185°F)
抗風量: 50psf (2400 pascals)
抗雪量: 113psf (5400 pascals)
冰雹衝擊: 25mm (1 英寸) 在23 m/s (52mph)
產品描述

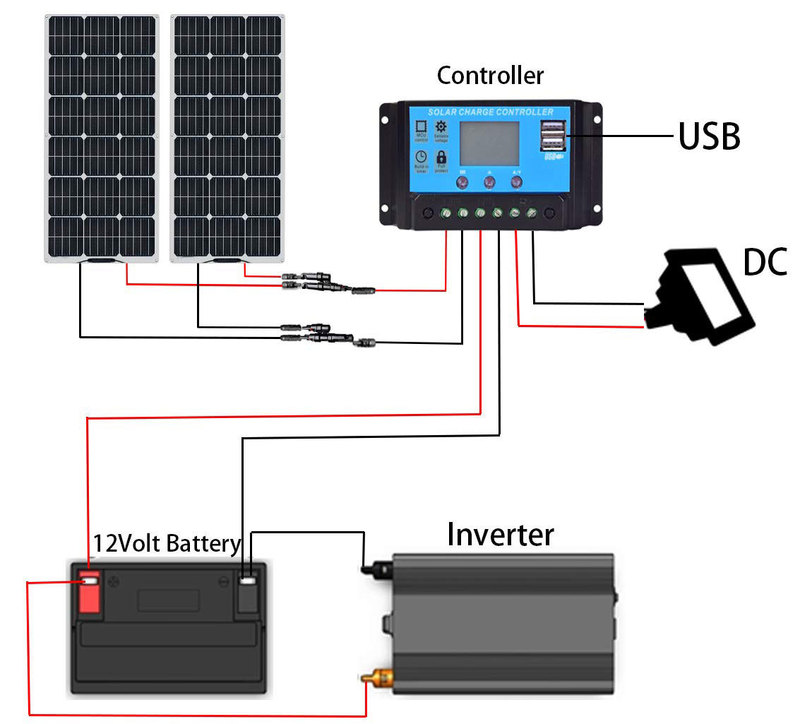

本產品的主要功能是給大部分的12V鉛酸電池供電，包括12V的鋰電等設備充電，還可彎曲30度並安裝在房車、漁艇、木屋、帳篷或任何其他戶外場景供電。該供電方式節能環保，非常適用於戶外工作，旅行或野營訓練。
