- SPU: AL-KG7A-809k0un2[E6]
- Model: Black
- Model: Camouflage
- Operating Voltage: 5V
- Conversion Efficiency: 19.7%
- Operating Current: 1.3A
- Reference Weight: 350g
- Reference Weight: -
- Product Certification: CEFCC ROHS, CEFCC ROH
- Battery Type: Solar Battery
產品介紹
-
- 產品信息
-
- 重量: 335g

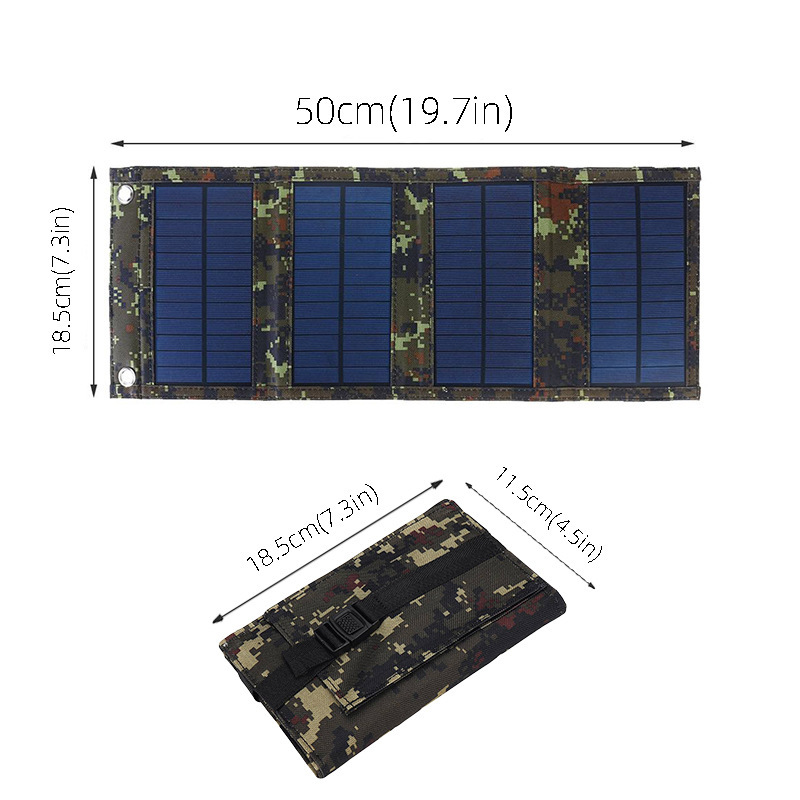

- 展開尺寸:500*185*3mm
- 摺疊尺寸:185*115*25mm
- 包裝尺寸:210*140*40mm
- 產地: 深圳松崗
- 包裝重量:376g
- 質保時間:一年
- 包裝清單:太陽能摺疊包*1 登山扣*2 用戶手冊*1
- (尺寸是手動測量,存在一定誤差。)產品不蓄電,可作為普貨。
-
- 參數
-
- 最大功率(pmax): 10W
- 開路電壓(voc): 6V
- 最高功率電壓(vmpp): 5v
- 短路電流(isc): 1.5A
- 最大功率電流(impp): 1.38A
- 輸出: USB 5V
- 標準測試條件
- AM=1.5
- 輻照度=1000W/㎡
- 溫度= 25℃

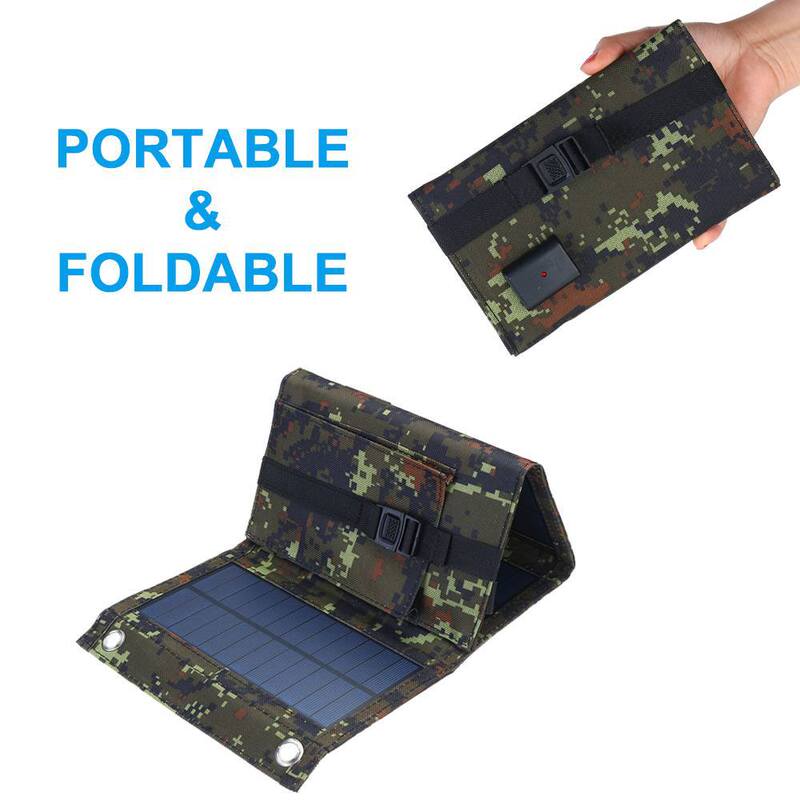

產品實拍圖















產品特寫圖
產品包裝圖
特徵
-
攜帶方便:摺疊式太陽能充電板包體積小巧,重量輕,小巧輕便,可裝入任何野營背包、徒步旅行背包或應急包。它們也很適合存放在急救箱裡。
這種特殊的PET聚合物表面保護它不受偶爾下雨或濕霧的影響。
廣泛的兼容性:幾乎所有5V安卓設備和一些數碼單反,或蘋果設備(需要額外的原始電纜)連接微型USB電纜。我們的太陽能手機充電器不能儲存電能,請在室外陽光直射下展開,然後連接到您的設備上。注意:我們的太陽能充電器不適合筆記本電腦和iPad Pro。
注意:任何雲層到達都可能影響充電速度。如果充電太慢,我們建議您重新安裝設備,重新打開太陽能電池板。
