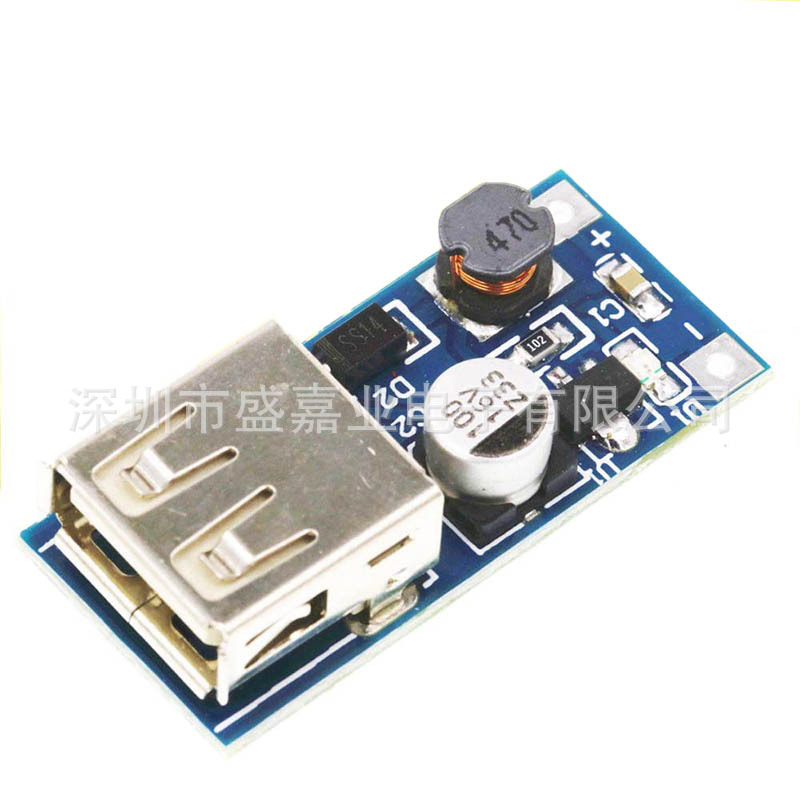

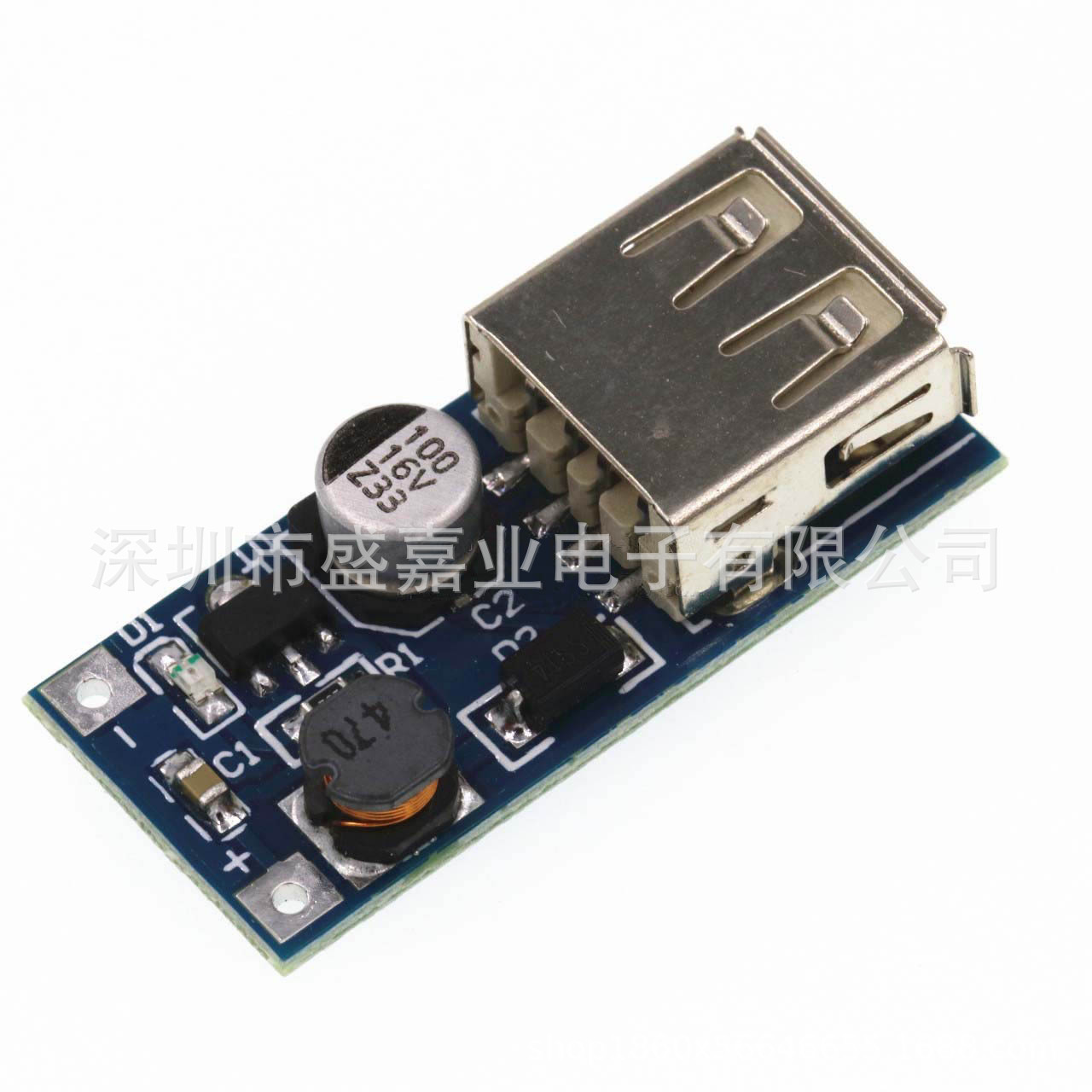

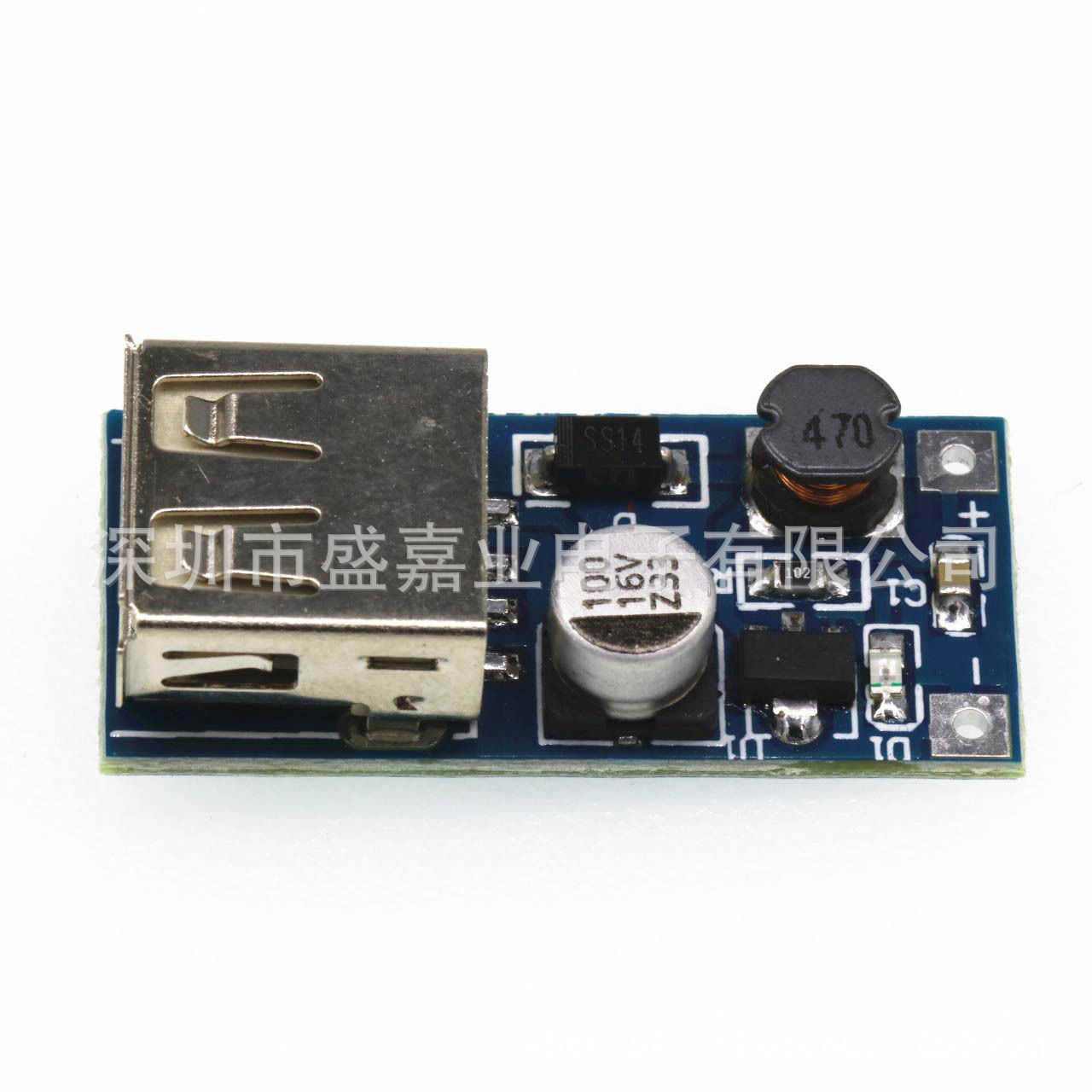

- SPU: AL-Q5K4-9dwv4dw1[1]
- Application Field: 3C Digital Products
- Type: DC-DC Boost Module
（詳情提供中英文描述）
中文描述：
產品特點：
1、板載超小型PFM控制DC/DC升壓控制器芯片
2、 輸入0.9V～5V任意直流電壓，均可穩定輸出5V直流電壓，用兩節AA電池輸入即可輸出500～600MA的電流，單節AA電池供電可輸出200ma左右的電流，可為手機、相機、單片機，數碼產品供電。均可穩定輸出5V直流電壓
3、板載USB母座，可以直接對USB接口設備供電, 帶USB母座，用途廣泛
4、板載輸入電壓指示燈
5、PCB尺寸：34(mm)x16.2(mm)超小體積，用安裝於各種小型設備里
發貨清單：
5V升壓模塊 x 1個
英文描述：
Feature:
- Module Properties: non-isolated step-up module (BOOST)
- input voltage: 1-5V
- Output voltage: 5.1-5 .2 V
- Output Current: Rated 1A-1.5A (single lithium input), the maximum 1.5A (single lithium input)
- Efficiency: Up to 96% (the higher the input voltage, the higher the efficiency)
- Switching frequency: 500KHz
- Output ripple: 30mV (MAX) 20M bandwidth (input 4V output 5.1V 1A)
- Voltage indication: LED lights with load (input voltage less than 2.7V LED indicator off)
- Operating Temperature: Industrial (-40°c to +85°c)
-
Full load temperature rise: 30°c
- Quiescent Current: 130uA
- Load regulation: ± 1%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Short circuit protection: None (Please use the lithium battery with protection.)
- Input Reverse Polarity Protection: None
- Connection: Welding
- Input: IN + Postive, IN-Negative
- Output: USB Output
Applications:
- DIY a mobile power supply, only need one battery, you can output 5V voltage for your phone, MP3, MP4, PSP charger, very easy.
- In order to power your electronic devices when your device needs 5V power supply, when you only have lithium battery, this module can be directly step-up to 5V, solve your problems.
