- SPU: AL-UXRN-8c514jny[D1]
- Type: Programmer
- Model: CH341A Burning Kit
- Processor Speed: Other
- Power Current: Other
- Power Voltage: Other
- Power: Other
- Purpose: CH341A Flash BIOS USB Burning Module
- Featured Service: BIOS/FLASH/24/25 Burner
- Batch No: CH341A Burning Kit
- Specification: CH341A Programmer

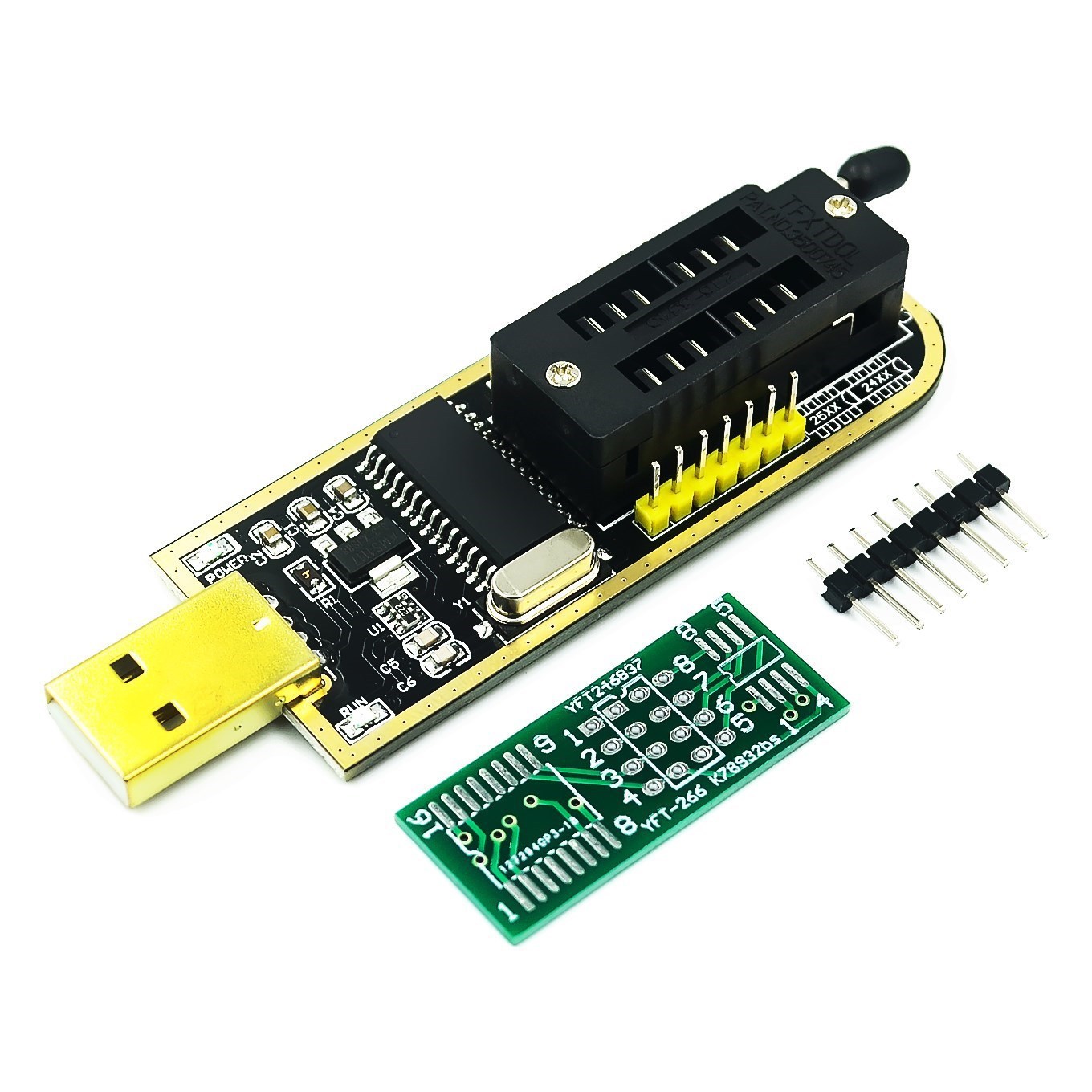

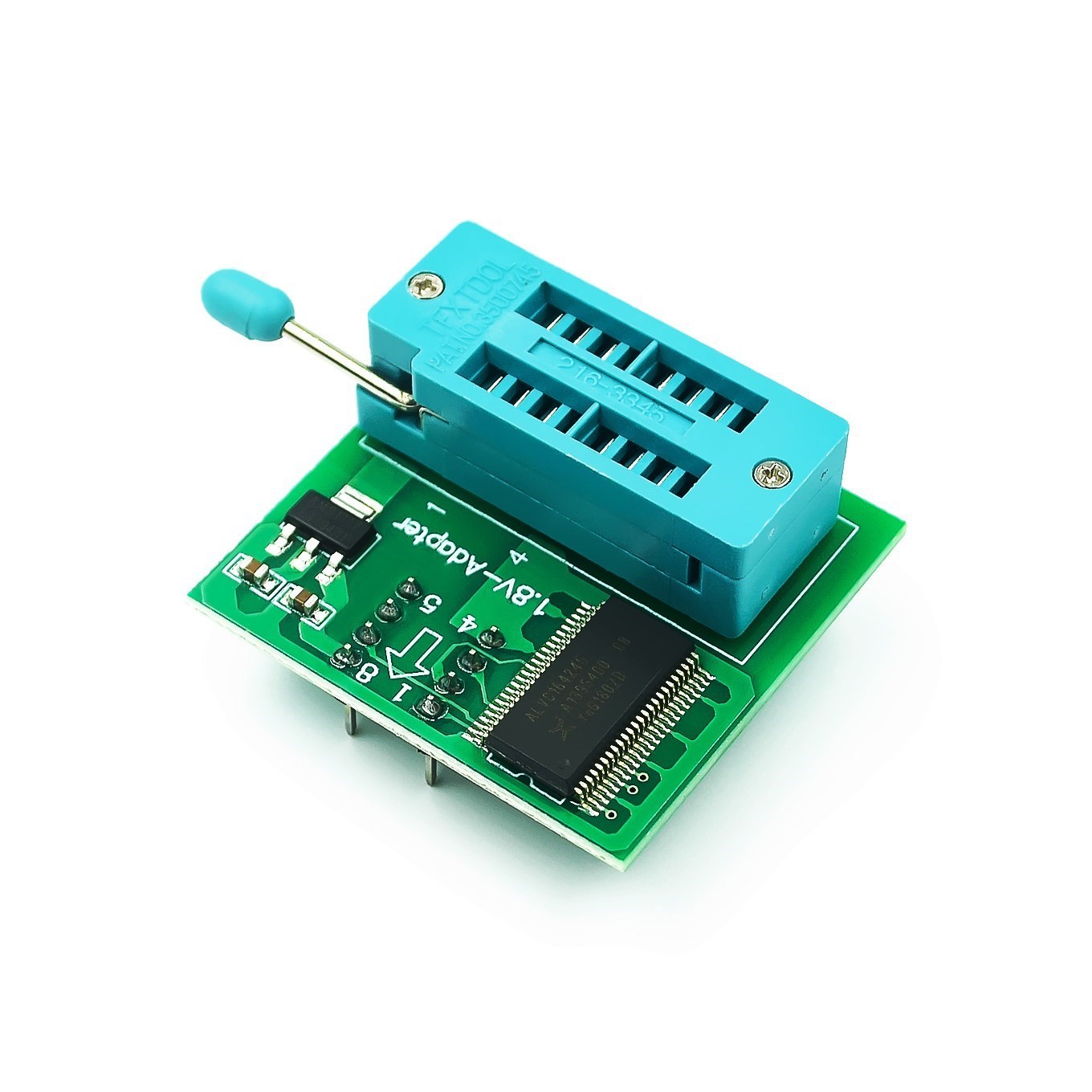

- Specification: CH341A Programmer + Adapter

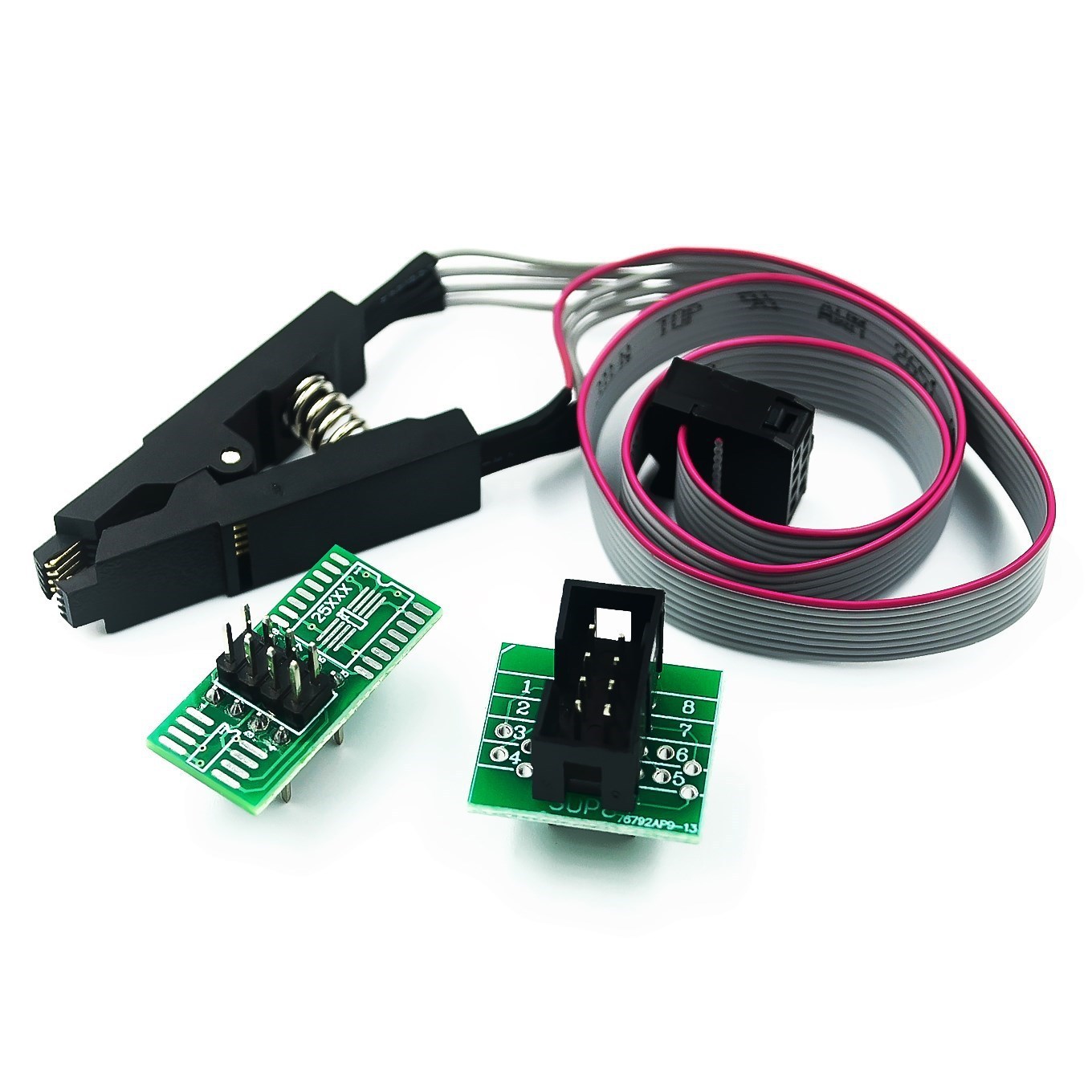

- Specification: CH341A Programmer + SOP8 Burner

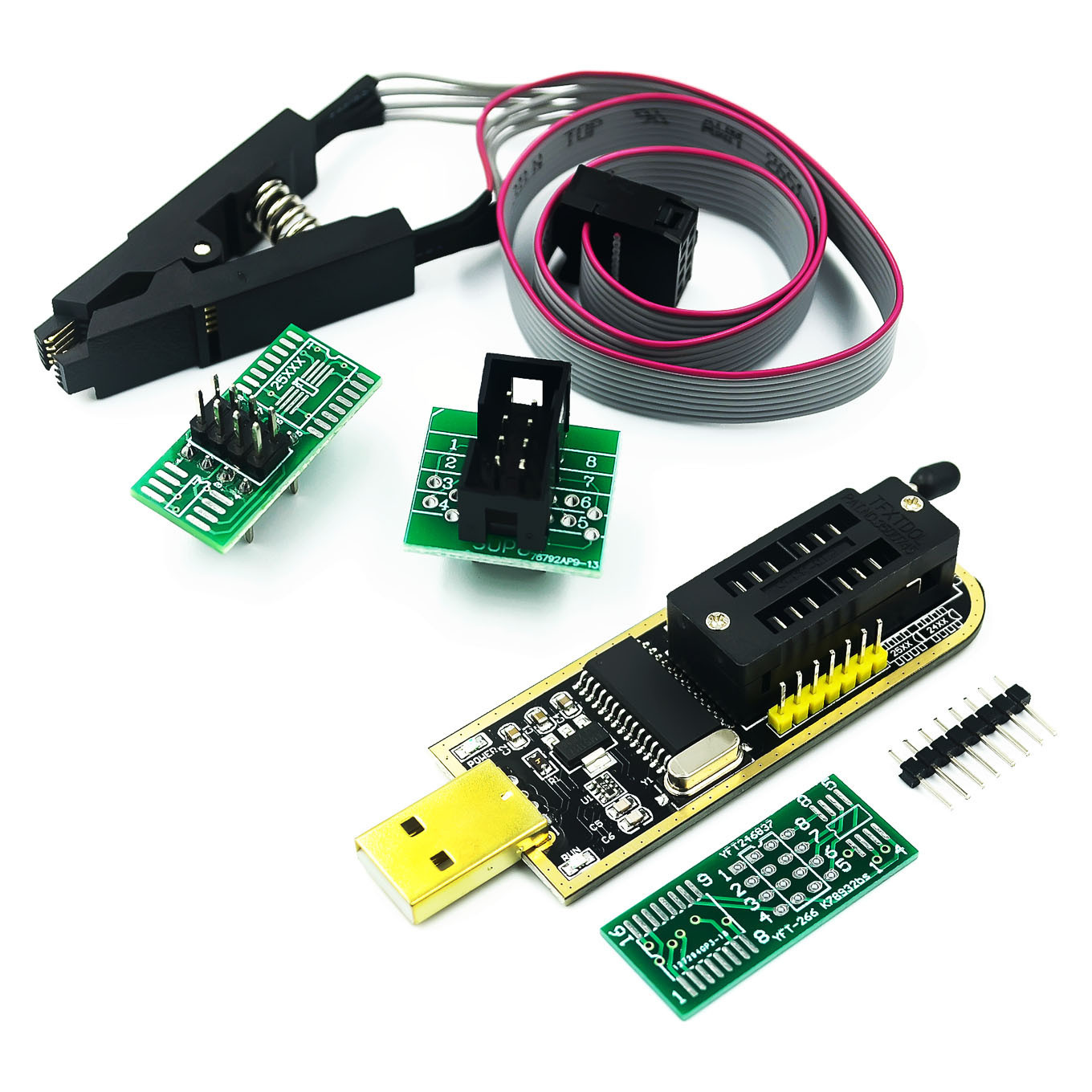

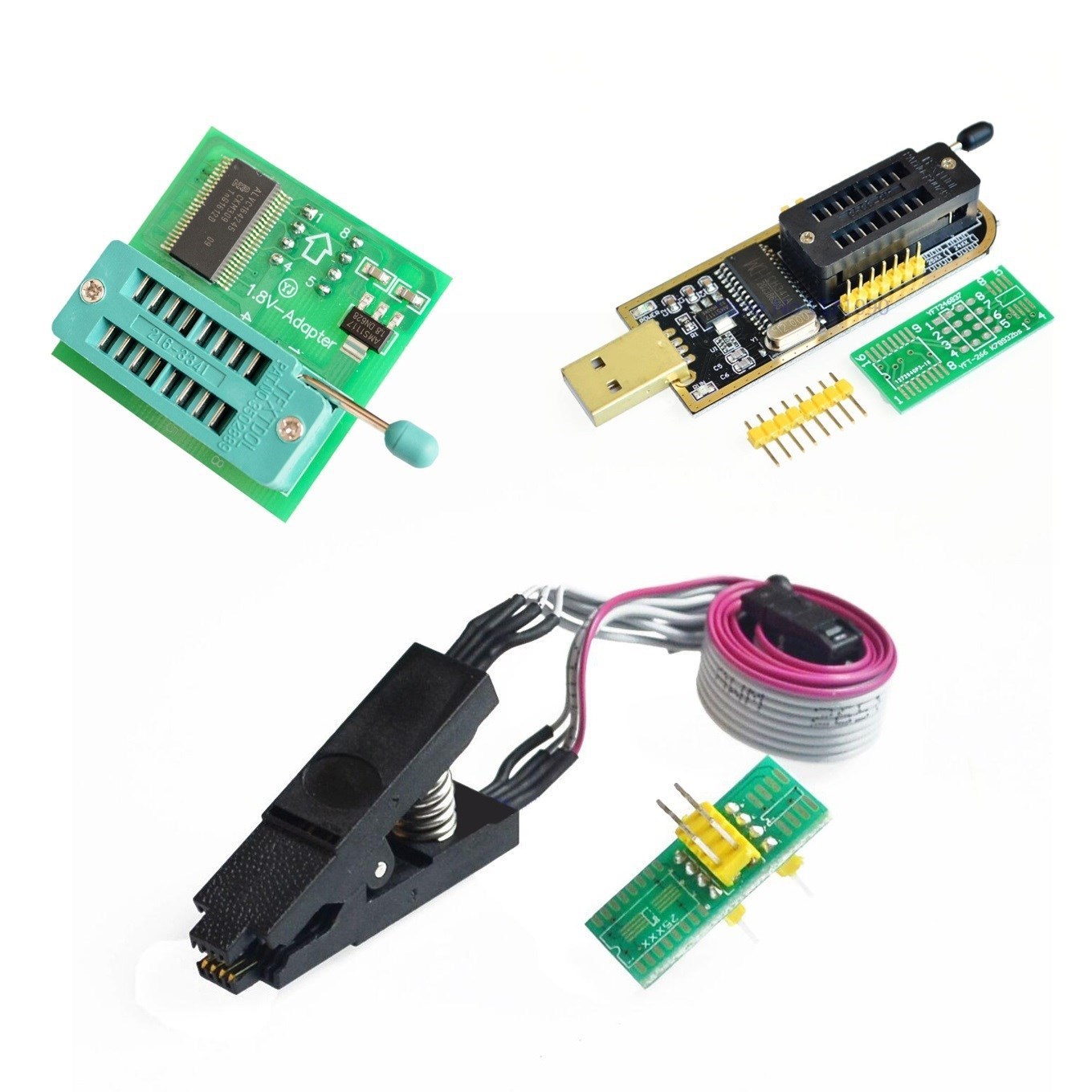

- Specification: CH341A Programmer + Adapter + SOP8 Burner
- Specification: CH341A Programmer + Adapter + Burner + 1 Burner Seat

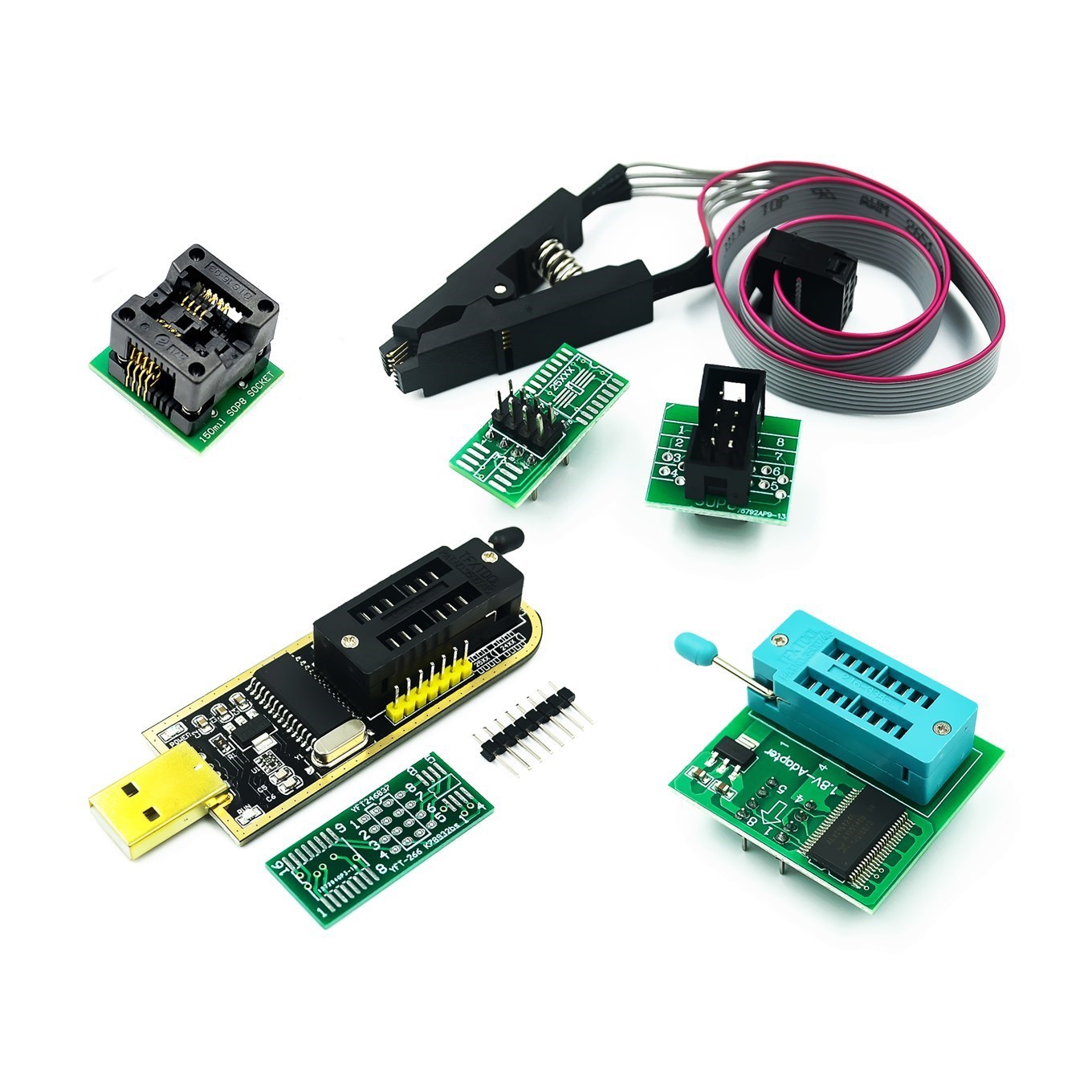

- Specification: CH341A Programmer + Adapter + Burner + 3 Burner Seats
- Series: Burning Module

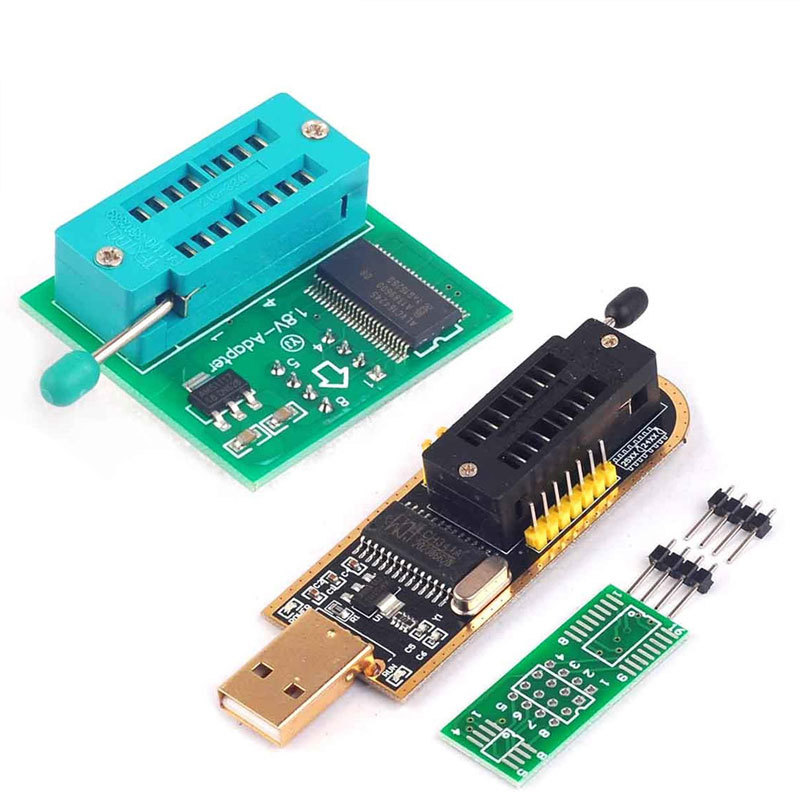

- Product Description: CH341A Programmer USB Motherboard Router LCD BIOS/FLASH/24/25 Burner
- Application Field: Internet of Things (IoT)
產品特性：
- 採用FT232BL芯片,外置EEPRON(93C46)
- 支持Windows 10
- 支持3種供電模式：5V對外供電；3.3V對外供電；由外部供電（要求3.3V-5V）
- 帶3個LED：TXD LED、RXD LED、POWER LED
- GND、RXD、TXD、3V3、5V：採用彎排針引出
- 其餘功能PIN：預留焊盤CTS、RTS
使用說明：（以接入MCU為例）
- GND：接GND
- RXD：接MCU.TX （ 信號流向：MCU.TX >> FT232 >> PC.RX ）
- TXD：接MCU.RX （ 信號流向：MCU.RX << FT232 << PC.TX ）
- 3V3/5V：輸出3.3V或5V（模塊由USB供電，須將跳線帽跳到3.3V或5V）
- RTS：接MCU.CTS （ 信號流向：MCU.CTS << FT232 << PC.RTS ）
- CTS：接MCU.RTS （ 信號流向：MCU.RTS >> FT232 >> PC.CTS ）
