- SPU: AL-PRT3-l07xoa5[8]
- Custom processing: Yes
- Model: 24V
一 寶貝描述
1 模塊採用光耦隔離和繼電器控制，交流電壓250V,交流電流10A，直流電壓30V,直流電流10A;
2 採用三極管驅動，驅動能力強；
3 工作電壓5V/12V
4 設有固定螺栓孔，方便安裝
5 小板PCB尺寸：72mm * 53mm*1.8cm （長*寬*高）
6 繼電器狀態指示燈（紅色）
7 低電平吸合，高電平釋放。
二 模塊接口說明
左邊3針接口
1 JD-VC 繼電器供電電壓
2 VCC 模塊供電電壓
3 GND 模塊地
右邊4針接口
1 VCC 模塊供電電壓 12V
2 GND 模塊地
31N1-1N4 繼電器控制接口 接單片機IO口
三 發貨清單

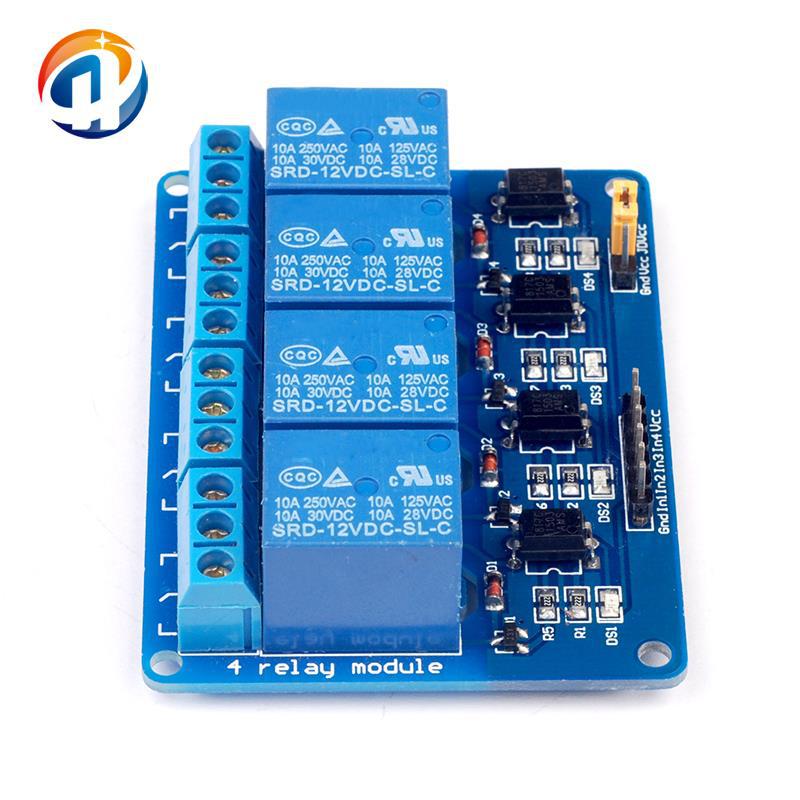

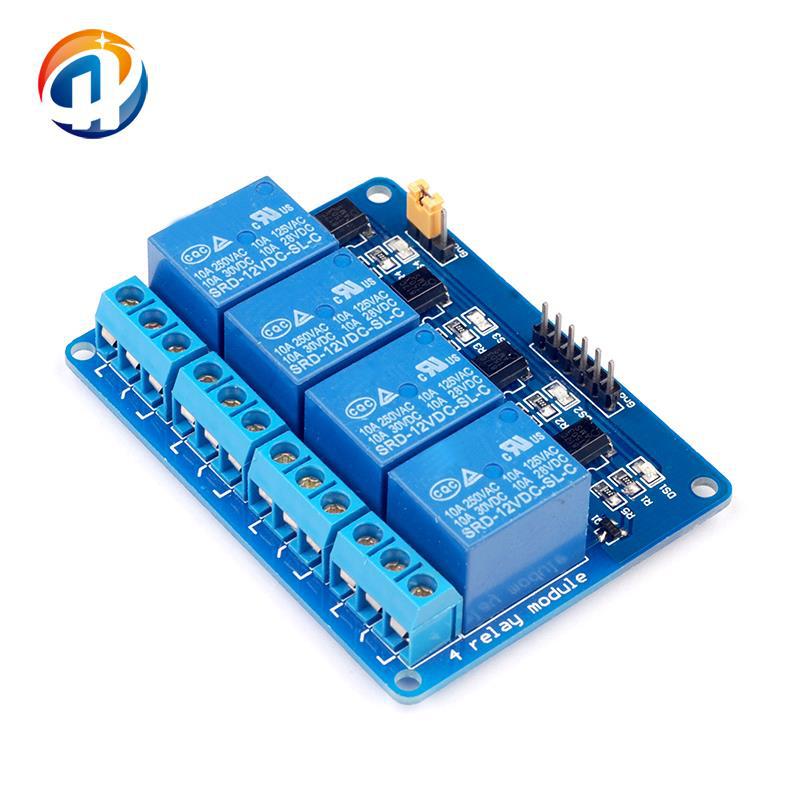

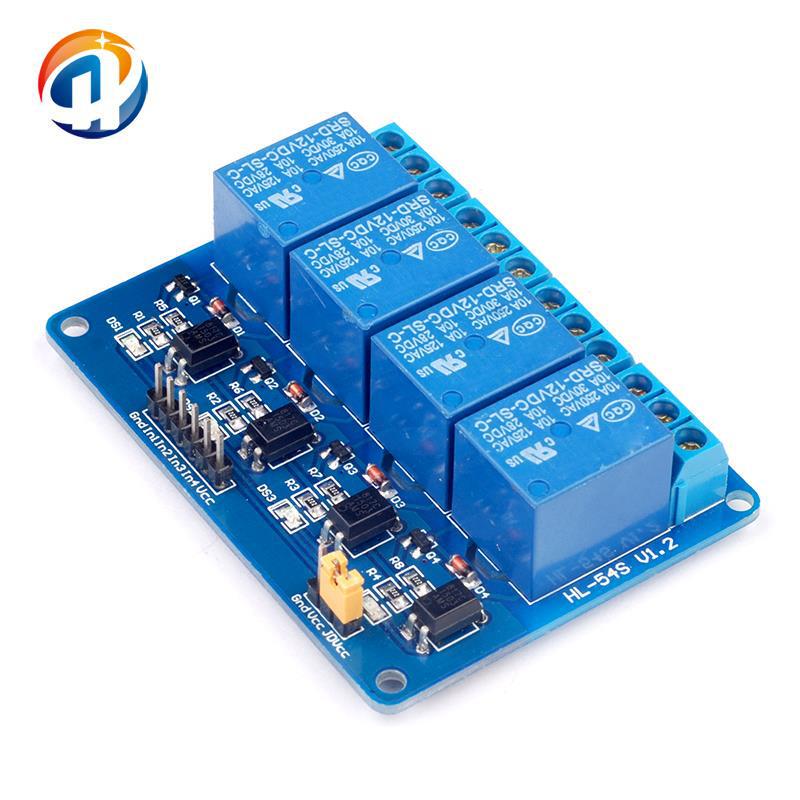

1 如圖所示繼電器模塊一塊（測試通過）
2 繼電器原理圖一份
