- SPU: AL-PRT3-6nuiqs5p[A6]
- 加工定製:否
- 型號:01

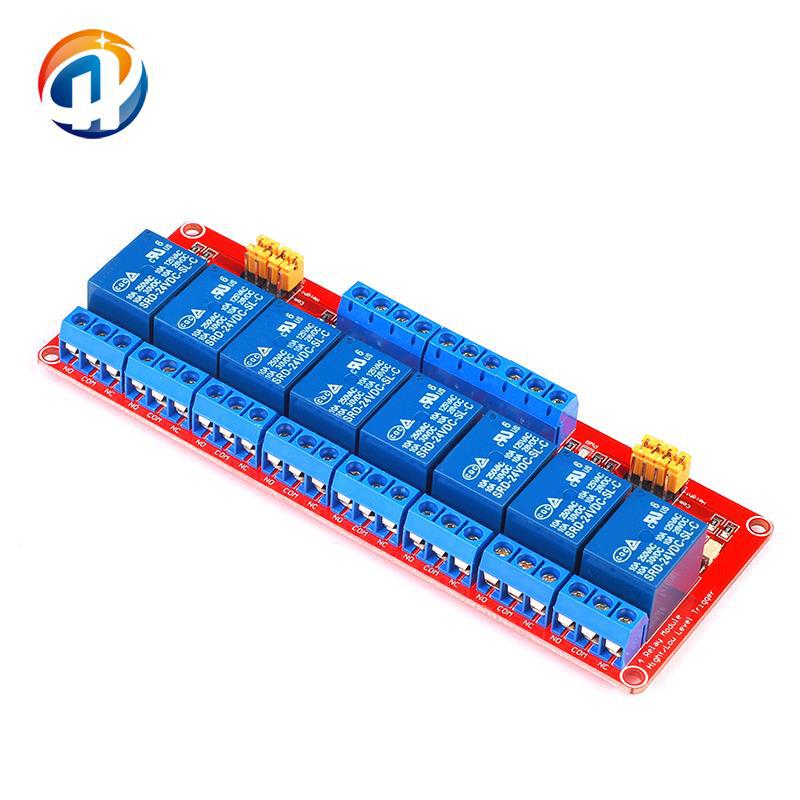

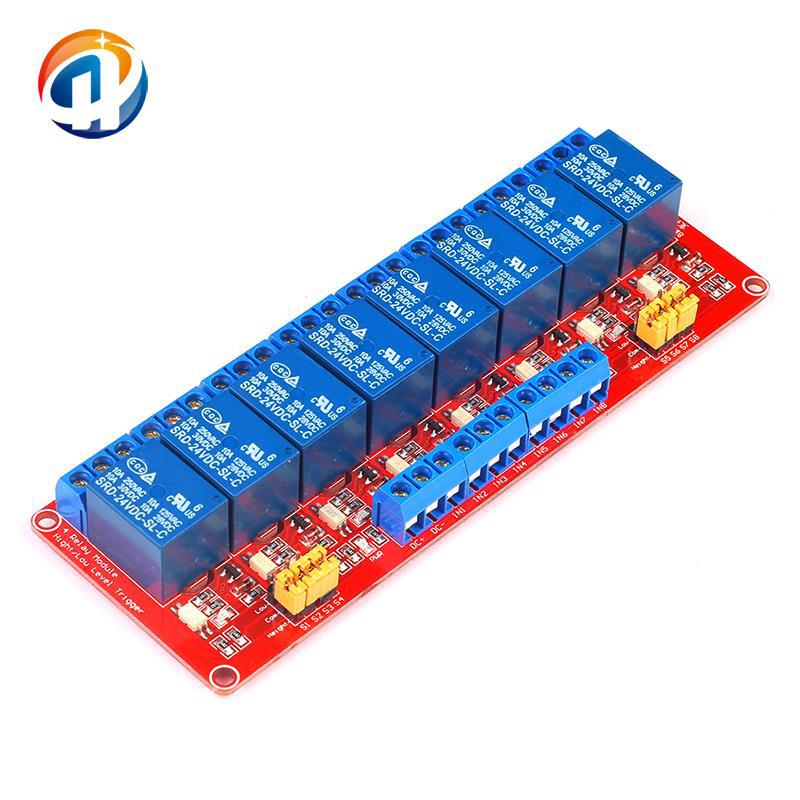

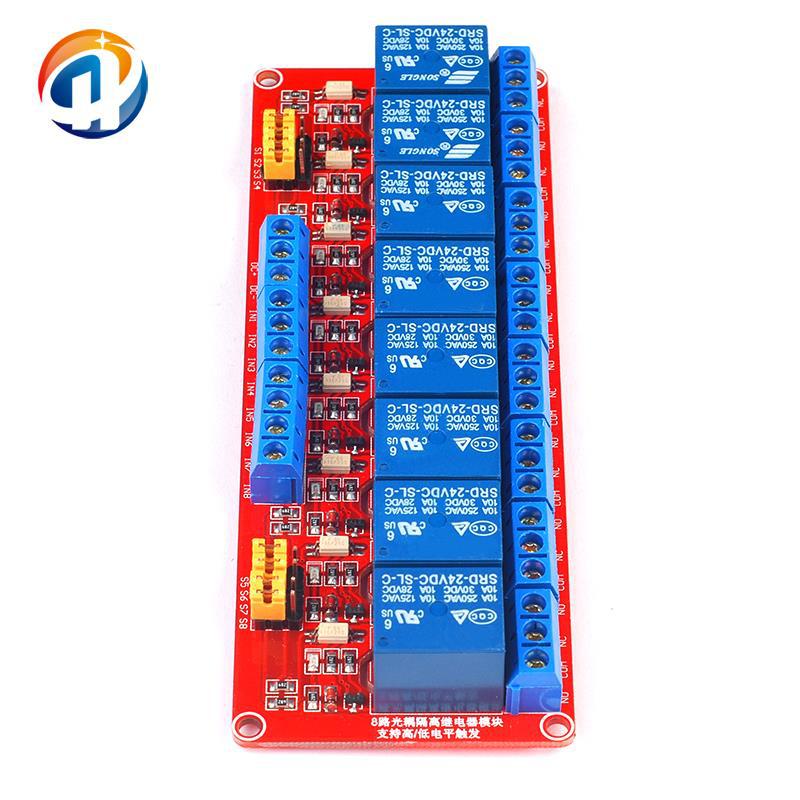

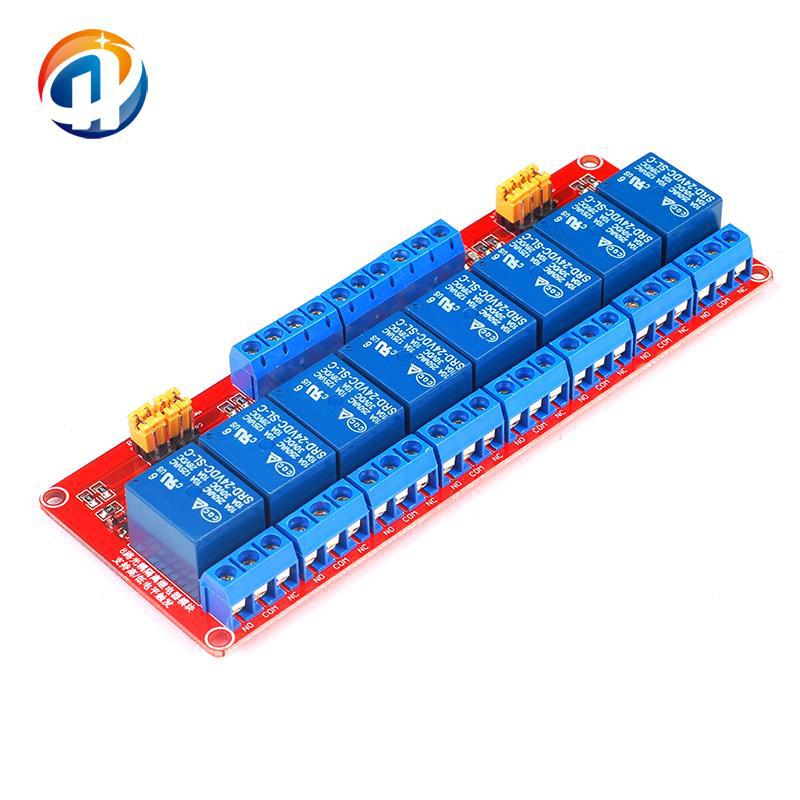

- 產品名稱:繼電器模塊
- 適用範圍:自動控制
- 額定電流:0.1A
- 應用範圍:電磁
一 模塊說明:
1、常開接口負載:交流250V/10A,直流30V/10A;
2、採用貼片光耦隔離,驅動能力強,性能穩定;觸發電流5mA;
3、模塊工作電壓有5V、12V、24V可供選擇;
4、模塊的每一路都可以通過跳線設置高電平或低電平觸發;
5、容錯設計,即使控制線斷,繼電器也不會動作;
6、電源指示燈(綠色),8路繼電器狀態指示燈(紅色)
7、接口設計人性化,所有接口均可通過接線端子直接連線引出,
8、模塊尺寸:141.5mm * 50mm* 18.5mm(長*寬*高)
9、設有4個固定螺栓孔,孔3.1mm,間距136mm*44.5mm
二 模塊接口:
1、DC+:接電源正極(電壓按繼電器要求,有5V.9V.12V和24V選擇)
2、DC-:接電源負極
3、IN1-IN8:根據每一路的設置,均可以高或低電平控制相應繼電器吸合
繼電器輸出端:有24線接口,所有接口均可直接連線引出,方便用戶使用
1、NO1--NO8: 繼電器常開接口,繼電器吸合前懸空,吸合後與COM短接
2、COM1--COM8:繼電器公用接口
3、NC1--NC8: 繼電器常閉接口,繼電器吸合前與COM短接,吸合後懸空
高低電平觸發選擇端:
1.S1-S8依次為繼電器1路-8路的高低電平觸發選擇;
2.com與low短接時,相應繼電器為低電平觸發,com與high端短接時為
高電平觸發
