- SPU: AL-PVO6-8dp173dv[4]
- Specification: 0-100V Red
- Specification: 0-100V Blue
- Specification: 0-100V Green
寶貝簡介:

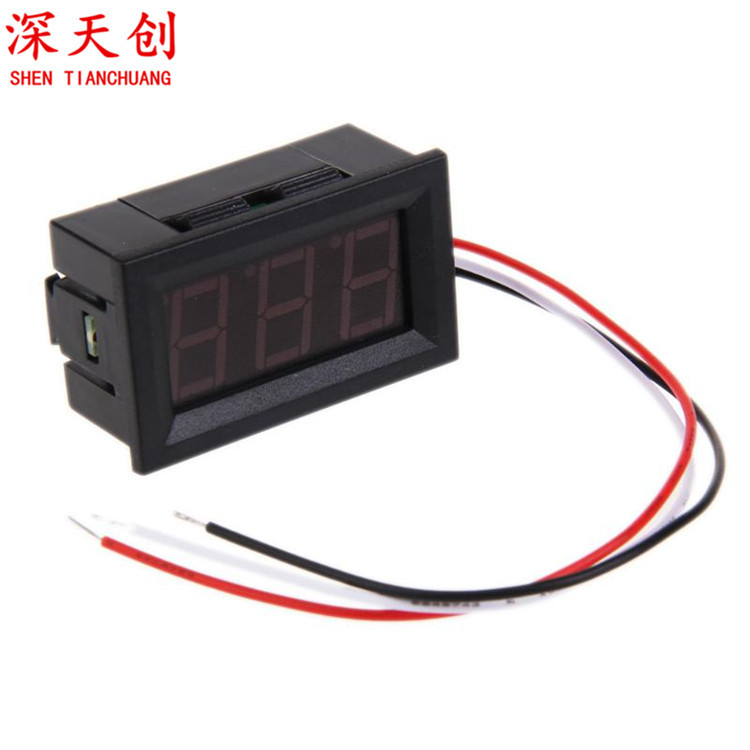

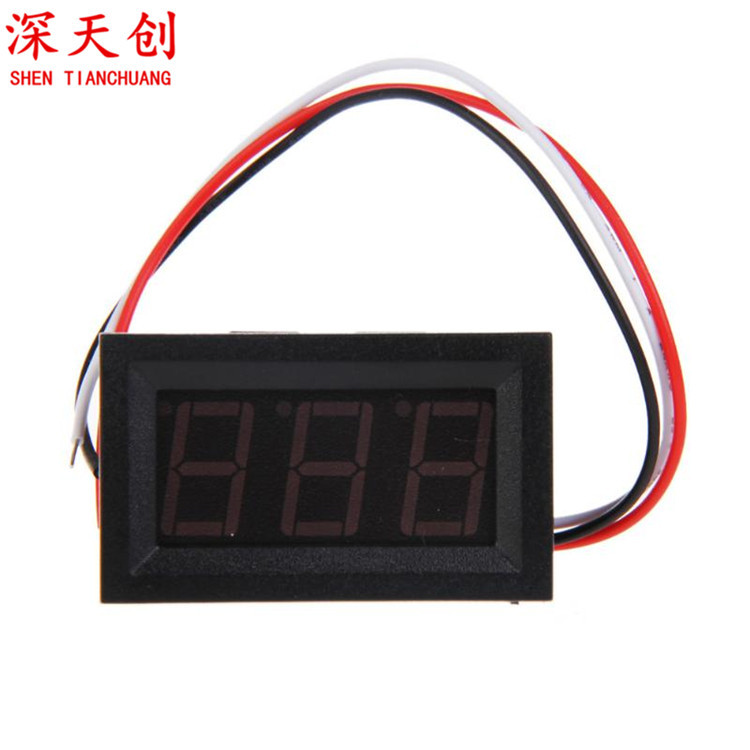

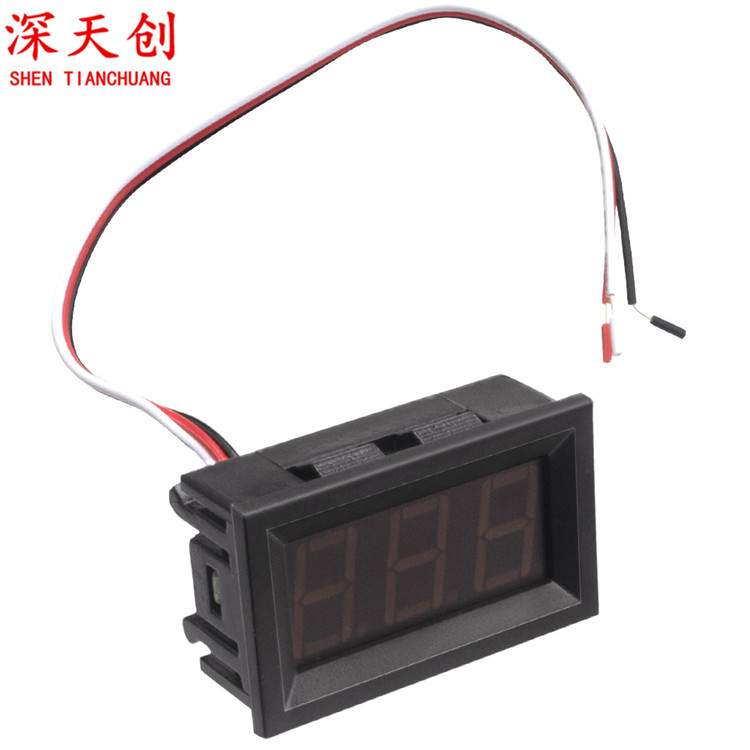

1、本電壓表體積小巧,採用0.56英寸高亮LED數碼管顯示,紅綠藍三種顏色可選,顯示效果超炫。
2、本電壓表量程直流DC0-100V。需要外加輔助電源,電源電壓範圍超寬,可達3-30V,可工作於5V、9V、12V、15V、18V等,無需穩壓。電源有反接保護,接反不燒。

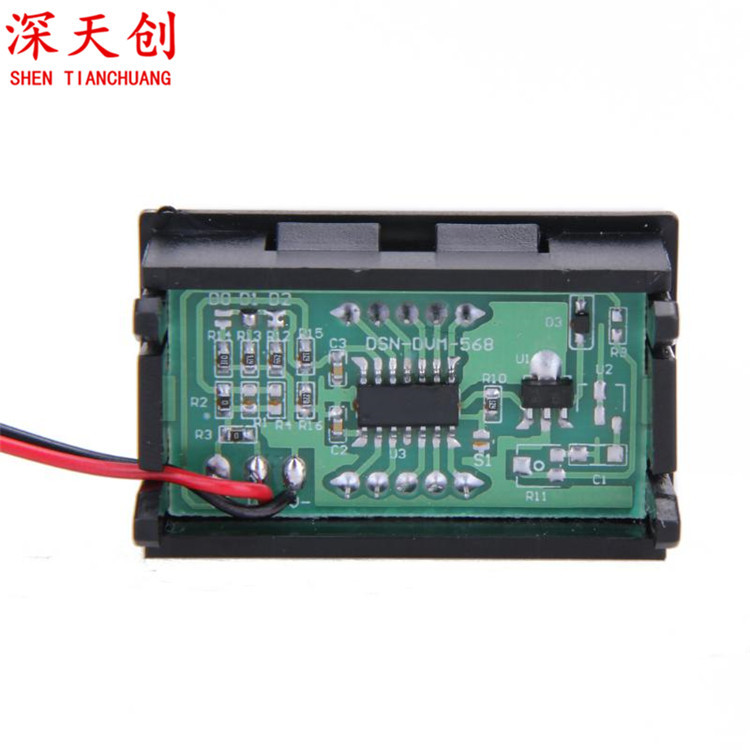

3、採用全自動SMD工藝製造,工藝精湛。
4、注意:此類電工儀表需要由懂電工電子的專業人員安裝,對安裝使用不明了的普通消費者請謹慎購買!
技術參數:
| 外形尺寸 | 長48x寬29x厚22mm | 測量範圍 | 0-100V |
| 開孔尺寸 | 46x27mm | 最低輸入 | DC0V |
| 引線長度 | 20cm | 最高輸入 | DC100V(超過此電壓有被燒毀的危險) |
| 淨 重 | 18g | 允許誤差 | 1%(+/-1個字) |
| 毛 重 | 25g(含包裝) | 顯示方式 | 三位0.56″LED數碼管 |
| 顯示顏色 | 紅色 綠色 藍色可選 | ||
| 刷新速度 | 約200mS/次 | ||
| 供電電源 | DC3-30V | ||
| 消耗電流 | 小於20mA,一般5-15mA | ||
| 工作溫度 | -10℃~65℃ |
