$2.20 | 3-pin flame sensor, flame sensor module, fire source detection module, infrared receiver, fire light detection

3-pin flame sensor, flame sensor module, fire source detection module, infrared receiver, fire light detection

$2.20

sales volume: 6

classification: Hardware tools , Mechanical and Electrical Hardware , Sensor module

colour

Flame Sensor (3 Pins) Flame sensor (4 pins)

size

Free Size

number

Buy now

SPU: AL-N8M0-8dig2x1c[2]
Model: 3-Pin Flame Sensor
Sensor Type: Infrared Sensor
Power Voltage: 3.3-5V
Features: Detects Wavelength 760nm～1100nm
Operating Temperature: 60°C
Output Type: Digital Switch Output (0 and 1)
Installation Type: Panel Mount
Accuracy: Standard
Series: Sensor
Resolution: 1
Minimum Pack Quantity: 1
Application Field: Smart Home
Intrusion Protection Rating: 1
Specification: Flame Sensor (3-Pin)
Specification: Flame Sensor (4-Pin)

3針火焰傳感器火焰傳感器模塊火源探測模塊紅外接收火光檢測

模塊使用說明：

火焰傳感器對火焰最敏感，對普通光也是有反應的，一般用做火焰報警等用途。
小板輸出接口可以與單片機IO口直接相連
傳感器與火焰要保持一定距離，以免高溫損壞傳感器，對打火機測試火焰距離為80cm，對火焰越大，測試距離越遠

資料地址：

http://pan.baidu.com/share/link?shareid=388348&uk=322357029

模塊特色：

檢測火焰或者波長在760nm～1100nm範圍內的光源，打火機測試火焰距離為80cm，火焰越大，測試距離越遠
探測角度60度左右，對火焰光譜特別靈敏
靈敏度可調（圖中藍色數字電位器調節）
比較器輸出，信號乾淨，波形好，驅動能力強，超過15mA
配可調精密電位器調節靈敏度
工作電壓3.3V-5V
輸出形式：數字開關量輸出（0和1）
設有固定螺栓孔，方便安裝

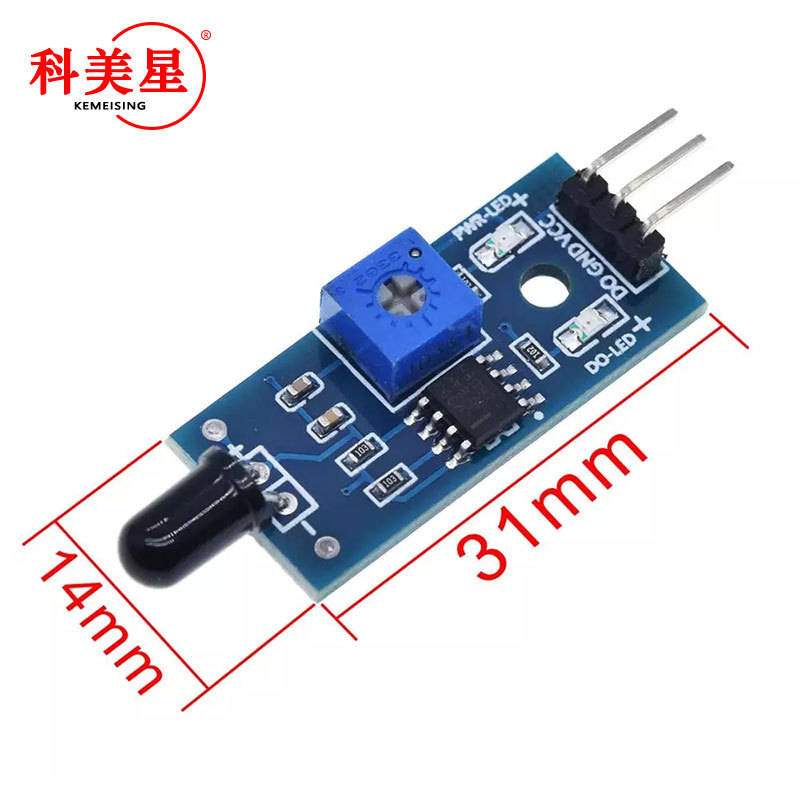

小板PCB尺寸：3.2cm x 1.4cm
使用寬電壓LM393比較器

模塊結構及接線圖

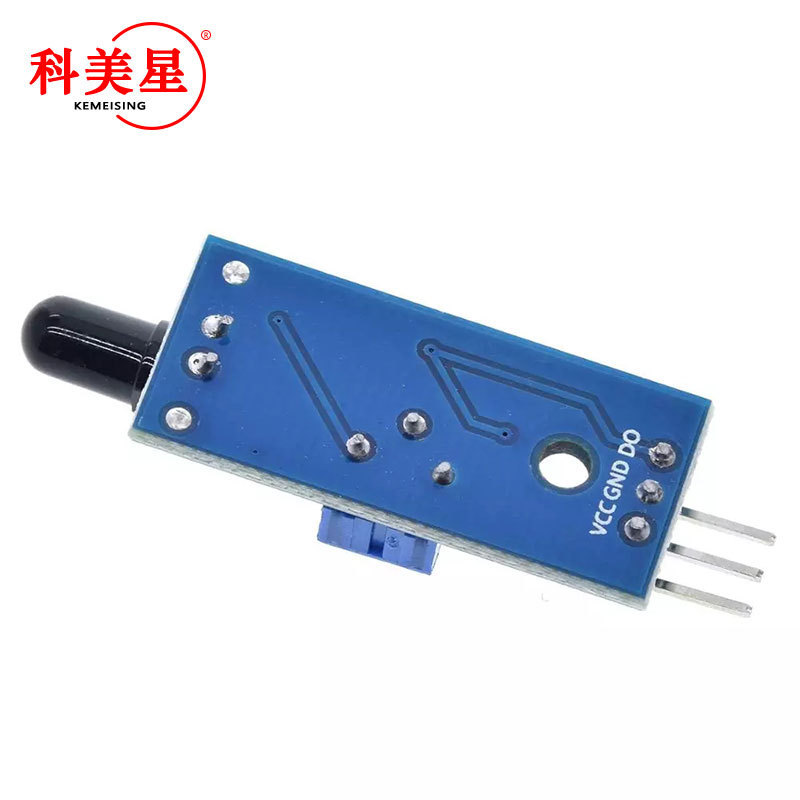

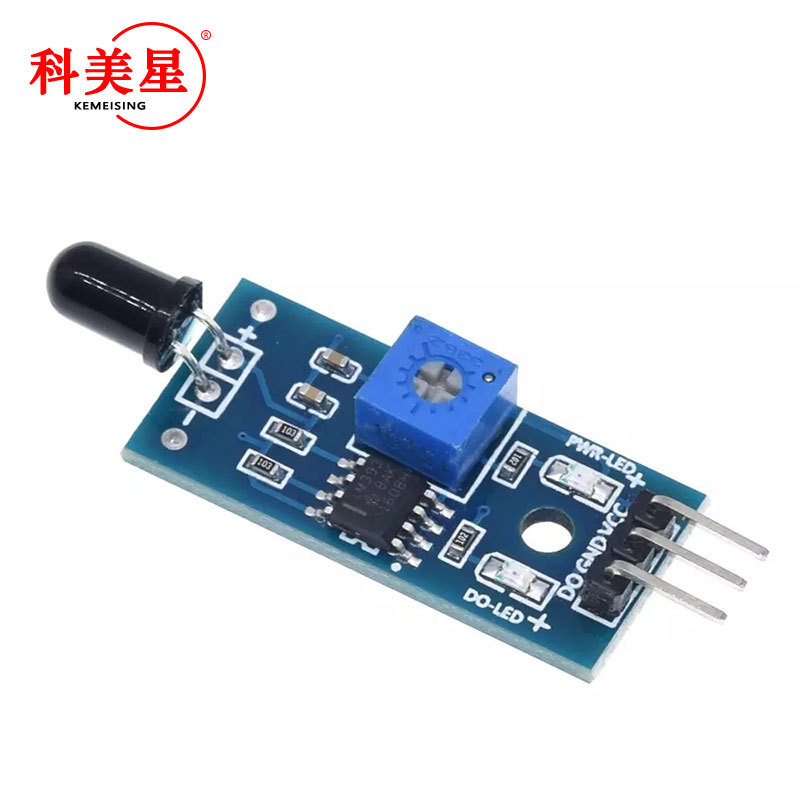

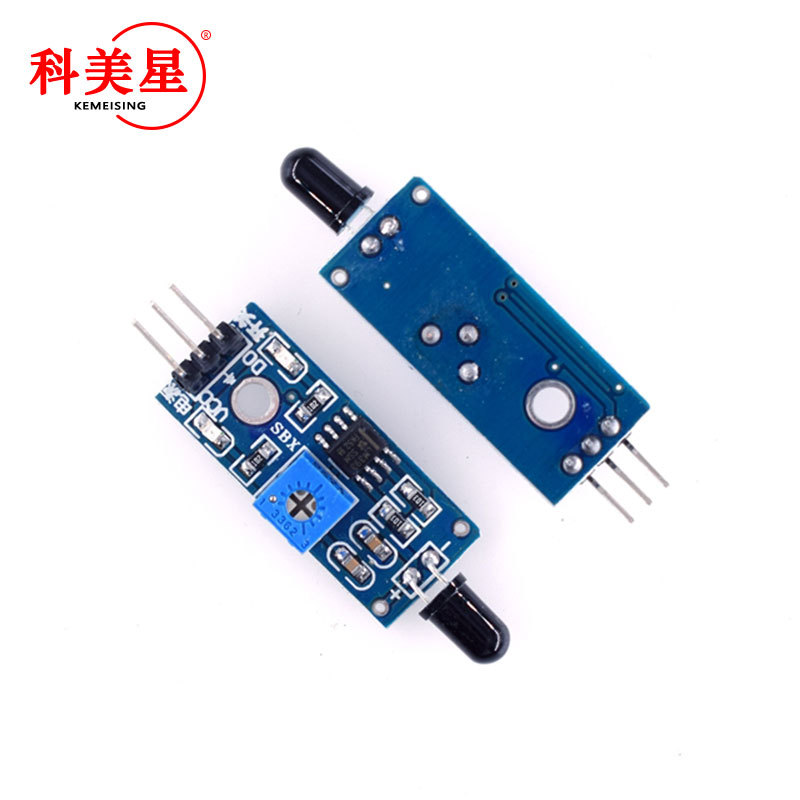

實物圖

undefined
