- SPU: AL-N8M0-8d3ggb76[2]
- Model: SW-420
- Sensor Type: Vibration Sensor
- Power Voltage: 3.3-5V
- Feature: Normally Closed
- Operating Temperature: Standard
- Output Type: Digital Signal
- Installation Type: Panel Mount
- Accuracy: 1
- Series: Sensor
- Resolution: 1
- Minimum Packaging Quantity: 1
- Application Field: Smart Home
- Intrusion Protection Rating: 1

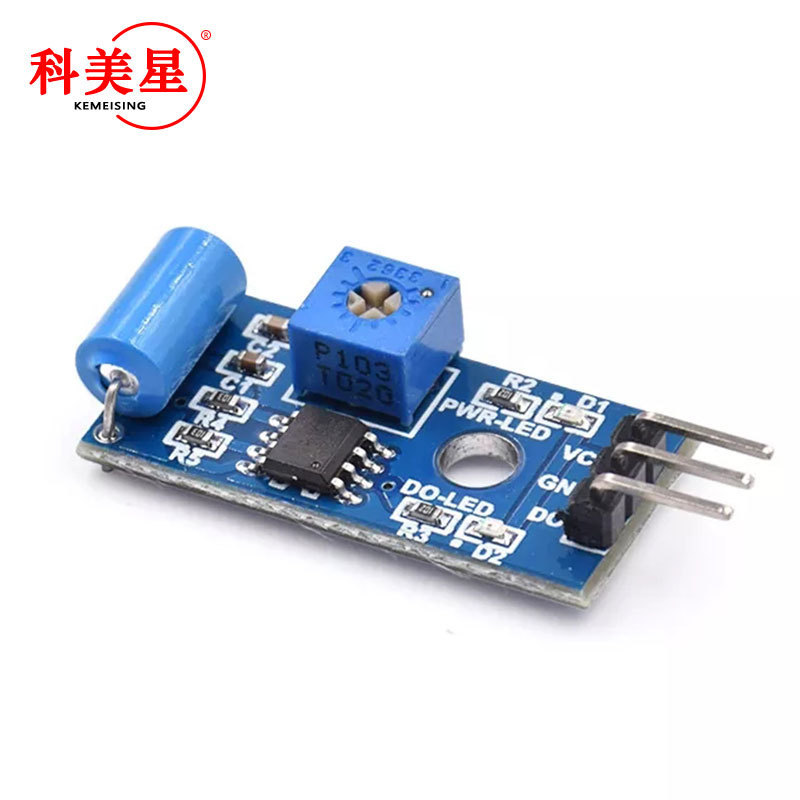

- Type: Normally Closed Vibration Sensor
- Specification: SW-420
用途：
用於各種震動觸發作用，報盜報警，智能小車，地震報警，摩托車報警等。本模塊與常開型震動傳感器模塊相比，震動觸發的時間更長，可以驅動繼電器模塊

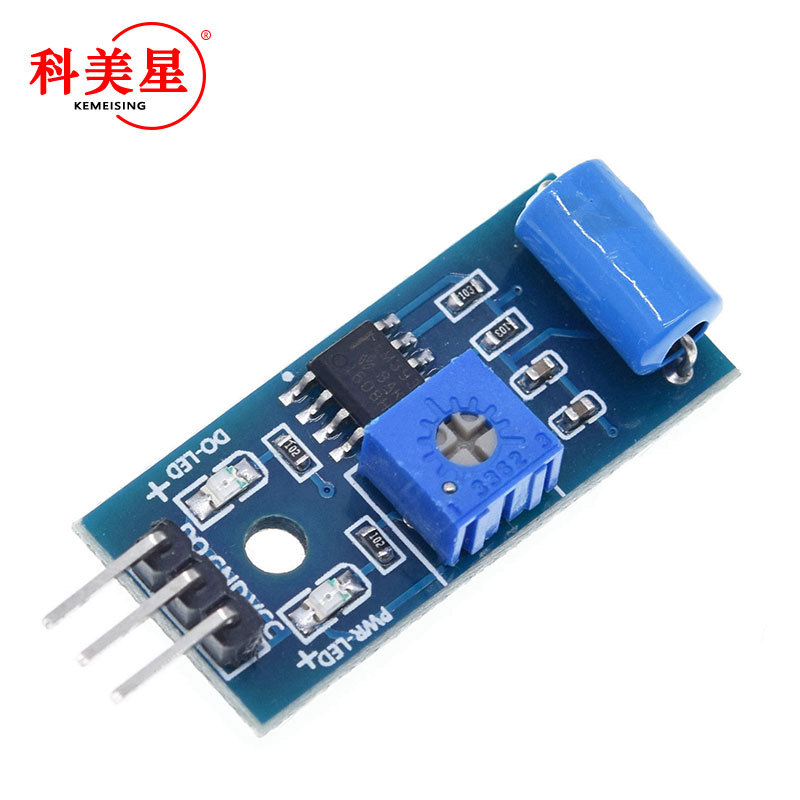

模塊特色：
1、採用ＳＷ-420常閉型震動傳感器
2、比較器輸出，信號乾淨，波形好，驅動能力強，超過15mA
3、工作電壓3.3V-5V
4、輸出形式 ：數字開關量輸出（0和1）
5、設有固定螺栓孔，方便安裝

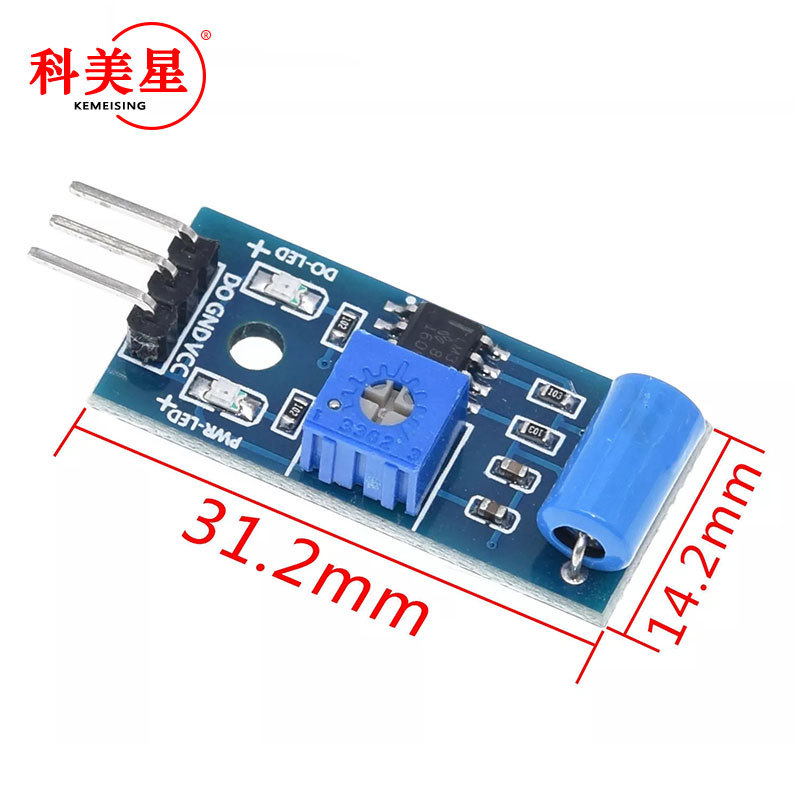

6、小板PCB尺寸：3.2cm x 1.4cm
7、使用寬電壓LM393比較器
模塊使用說明：
1、產品不震動時，震動開關呈閉合導通狀態，輸出端輸出低電平，綠色指示燈亮；
2、產品震動時，震動開關瞬間斷開，輸出端輸出高電平，綠色指示燈不亮；
3、輸出端可以與單片機直接相連，通過單片機來檢測高低電平，由此來檢測環境是否有震動，起到報警作用

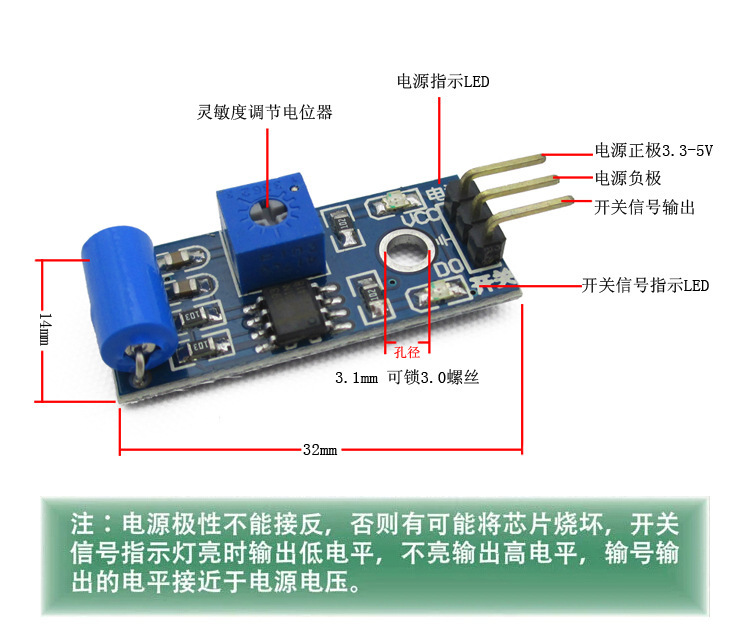

產品結構及接線圖
