- SPU: AL-6FBF-88ao7bcq[7]
- Specification: MICRO interface
- Specification: TYPE-C interface
DC-DC USB升壓電源穩壓模塊5V轉3.3V 9V 12V 24V
（詳情提供中英文描述）
中文描述：
此電源使用非常方便，您只要插上USB或者是micro USB就可以隨便輸出1.2V至24V的可調電壓，功率3W，非常適合技術工程師研發，調試儀器儀表，售後工程師出差維修給儀器儀表供電，非常方便。
模塊亮點：
1. 使用非常方便，插上USB或者是micro USB就可以輸出1.2V-24V的可調電壓
2. 一鍵關斷輸出
3. 數碼管可以關閉
4. 採用多圈精密可調電位器調節
5. 掉電存儲斷電前的狀態
英文描述：
1.Description:
USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage.
2.Features:
1>.One button to turn off the output;
2>.Supply ON/OFF display screen;
3>.Support low power mode;
4>.Support sleep mode;
5>.Support both standard USB and Micro USB and pads input voltage;
6>.Potentiometer with rotating handle.
3.Parameters:
1>.Input voltage: DC 3.5-12V;
2>.Output voltage:DC 1.2-24V;
3>.Output power:
Input 1.2-2V,output power within 2W;
Input 2V-20V,output power within 3W;
Input 20V-24V,output power with in 2.5W;
4>.Display:3Bit digital tube display;
5>.Size:80*20*14mm.
4.Use steps:
1>.Input voltage from Standard USB or Micro USB or 『VIN+』 and 『VIN-』;
2>.Turn ON display screen;
3>.Adjust potentiometer to get the required voltage;
4>.Connect load.
5.Application:
1>.Ordinary power supply;
2>.Battery charger;
3>.LED drive power;
4>.Instrument voltage display;
5>.Test meter;
6>.Circuit test;
7>.Power conversion.
6.Please Note:
1>.It is not a high power supply, please use it within the power range.
7.Package:
1>.1pcs XY-UP USB boost/buck power supply module

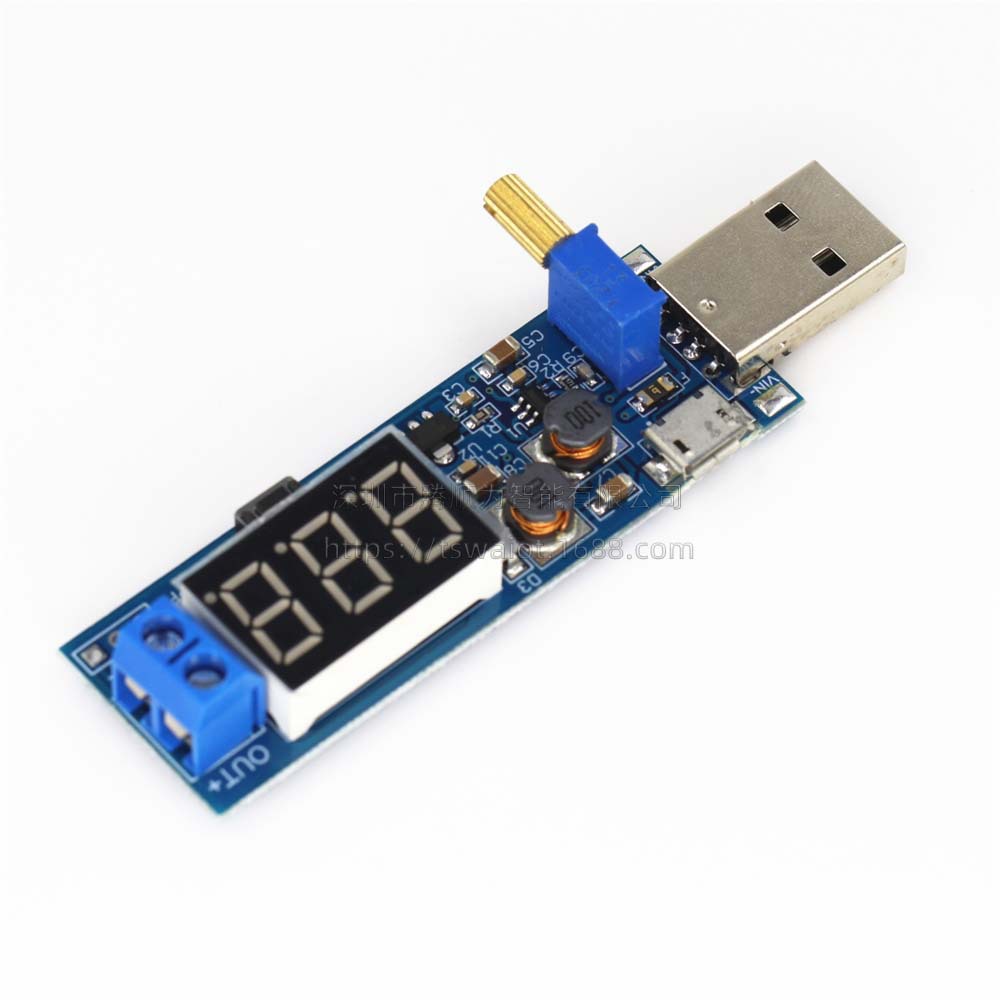

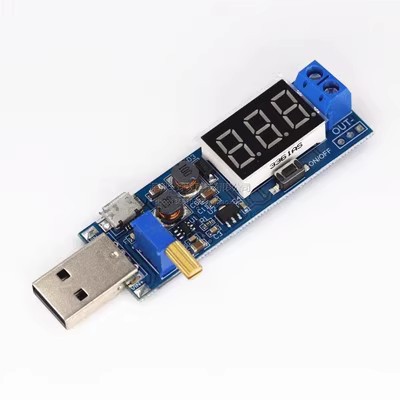

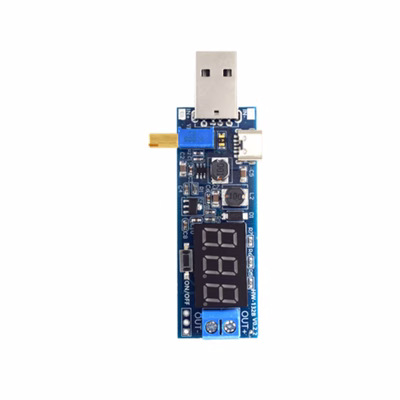

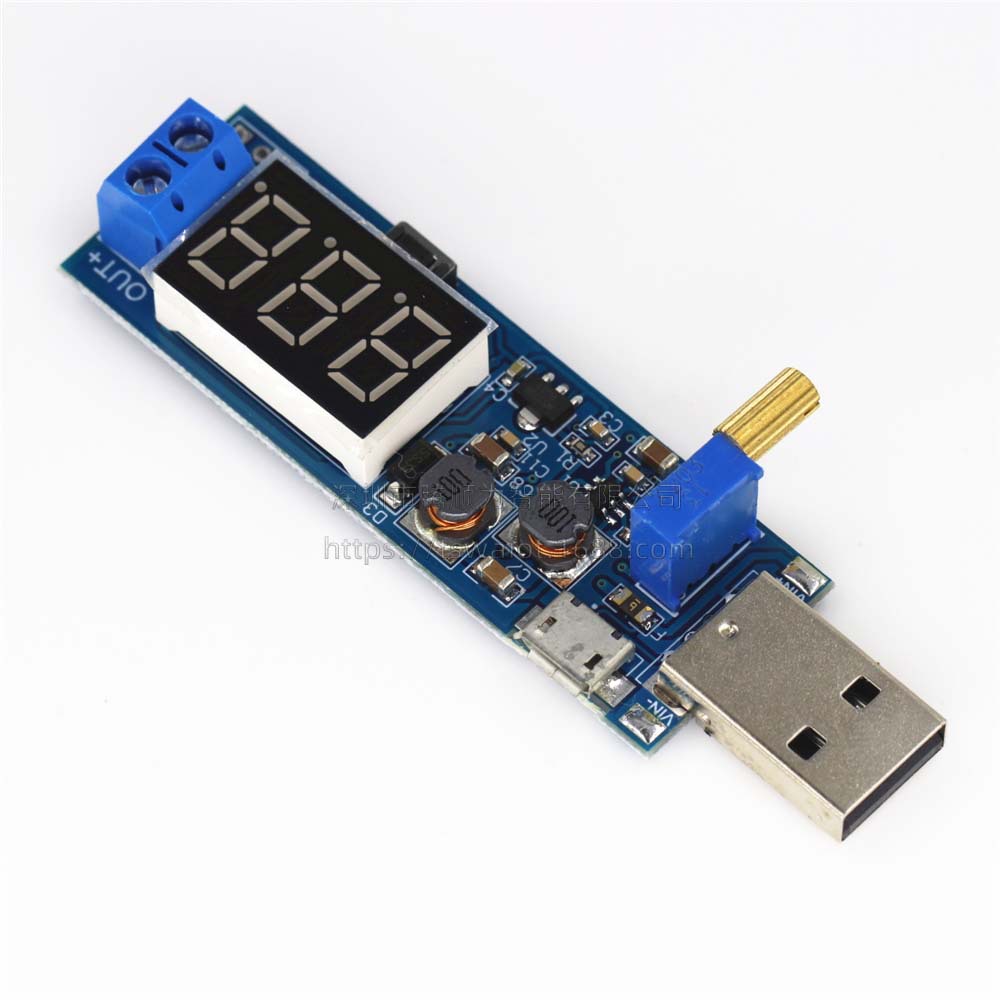

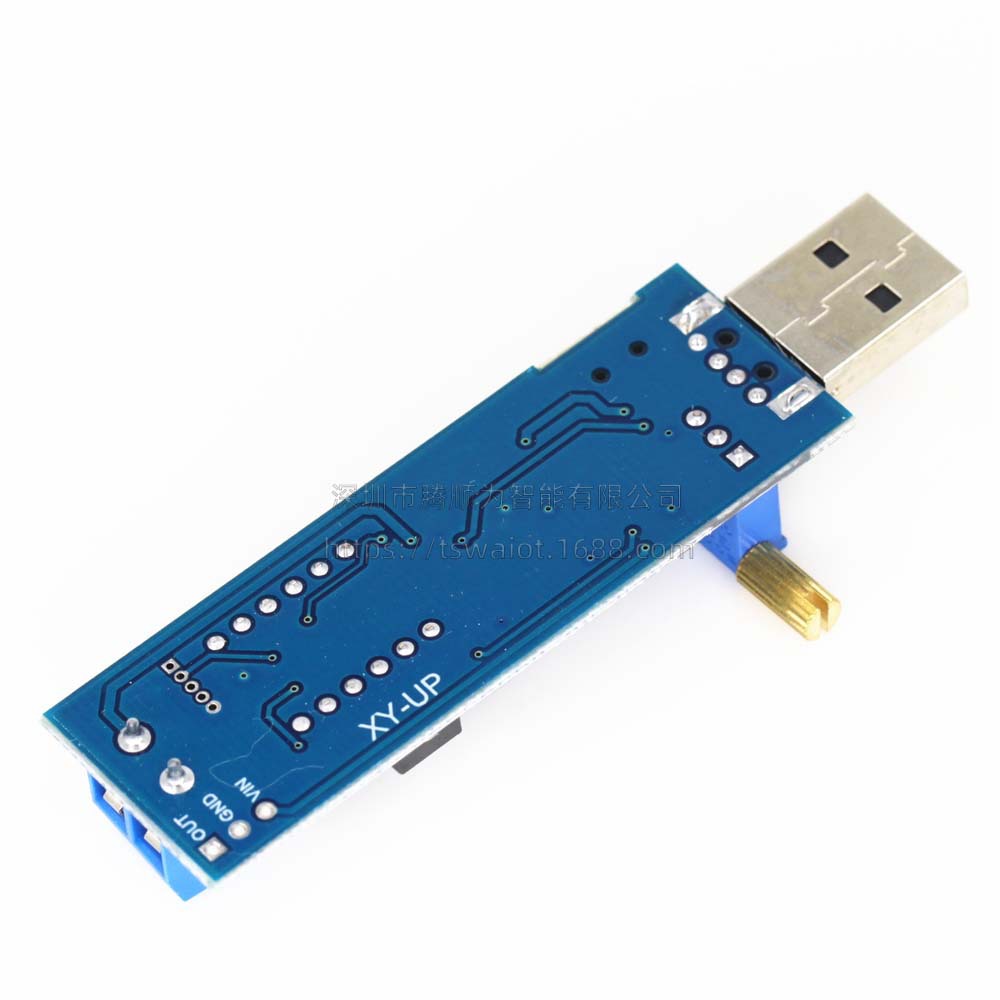

圖片展示：
