- SPU: AL-KZOP-7a59f7lp[5]

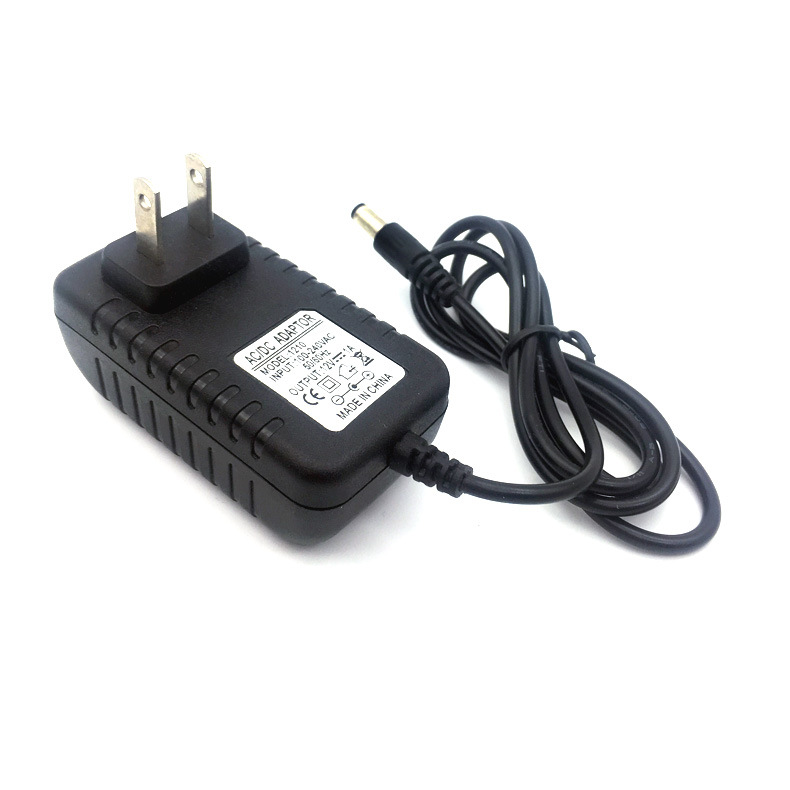

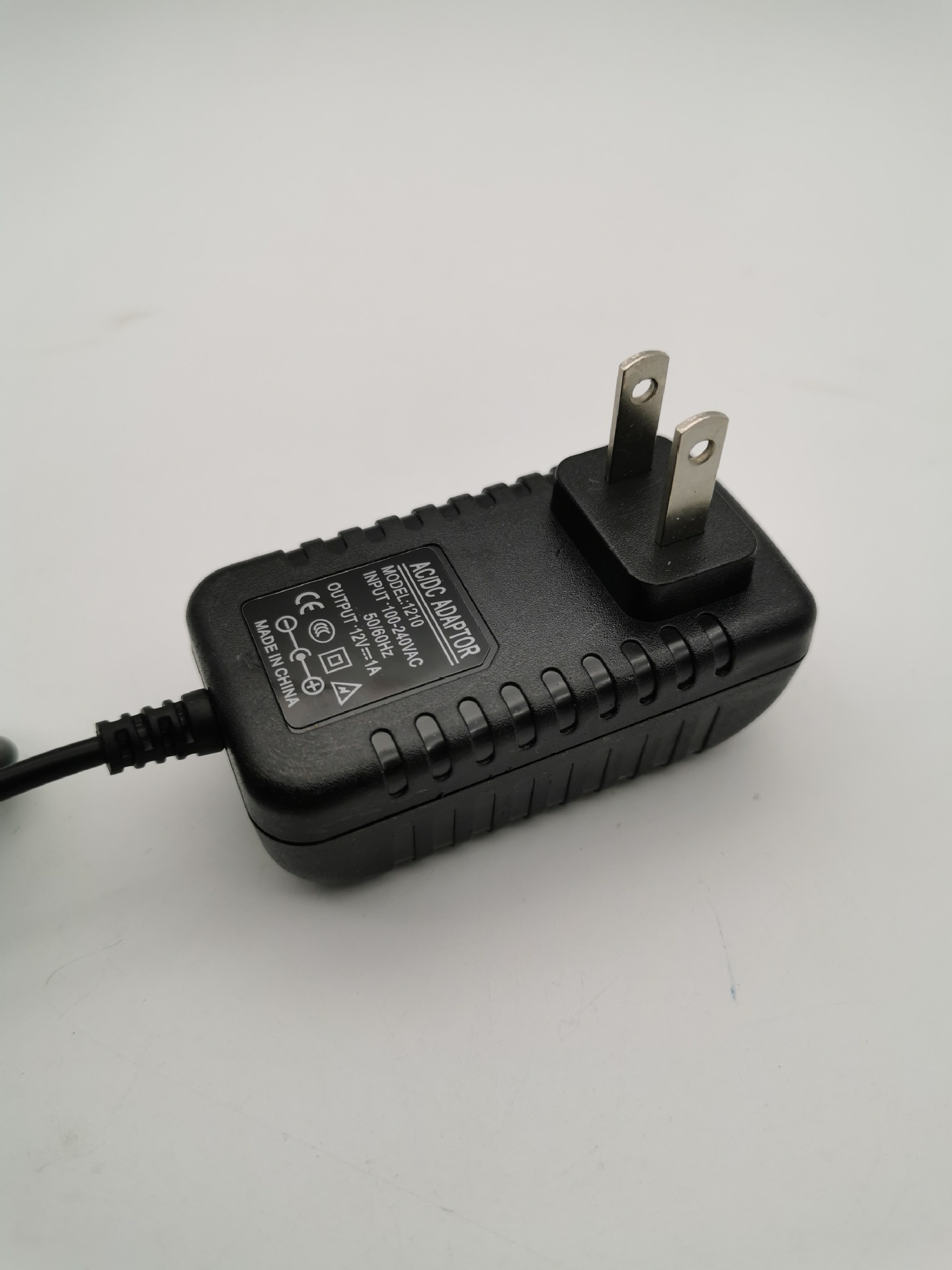

- Model: US Standard

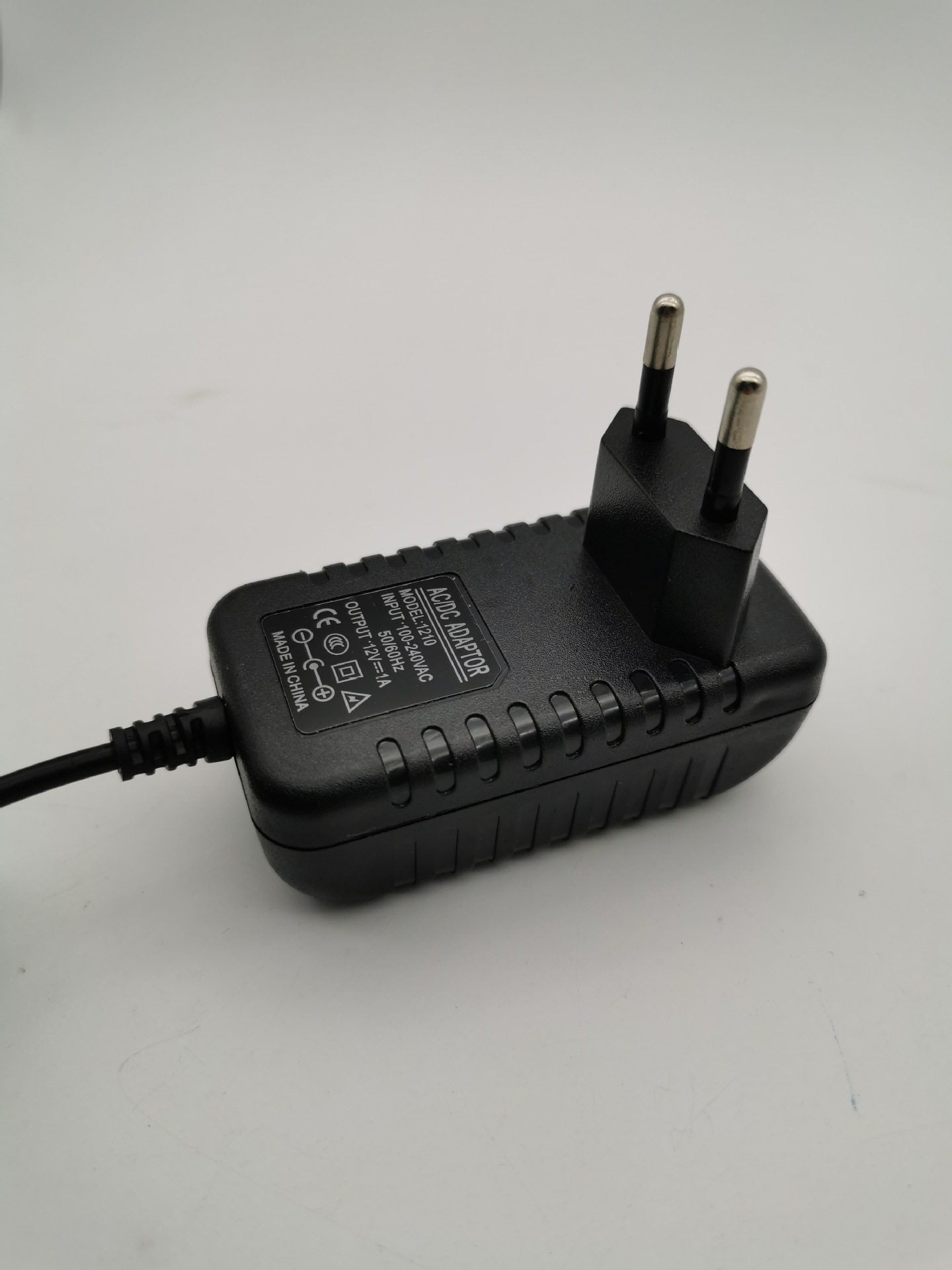

- Model: EU Standard

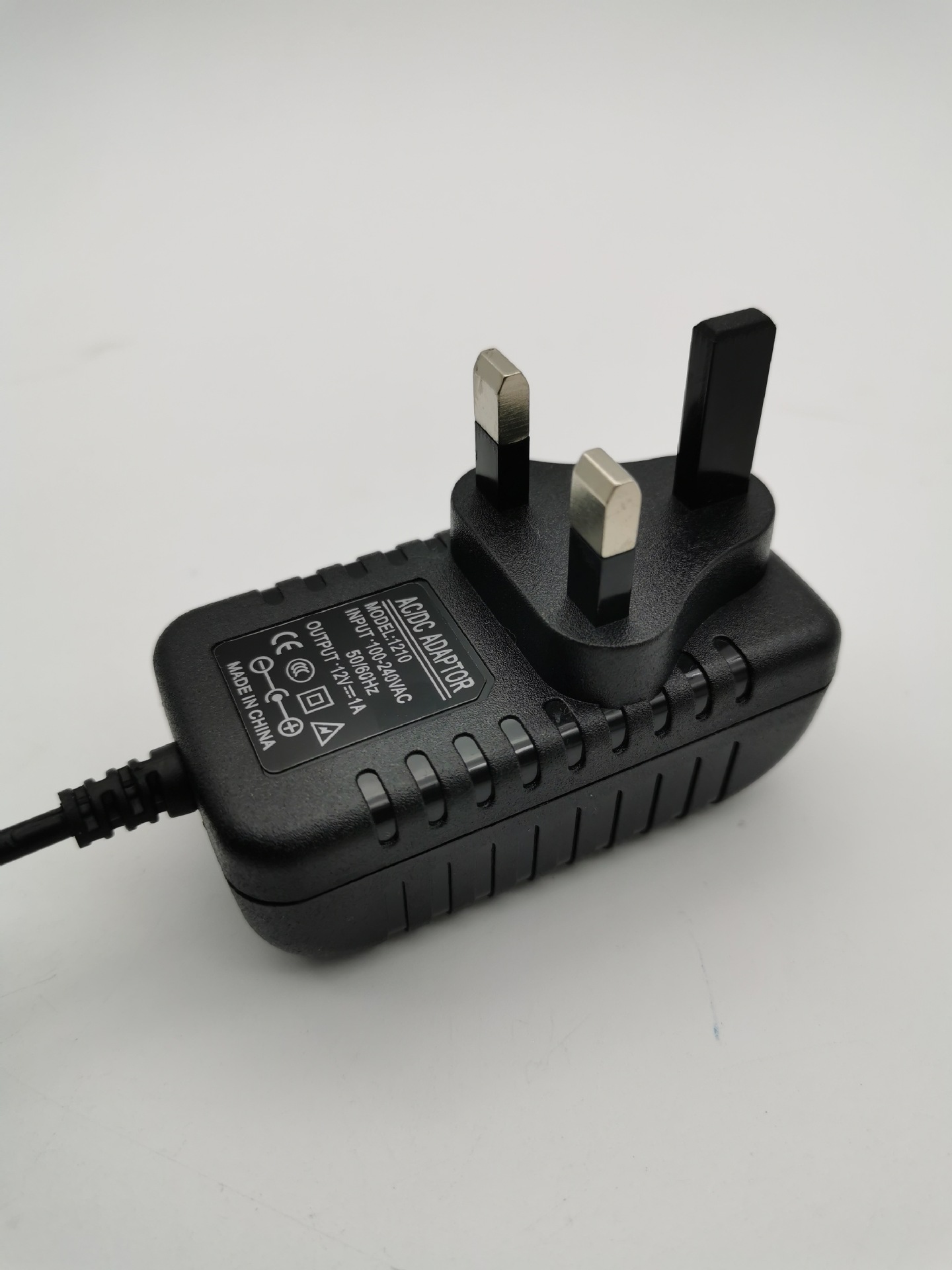

- Model: UK Standard

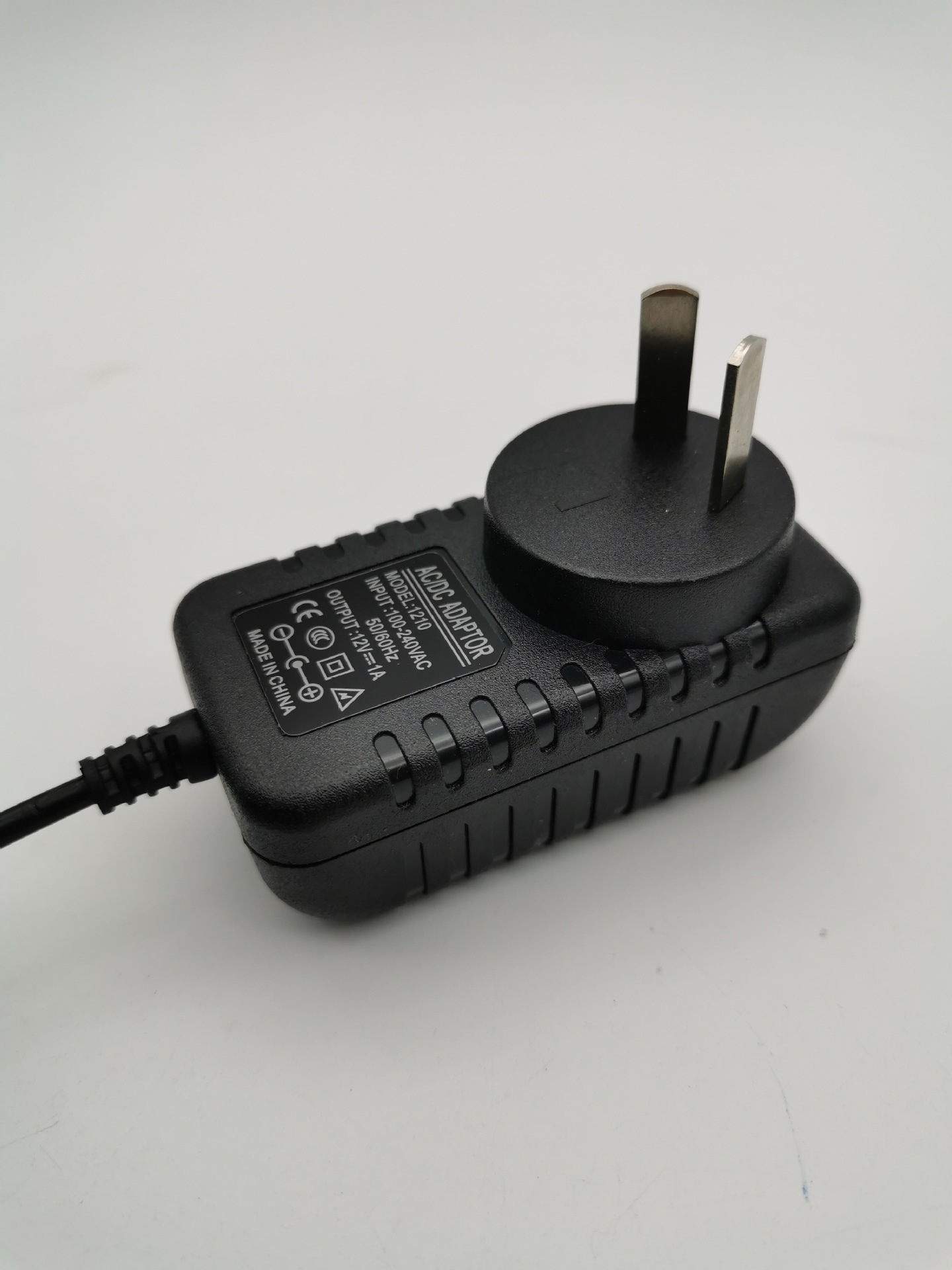

- Model: AU Standard
- Type: AC/DC Power Supply
- Modulation Method: Pulse Width Modulation (PWM) Type
- Transistor Connection Method: Single-Ended
- Input Voltage: 110-240V
- Output Power: 12W
- Output Voltage: DC12V
- Efficiency: 98%
- Output Ripple Noise: ≤120mV
- Output Voltage Accuracy: ±2%
- Voltage Regulation: ±2%
- Load Regulation: ±2%
- Output Current: 1A
- Operating Frequency: 50-60Hz
- Operating Temperature: 0-50°C
- Material Code: 0009
- Minimum Pack Quantity: 1
- Specification: US Standard, EU Standard, UK Standard, AU Standard
- Series: 12V Series
- Power Supply Phase: Single-Phase
- Input Voltage Range: 110-240V
- Circuit Count: 1
- Applicable Range: Wide range, suitable for plug-in products with power below 12W
- Extended Function: Energy Saving
- Operating Environment Temperature: 0-50°C
- Installation Method: White Box
- Protection Level: Class A
- Weight: 75g
- Remarks: Customizable
- Rated Power: 12W Full Power
- Reset Method: Power Off Restart
- Voltage Adjustment: Constant Voltage
- Cooling Fan Type: 4
- Power Supply Type: Switching Power Supply
After sales information
Within 15 days from the date of receipt, customers can be provided with an unconditional return service. The application for return of goods requires the consent of the merchant in the store.
Procurement and delivery
Delivery time: For products in stock, they will be shipped within 3 working days (excluding holidays) after you place your order and make payment. You will receive our notification after shipment.
payment
Credit card payment (quick payment) is a new payment method jointly launched by third-party payment platforms and major banks. It is one of the safest and easiest payment methods. Users do not need to activate online banking in advance, they can complete quick payments by entering information such as card face and mobile phone dynamic password. Quick payment allows various bank card users to conveniently make online payments without the need for special online banking activation.
