- SPU: AL-AD8Y-8hxs1eqm[M8]
- Model:RTL8822BU
- Time to market: 2021
- Interface type: USB
- Wireless standard: IEEE802.11g
- Wireless standard: IEEE802.11b
- Wireless standard: IEEE802.11n
- Working frequency band: 2.4GHz/5.8GHz
- Supported protocols: 802.11ac
- Product weight: 63g
- Fastest shipping time: 1-3 days
- Whether to support dropshipping: Not supported
- After-sales service: 1 year warranty
- Packing list: network card + manual + CD

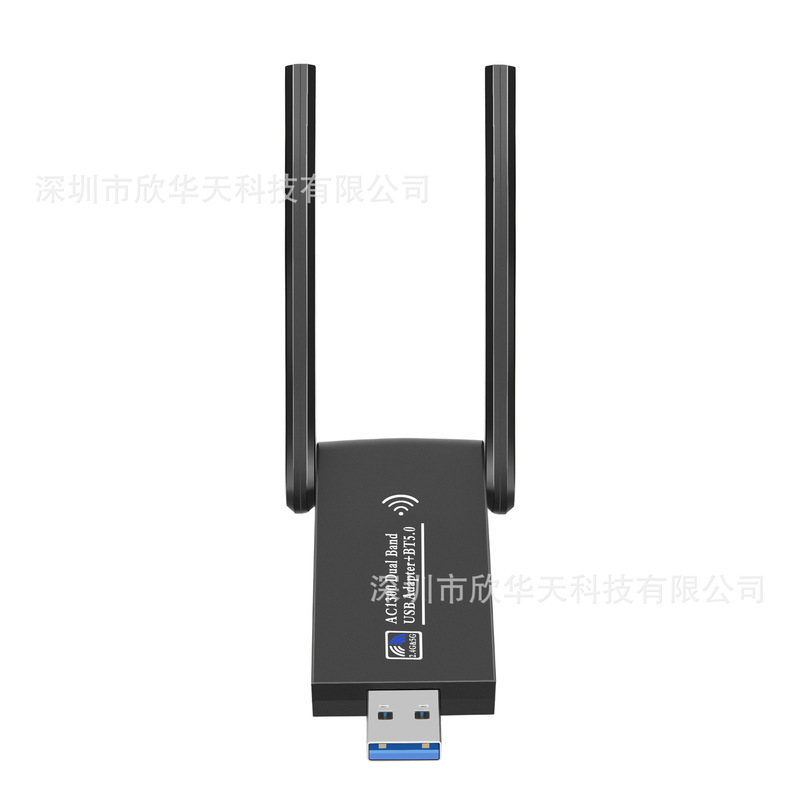

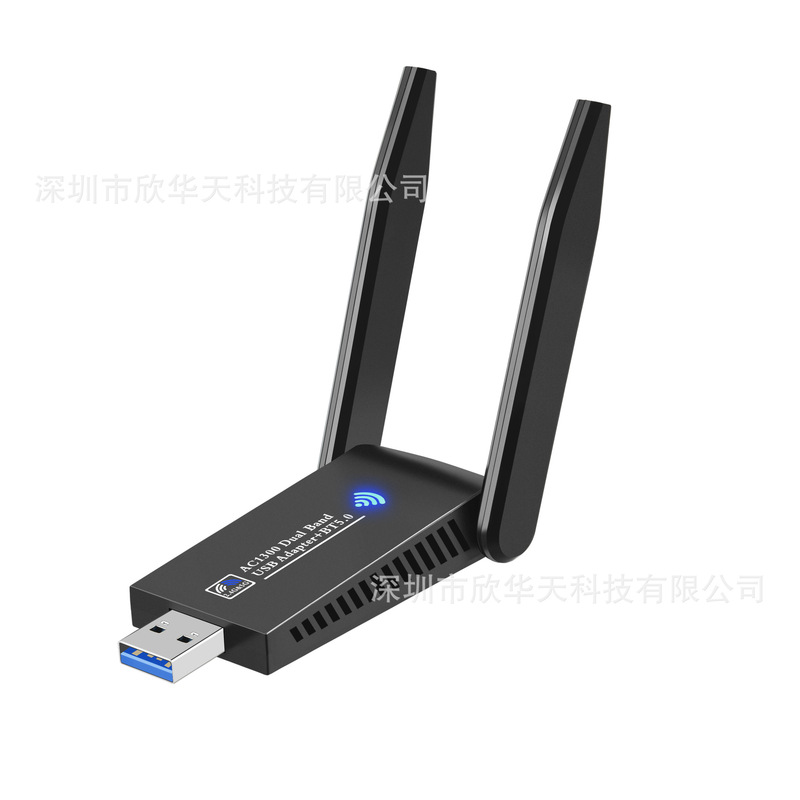

1300M wireless bluetooth network card dual-band wifi bluetooth two-in-one bluetooth 5.0 wireless receiver transmitter
product specifications
| Main chip: RTL8822BU | |||
| Bluetooth instructions: | |||
| Bluetooth version | V5.0 | ||
| Interface type | USB3.0 | ||
| Transmission distance | 10 meters | ||
| RF power | 10dBm( maximum value) | ||
| Antenna gain | 5dBi | ||
| Transmission speed | 3M/ S | ||
| Support operating system | WIN7/ WIN8/10/ 11 operating systems | ||
| WIFI instructions: | |||
| Supported standards and protocols | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac | ||
| Transmission speed | 2.4GHz 400Mbps 5.8GHz 867Mbps | ||
| frequency range | 2.4～2.4835GHz, 5.15~ 5.825GHz | ||
| frequency range | USB3.0 | ||
| Transmission rate | 5GHz 11ac: Up to 867Mbps( dynamic) 11a: Up to 867Mbps( dynamic) 2.4GHz 11n: Up to 400Mbps( dynamic) 11g: Up to 54Mbps( dynamic) 11b: Up to 11Mbps( dynamic) | ||
| Receive sensitivity | - 65dBm@10% PER | ||
| Transmission distance | The furthest distance is 100 meters indoors, and the furthest 200 meters outdoors( Varies by environment) | ||
| RF power | 20dBm( maximum value) | ||
| Antenna gain | 5dBi dual antenna | ||
| spread spectrum technology | DSSS( direct sequence spread spectrum) | ||
| Support operating system | Windows/ linux/ MAC OS10.09- 10.15 operating system | ||
| Physical specifications: | |||
| Working current | 100mA – 200mA( BT+WIFI) Current changes with operating mode | ||
| size | 6.8*3* 1.4cm | ||
| weight | 43g | ||
| Usage environment |
| ||
