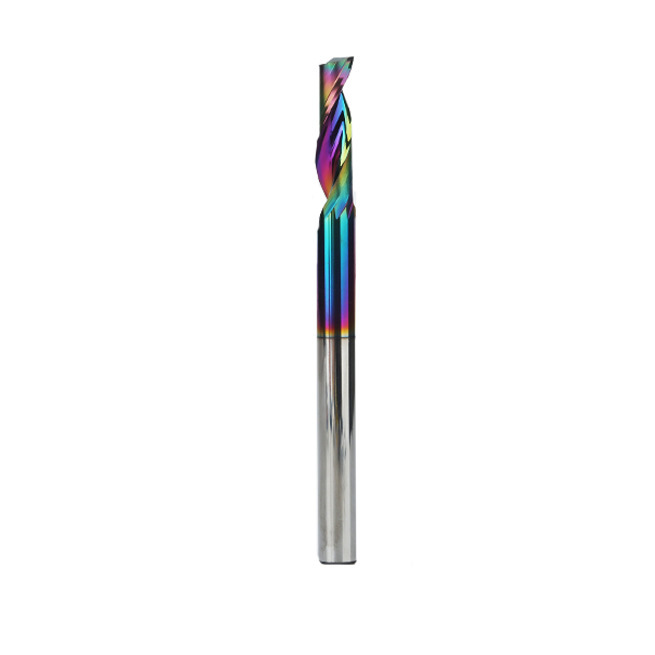

$19.70 | CUTTING TOOL FOR ALUMINUM ALLOY PROFILE - YOUREN YOUREN 8MM TUNGSTEN CARBIDE SINGLE-CUTTER SHAPE CUTTER FOR ALUMINUM ALLOY FOR WINDOW AND DOOR MULLION SYSTEMS

CUTTING TOOL FOR ALUMINUM ALLOY PROFILE - YOUREN YOUREN 8MM TUNGSTEN CARBIDE SINGLE-CUTTER SHAPE CUTTER FOR ALUMINUM ALLOY FOR WINDOW AND DOOR MULLION SYSTEMS

$19.70

sales volume: 6

classification: Hardware tools , Cutting tool , Other milling cutters

size

Free Size

number

Buy now

SPU: AL-GSGL-8ffd751n[G9]

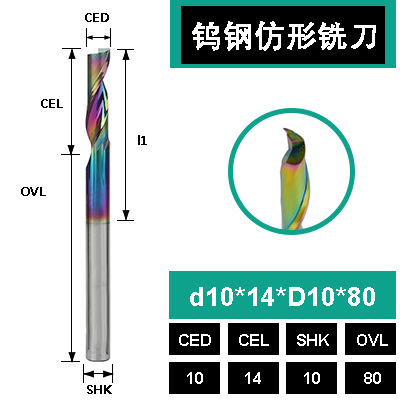

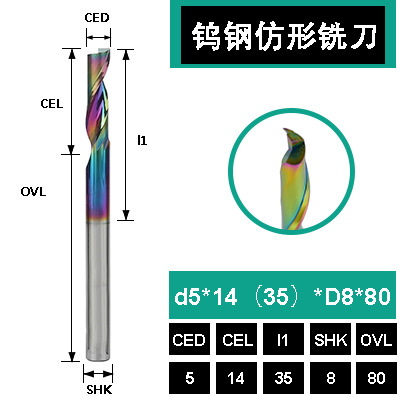

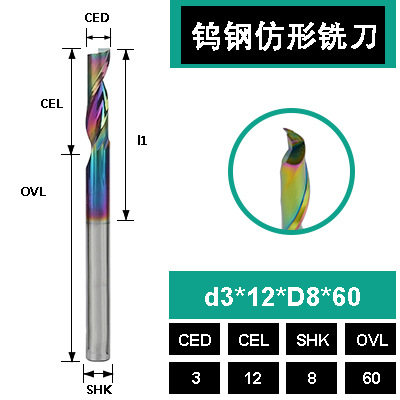

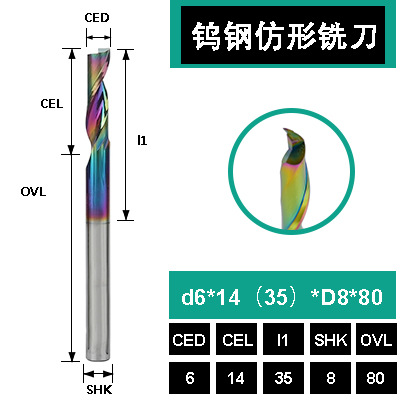

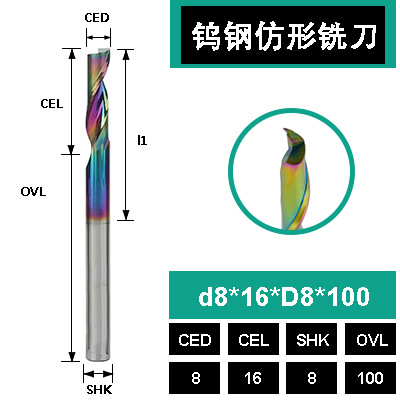

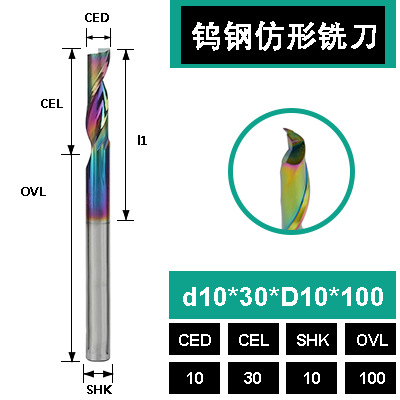

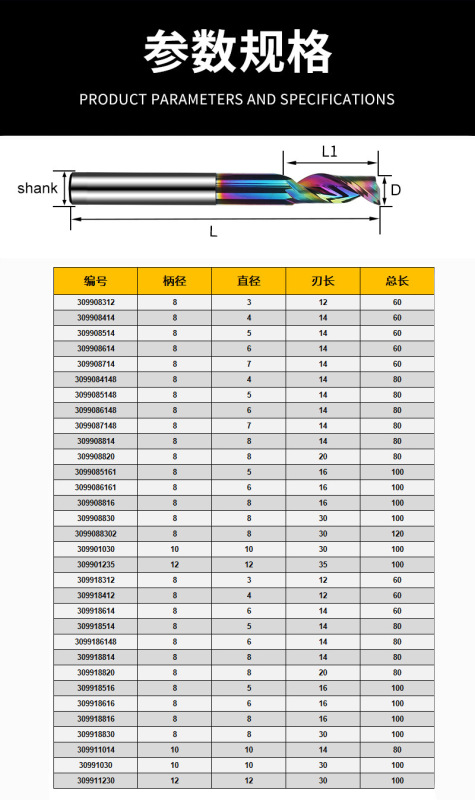

Model: Blade Diameter*Blade Length(Avoidance Length)*Handle Diameter*Total Length
Model:d3*14*D8*60
Model:d4*14*D8*60
Model:d6*14*D8*60
Model:d8*20*D8*80

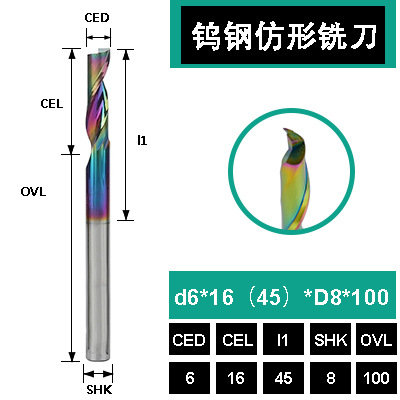

Model:d5*16（45）*D8*100

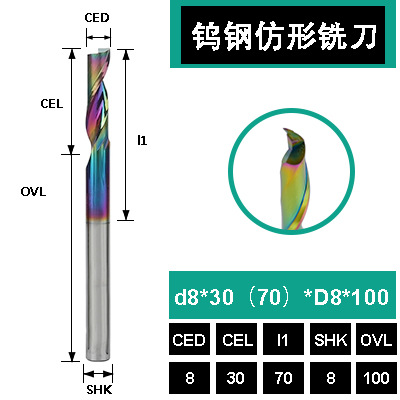

Model:d8*30(70)*D8*100

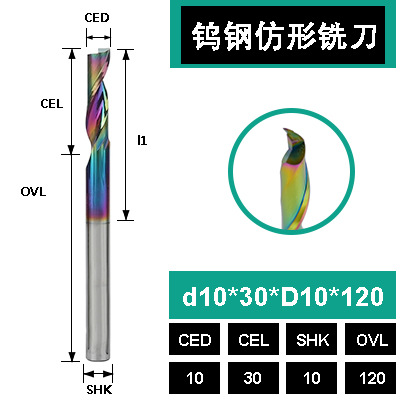

Model:d10*20*D10*80
Model:d10*30*D10*120
Ball Head Diameter (mm):0
Chamfer Angle:90
Minimum Cutting Diameter at Center (mm):3
Contour Radius (mm):1.5~6
Cutting Diameter (mm):3~12
Maximum Cutting Depth:30
Effective Cutting Edge Count at Periphery:1
Functional Length (mm):12~30
Helix Angle:38
Handle Type:Fixed Straight Handle
Handle Diameter (mm):8~12
Type:Integral
Useful Length (mm):12-30
Series:Integral

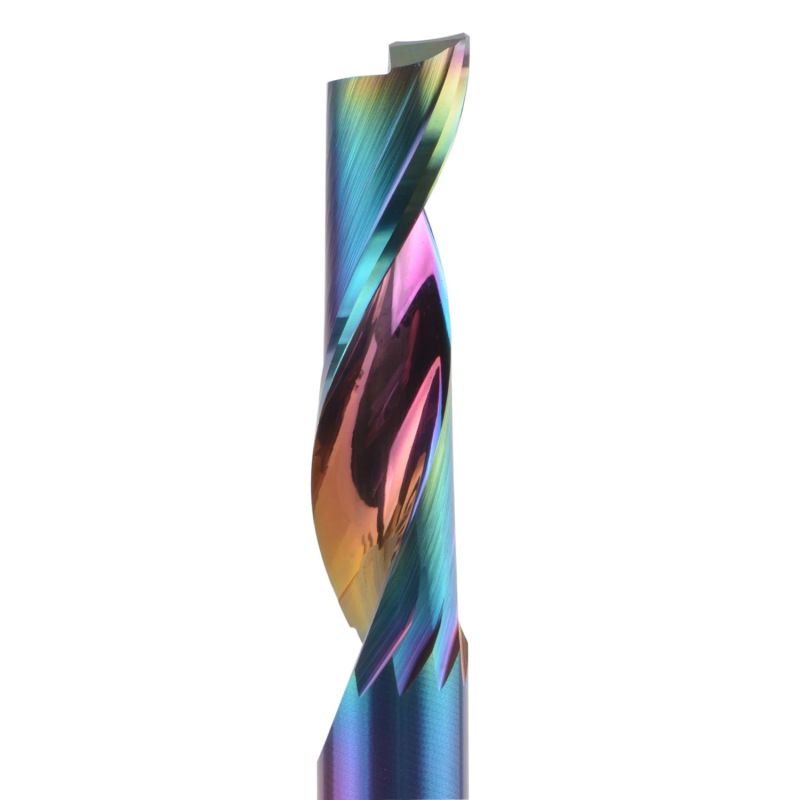

Cutting Edge Form:Single Spiral Groove
Material:Ultra-fine Grain Cemented Carbide
Type:Band Saw Milling Cutter
Number of Slots:1
Blade Length:12-30
Blade Diameter:3-12
Handle Diameter:8-12
Total Length:60-120
Coating:Coated
Machine Tools Available:Multiple Options

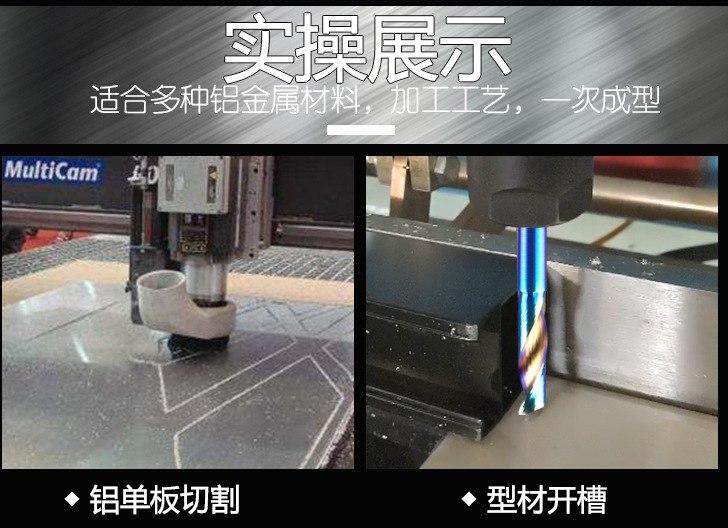

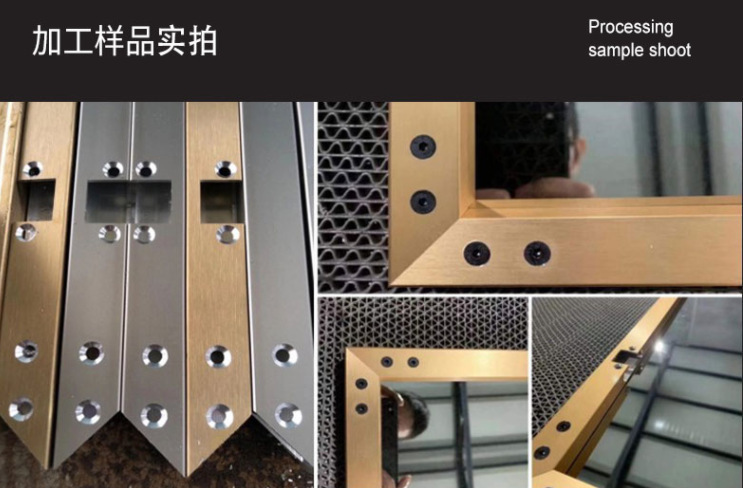

Processing Range:Aluminum Alloy Curtain Wall and Window Profiles
Specification (Diameter*Total Length):8*60
Maximum Cutting Diameter (mm):12
Product Type:Milling Cutter
