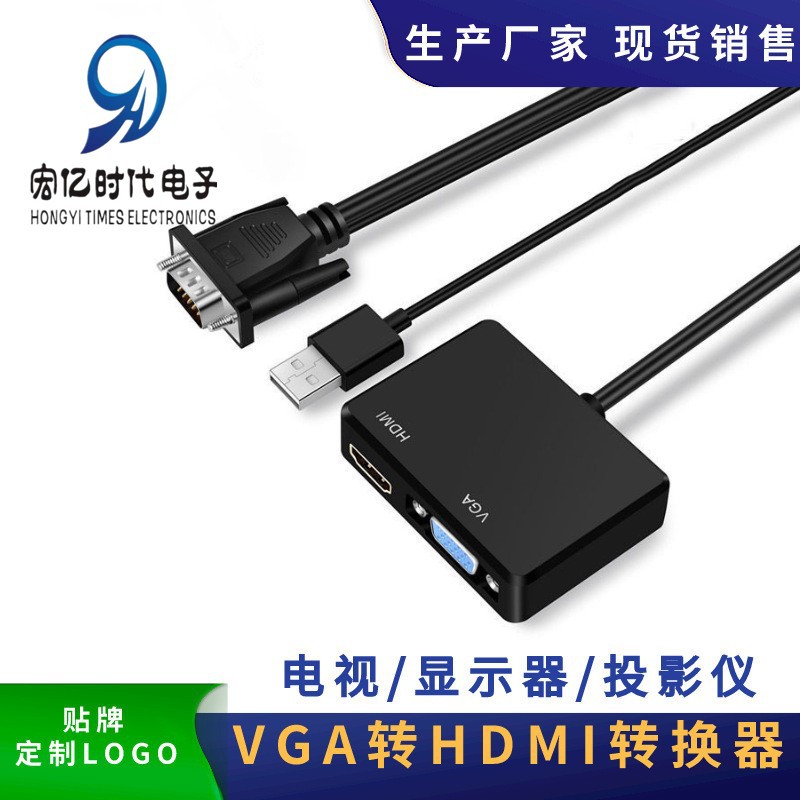

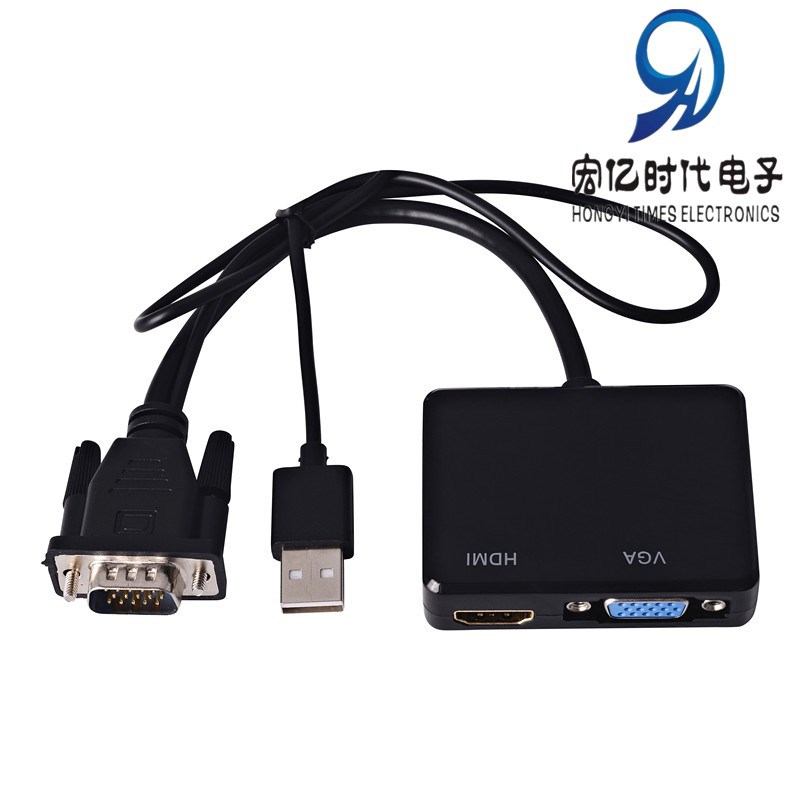

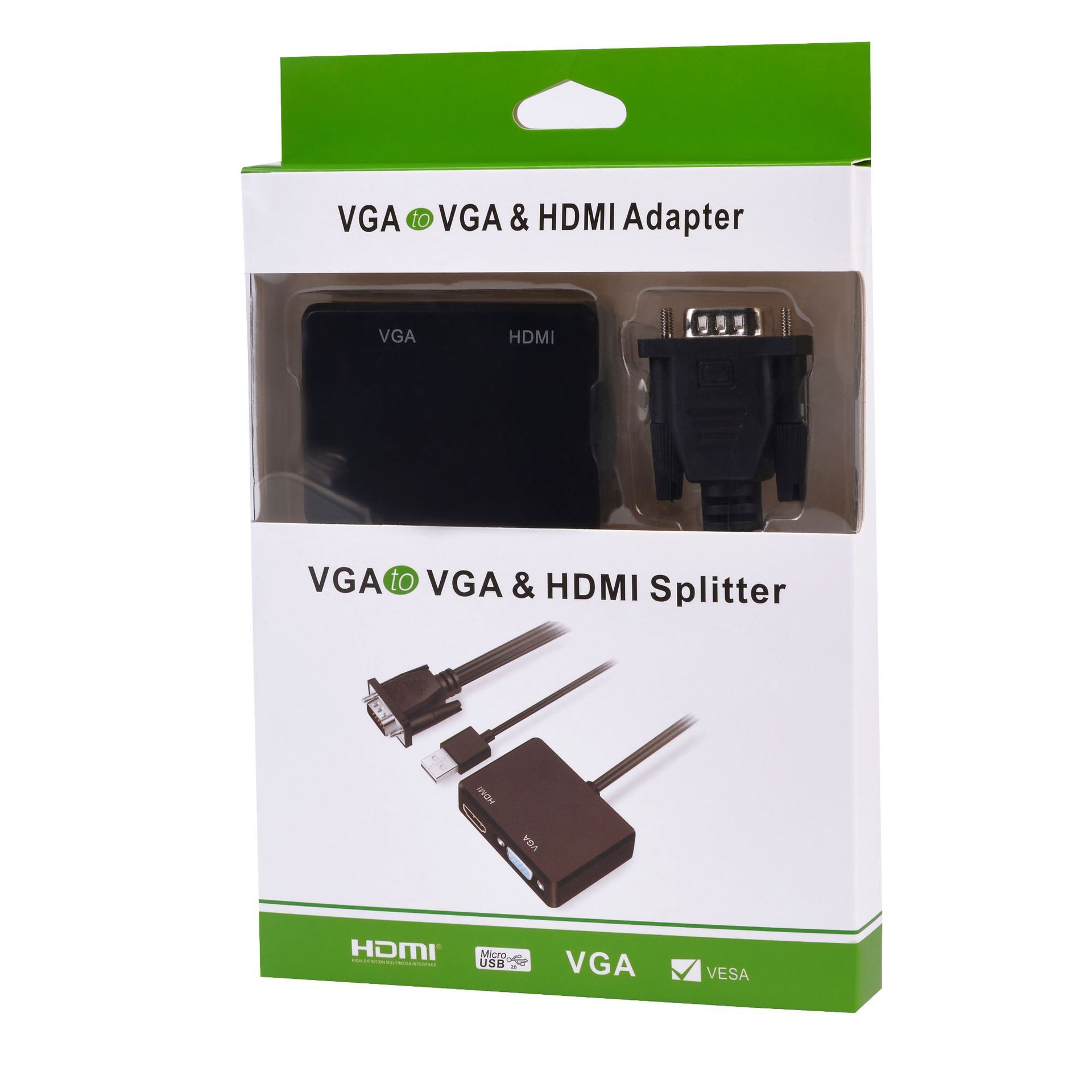

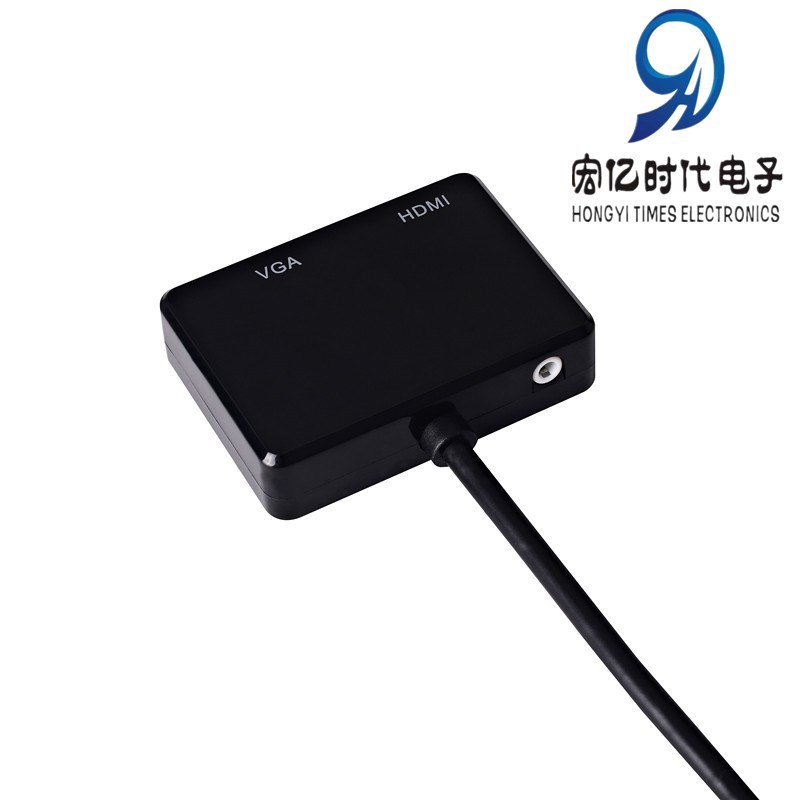

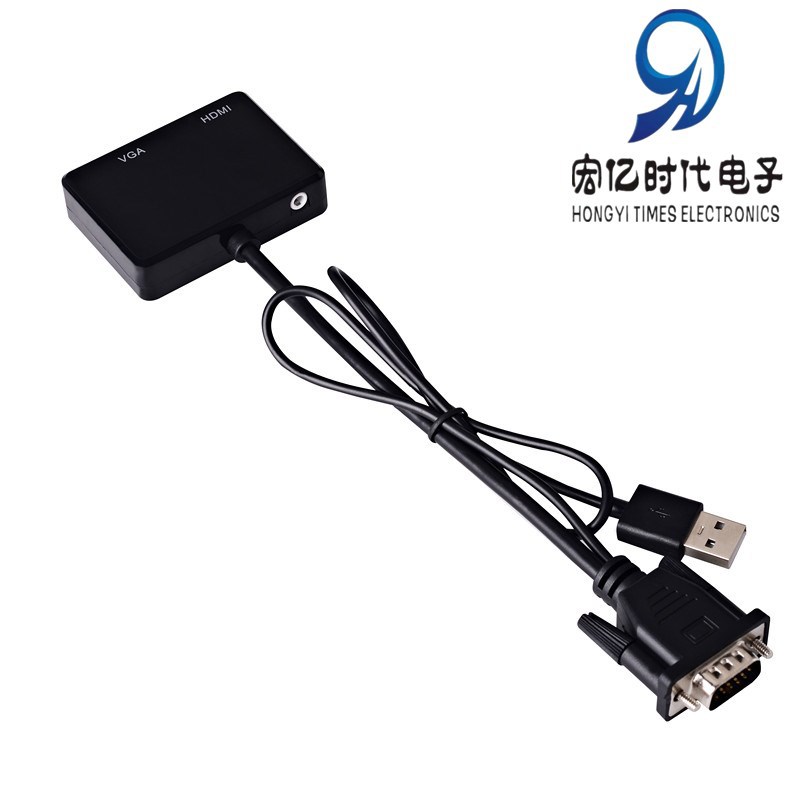

name: VGA to HDMI+VGA same screen
1. Convert the complete VGA signal to HDMI and VGA video for simultaneous output
receiving end: HDMI and VGA interfaces are connected to display devices such as monitors, projectors, and televisions with HDMI and VGA.
Output: The VGA interface is connected to notebooks, graphics cards, DVD, Blu-ray DVD, PS3, X360 Box and other devices with VGA.
2. Support HDCP1.0/1.1/1.2/ 1.3 Support HDMI1.1/1.2/1.3/1.4
3. Quick installation, simple operation, no software required, no settings required, just plug and play.
Fourth, it can have audio output and be powered by USB
5. HDMI and VGA support up to 1080P at the same time/ , the output is exactly the same as the output( Point-to-point output)
VGA video input format: 480i/ 576i/ 480p/ 576p/ 720p/ 1080i/ 1080p/ 60HZ
VGA and HDMI video output formats: 480i/ 576i/ 480p/ 576p/ 720p/ 1080i/ 1080p/ 60HZ
This product can convert computers, laptops, DVDs, etc. with VGA signals through smart chip processing to connect the devices to high-definition display devices with HDMI and VGA interfaces. It is a high-definition converter that converts analog signals into digital signals. , enjoy the feast of high-definition audio and video.
Performance parameters
Output video: HDMI 1.3
Support video: 1080P 60HZ
Technical parameters:
Support VGA video output format: VGA,XGA,SVGA,SXGA,UGA
Support audio formats: Analog Stereo 2.1( FL/ FR)
Support functional mode: 1. Main display 2. Free expansion mode 3. Mirror
HDMI and VGA simultaneous output formats: Can support up to 1080P/ 60Hz( Output and input formats are synchronized, frequency is synchronized)
Support 24bit color depth, ADC and HDMI TMDS core fully support 1080P@ 60 handles
Use a USB cable for power and computer audio signals
The whole process is driver-free, just plug and play.
