$101.30 | KADA 852AD + multi-function dual digital display hot air gun + soldering iron and soldering station two-in-one anti-static

KADA 852AD + multi-function dual digital display hot air gun + soldering iron and soldering station two-in-one anti-static

$101.30

sales volume: 4

classification: Hardware tools , Pneumatic tool , Heat gun

colour

852AD+(digital display)

852D+(digital display)

size

One size fits all

number

Buy now

SPU: AL-9FY1-7jfg93d3[W5]
Model: 852AD+(digital display)
Model: 852D+(digital display)
Type: High temperature hot air gun
Type: Constant temperature hot air gun
Type: Digital hot air gun
Type: Temperature controlled hot air gun
Type: Industrial hot air gun
Type: Digital Temperature Regulating Hot Air Gun
Power type: Plug in AC power supply
Rated voltage: 220V
Net weight: 4.2
Standard attachments: instruction manual, 3 nozzles, air gun holder
Rated voltage range: AC single-phase and DC above 50V and below 250V
3C Certificate Number: 3C
Overheating protection: available

Large quantity and competitive price, welcome to inquire

Product Description

brand:KADA

model:852AD+/852D+

Quantity Qty:1pcs small box/6pcsLarge box

Outer box dimensions mean:Small box/56X33X61Large box(cm)

Weight Weight:4.3KG/20.7-23.5KG

852Series hot air welding table

One machine for multiple purposes, hot air heating for disassembly and welding of various types of direct insertion, surface mount components, heat shrink tubing treatment, thermal energy testing, and other occasions that require thermal energy. Taking the Kada 852 as an example, the performance and use of the product will be introduced:

1、 The characteristics are as follows
*Instantly detachable various components(Including discrete, double row, and surface mount)Make maintenance no longer troubled by the inconvenience of disassembling components;
*Windstorm does not need to touch the circuit board, protecting your circuit board from damage;
*The removed circuit board vias and device pins are clean in Wuxi(The dismantled part looks like a new board)Convenient for your second use;
*The temperature and air volume of the hot air are adjustable, allowing you to handle various types of circuit boards;
*Adopting imported air pumps and heating elements to ensure the long service life of the system;

KADA(Kada)852 hot air welding stationIt is an efficient and practical multifunctional product developed, researched, and produced based on the development of electronic technology and the needs of personnel engaged in electronic product research, production, and maintenance. It is a product that adopts a national technology and belongs to both domestic and international markets*It adopts the principle of gentle breeze heating to remove tin, which can quickly and statically disassemble and weld various types of seals. 1. Static bark, turbulence, scoop, splash, block, Yin midge, sword, servant, condyle, hazel, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read, read 2. The satisfied province is as small as the eight skeletons of a petrel?CB board is not damaged. Currently, it is widely used in electronic research, teaching, and production units, especially indispensable for home appliance maintenance and communication equipment maintenance personnel*Tools
This product adopts high-quality components and precise processing technology, ensuring stable product quality, reliable performance, long service life, and low failure rate. In addition, the company has a complete set of after-sales service system, allowing you to use our products with confidence

2、 Main functions
1. Intelligent design, beautiful and elegant appearance, flexible operation, and convenience
2. Hot air heating, fast heating, thorough and clean tin removal, belonging to domestic and foreign markets*.
3. The hot air temperature can be continuously adjusted from the ambient temperature to 500 ℃, and the temperature at the air outlet is automatically constant
4. The hot air volume can be continuously adjusted between 0.3-24Lmin
6. Anti static, fully automatic constant welding temperature
7. Equipped with different inner diameter air nozzles, suitable for disassembling and soldering different components
8. Multi purpose, hot air heating, constant temperature soldering iron for disassembly and soldering of various types of direct insertion, surface mount components, heat shrink tubing treatment, thermal energy testing, and other applications that require thermal energy

3、 Performance indicators
Soldering station:
Power supply AC220V ± 20V 50/60HZ
Electricity consumption:270W
Air pump form:Diaphragm type
Hot air volume 0.3-24L/min
Heating element:250W metal heating element
Hot gas temperature 100-420 degree continuous constant temperature adjustment
Dimensions 180X145X260(mm)з

welding station:

power:60W

Output voltage AC:24V

temperature range :200--480 degrees

4、 Precautions

(1)For safety reasons, the bottom of the chassis*There is a red screw(M5＊10)It is for the convenience of transportation and to fix the internal structure. Please note:Before use, be sure to remove this screw, otherwise it may cause serious problems!
(2)Before use, it is necessary to carefully read the instructions for use
(3)Before use, it is necessary to connect the ground wire to prevent static discharge
(4)Please do not damage the tamper proof sheet, otherwise the warranty service will be invalid!
(5)It is prohibited to place metal conductors in the front mesh of the soldering iron, as this can cause damage to the heating element and electric shock to the human body
(6)When the machine malfunctions and cannot be used, please contact the supplier. Before transportation, the red screws at the bottom of the machine must be locked securely!

5、 Instructions for use

(1)Install and power on:
Open the packaging and remove the host
Remove the red screws at the bottom of the body(Be sure to pay attention!)
Connect the 220V power supply to use. Turn on the power switch(POWER)The system can start working
be careful:*The secondary use of hot air suction tin removal welding gun may emit white smoke, which is a normal phenomenon

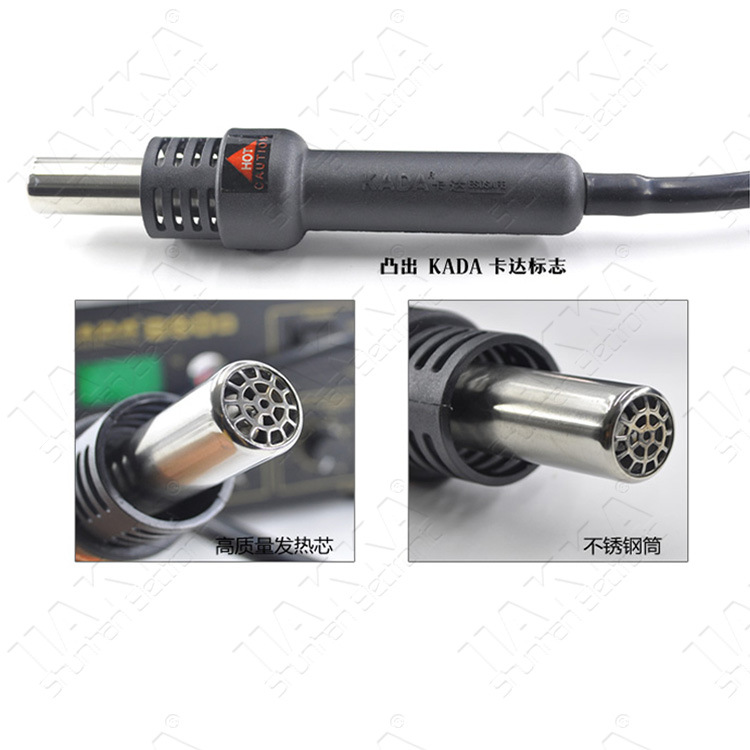

(2)Hot air head usage:
After turning on the power switch, select different air nozzles as needed, and then adjust the hot air temperature knob(HEATER)Adjust to the appropriate temperature and adjust the hot air volume control knob as needed(AIRCAPACITY)Adjust the required air volume and use it when the preheating temperature reaches the adjusted temperature. If not in use for a short period of time, you can adjust the hot air volume knob(AIRCAPACITY)Adjust the regulator to the smallest possible size and adjust the hot air temperature knob(HEATER)Adjust to the middle position to keep the heater warm. When using it again, adjust the hot air volume knob and hot air temperature knob
be careful:For integrated circuits with different packaging, replace different models of air nozzles. For different solder joint sizes, choose different temperature air volume and air nozzle distance from the board

(3)Disassembly of direct insertion components:
As described above, make the hot air part work normally, and replace it with a suitable air nozzle and tin suction needle according to the size of the solder pad(Comes with attachments)Heating is sufficient. Choose the appropriate temperature and air volume according to different circuit substrate materials and solder pads. This method is suitable for various single and double-sided boards and solder joints of different sizes

(4)Disassembly and assembly of surface mount components:
1. Dismantling of SMT components:Select the appropriate temperature and air volume according to different circuit substrate materials, align the air nozzle with the pins of the surface mount component, repeatedly and uniformly heat it, and after reaching an indefinite temperature, use tweezers to apply a little force to naturally detach it from the substrate
2. Welding and assembly of surface mount components:Apply a layer of soldering flux to the position of the removed surface mount component, then level the solder pads, blow the soldering flux evenly with hot air, align the position, place the surface mount component, and position it with solder. At the place where the surface mount component should be soldered, stack all the solder on top(Tin deposition method)Then remove the excess solder as described above and shape it slightly with an electric soldering iron. Using this method to solder surface mount components, the solder joints are beautiful, the soldering is fast, firm, and reliable

Precautions for use
1. Inside the hot air welding gun, there is an automatic overheat protection switch. When the nozzle overheat protection switch is activated, the machine stops working. The air volume knob must be turned off(ATPCAPACITY)Adjust to maximum, delay for about 2 minutes before the heater can work and the machine returns to normal
2. After use, pay attention to cooling the body:After turning off the power, the heating tube will automatically spray cold air briefly, cooling in stages without unplugging the power plug
When not in use, please place the handle on the bracket to prevent accidents
4. For more detailed disassembly and welding instructions, please refer to the instruction manual

*If the host is damaged, please contact the company and do not open the machine by yourself
* *Supply spare parts, equipment warranty for one year

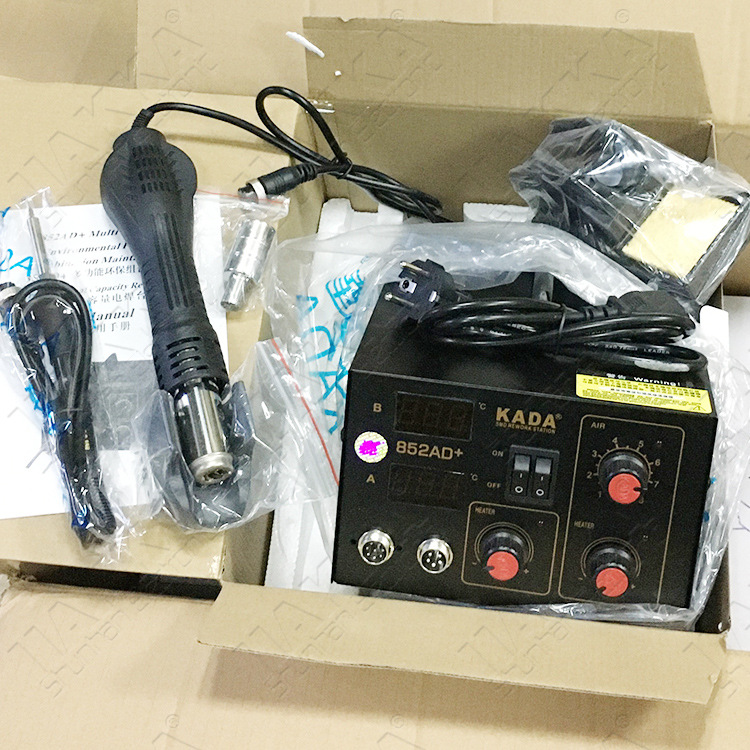

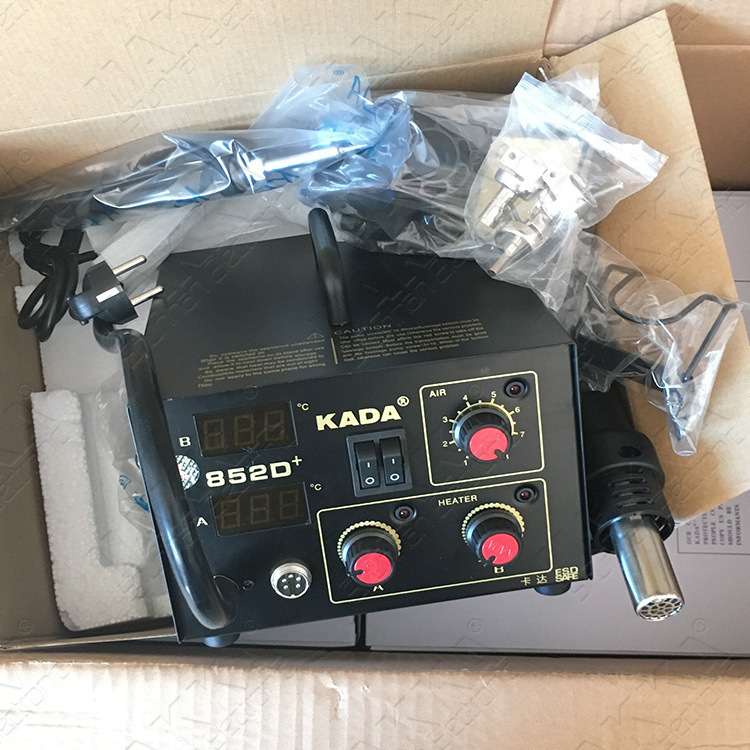

The secondary machine is equipped with three round air nozzles, one soldering handle holder, and one soldering iron holder
