- SPU: AL-ID9E-9i3nfsew[295]

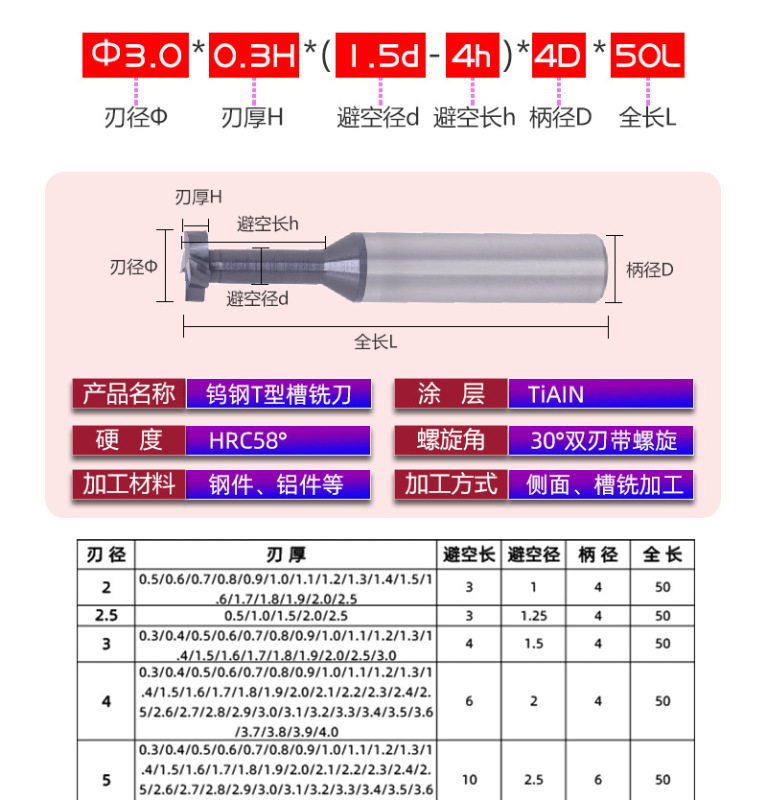

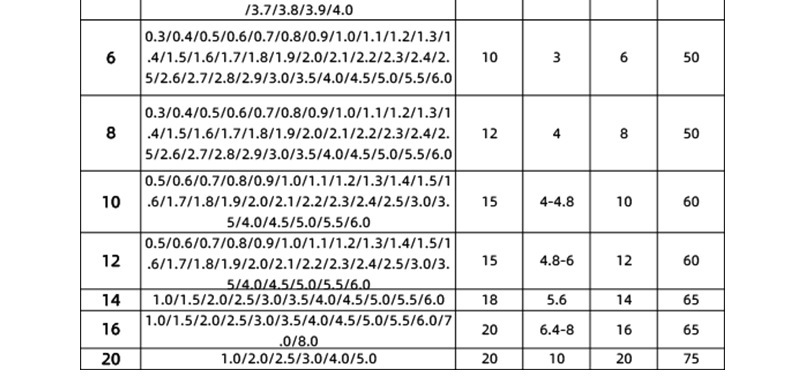

- Model: Ф3.0*0.5H*(d1.5-6h)*4D*50L(Aluminum)
- Model: Ф4.0*0.5H*(d2.0-8h)*4D*50L(Aluminum)
- Model: Ф5.0*0.5H*(d2.5-10h)*5D*50L(Aluminum)
- Model: Ф6.0*0.5H*(d3.0-10h)*6D*50L(Aluminum)
- Model: Ф8.0*0.5H*(d4.0-12h)*8D*60L(Aluminum)
- Model: Ф10.0*0.5H*(d4.8-15h)*10D*60L(Aluminum)
- Model: Ф12.0*0.5H*(d5.0-16h)*12D*60L(Aluminum)
- Model: Ф14.0*1.0H*(d7-20h)*14D*70L(Aluminum)
- Model: Ф16.0*1.0H*(d8-20h)*16D*70L(Aluminum)
- Model: Ф20.0*1.0H*(d10-25h)*20D*70L(Aluminum)
- Model: Ф3.0*0.5H*(d1.5-6h)*4D*50L(Steel)
- Model: Ф4.0*0.5H*(d2.0-8h)*4D*50L(Steel)
- Model: Ф5.0*0.5H*(d2.5-10h)*5D*50L(Steel)
- Model: Ф6.0*0.5H*(d3.0-10h)*6D*50L(Steel)
- Model: Ф8.0*0.5H*(d4.0-12h)*8D*60L(Steel)
- Model: Ф10.0*0.5H*(d4.8-15h)*10D*60L(Steel)
- Model: Ф12.0*0.5H*(d5.0-16h)*12D*60L(Steel)
- Model: Ф14.0*1.0H*(d7-20h)*14D*70L(Steel)
- Model: Ф16.0*1.0H*(d8-20h)*16D*70L(Steel)
- Model: Ф20.0*1.0H*(d10-25h)*20D*70L(Steel)
- Ball diameter (mm): 0
- Angle of chamfer: 0
- Minimum cutting diameter (mm): 4
- Profile radius (mm): 1
- Cutting diameter (mm): 20
- Maximum cutting depth: 50
- Number of effective cutting edges: 4-6
- Effective length (mm): 75
- Helix angle: 0
- Shank type: Straight shank
- Shank diameter (mm): 4-20
- System: Metric
- Useful length (mm): 75

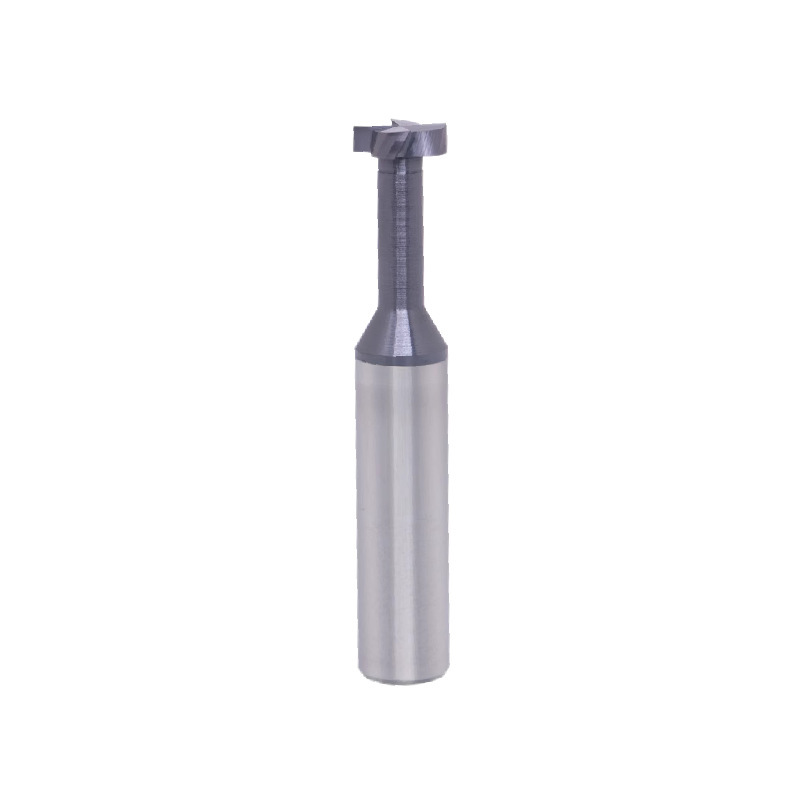

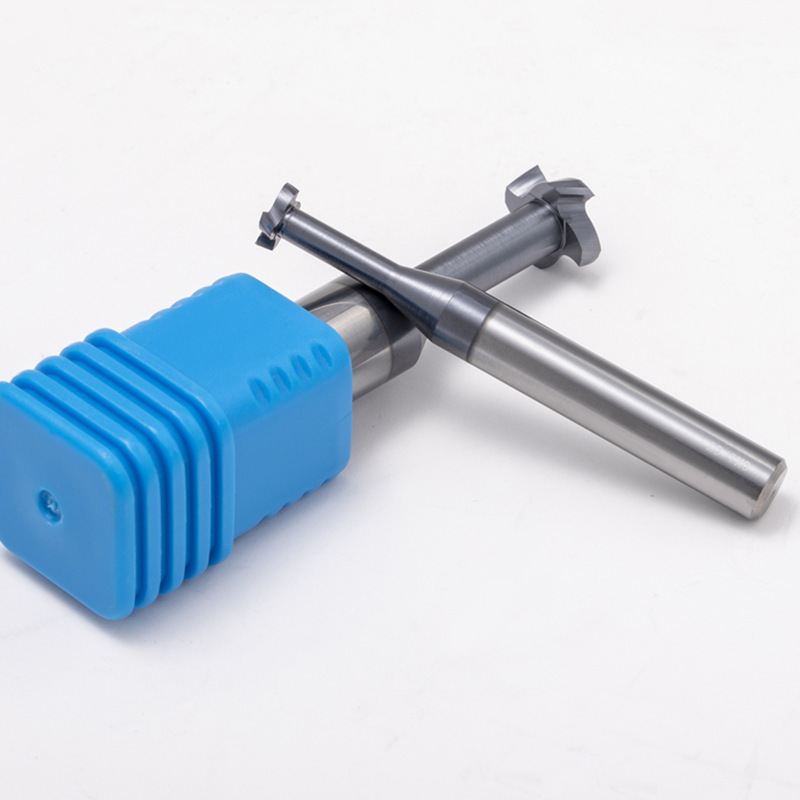

- Series: Tungsten carbide T-slot end mill
- Cutting edge type: Helical groove

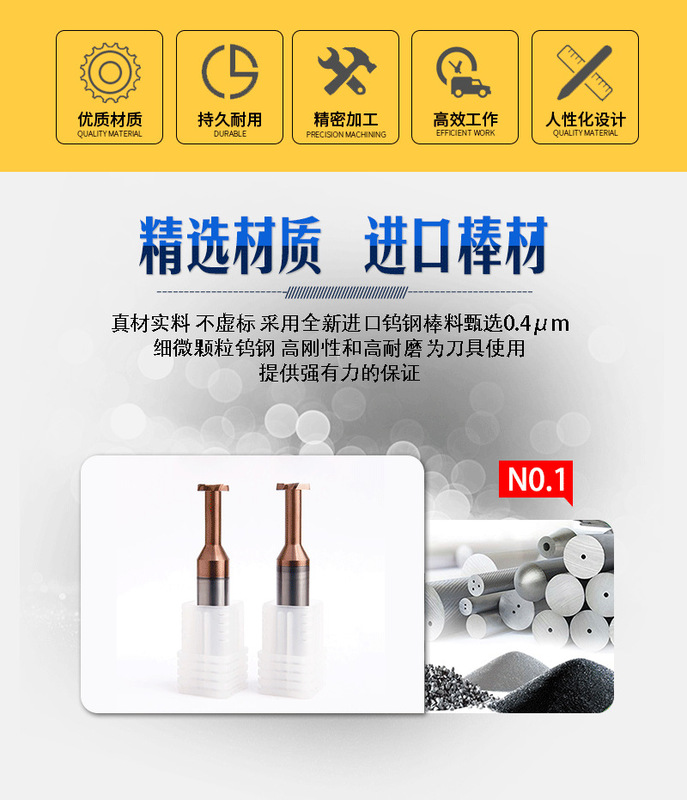

- Material: Tungsten carbide
- Type: Forming end mill
- Number of grooves: 4-6
- Edge length: 0.3-8
- Edge diameter: 2-20
- Shank diameter: 4-20
- Total length: 75
- Coating: Coated
- Machine tools applicable to: CNC, machining center, engraving machine, NC
- Processing range: Copper, aluminum, plastic, mold steel, alloy steel, stainless steel
- Specifications (diameter * total length): 20*75
- Maximum cutting diameter (mm): 20
- Name 3: Tungsten carbide T-slot end mill
- Name 1: T-slot end mill
- Name 2: T-slot mill
- Product type: End mill
After sales information
Within 15 days from the date of receipt, customers can be provided with an unconditional return service. The application for return of goods requires the consent of the merchant in the store.
Procurement and delivery
Delivery time: For products in stock, they will be shipped within 3 working days (excluding holidays) after you place your order and make payment. You will receive our notification after shipment.
payment
Credit card payment (quick payment) is a new payment method jointly launched by third-party payment platforms and major banks. It is one of the safest and easiest payment methods. Users do not need to activate online banking in advance, they can complete quick payments by entering information such as card face and mobile phone dynamic password. Quick payment allows various bank card users to conveniently make online payments without the need for special online banking activation.
