- SPU: AL-ID9E-9fabu015[588]
- Hole type: Straight hole
- Cutting diameter (mm): 0.5-20
- Achievable hole tolerance: 0.005
- Cooling (None/Axial/Radial): None
- Material: Cemented carbide
- Coolant outlet type: Straight blast
- Total length (mm): 50-150
- Effective length (mm): 150

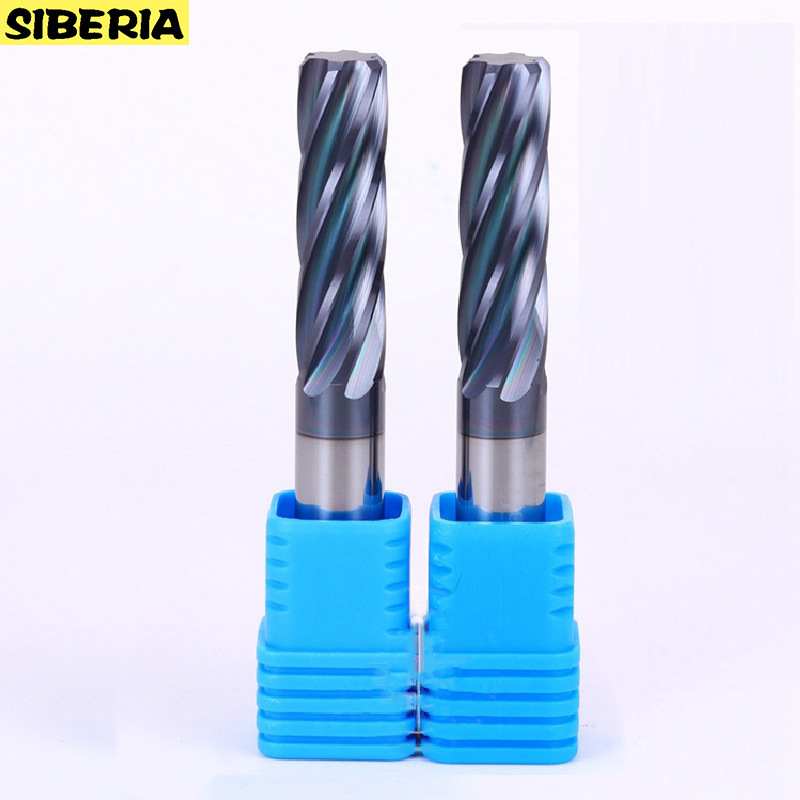

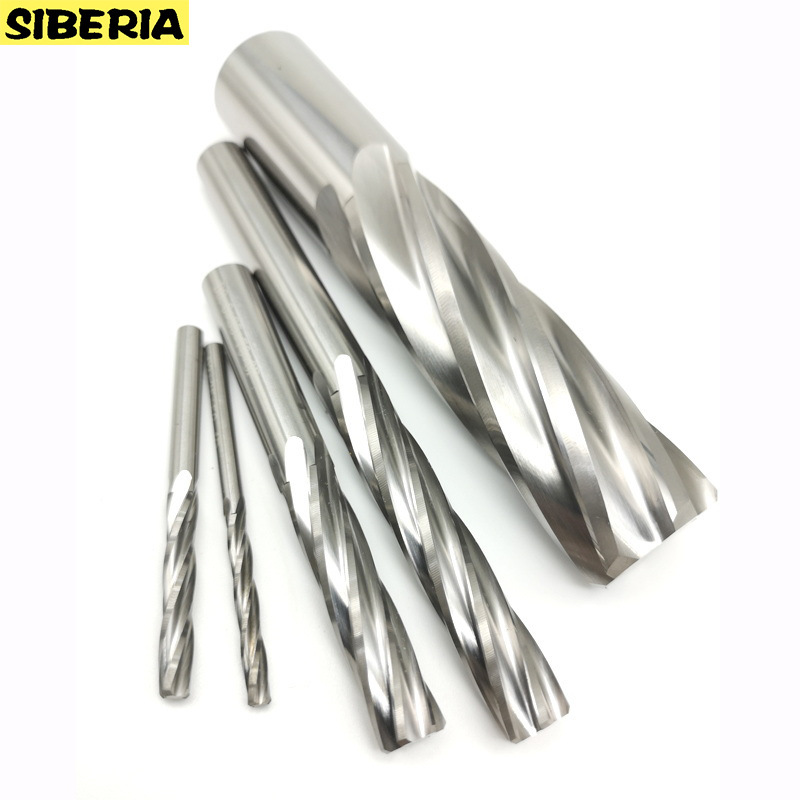

- Type: Straight shank machine reamer
- Reaming shape: Cylindrical

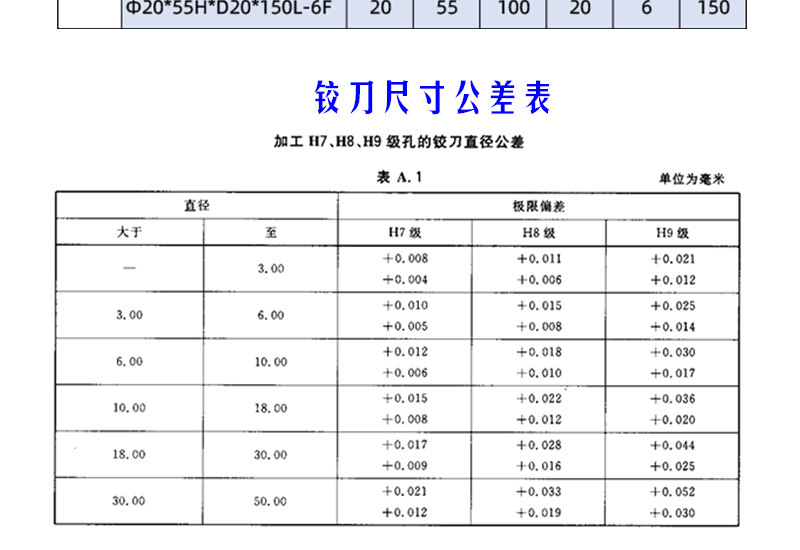

- Reamer accuracy: H7/H8/H9
- Flute diameter: 0.5-20
- Flute length: 70
- Shank diameter: 1-20
- Full length: 150
- Base diameter: 1-20
- Coating: Coated
- Standard part: Standard part
- Sample or in stock: In stock
- Custom machining: Yes
- Applicable machine: Machining center, CNC machine
- Processing range: Steel, aluminum, plastic
- Wholesale: Wholesale
- Coating: Yes
- Minimum packaging quantity: 1
- Product weight (kg): 0.5
- Chip flute count: 4-8
- Shank diameter tolerance: 0.005
- Achievable hole tolerance upper limit (mm): 0.005
- Achievable hole tolerance lower limit (mm): 0
- Series: Tungsten carbide reamer

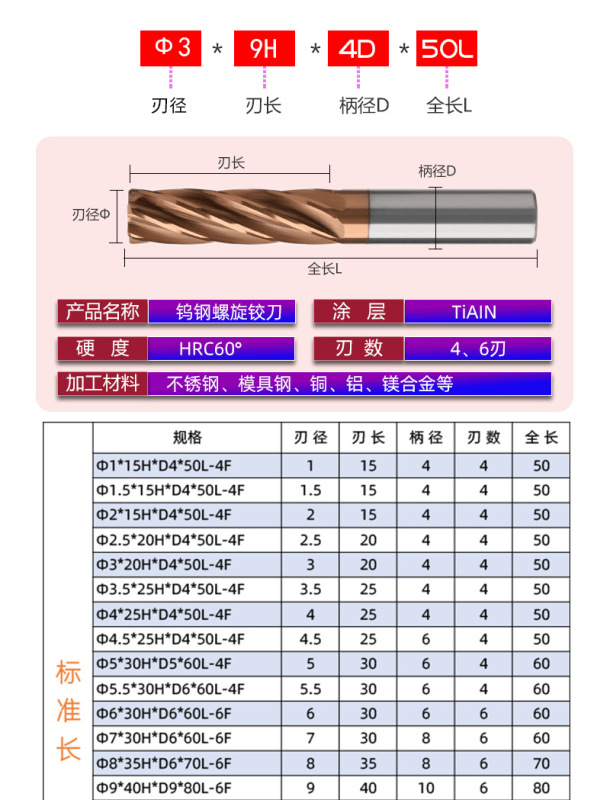

- Model: Ф1*15H*D4*50L-4F (Aluminum)
- Model: Ф1.5*15H*D4*50L-4F (Aluminum)
- Model: Ф2*15H*D4*50L-4F (Aluminum)
- Model: Ф2.5*20H*D4*50L-4F (Aluminum)
- Model: Ф3*20H*D4*50L-4F (Aluminum)
- Model: Ф3.5*25H*D4*50L-4F (Aluminum)
- Model: Ф4*25H*D4*50L-4F (Aluminum)
- Model: Ф4.5*25H*D4*50L-4F (Aluminum)
- Model: Ф5*30H*D5*60L-4F (Aluminum)
- Model: Ф5.5*30H*D6*60L-4F (Aluminum)
- Model: Ф6*30H*D6*60L-6F (Aluminum)
- Model: Ф7*30H*D6*60L-6F (Aluminum)
- Model: Ф8*35H*D6*70L-6F (Aluminum)
- Model: Ф9*40H*D9*80L-6F (Aluminum)
- Model: Ф10*40H*D10*80L-6F (Aluminum)
- Model: Ф11*40H*D11*80L-6F (Aluminum)
- Model: Ф12*40H*D12*80L-6F (Aluminum)
- Model: Ф13*60H*D13*100L-6F (Aluminum)
- Model: Ф14*60H*D14*100L-6F (Aluminum)
- Model: Ф15*60H*D15*100L-6F (Aluminum)
- Model: Ф16*60H*D16*100L-6F (Aluminum)
- Model: Ф18*60H*D18*100L-6F (Aluminum)
- Model: Ф20*60H*D20*100L-6F (Aluminum)
- Model: Ф1*15H*D4*50L-4F (Steel)
- Model: Ф1.5*15H*D4*50L-4F (Steel)
- Model: Ф2*15H*D4*50L-4F (Steel)
- Model: Ф2.5*20H*D4*50L-4F (Steel)
- Model: Ф3*20H*D4*50L-4F (Steel)
- Model: Ф3.5*25H*D4*50L-4F (Steel)
- Model: Ф4*25H*D4*50L-4F (Steel)
- Model: Ф4.5*25H*D4*50L-4F (Steel)
- Model: Ф5*30H*D5*60L-4F (Steel)
- Model: Ф5.5*30H*D6*60L-4F (Steel)
- Model: Ф6*30H*D6*60L-6F (Steel)
- Model: Ф7*30H*D6*60L-6F (Steel)
- Model: Ф8*35H*D6*70L-6F (Steel)
- Model: Ф9*40H*D9*80L-6F (Steel)
- Model: Ф10*40H*D10*80L-6F (Steel)
- Model: Ф11*40H*D11*80L-6F (Steel)
- Model: Ф12*40H*D12*80L-6F (Steel)
- Model: Ф13*60H*D13*100L-6F (Steel)
- Model: Ф14*60H*D14*100L-6F (Steel)
- Model: Ф15*60H*D15*100L-6F (Steel)
- Model: Ф16*60H*D16*100L-6F (Steel)
- Model: Ф18*60H*D18*100L-6F (Steel)
- Model: Ф20*60H*D20*100L-6F (Steel)

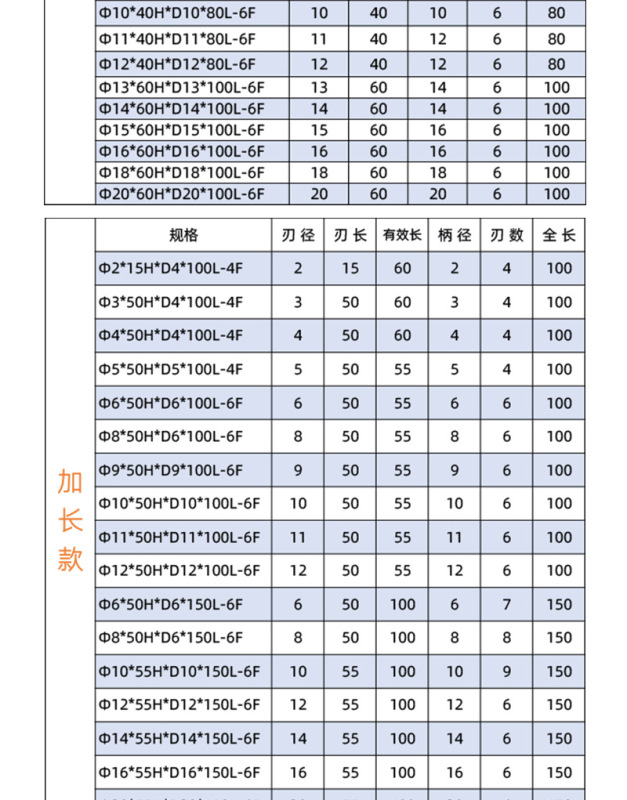

- Model: Order please note the following are extended versions
- Model: Ф2*15H*D4*100L-4F (Aluminum)
- Model: Ф3*50H*D4*100L-4F (Aluminum)
- Model: Ф4*50H*D4*100L-4F (Aluminum)
- Model: Ф5*50H*D5*100L-4F (Aluminum)
- Model: Ф6*50H*D6*100L-6F (Aluminum)
- Model: Ф8*50H*D6*100L-6F (Aluminum)
- Model: Ф9*50H*D9*100L-6F (Aluminum)
- Model: Ф10*50H*D10*100L-6F (Aluminum)
- Model: Ф11*50H*D11*100L-6F (Aluminum)
- Model: Ф12*50H*D12*100L-6F (Aluminum)
- Model: Ф6*50H*D6*150L-6F (Aluminum)
- Model: Ф8*50H*D6*150L-6F (Aluminum)
- Model: Ф10*55H*D10*150L-6F (Aluminum)
- Model: Ф12*55H*D12*150L-6F (Aluminum)
- Model: Ф14*55H*D14*150L-6F (Aluminum)
- Model: Ф16*55H*D16*150L-6F (Aluminum)
- Model: Ф20*55H*D20*150L-6F (Aluminum)
- Model: Ф2*15H*D4*100L-4F (Steel)
- Model: Ф3*50H*D4*100L-4F (Steel)
- Model: Ф4*50H*D4*100L-4F (Steel)
- Model: Ф5*50H*D5*100L-4F (Steel)
- Model: Ф6*50H*D6*100L-6F (Steel)
- Model: Ф8*50H*D6*100L-6F (Steel)
- Model: Ф9*50H*D9*100L-6F (Steel)
- Model: Ф10*50H*D10*100L-6F (Steel)
- Model: Ф11*50H*D11*100L-6F (Steel)
- Model: Ф12*50H*D12*100L-6F (Steel)
- Model: Ф6*50H*D6*150L-6F (Steel)
- Model: Ф8*50H*D6*150L-6F (Steel)
- Model: Ф10*55H*D10*150L-6F (Steel)
- Model: Ф12*55H*D12*150L-6F (Steel)
- Model: Ф14*55H*D14*150L-6F (Steel)
- Model: Ф16*55H*D16*150L-6F (Steel)
- Model: Ф20*55H*D20*150L-6F (Steel)
- Product certification: None
- Shank diameter (mm): 1-20

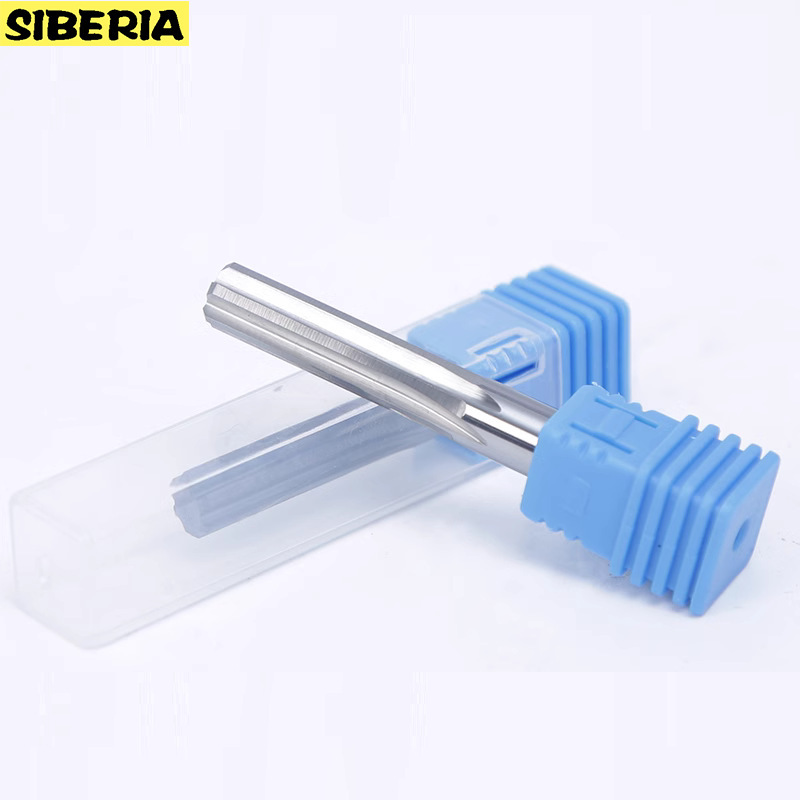

- 1: High-precision machine reamer
- 2: Cemented carbide tungsten carbide reamer
- Product type: Reamer
