$3.90 | 2.54mm間距雙排針貼片排母座連接器2*2/3/4/5/6/7/8/10/15/20~40P

2.54mm間距雙排針貼片排母座連接器2*2/3/4/5/6/7/8/10/15/20~40P

$3.90

sales volume: 1

classification: Electronic component market , connector , connector

size

均碼

number

Buy now

SPU: AL-3TIM-7slg476b[7]
型號:2.54雙排母排針貼片
線長:0
應用領域:電工電氣
規格:2.54排針2*2P貼片
規格:2.54排針2*3P貼片
規格:2.54排針2*4P貼片
規格:2.54排針2*5P貼片
規格:2.54排針2*6P貼片
規格:2.54排針2*7P貼片
規格:2.54排針2*8P貼片
規格:2.54排針2*10P貼片
規格:2.54排針2*15P貼片
規格:2.54排針2*20P貼片
規格:2.54排針2*25P貼片
規格:2.54排針2*40P貼片
規格:2.54排母2*2P
規格:2.54排母2*3P
規格:2.54排母2*4P
規格:2.54排母2*5P
規格:2.54排母2*6P
規格:2.54排母2*7P
規格:2.54排母2*8P
規格:2.54排母2*10P
規格:2.54排母2*15P
規格:2.54排母2*20P
規格:2.54排母2*25P
規格:2.54排母2*40P

產品參數

- 名稱：條形連接器
- 型號： 2.54雙排母排針貼片
- 1.產品技術特性：
- 1-1.間距：2.54mm
- 1-2.線數:1~40
- 1-3.適用線規：AWG#24~#28
- 1-4.適用基板厚度：
- 1-5.溫度範圍：-25度 TO +85度
- 1-6.額定電壓：125V AC，DC
- 1-7.額定電流：2A AC，DC
- 1-8.接觸電阻：20mΩ MAX
- 1-9.絕緣電阻：1000MΩ MIN
- 1-10.耐壓：500V
- 2.產品材質
- 2-1.端子：phosphor bronz
- 2-2.孔座：PBT UL94V-0

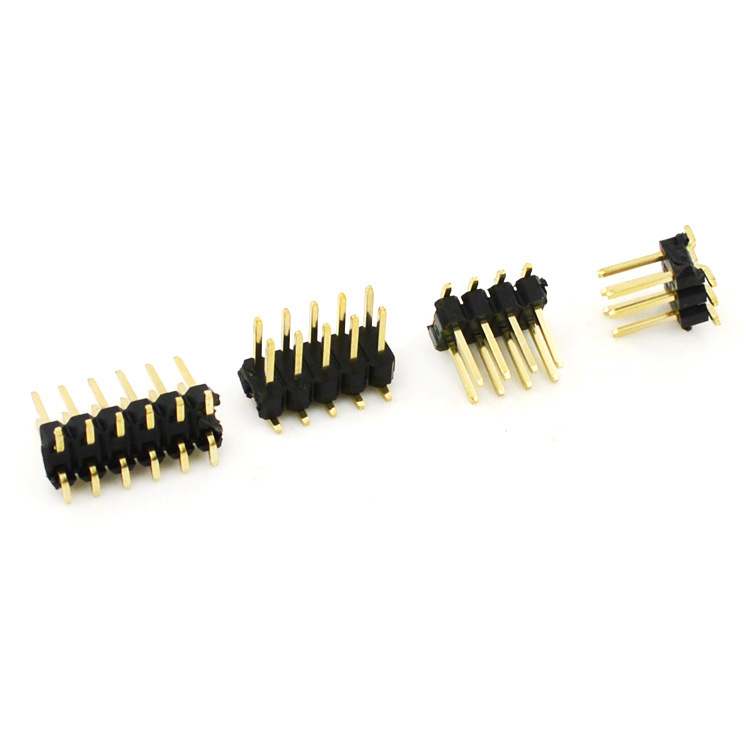

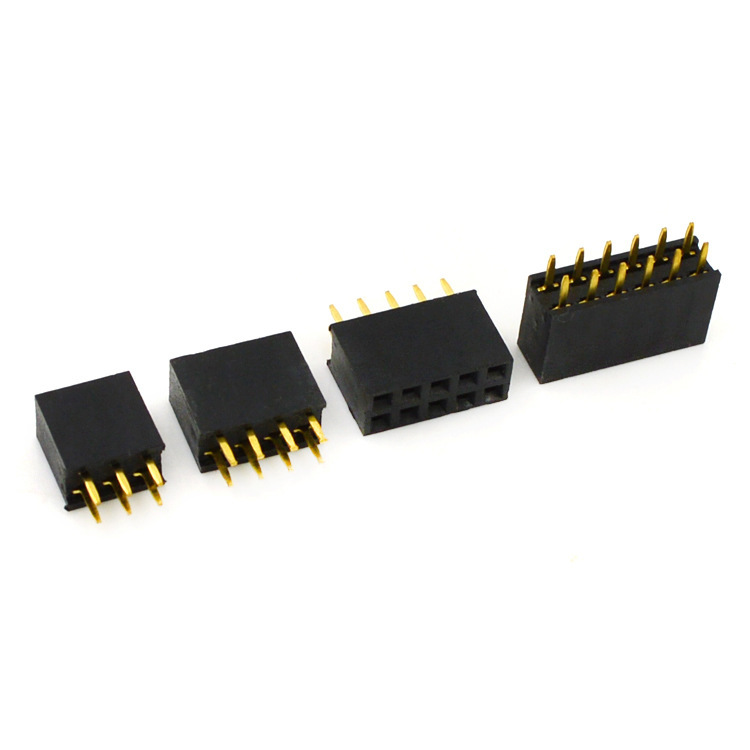

產品實拍

產品規格

詳細請諮詢客服，謝謝！！！

溫馨提醒您

您好，因我司產品種類、型號眾多，原材料價格變動、市場供需以及各種不可控因素，

所以我司網上批發價格有變動，請您在購買之前諮詢我司業務人員，我們將全心全意來幫您

解答所有疑問，且為您提供更多的優惠和完善的售後服務。

銷售只是起點，服務永無止境！
