Thank you for choosing our products, This product is a low-power electric heating solder absorber. It does not work well with large solder points and double-layer and multi-layer circuit boards. Before you start using it, read the instructions and health and safety warnings that come with all your equipment to make sure you are using it correctly .

Thank you for choosing our product, this product is a low- power electric heating tin absorber, and the effect of large tin points and double- layer and multi- circuit layer boards is not good. Before starting to use, please read the instructions and health and safety warnings that come with all equipment to avoid

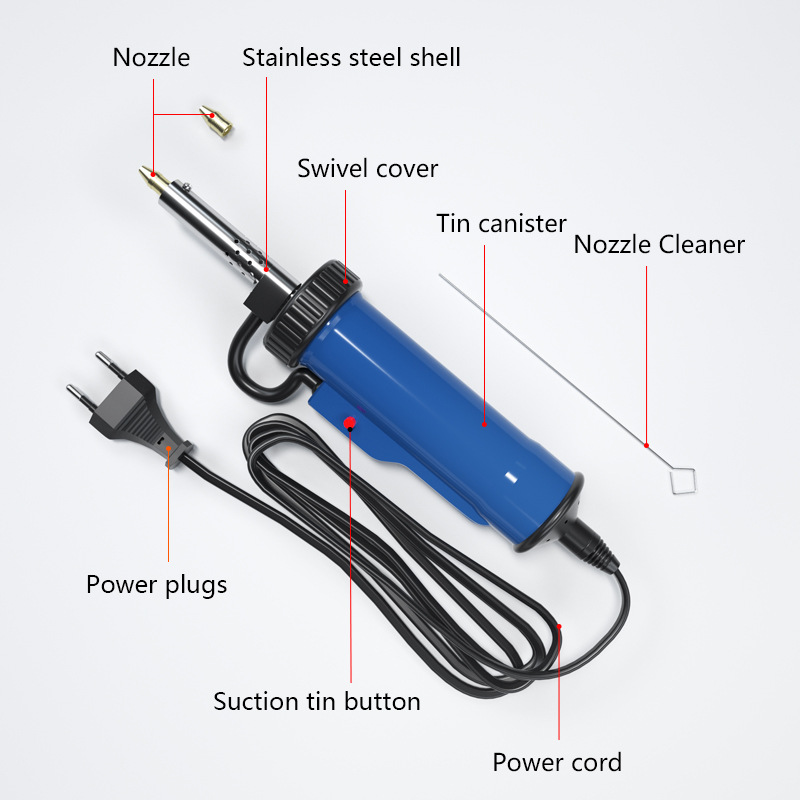

product information Product information

Working voltage Voltage: 220- 240V/ 100- 130V

electromagnetic power Electromagnetic Power; 350W

Heating power Hearter Power: 30W

Heating temperature Temperature: 400℃

one .How to use 1. How to use

1. 1. Plug in the power first and let the solder suction device energize and heat up. It can be used in 5 minutes. First try pressing the switch to feel the working vibration of the solder suction device.

Plug in the power supply first, let the tin suction device be heated and powered for 5 minutes before use, first try to press the switch to feel the working vibration of the tin suction device

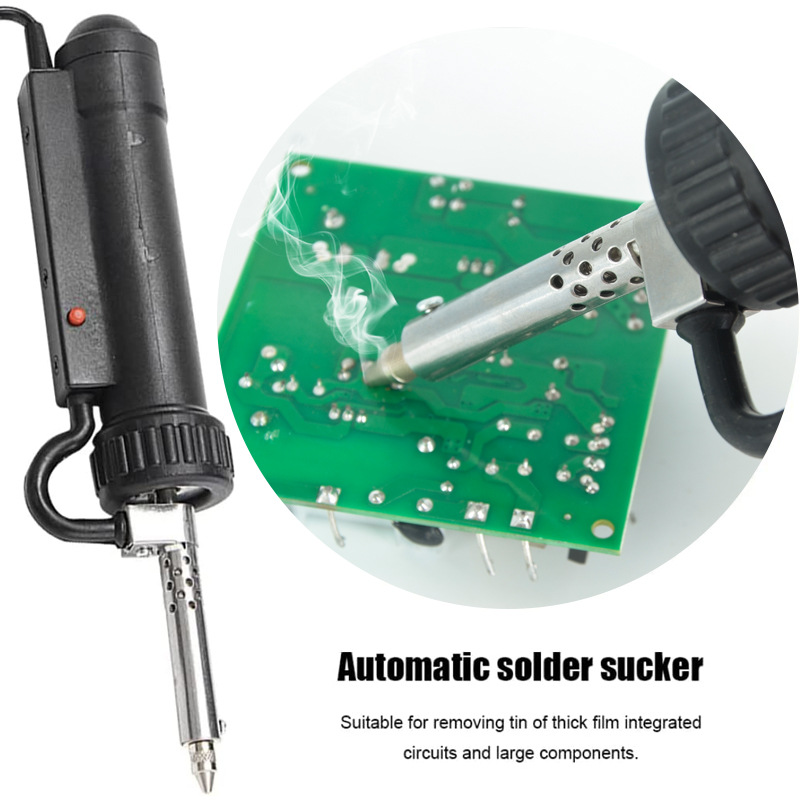

1. 2. Place the nozzle of the solder suction device on the area where tin needs to be removed. First, let the suction nozzle completely melt the tin wire. Press and hold the switch to start suctioning the tin. After suction, release the switch to spray the tin slag into the tin slag box. Put the tin suction nozzle on the part that needs to be removed tin, first let the suction nozzle melt the tin wire completely, press and hold the switch to start sucking tin, after sucking, release the switch to spray the tin slag into the tin slag box

​

two. Clean up tin slag( After working for a while, There will be some solder slag inside that needs to be cleaned)

Clean up tin slag( after working for a period of time, there will be some solder slag inside that needs to be cleaned up)

1. 1. Make sure the solder suction device is disconnected from the power supply and Clean only after complete cooling

​ Make sure that the tin remover is disconnected from the power supply and completely cooled before cleaning

1. 2. Unscrew the threaded cap counterclockwise and clean out the tin slag inside. Put it back
   ​ Unscrew the screw cap counterclockwise, clean the tin slag inside and put it back

​

three .Replace the tin suction nozzle

1. Make sure the desoldering device is disconnected from the power supply and completely cooled before replacement.

Make sure the solder remover is disconnected from the power supply and completely cooled before replacing

2. Use pliers to twist the suction nozzle counterclockwise, and then reinstall the new soldering iron tip.

Use pliers to twist the nozzle counterclockwise, and then reinstall the new soldering iron tip

​

​

five. FAQ Common Problem

1. 1. When replacing the nozzle, it must be replaced during heating, otherwise the threaded head of the heating element will be twisted and it will not work properly. It is recommended to wear gloves when using a vise to prevent your hands from burning.) When replacing the nozzle, it must be replaced during heating, otherwise the threaded head of the heating core will be easily broken and it will not work normally. It is recommended to wear gloves and use a vise to prevent hand burns)
2. 2. Press the switch several times before turning off the suction tube after use to ensure that no tin slag is left in the suction tube.

Press the switch several times before turning off the air suction after use Make sure no tin slag is left in the straw

1. 3. If the heating core is blocked by tin slag, you must use a needle to clean the solder suction tube after heating the heating core to ensure that the suction tube is unobstructed

If the heating core is blocked by tin slag, it must be after the heating core is heated use a needle to clean the solder straw to ensure that the straw is unobstructed

​
