main feature:

2. Relay solution, more stable
3. The low-light indicator light design will not interfere with family rest
4. Neutral fire + single fire universal design, can be used in any family
5. Crystal tempered glass plate
6.Timer/ Scene controls are available
7. Share with family members for joint control
8. Works with Amazon Echo and Google Home

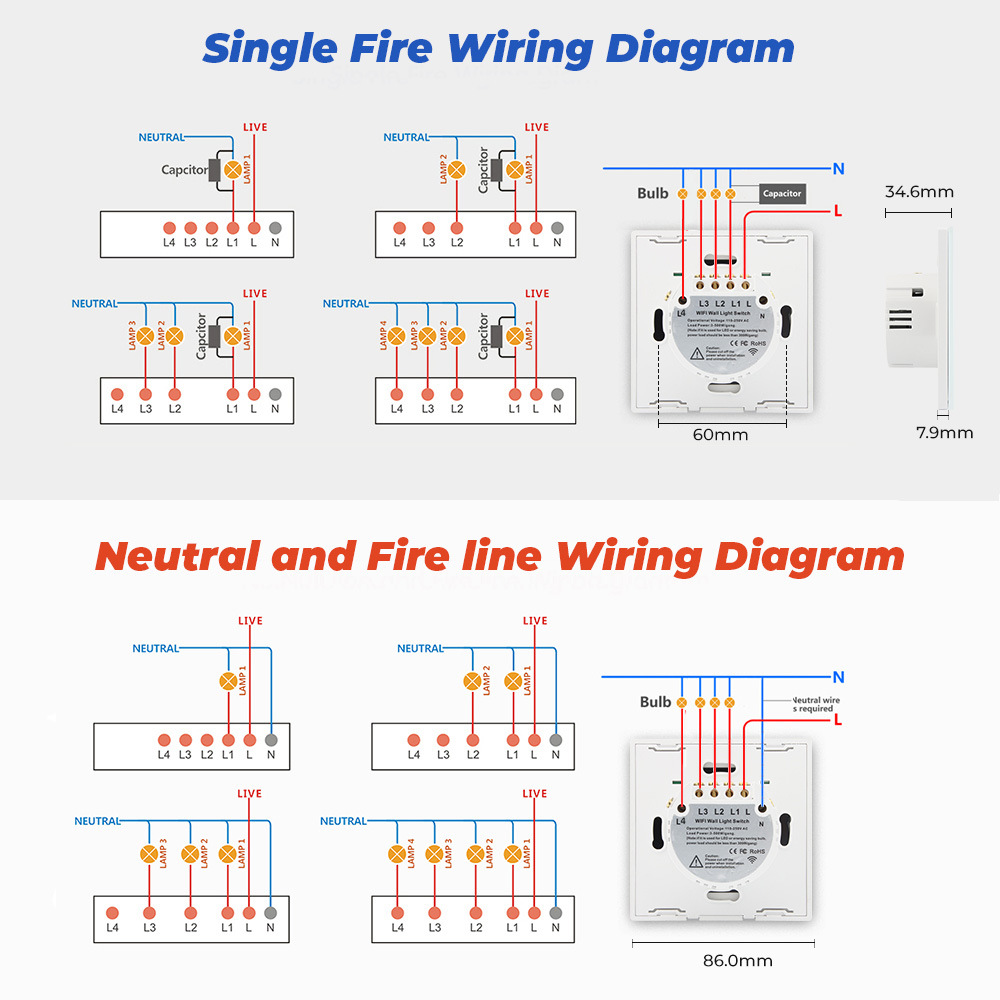

9. If there is a neutral line at home, follow the operation wiring to realize the two-way control function. This function cannot be realized without the neutral line.

​

Main specifications:

Working frequency 433MHZ
AC 100V- 240V 60HZ/ 50HZ
wiring: live and neutral wires
Maximum load current: 10A
Maximum power:3- 500W/ total
WiFi standards: 2.4GHz 802.11b/ g/ n
Application Name: Tuya Smart/ Smart Life

​

Type 86 touch switch with color box weight: 0.2kg/ tower
Box size: 90x90x40mm,
Outer carton size:470*215* 200 mm, 50 units/ Carton, 8.5kg/ carton
Outer carton size:470*215* 385 mm, 100 units/ Carton, 17kg/ carton

​

Notice:

1. Whether a light bulb with dimming function is connected, Wi- None of the Fi switches have dimming capabilities( Except dimmer switch) .It can only control the lights on and off.
2. This switch cannot be installed with a fan, otherwise it cannot be used.
3. If there is no neutral line at home, a capacitor must be installed
