Main features:

​

1. Timing function: No WIFI or APP required, can achieve level 4 timing function
2. 16A high power: Suitable for most devices, safer to use

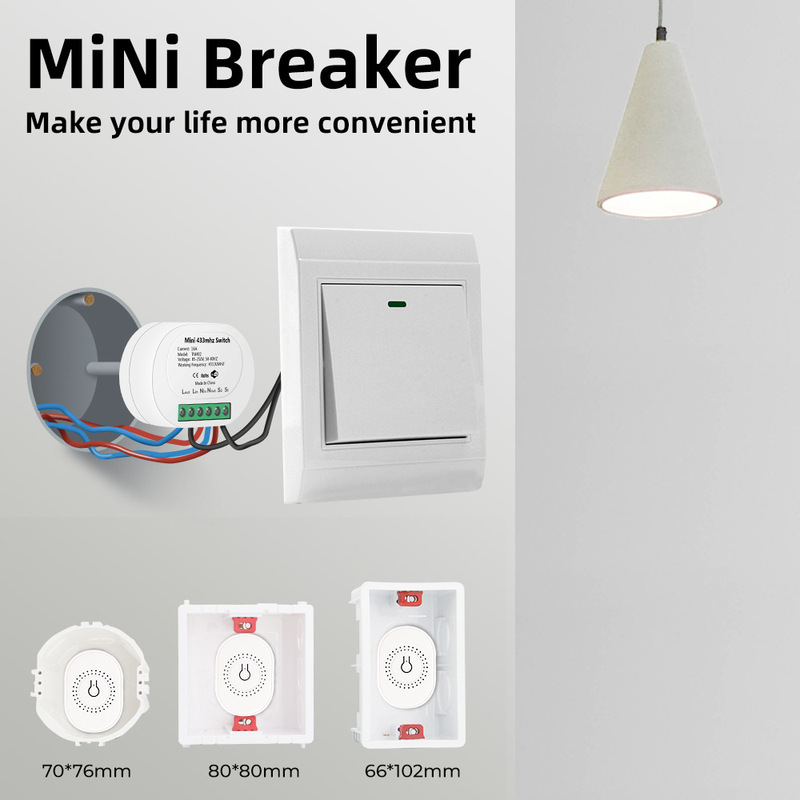

3.Mini body: Can be installed directly in the switch bottom box, making maintenance and installation more convenient
4. The open distance of 100 meters is more convenient to use. The actual distance is indirect obstacles. The more obstacles, the shorter the distance, and the more serious the signal loss.
5. After turning off the power, turn the power on again, and the device status is off.

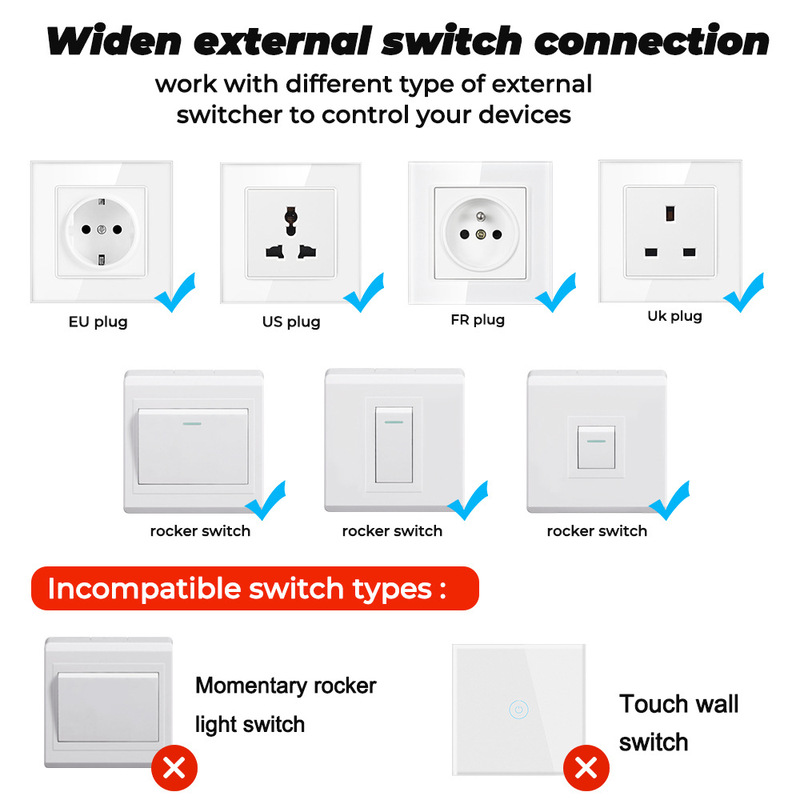

6.Support 2-way control: Can be used with a 2-way control switch and then connected to the home
7. One remote control can handle multiple controllers, making it more convenient for home use.

​

​

​

Controller parameters:

​

Voltage: 85~250V,50- 60HZ
current: 16A
working frequency: 433.92MHZ
Material: PC flame retardant V0
size: 59x42x20mm
learn code: EV 1527
model: ASK
Receiving distance: 100M open distance
The remote control is compatible with EV1527 2262 chip. It does not support HCS101, HCS200, HCS300, HCS301 rolling code chip remote control.

​

Remote control parameters:

​

2. Working voltage: DC 3V
3. Working frequency: 433.92MHZ
5.Remote control distance:<100米（室内距离）
6. Working method: remote control
7. Encoding method: Learn to code
8. Modulation method: ASK
10, size: 110* 37* 15( mm)
11. Standard battery, 12V 23A battery,( Batteries not included)

​
