​ Whether you connect a dimmable light bulb or not, Wi- None of the Fi switches have dimming capabilities( Except dimmer switch) .It can only control the lights on and off.

​

main feature:

1. The relay solution is more stable( There is a relay inside, which is more stable, has a longer service life and is more stable than the switches on the market.) .Ordinary switch thyristor control is easy to burn out. High-quality relays are resistant to pulse voltage and lightning strikes.

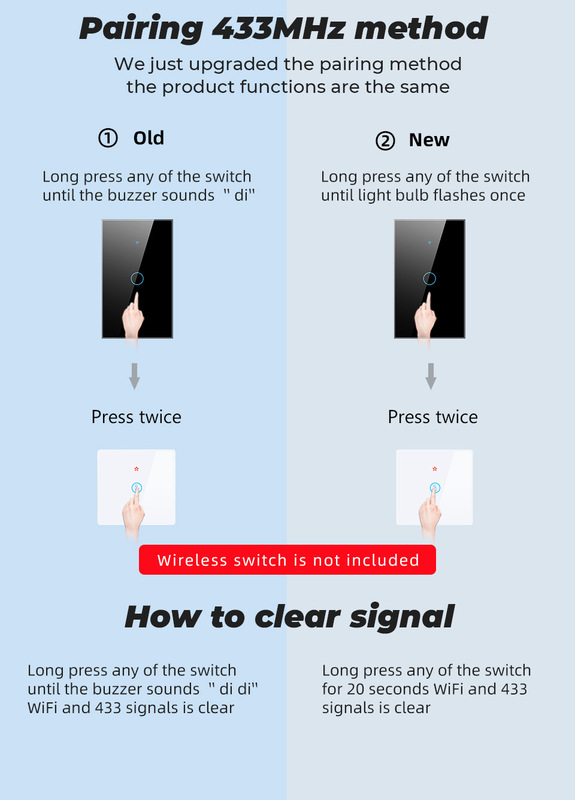

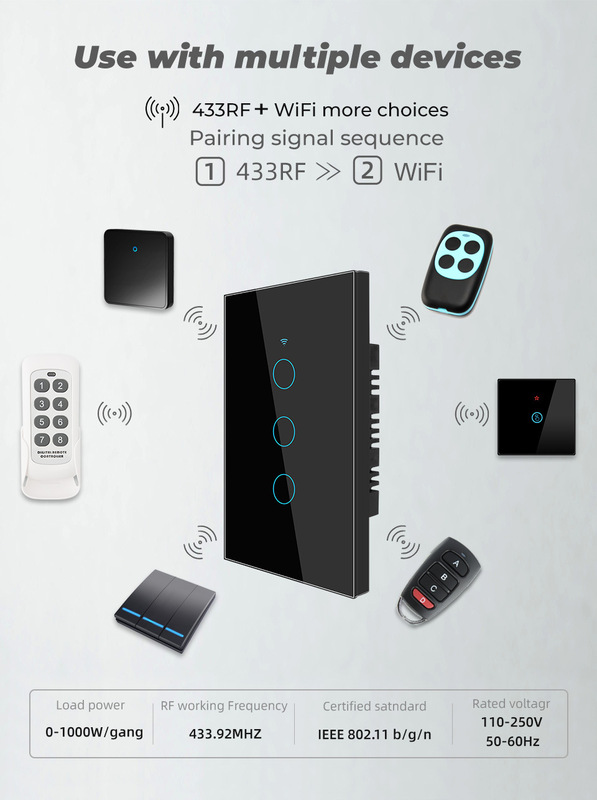

2.433MHz RF remote control: This smart switch can be used with 433mhz RF transmitter. Control range: ≤15M.

3. The low-light indicator design will not interfere with family rest, and is easy to spot in dark environments without dazzling people.

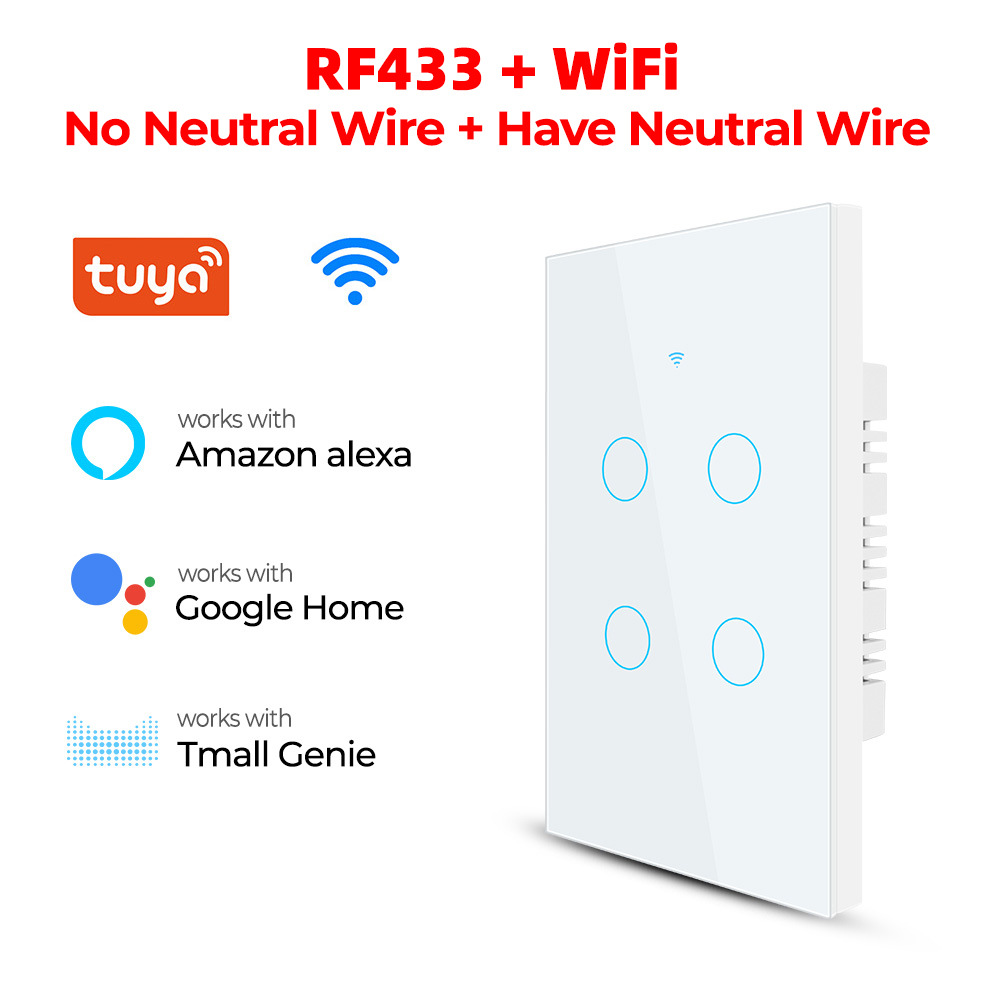

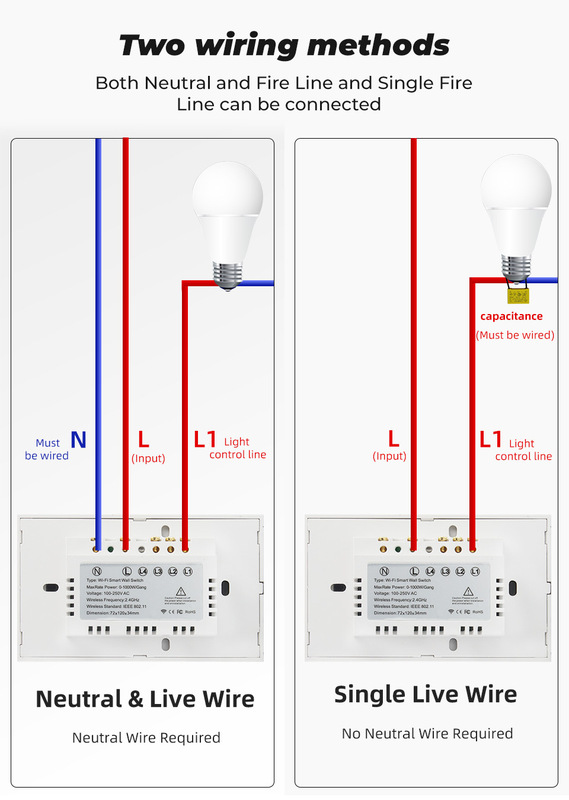

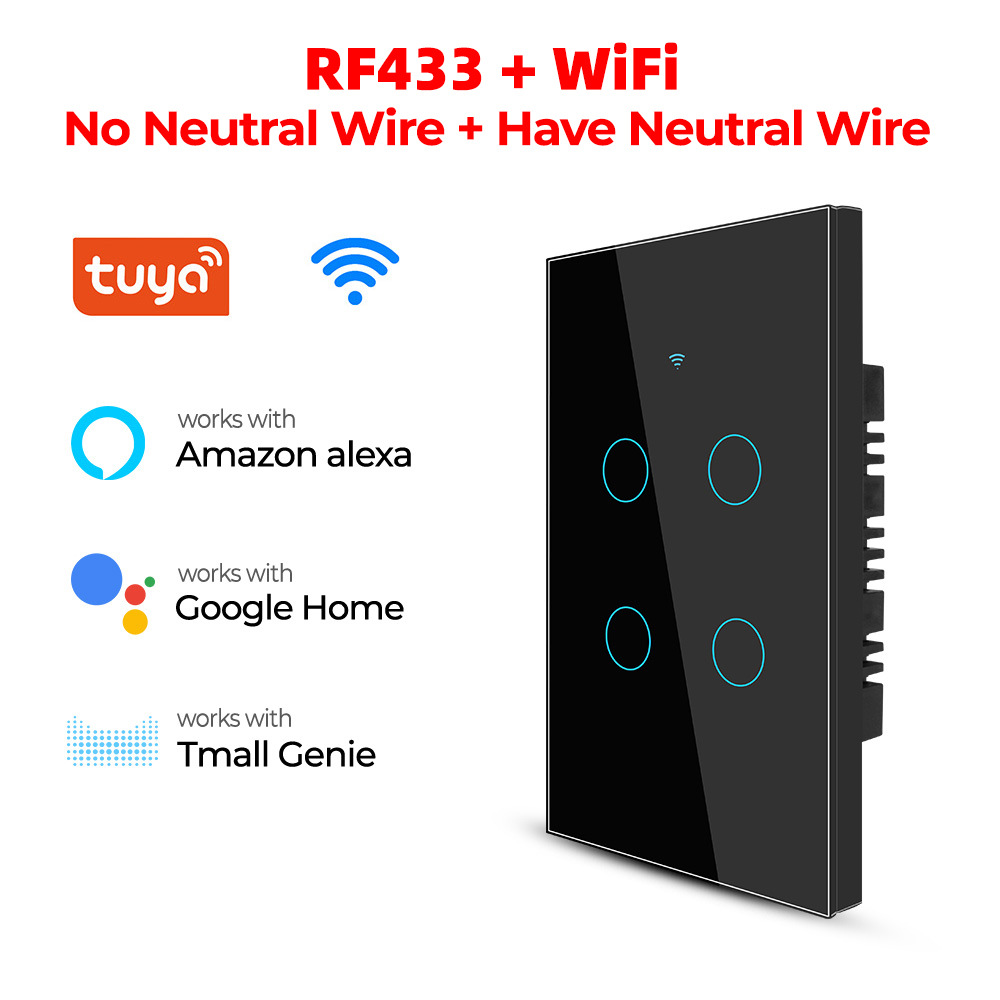

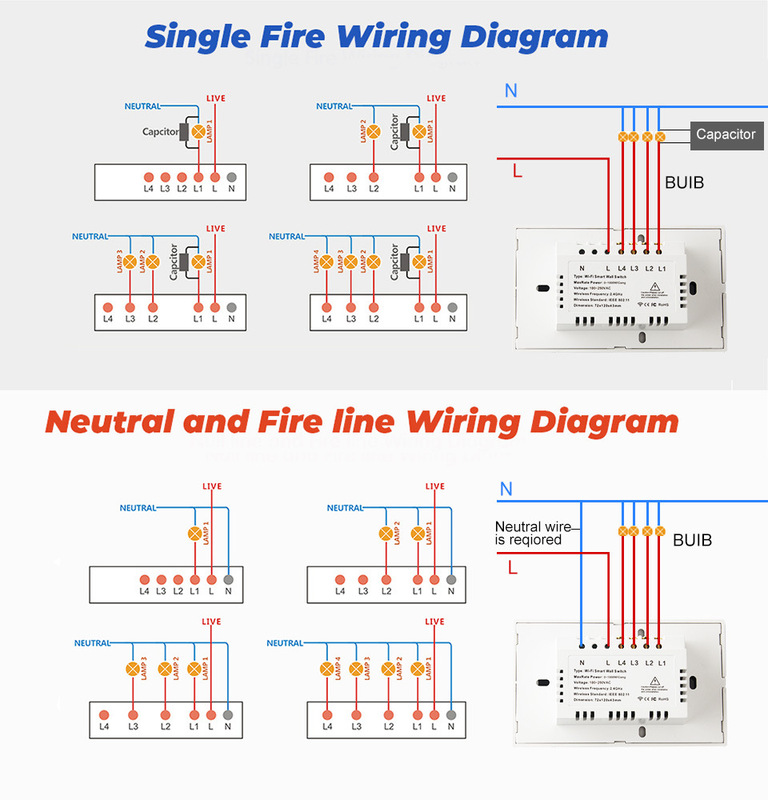

4.[ Wiring]: Neutral fire + single fire universal design , can be used by any family( Available with or without neutral wire)

5. Only use high-end crystal tempered glass panels. It has good light transmission performance, pure color, rich colors, beautiful and smooth, taking into account both day and night effects, long service life, and does not affect use.

6.Have a timer/ scene control

7. Share with family members for joint control

8. Works with Amazon Echo and Google Home and Tmall Genie

​

Specification

Operating Voltage: AC 110- 240VAC 50/ 60Hz
WIFI standard: IEEE802.11b/ g/ n

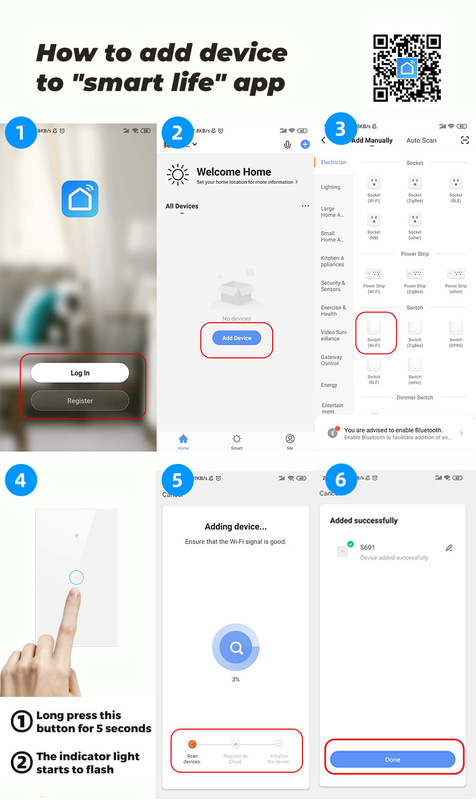

Support applications: Tuya or Smart Life
voice control: Google Home Amazon Alexa Tmall Genie
Load power: 600W/ Just
Maximum current: 10A
Power consumption: ≤0.5W
Operating temperature: 0℃~40℃
RF frequency: 433MHz
WIFI standard: IEEE 802.11bgn 2.4GHz
network security: WPA/ WPA2”
Hub requirements: no
control method: APP/ RF/ Manual

notes

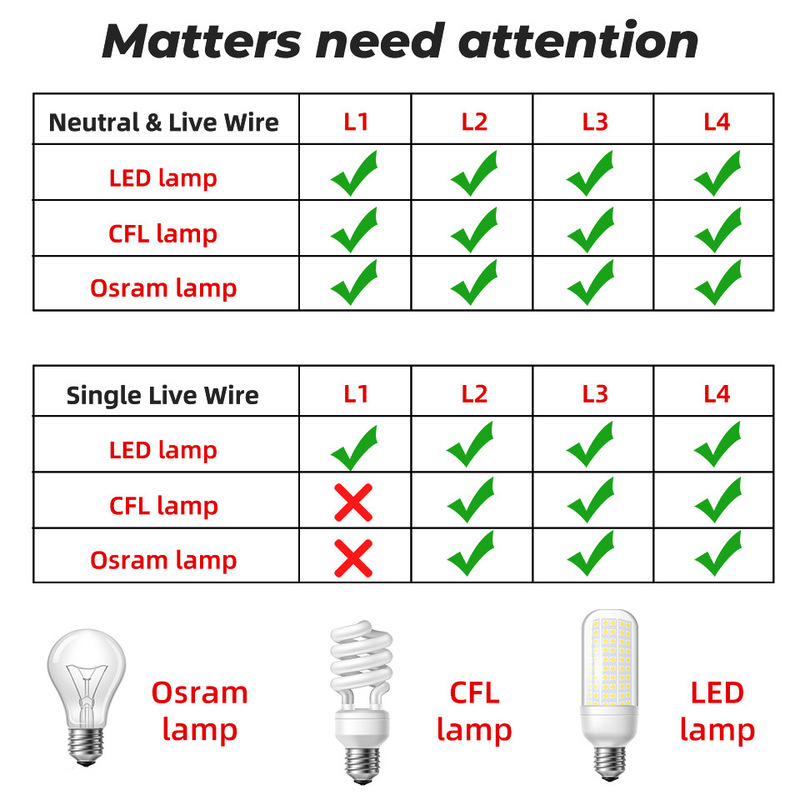

1.Support most lights. We recommend using above 5W LED lights for L1. Dimmable lights are not supported.

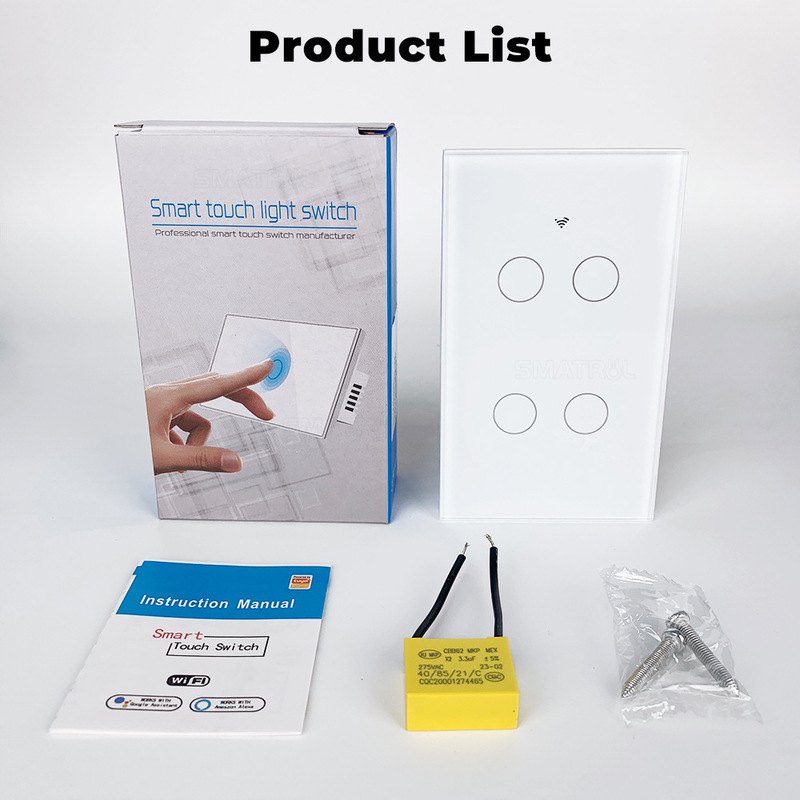

2. The capacitor must be closely connected to the L and N of the L1 lamp, not behind the switch.

​
