$11.20 | VXM 160/180/203mm mountain bike floating disc disc bicycle disc floating brake pad disc brake

VXM 160/180/203mm mountain bike floating disc disc bicycle disc floating brake pad disc brake

$11.20

sales volume: 6

classification: Outdoor and Sports equipment , Cycling equipment , Other cycling supplies

colour

160MM red

160MM black

160MM purple

160MM blue

160MM gold

160MM green

180MM black

180MM red

203MM red

203MM black

size

floating disc

number

Buy now

SPU: AL-5T03-79xredf4[G0]
Material: aluminum alloy
Custom processing: Yes
Applicable gender: Neutral/Both men and women
Children only: No
Patent type: None
Product category: Other packaging supplies

dish slice parameters----------------------------------------------------- >

[ size]  160MM/6" Thickness is about 1.8- 1.9MM, 180MM , 203MM

[ weight] 103 grams/ piece( 160MM); 144g/ piece( 180MM)

[ Hole spacing] The distance between the centers of the holes is 44MM( International standard six-pin disc)

[ Material] Japanese 40 stainless steel brake disc + aluminum alloy bracket

[ Package] Genuine boxed single piece

[ color]  Original color brake disc with black/ red/ blue/ purple/ gold stand

Disc features----------------------------------------------------- >

Colorful and dazzling design

High quality Nissan 420 Stainless steel brake surface

The height difference between the two sides does not exceed 0.3MM

very good Dry/ Wet performance

very good Disk wear resistance fast air circulation , Aluminum alloy Bracket heat dissipation

undefined

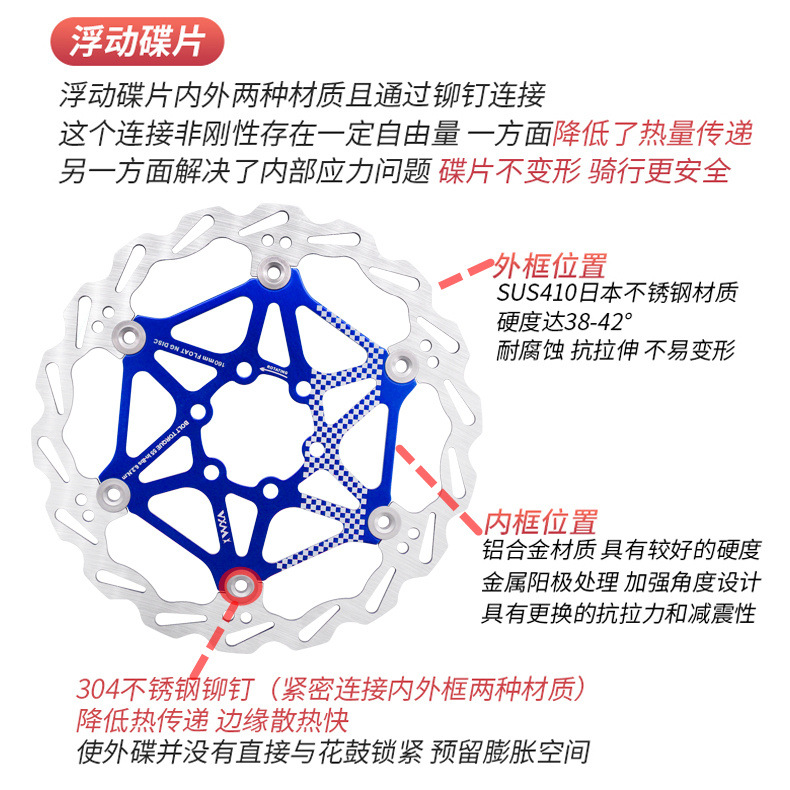

About floating discs

When riding at high speed for a long time or braking hard, the disc will generate high temperature due to severe friction and cause thermal expansion. The floating disc separates the outer friction surface of the brake disc from the inner bracket. A floating connection is used in the middle. In this way, the friction surface and the bracket become relatively independent stress-bearing surfaces. When the friction surface expands due to heat, the floating structure allows the friction surface to have a certain free longitudinal expansion space, eliminating the internal pulling stress between the friction surface and the bracket. conditions, thus Keep the friction surface from being distorted due to uneven heating , making the brakes more stable and reliable. With ordinary discs, the high-temperature expanded outer edge and the lower-temperature middle part are integrated, which will produce strong internal tensile stress, which may cause lateral distortion and deformation of the disc surface in severe cases.
