- SPU: AL-AWY2-7fkclmpb[C5]
- 機械壽命:100000
- 產品認證:CCC
- 3C額定電壓範圍:36V及以下
- 規格:精品巴馬支架總成(表用塑料表)
單套包裝方式:紙盒包裝
單套包裝尺寸:18.5*10.5*13CM
單套產品重量:635克
--------------------------
整件裝箱數量:40PCS
整件包裝尺寸:53.5*40*57CM
整件產品重量:26.8KG
--------------------------

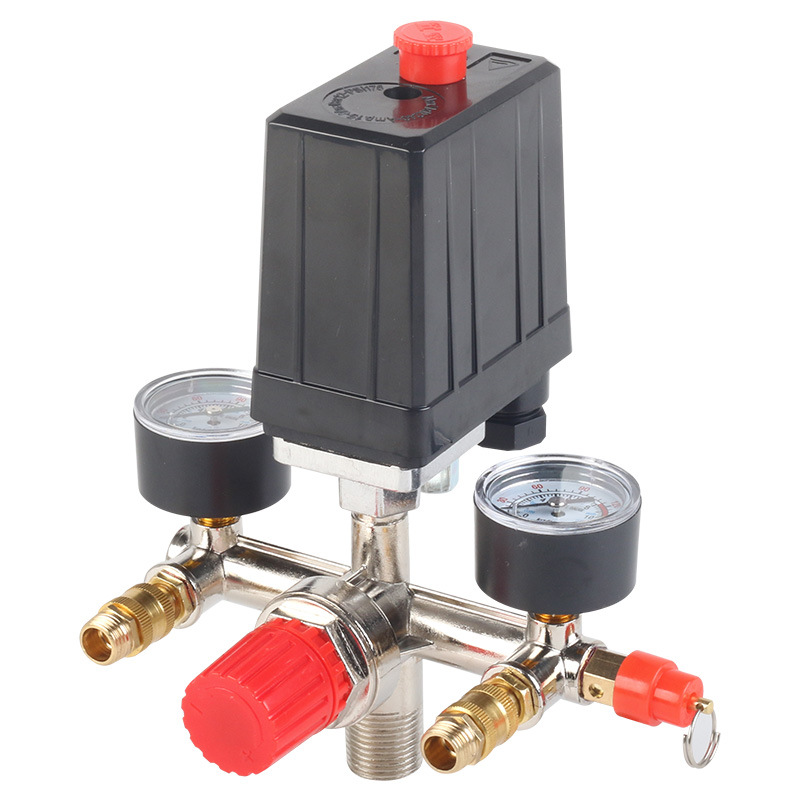

巴馬款 空壓機支架總成
型號: 巴馬支架總成
開關品牌:NIFA(可以換FBANG或者SG的精品開關需要另加2元/個)
表頭材質 型號:塑料(Y40 1/8 0-12KG/Cm³)
額定電壓:220/380V
排氣管:6MM
接觸方式:常閉
支架接頭尺寸:20MM
泄壓口外徑:9.5MM
最大電流:20A
工作壓力:5-8KG/BAR/KPA (90-120PSI) (0.5-0.8MPA)
壽命:80000次

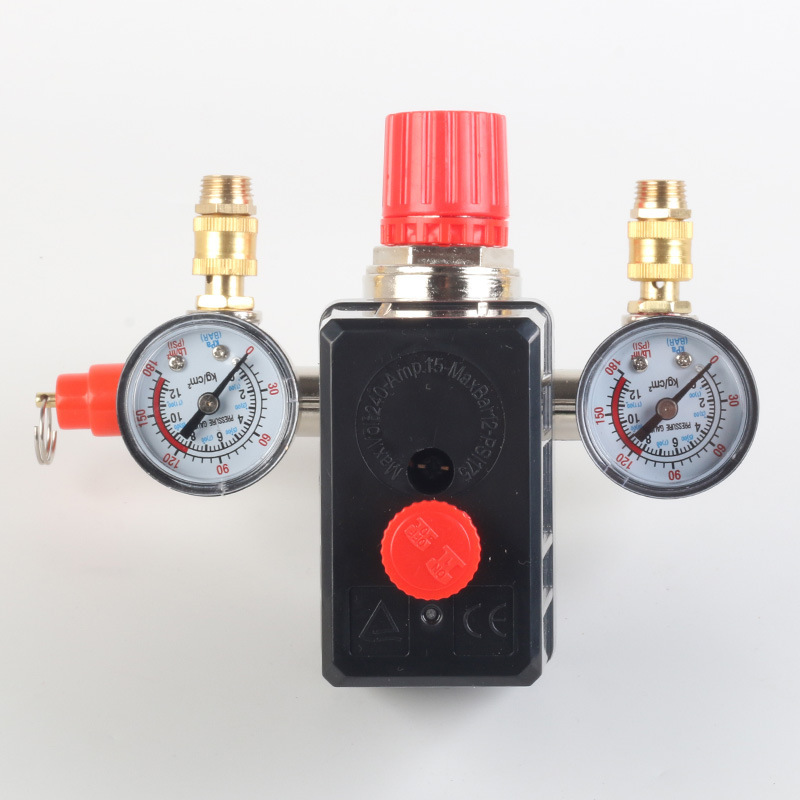

--產品實拍--

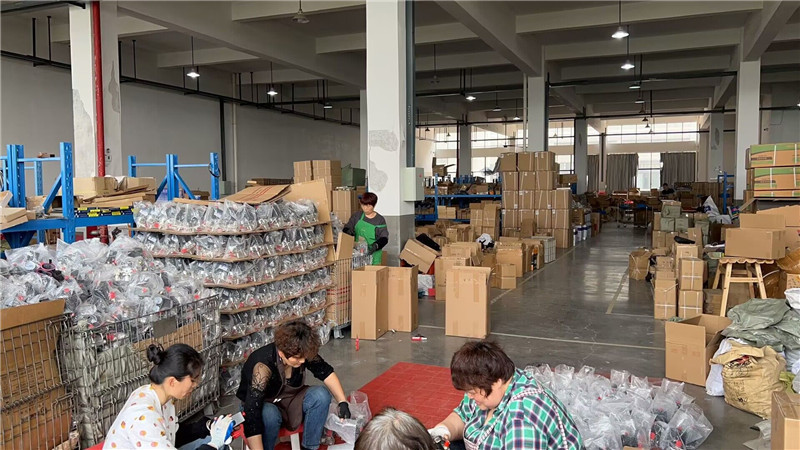

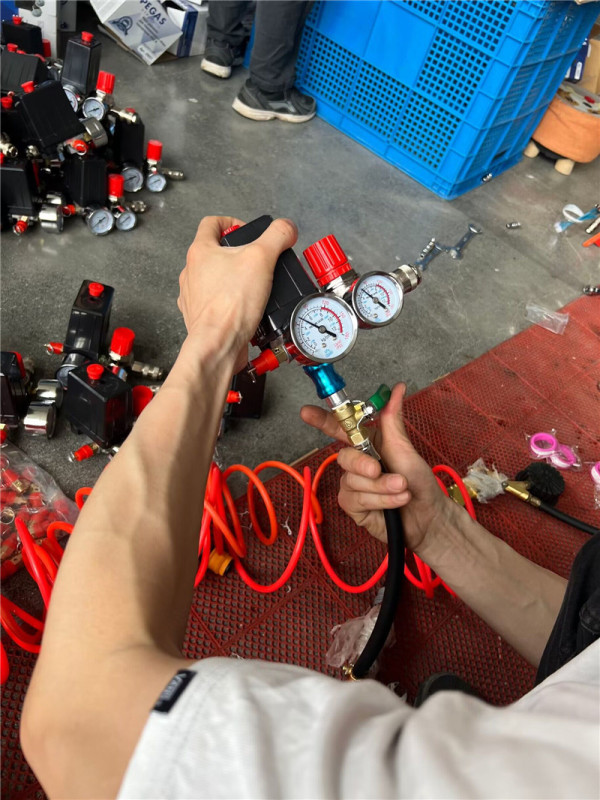

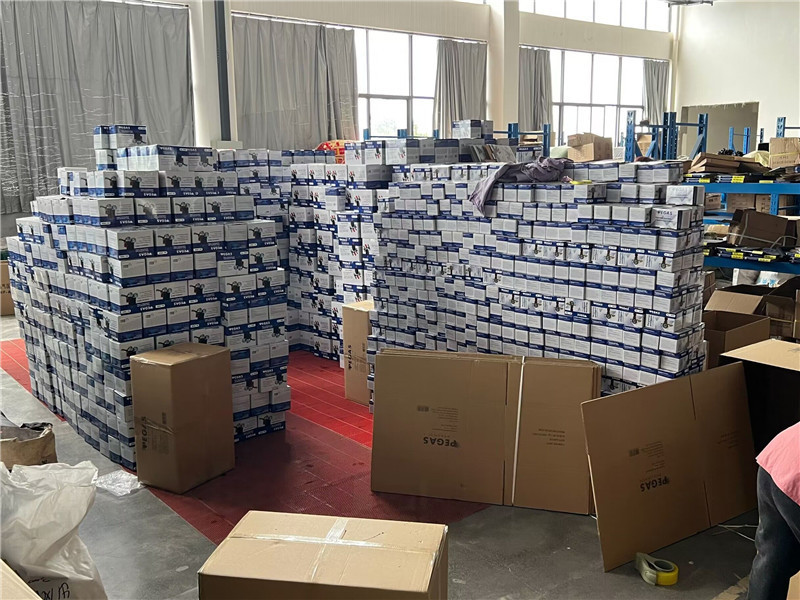

車間倉庫實拍
