$1.70 | Hexagonal cone end locking screw 304 stainless steel pointed machine screw DIN914 [M2-M5]

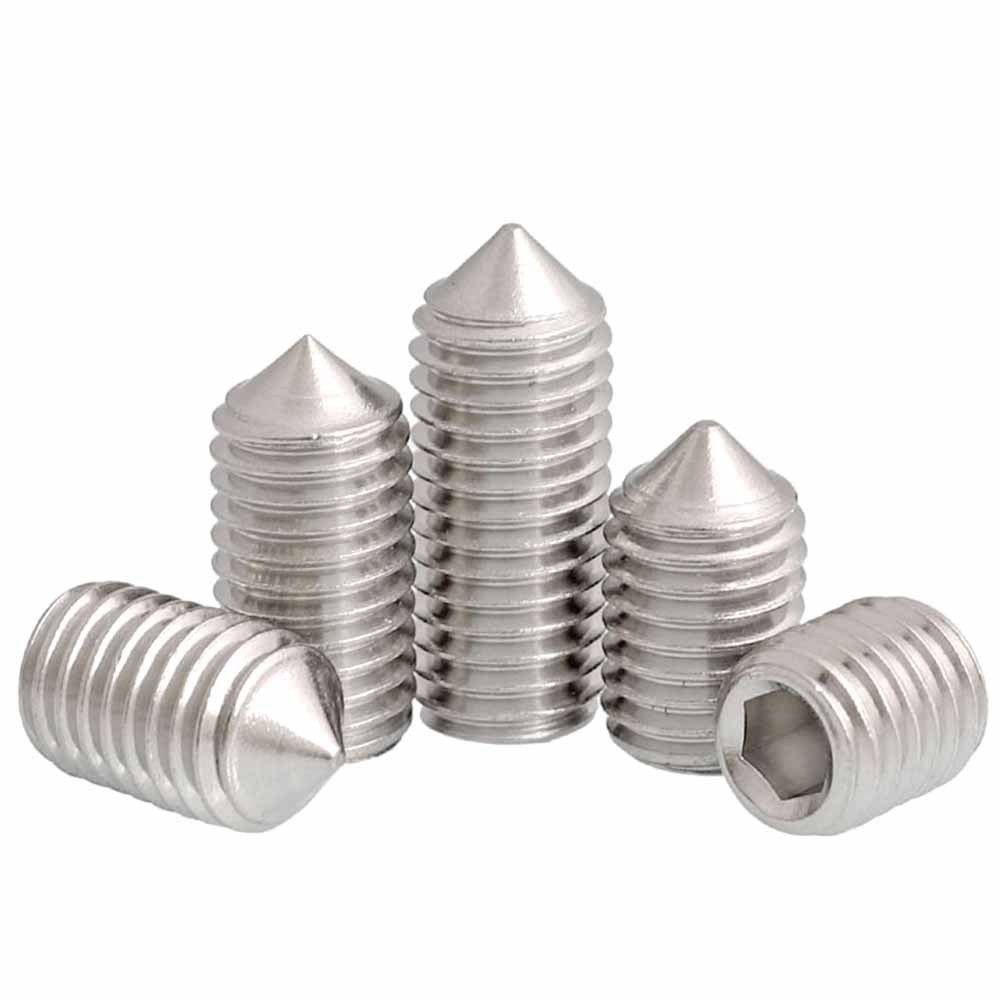

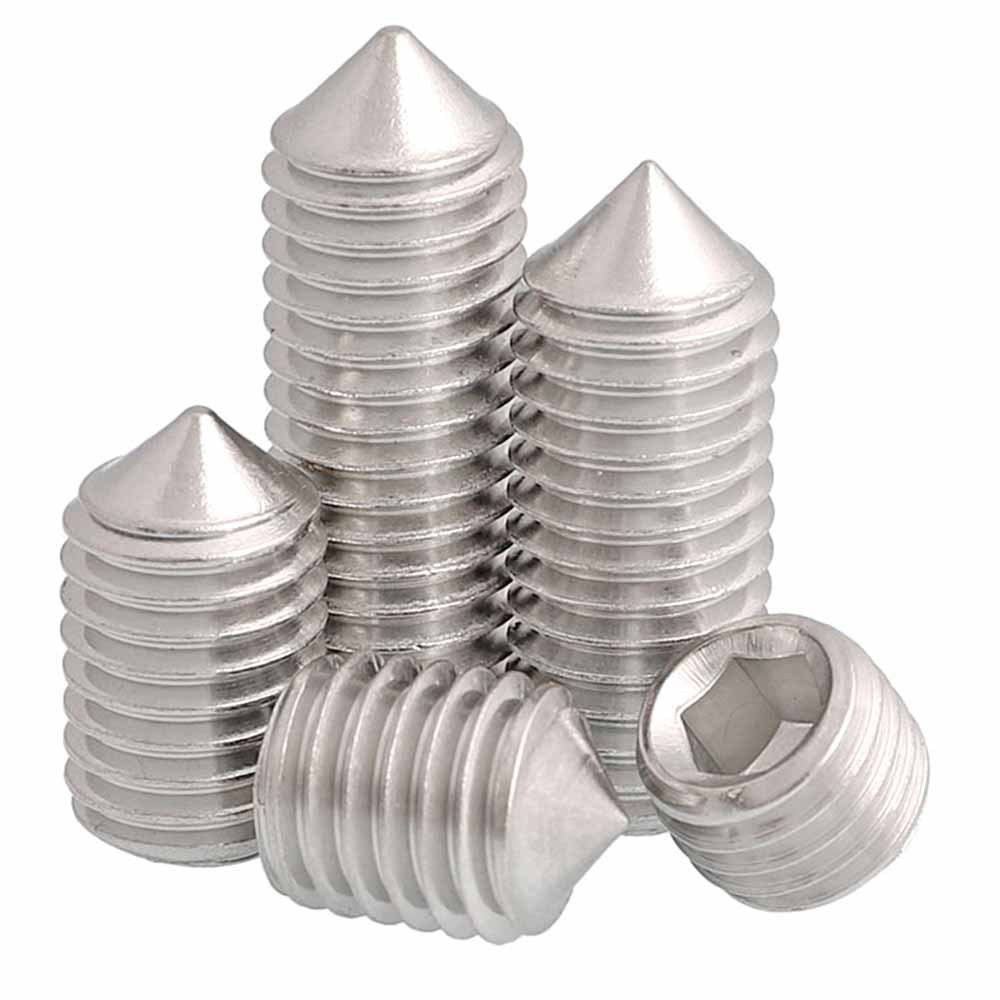

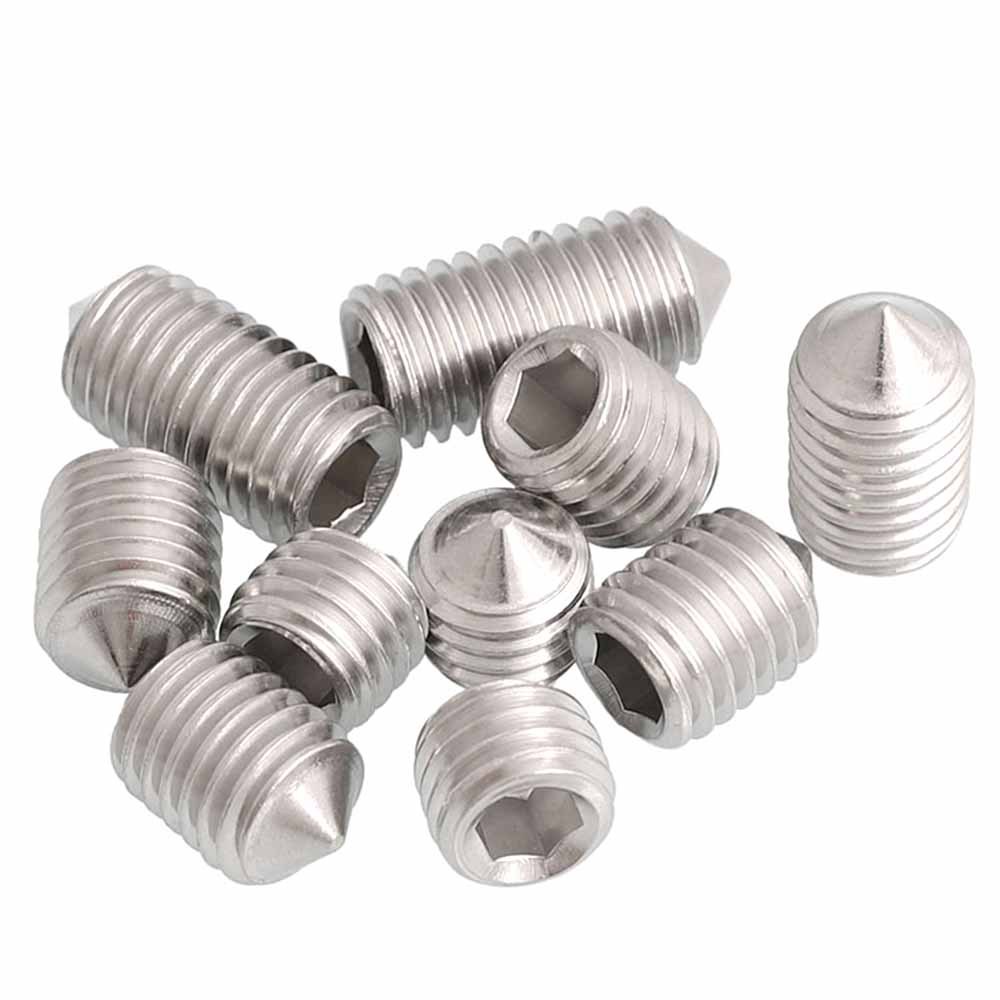

Hexagonal cone end locking screw 304 stainless steel pointed machine screw DIN914 [M2-M5]

$1.70

sales volume: 8

classification: Hardware tools , Fasteners , screw

size

Free Size

number

Buy now

SPU: AL-XOQM-8fy3o1nd[1]
Bolt Diameter: M5
Bolt Diameter: M2
Bolt Diameter: M3
Bolt Diameter: M4
Bolt Diameter: M2.5
Product Specification: M2*3
Product Specification: M2*4
Product Specification: M2*5
Product Specification: M2*6
Product Specification: M2*8
Product Specification: M2*10
Product Specification: M2*12
Product Specification: M2*14
Product Specification: M2*16
Product Specification: M2.5*10
Product Specification: M2.5*4
Product Specification: M2.5*5
Product Specification: M2.5*6
Product Specification: M2.5*8
Product Specification: M2.5*12
Product Specification: M2.5*14
Product Specification: M3*4
Product Specification: M3*5
Product Specification: M3*6
Product Specification: M3*7
Product Specification: M3*8
Product Specification: M3*9
Product Specification: M3*10
Product Specification: M3*12
Product Specification: M3*14
Product Specification: M3*15
Product Specification: M3*16
Product Specification: M3*18
Product Specification: M3*20
Product Specification: M3*25
Product Specification: M3*26
Product Specification: M3*28
Product Specification: M3*30
Product Specification: M4*6
Product Specification: M4*7
Product Specification: M4*8
Product Specification: M4*9
Product Specification: M4*10
Product Specification: M4*12
Product Specification: M4*14
Product Specification: M4*16
Product Specification: M4*18
Product Specification: M4*20
Product Specification: M4*25
Product Specification: M4*27
Product Specification: M4*28
Product Specification: M4*30
Product Specification: M4*32
Product Specification: M4*35
Product Specification: M4*38
Product Specification: M4*40
Product Specification: M4*45
Product Specification: M4*50
Product Specification: M5*6
Product Specification: M5*8
Product Specification: M5*14
Product Specification: M5*15
Product Specification: M5*16
Product Specification: M5*20
Product Specification: M5*28
Product Specification: M5*30
Product Specification: M5*32
Product Specification: M5*40
Thread Specification:-
Nominal Length: 35
Nominal Length: 4
Nominal Length: 6
Nominal Length: 3
Nominal Length: 5
Nominal Length: 7
Nominal Length: 8
Nominal Length: 10
Nominal Length: 38
Nominal Length: 40
Nominal Length: 45
Nominal Length: 50
Nominal Length: 20
Nominal Length: 28
Nominal Length: 30
Nominal Length: 32
Nominal Length: 12
Nominal Length: 9
Nominal Length: 15
Nominal Length: 27
Nominal Length: 14
Nominal Length: 18
Nominal Length: 25
Nominal Length: 26
Nominal Length: 16
Surface Treatment:-
Material Grade: Stainless Steel A2-70
Product Grade: A2-70
Standard Number: DIN914
Fastener Type: Bolt

掌柜推薦系列

￥0.03已售出：0筆

￥81.12已售出：17筆

￥0.01已售出：10300筆

￥0.03已售出：165655筆

￥0.02已售出：46995筆

￥0.04已售出：405190筆

￥0.21已售出：400筆

￥0.10已售出：570筆

￥28.00已售出：3300筆

￥0.03已售出：6850筆

￥0.04已售出：186328筆

￥0.13已售出：55330筆

￥0.01已售出：0筆

￥0.03已售出：140筆

￥0.03已售出：4440筆


單位:mm規格由dL組成如：M420（直徑4mm*長度20mm）
公稱直徑d	螺距P	dt	s			t
公稱直徑d	螺距P	max	公稱	max	min	min
M1.6	0.35	0.4	0.7	0.724	0.71	0.7
M2	0.4	0.5	0.9	0.913	0.887	0.8
M2.5	0.45	0.65	1.3	1.3	1.275	1.2
M3	0.5	0.75	1.5	1.58	1.52	1.2
M4	0.7	1	2	2.08	2.02	1.5
M5	0.8	1.25	2.5	2.58	2.52	2
M6	1	1.5	3	3.08	3.02	3
M8	1.25	2	4	4.095	4.02	4
M10	1.5	2.5	5	5.14	5.02	4.8
M12	1.75	3	6	6.14	6.02	6 .4
M16	2	4	8	8.175	8.025	8
M20	2.5	5	10	10.175	10.025	10
以上數據為單批次手工測量，存在一定誤差，請以實物為準！介意者慎拍。
