- SPU: AL-6FBF-87wxi44d[4]
- Model: 3-Chain 60A Enhanced Version
- Model: 3-Chain 60A Balanced Version
- Accessory Name: Lithium Battery Protection Board
- Product Certification: -
3串11.1V 12.6V 18650 鋰電池保護板 60A電流 分口
3串12.6V 60A鋰電池保護板：
適用範圍：適用於標稱電壓3.7V，充滿電壓4.2V的鋰電池(包括18650、26650、聚合物鋰電池，沒有外形尺寸的限制)。
產品尺寸：41*55*3.4mm
產品重量：8.8g
充電電壓：12.6V - 13.6V
持續放電電流(上限)：60A（如果散熱環境不好，請降低負載電流使用）
持續充電電流(上限)：10A
均衡版：適用於啟動電流120A以下，功率260W以下的電鑽。
注意事項1：成功啟動電鑽需要3個15C-20C的動力電池，或6個10C-15C的動力電池（推薦動力電池型號：SONY VTC4、VTC4A、VTC5A、VTC6）；0V和12.6V的連
接線，使用4平方毫米以上的銅線（不能使用鎳片! ! !）。

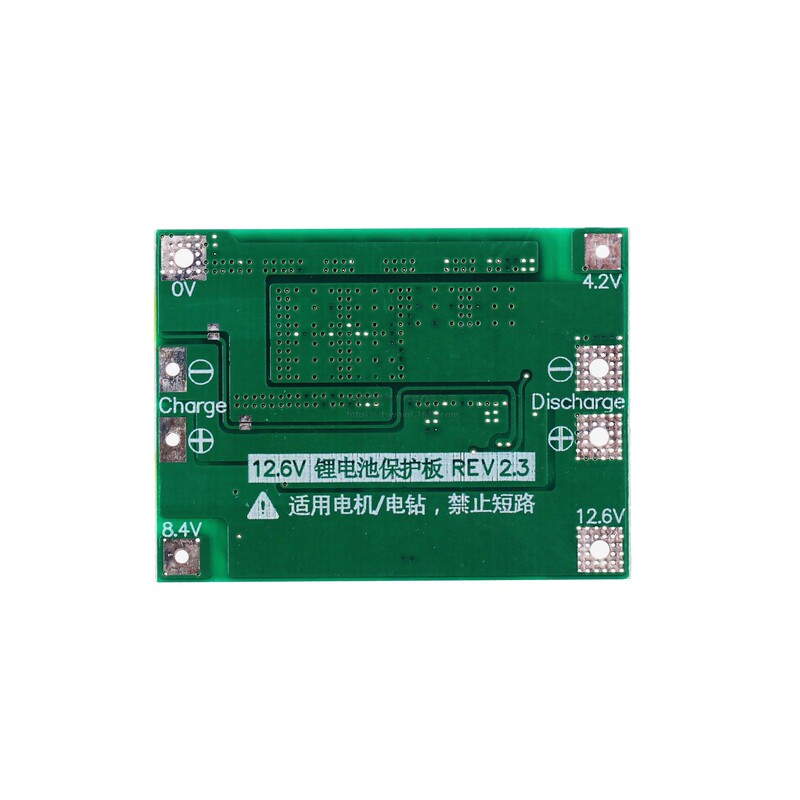

注意事項2：嚴格按圖接線0V、4.2V、8.4V、12.6V，不要故意短路。
注意事項3：對電池進行充電時，「430」電阻發熱是正常現象，說明均衡電路正在工作；在不充電的狀態下如果「430」電阻也發熱，請檢查是否接錯線。
針對一些電子基礎較差的客戶說明一下：千萬不要把好電池和差電池混在一起使用! 3組電池的容量/內阻越接近越好! (2個好電池+1個差電池的使用效果=3個差電池的使用效果)。
本店還有用於3串/4串鋰電池的<電量顯示板>，點擊以下購買地址：
