$1.90 | TP4056 1A Lithium Battery Charging Board Module TYPE-C USB Interface Charging Protection Combo

TP4056 1A Lithium Battery Charging Board Module TYPE-C USB Interface Charging Protection Combo

$1.90

sales volume: 7

classification: Electronic component market , Experimental equipment/testing equipment/development tools , Battery box/holder/battery accessories

colour

TYPE-C USB interface

1A protected MICRO interface

1A MICRO Interface

1A MINI Interface

size

Free Size

number

Buy now

SPU: AL-6FBF-84hr2zrc[1]
Model: 1A with Protected MICRO Interface
Model: 1AMICRO Interface
Model: 1AMINI Interface
Accessory Name: 1AMINI Interface
Accessory Name: 1AMICRO Interface
Accessory Name: 1A with Protected MICRO Interface

TP4056 1A鋰電池充電板模塊 TYPE-C USB接口充電保護二合一

本電路板有充電功能和電池放電保護功能可邊充邊放電

模塊特點及參數:
輸入端帶有TYPE C USB母座

可以直接用手機充電器來做輸入給鋰電池充電，

並且依然保留有輸入電壓接線焊點，可以非常方便的DIY

輸入電壓：5V

充電截止電壓：4.2V ±1%
最大充電電流：1000mA

電池過放保護電壓：2.5V

電池過流保護電流：3A

板子尺寸：2.6*1.7CM

使用方法：

注意：第一次接入電池時，可能OUT+和OUT-之間無電壓輸出，這時接入5V電壓充一下電就可以激活保護電路了，電池從B+ B-上短開再接上的話也需要充一下電以激活保護電路。當使用手機充電器來做輸入時注意充電器必須要能輸出1A或以上的，不然可能會不能正常充電

TYPE C USB母座及其旁邊的+ - 焊盤為電源輸入端，接入5V電壓。B+ 接鋰電池的正極，B-接鋰電池的負極。OUT+和OUT-接負載，比如接移動升壓板正負極或者是其它負載。

接好電池到B+ B-，插入手機充電器到USB母座，紅燈亮為正在充電，藍燈亮為充滿。

1A 鋰電池充電與保護一體板充電+保護二合一充電模塊

注意：充電時應斷開OUT端上的負載

模塊特點及參數:

輸入端帶有MICRO USB母座，可以直接用手機充電器來做輸入給鋰電池充電，

並且依然保留有輸入電壓接線焊點，可以非常方便的DIY

輸入電壓：5V

充電截止電壓：4.2V ±1%
大充電電流：1000mA

電池過放保護電壓：2.5V

電池過流保護電流：3A

板子尺寸：2.6*1.7CM

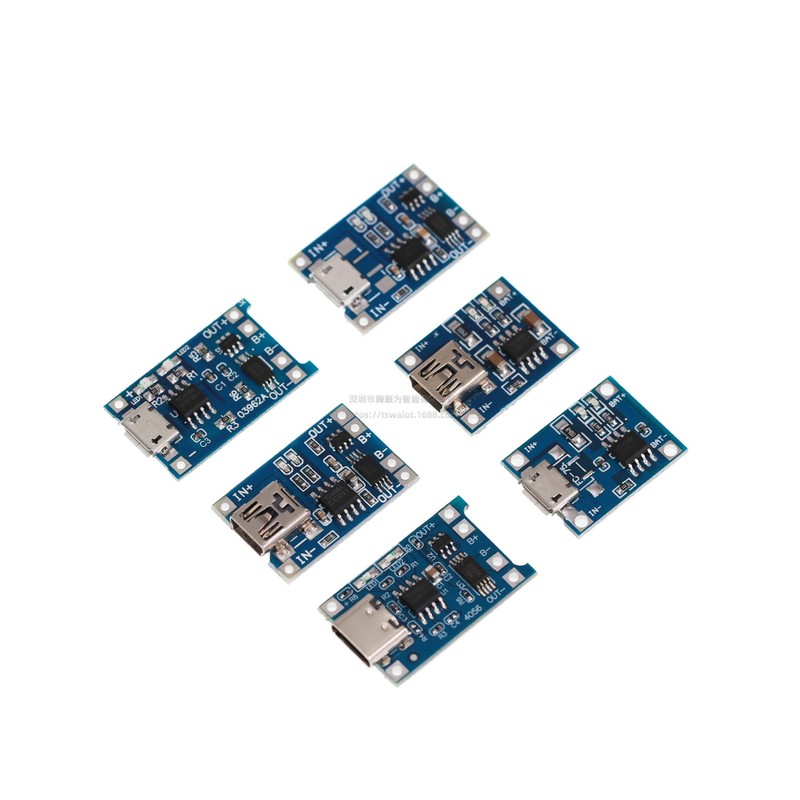

530 (3)

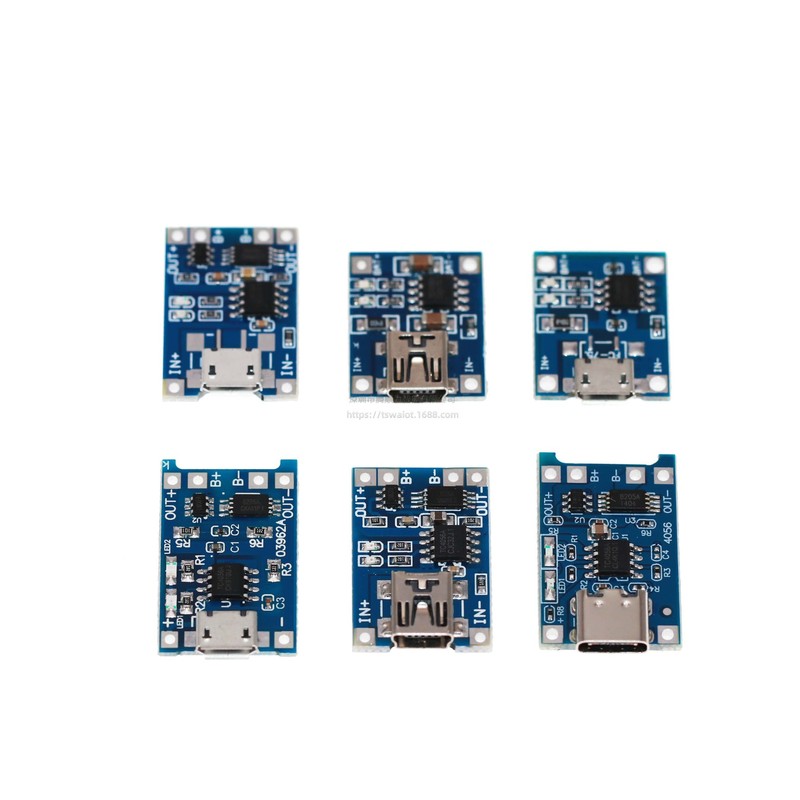

530 (5)

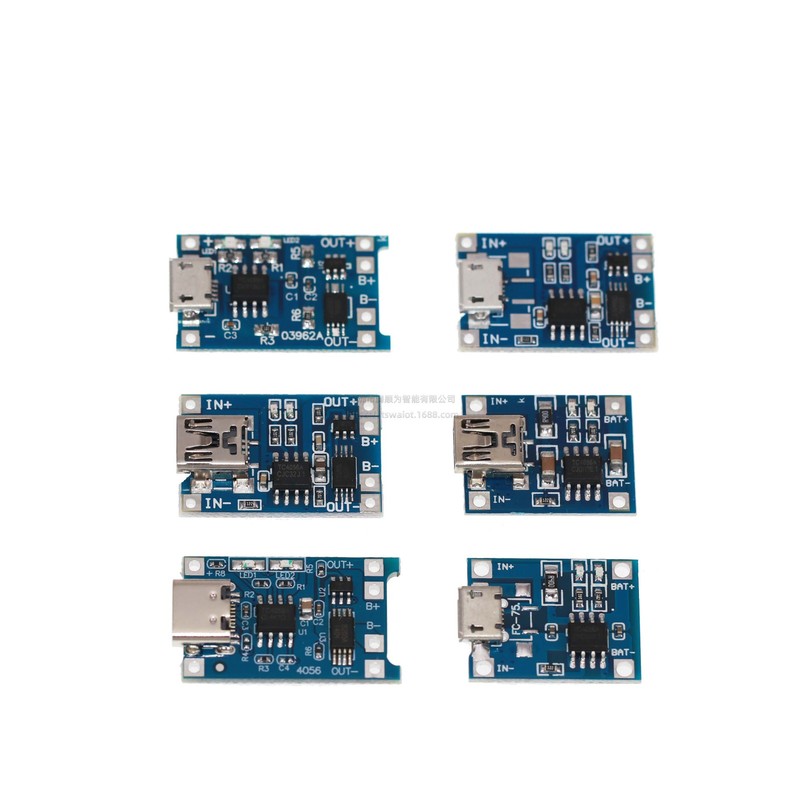

530 (8)

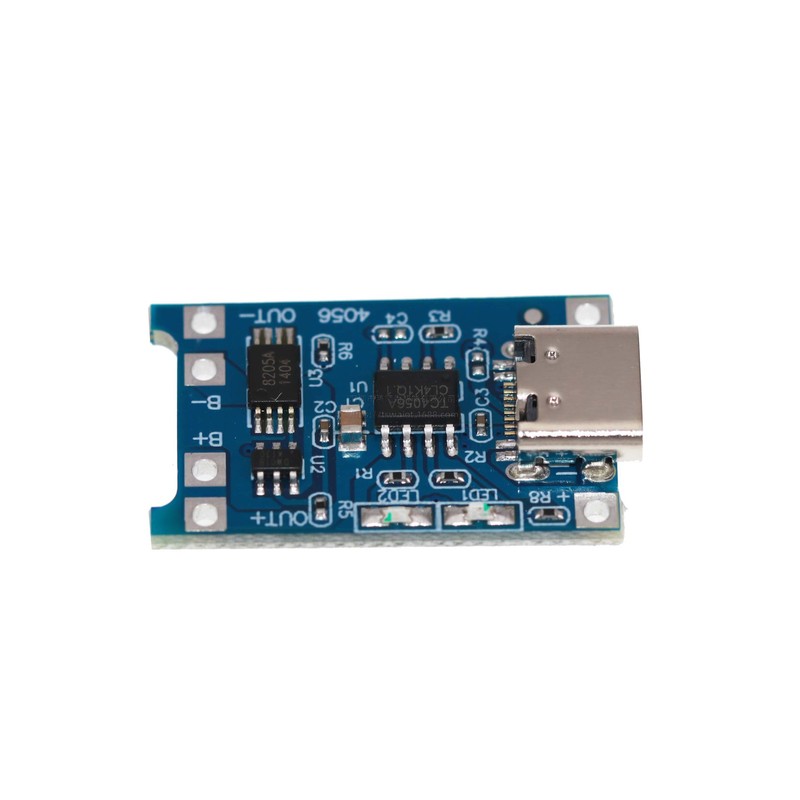

531 (5)

O1CN01AFVno61Lwkn0IWGim_!!2675

O1CN01uL2WEp1LwkmxjjzbJ_!!2675

O1CN015AcyAW1LwkmzZHisk_!!2675
