- SPU: AL-JIX5-6x10g0m2[4]
- 材質:塑料
- 產品類別:其他水族用品
- 重量:0.03
- 規格:4頭
- 規格:6頭
- 規格:8頭
- 規格:10頭
- 規格:12頭
- 規格:16頭
- 規格:20頭
- 類別:水族器材
產品規格:主流進氣口直徑大小是不一樣的。
進氣口都是接8mm的氣管
分流器出氣口直徑均為5mm。(就是一排一排的出氣小孔)
供應各種膠管接頭,氣動接頭,軟管接頭，等徑軟管三通接頭，直通接頭，彎接頭，變徑三通接頭等。
螺紋接口有1分，2分，3分，4分（G1/8") ,(G1/4"),(G3/8"),（G1/2")。6分(G3/4"), M6, M10, M8,M12,M14， 各種美制接頭等。。 插口有各種規格尺寸，需要其他詳細尺寸，請查閱下圖：

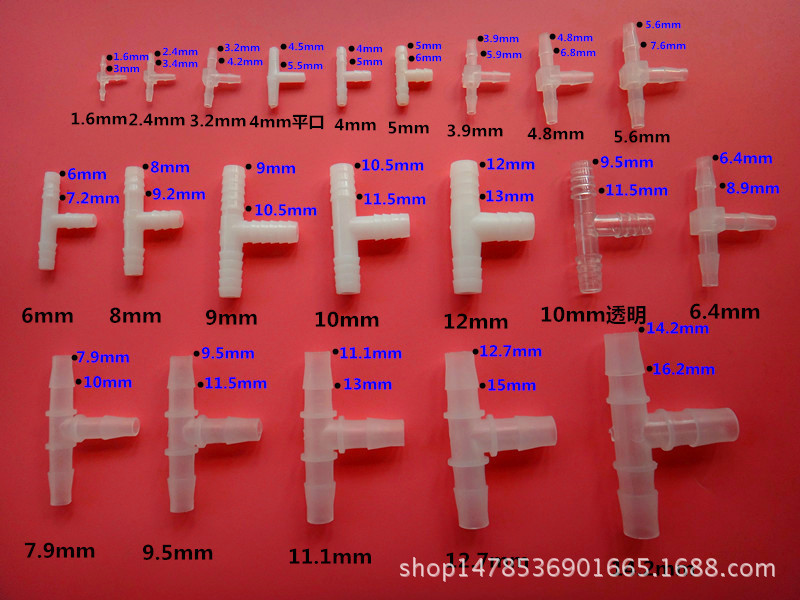

三通規格：1.6mm 2.4mm 3.2mm 3.9mm 4mm 4.8mm 5mm 5.6mm 6mm 6.4mm 7.9mm 8mm 9.5mm 10mm,11mm 11.1mm 12mm 12.7mm 14.2mm 15.8mm 17.5mm
變徑三通：8-6-8 10-6-10 10-8-10 14-10-14
等徑直通：1.6mm 2.4mm 3.2mm 3.9mm 4mm 4.8mm 5.6mm 6mm 6.4mm 9mm 12mm
變徑直通： 3*4mm,6*9mm,9*12mm,6*12mm 6.4*3.9mm 6.4*2.4mm 5.6*2.4mm 3.9*2.4mm 4*3mm

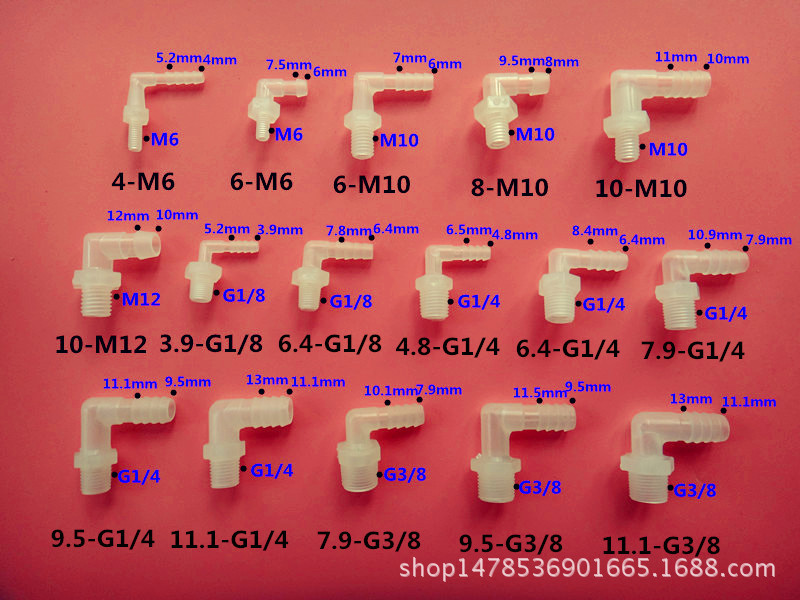

彎頭：2.4*3.5 4mm 6mm 8mm 10mm 12mm 8*6mm 4*8mm 10*8mm 12*6mm

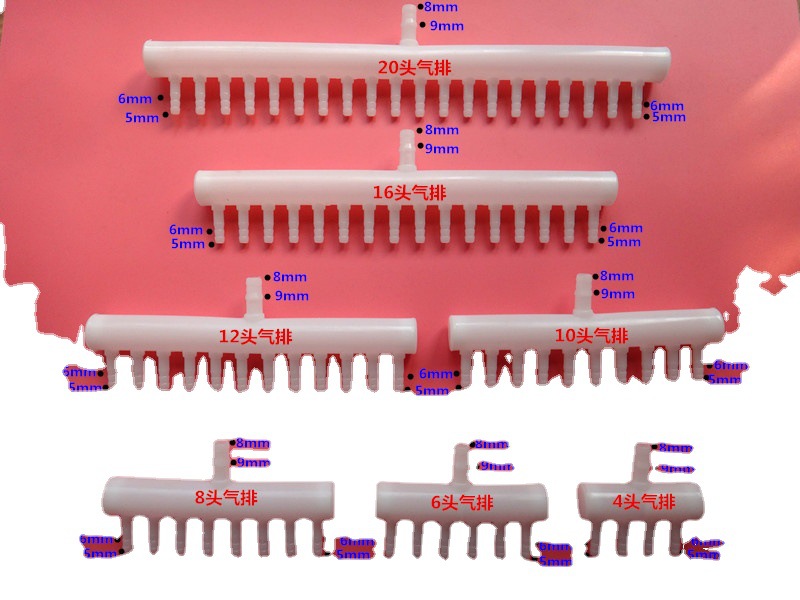

氣排；2頭,4頭,6頭,8頭10頭,12頭,14頭,16頭,20頭 ;小口徑：4.5mm，大口徑：4mm 6mm，8mm，10mm，12mm
註：4mm三通，表示對應較管的內徑是4mm，既4*6的管子的專用接頭.
